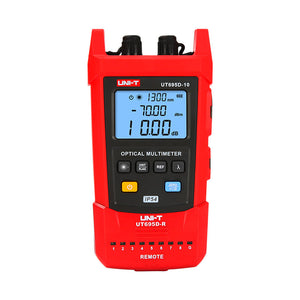

UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a digital display reading 1300nm, -70.00 dBm, and 0.00 dB, with control buttons and RJ45 indicators.

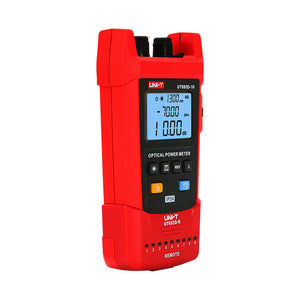

UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a digital display with 1300nm, -70.00 dBm, and 0.00 dB, with function buttons and remote port.

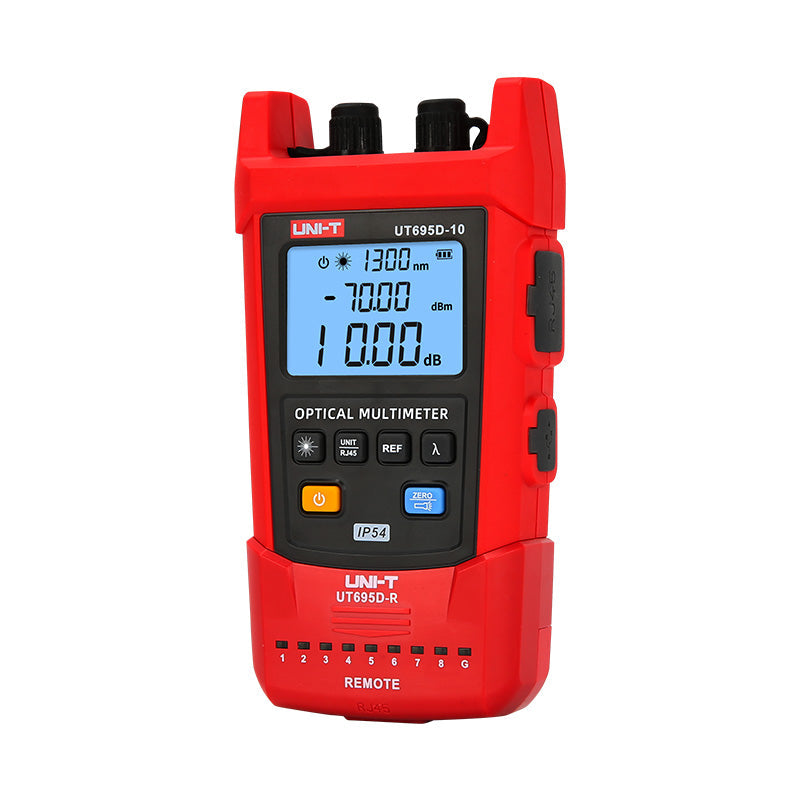

UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a digital display reading 1300nm, -70.00 dBm, and 0.00 dB, with control buttons and RJ45 ports.

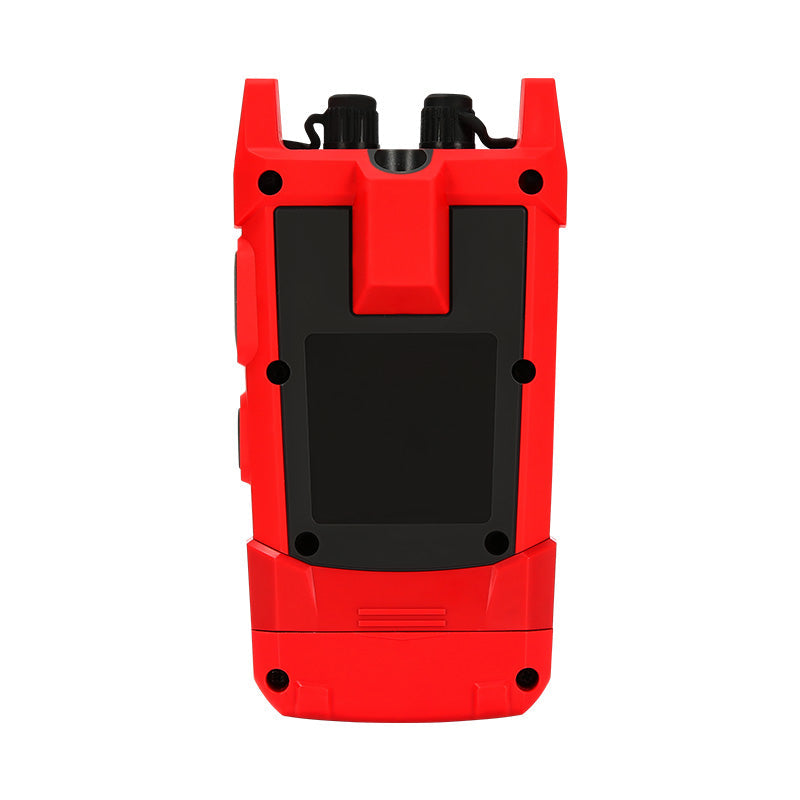

UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - the back view of the red and black handheld device with a blank screen and two top ports.

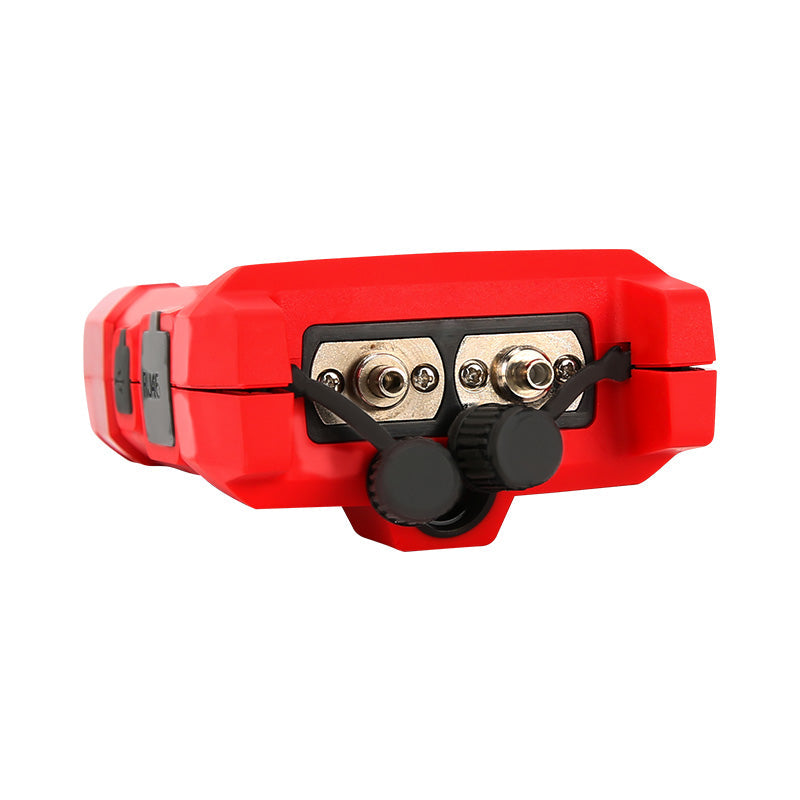

UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a close-up of the red device's top panel showing two metal optical ports with black protective rubber dust caps.

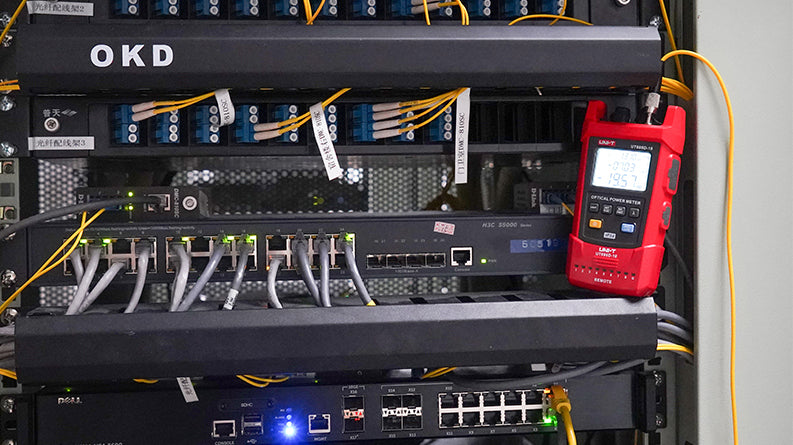

UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a red handheld device with a digital display showing -0103 and 1957, connected to fiber optic cables in a server rack.

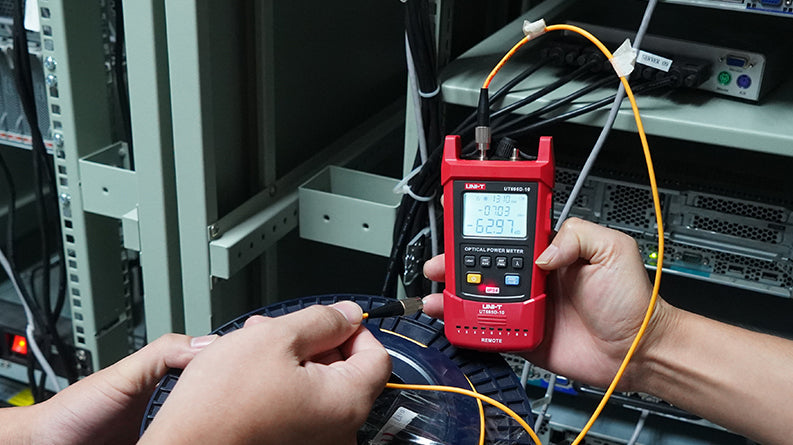

UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a red handheld device with a digital display reading -62.97, held while testing an orange fiber optic cable.
Sold out
UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a digital display reading 1300nm, -70.00 dBm, and 0.00 dB, with control buttons and RJ45 indicators.
UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a digital display with 1300nm, -70.00 dBm, and 0.00 dB, with function buttons and remote port.
UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a digital display reading 1300nm, -70.00 dBm, and 0.00 dB, with control buttons and RJ45 ports.
UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - the back view of the red and black handheld device with a blank screen and two top ports.
UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a close-up of the red device's top panel showing two metal optical ports with black protective rubber dust caps.
UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a red handheld device with a digital display showing -0103 and 1957, connected to fiber optic cables in a server rack.
UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable - a red handheld device with a digital display reading -62.97, held while testing an orange fiber optic cable.

UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable

Sale price Rs 11,550
SKU: UT695D-10
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

UNI-T UT695D-10 is a multifunction optical multimeter combining a fibre optical power meter (-70~3 dBm, 800–1700 nm), a 10 mW visual fault locator, a LAN-cable sequence test and a flashlight in one rechargeable handheld. Genuine UNI-T supplied by Digilog.pk with manual and warranty.

Key Features

  • Optical power meter: -70~3 dBm, 800–1700 nm, InGaAs detector, ±5% uncertainty
  • Calibrated at 850/980/1300/1310/1490/1550/1625/1650 nm
  • Built-in 10 mW VFL (650 nm) — traces fibre ~8–10 km
  • LAN cable line-sequence test (LED1–8, LED_G); LED flashlight
  • FC / SC / ST connectors; 1050 mAh rechargeable battery, USB
  • Compact 168 g handheld

Technical Specifications

Power Meter Range -70~3 dBm
Wavelength 800–1700 nm
Detector InGaAs
Uncertainty ±5%
VFL 650 nm, 10 mW
Connector FC / SC / ST
Extras LAN sequence test, flashlight
Power 1050mAh Li-ion (USB)
Weight 168 g

What's in the Box

  • UT695D-10 optical multimeter
  • FC/SC/ST connectors
  • USB cable
  • English user manual
  • Gift box

Downloads

Certifications: CE, RoHS | HS Code: 9030.89
