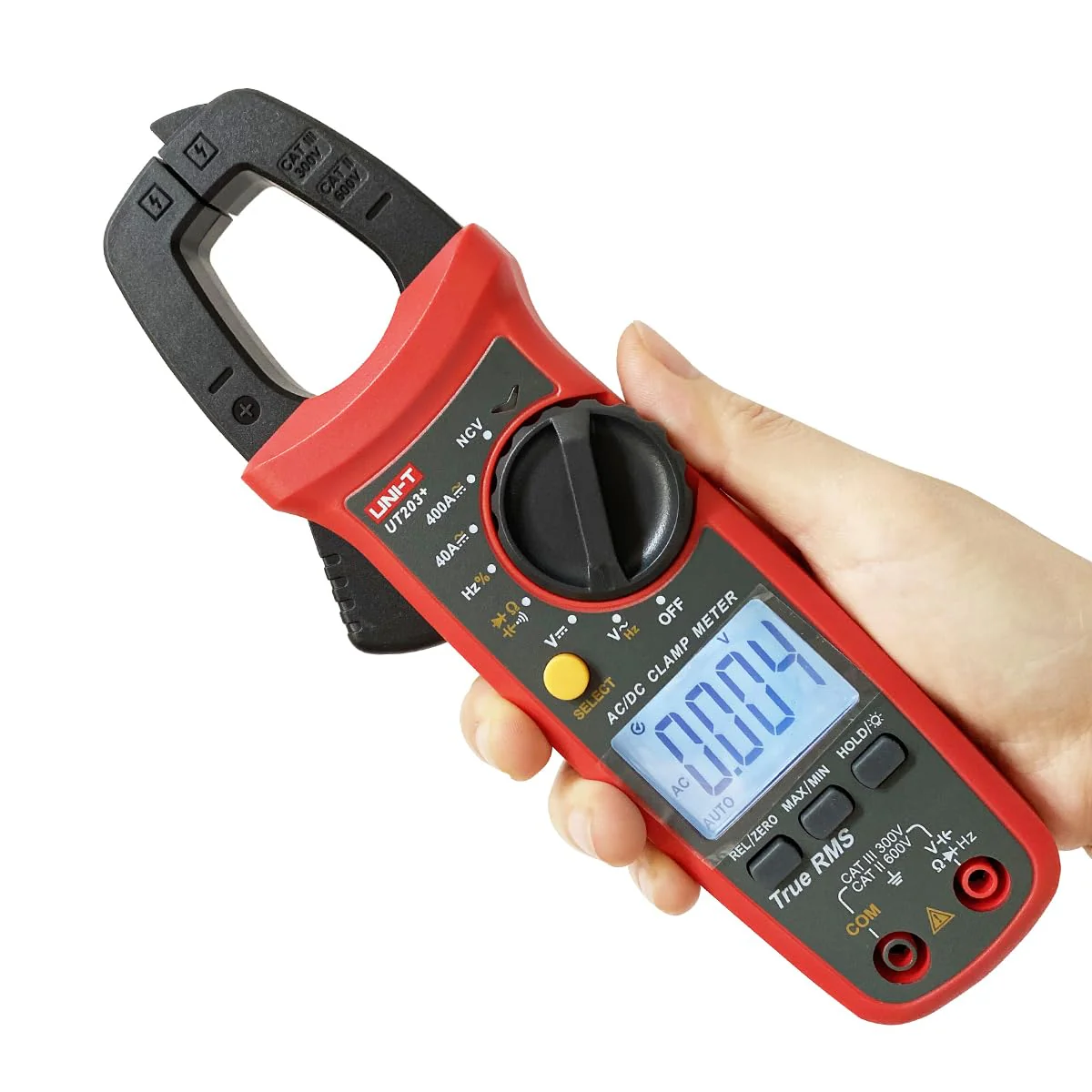

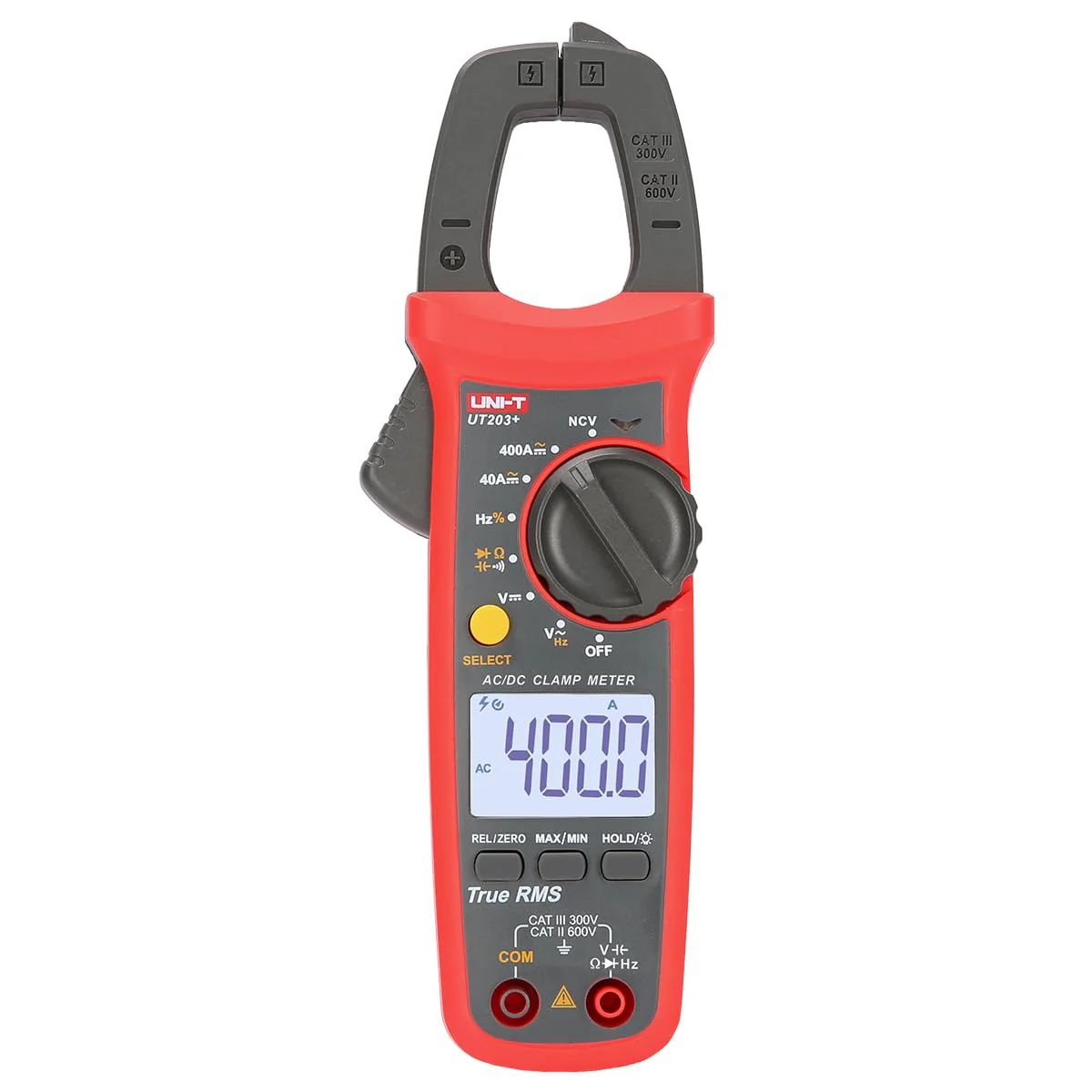

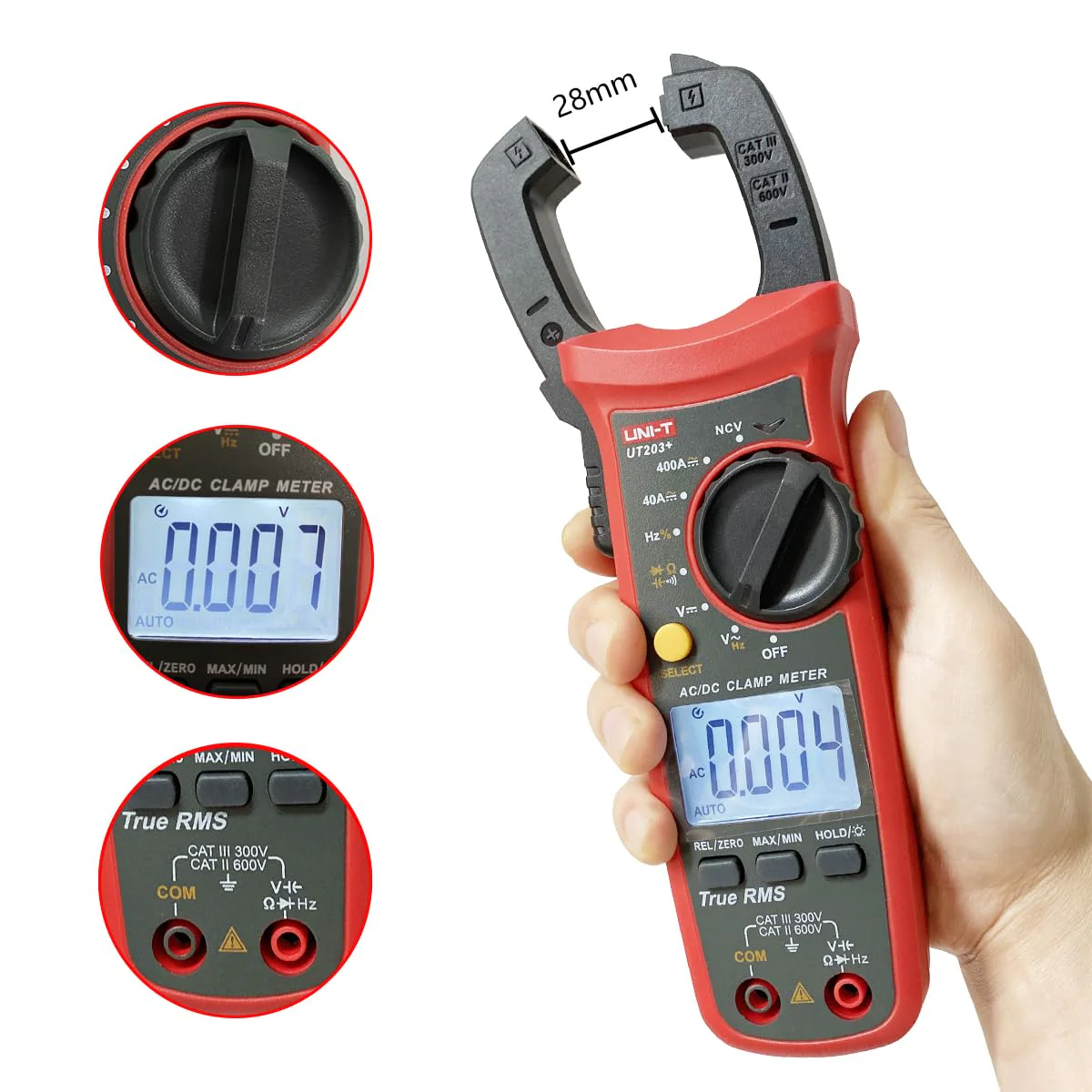

UNI-T UT203+ Digital AC DC Clamp Meter True RMS 400A in Pakistan
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT203+ — Professional True RMS AC/DC Digital Clamp Meter for Pakistani electricians, engineers, aur BSEE students. Ek hi meter mein AC current, DC current, voltage, resistance, capacitance, aur frequency — sab kuch!

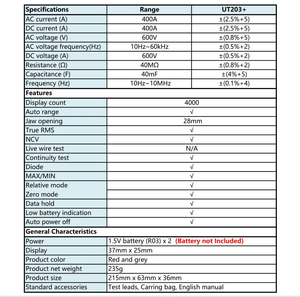

Specifications
| Parameter | Range | Accuracy |
|---|---|---|
| Model | UNI-T UT203+ | — |
| AC Current | 400A | ±(2.5%+5) |
| DC Current | 400A | ±(2.5%+5) |
| AC Voltage | 600V | ±(0.8%+5) |
| DC Voltage | 600V | ±(0.5%+2) |
| AC Voltage Frequency | 10Hz – 60kHz | ±(0.5%+2) |
| Resistance | 40MΩ | ±(0.8%+2) |
| Capacitance | 40mF | ±(4%+5) |
| Frequency | 10Hz – 10MHz | ±(0.1%+4) |
| Display Count | 4000 | — |
| Jaw Opening | 28mm | — |
| True RMS | Yes | — |
| NCV Detection | Yes | — |
| Auto Range | Yes | — |
| Continuity Test | Yes (Buzzer) | — |
| Diode Test | Yes | — |
| MAX/MIN Hold | Yes | — |
| Data Hold | Yes | — |
| Relative Mode | Yes | — |
| Zero Mode | Yes | — |
| Auto Power Off | Yes | — |
| Safety Rating | CAT III 300V / CAT II 600V | — |
| Power Supply | 1.5V R03 (AAA) × 2 — Battery NOT Included | — |
| Display Size | 37mm × 25mm | — |

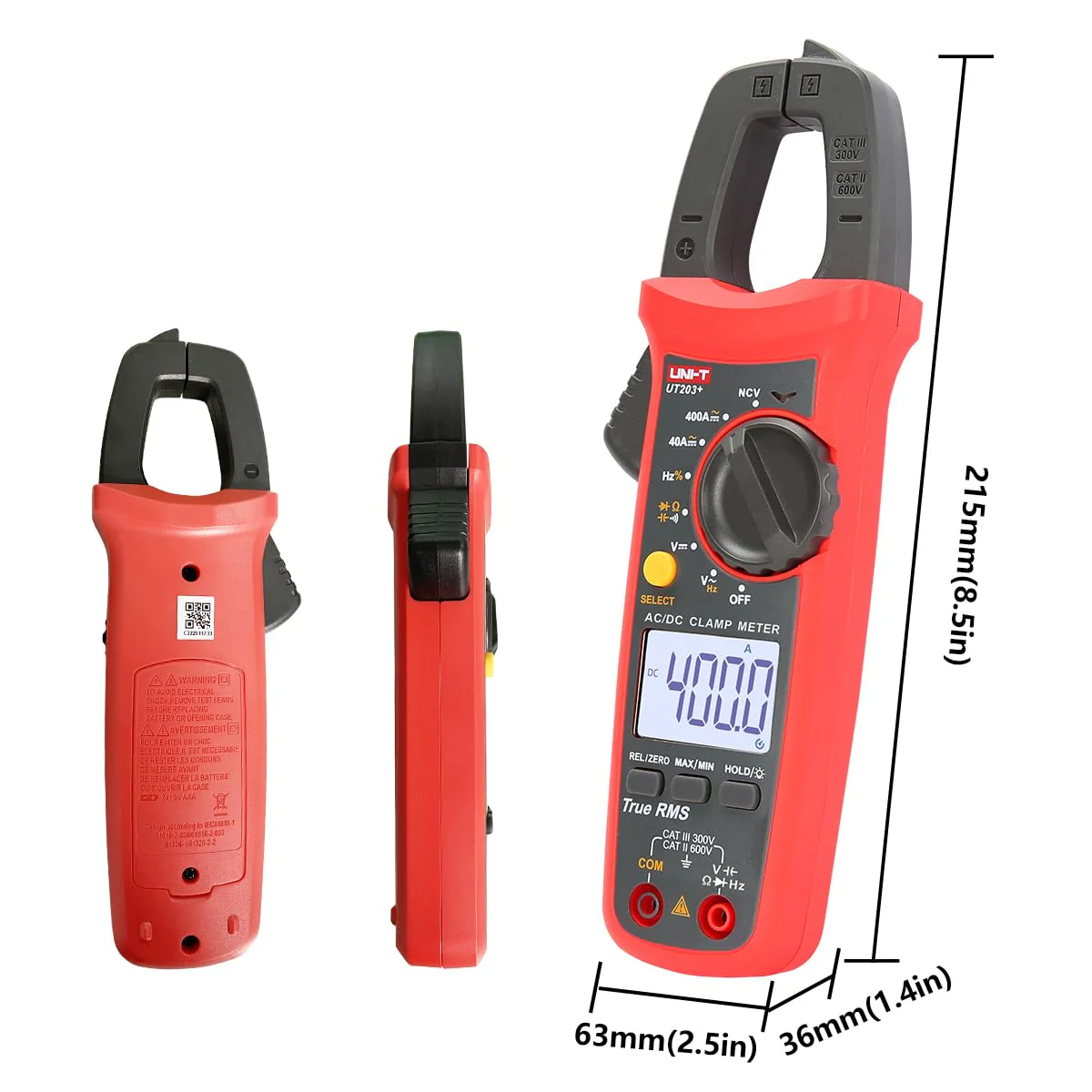

| Product Size | 215mm × 63mm × 36mm | — |
| Net Weight | 235g | — |
| Color | Red and Grey | — |

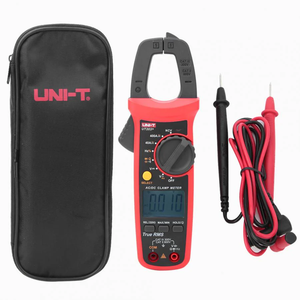

| Accessories | Test Leads, Carrying Bag, English Manual | — |
Kahan Use Hota Hai (Use Cases)
- 🏠 Ghar ki AC/DC wiring check karna — Bina wire kaat ke live current safely measure karein
- 🏭 Industrial panel & 3-phase motor testing — High current loads aur distribution boards ki monitoring
- ⚡ UPS, inverter & solar system troubleshooting — DC current aur AC output dono measure hota hai
- 🎓 BSEE/BSCS FYP projects — Load analysis, power factor measurement, aur circuit verification
- 🔧 HVAC, motor & compressor testing — Starting current aur running current dono check karein
Kaise Use Karein (How to Use)
AC Current Measurement:
1. Dial → 400A~ (ya 40A~ for lower range)
2. Trigger dabao → jaw open karo → single conductor ke around close karo
3. LCD pe auto-range reading dekhen
DC Current Measurement:
1. Dial → 400A= position
2. REL/ZERO button dabao → zero set karo
3. Jaw conductor ke around lagao → reading lo
NCV (Non-Contact Voltage):
1. Dial → NCV
2. Meter tip live wire ke paas le jao
3. Beep + LED flash = voltage present hai
AC/DC Voltage (Test Leads):
1. Red lead → V terminal, Black → COM
2. Dial → V~ (AC) ya V= (DC)
3. Probes circuit ke across lagao
Capacitance:
1. Dial → F (capacitance)
2. Capacitor leads → V aur COM terminals
3. Reading auto-range mein aayegi
FAQ
Q: Kya UT203+ DC current bhi measure kar sakta hai?
A: Yes! Unlike most basic clamp meters, the UT203+ measures both AC and DC current up to 400A via the clamp jaw. Use REL/ZERO to null out any offset before measuring DC.
Q: Kya yeh True RMS hai? Inverter ke saath kaam karega?
A: Yes — True RMS gives accurate readings on non-sinusoidal waveforms like inverter output, VFDs, and switching power supplies. Average-responding meters give wrong readings on these.
Q: Battery included hai?
A: No — 2 × AAA (R03 1.5V) batteries required, NOT included. Alag se leni hongi.
Q: Kya yeh 3-phase industrial wiring ke liye safe hai?
A: Yes — CAT III 300V / CAT II 600V rated. Most residential and light industrial applications ke liye suitable hai Pakistan mein.
📦 Fast delivery across Pakistan | Cash on Delivery available | digilog.pk
Similar Products

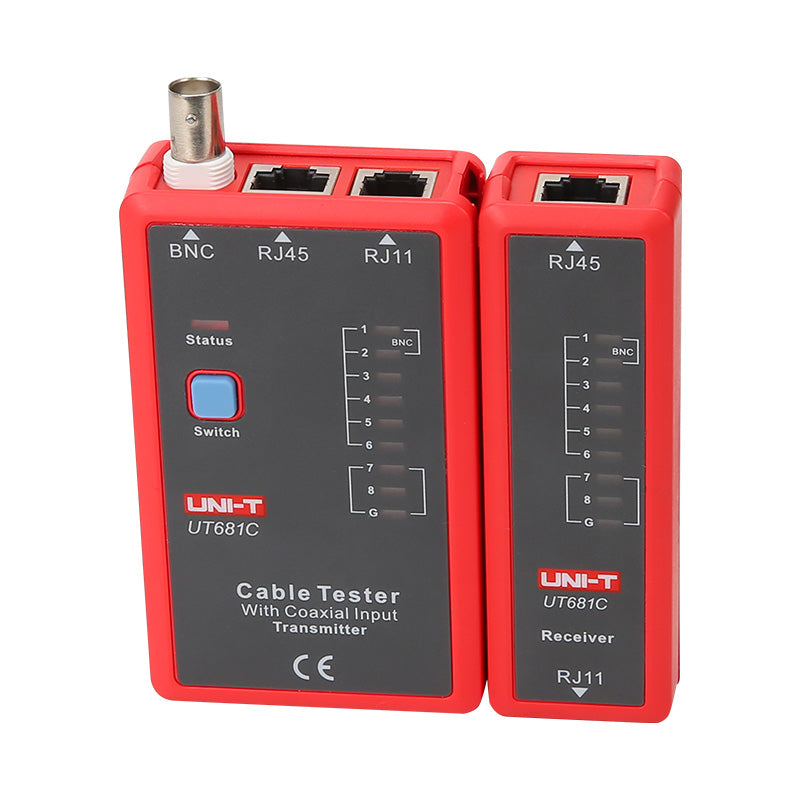

UNI-T UT681C Network Cable Tester – RJ45 / RJ11 / BNC, Fast/Slow/Scan/Full Test Modes, 19-LED, Open/Short/Crossover, LAN Coax Ethernet Tester
UNI-T A12T Temperature & Humidity Meter – 4.5" LCD, External Probe, -10~50°C, 20~95%RH, Comfort Rating, Clock

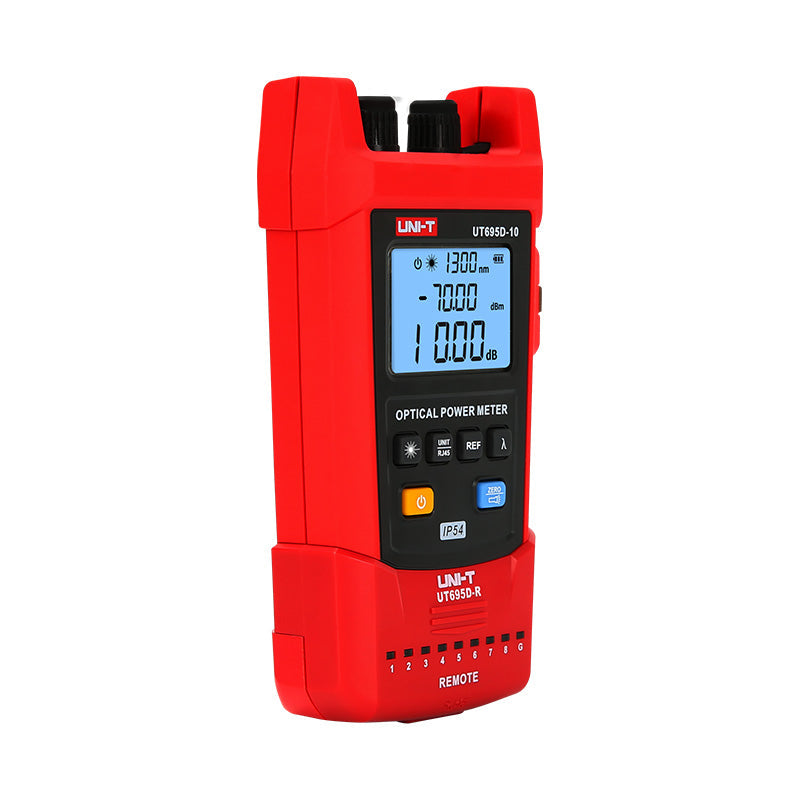

UNI-T UT695D-10 Optical Multimeter – Fiber Power Meter (-70~3dBm, 800–1700nm) + 10mW VFL + LAN Cable Test + Flashlight, FC/SC/ST, Rechargeable
