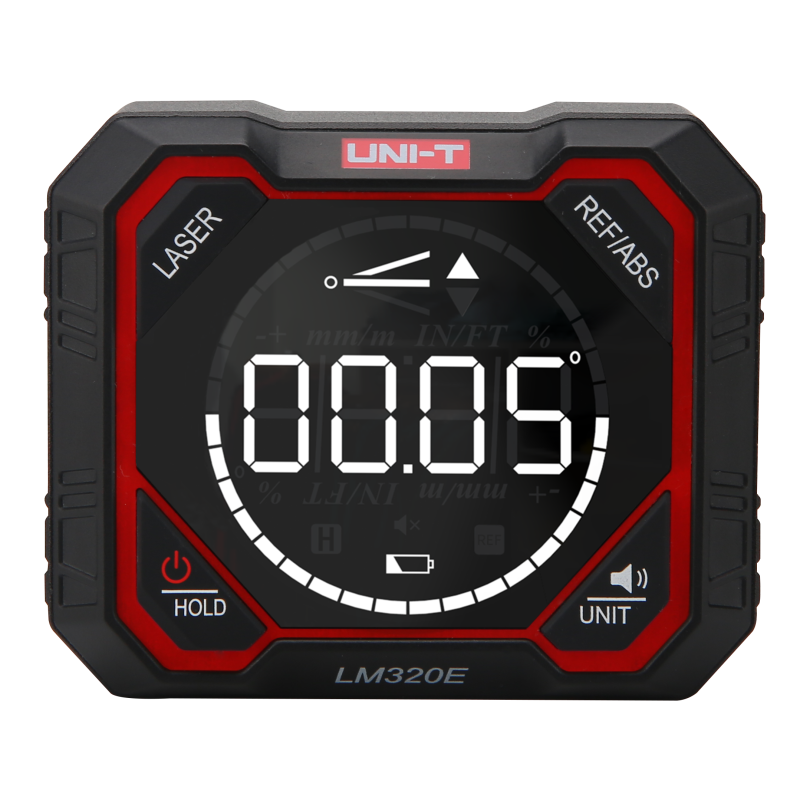

UNI-T LM320E Digital Laser Angle Meter – 4×90°, ±0.2°, 3 Laser Lines, Two-Sided Magnetic, Rechargeable
The UNI-T LM320E is a digital laser angle meter (inclinometer) measuring angles across 4×90° (360°) at ±0.2° and projecting 3 laser lines — extra guide lines over the LM320D for faster layout in tiling, carpentry, staircases and installation.
It reads in degrees, %, mm/m and in/ft, has relative/absolute measurement, angle hold and screen rotation, and a two-sided magnetic base. A rechargeable 1000 mAh battery gives up to 8 hours. Genuine UNI-T product supplied by Digilog.pk with warranty and English manual.
Key Features
- 📐 4×90° (360°) range, ±0.2° accuracy, 0.05° resolution
- 🔦 3 laser lines to project the angle (±3 mm/5 m)
- 🧲 Two-sided magnetic base (bottom & rear)
- 🔁 Relative/absolute angle, angle hold, screen rotation
- 📊 Units °, %, mm/m, in/ft; Al-alloy + ABS body
- 🔋 Rechargeable 1000 mAh — up to 8 h
Technical Specifications
| Measurement range | 4 × 90° (360°) |
|---|---|
| Resolution | 0.05° |
| Angle accuracy | ±0.2° |
| Repeatability | ±0.2° |
| Units | ° / % / mm·m⁻¹ / in·ft⁻¹ |
| Laser lines | 3 lines |
| Laser accuracy | ±3 mm / 5 m |
| Laser | Class 2, 630–670 nm, <1 mW |
| Magnetic base | Two-sided (bottom & rear) |
| Battery | 1000 mAh lithium (rechargeable) |
| Battery life | ~8 h |
| Working temperature | 0 °C ~ 50 °C |
What's in the Box
- LM320E digital laser angle meter
- USB charging cable
- English user manual
Downloads
Certifications: CE | HS Code: 9031.80
