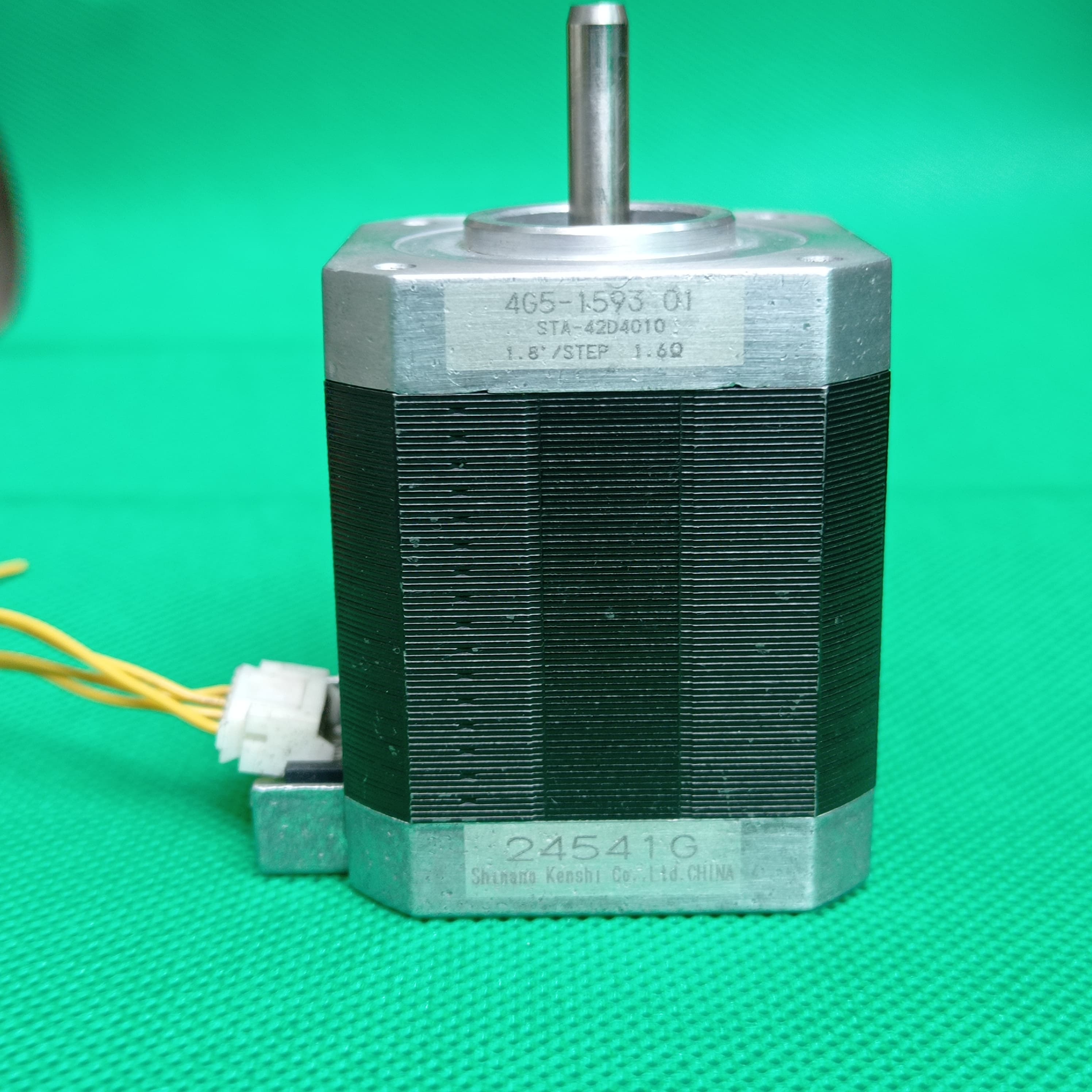

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - a silver and black cylindrical unit with a metal shaft, featuring a white connector with yellow wires on a green background.

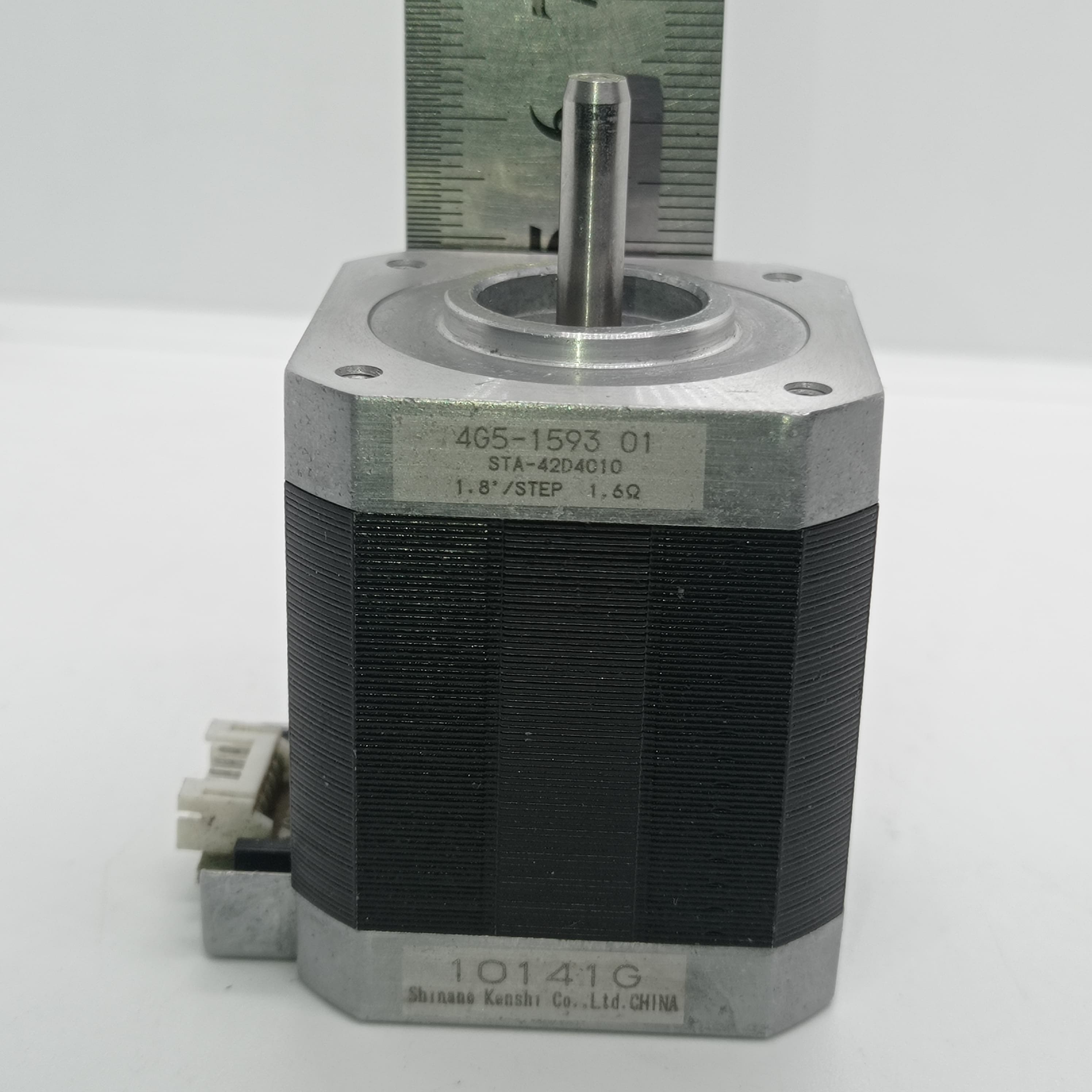

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - a silver metal shaft, a black body with a label reading 4G5-1593 01, and a white electrical connector on the side.

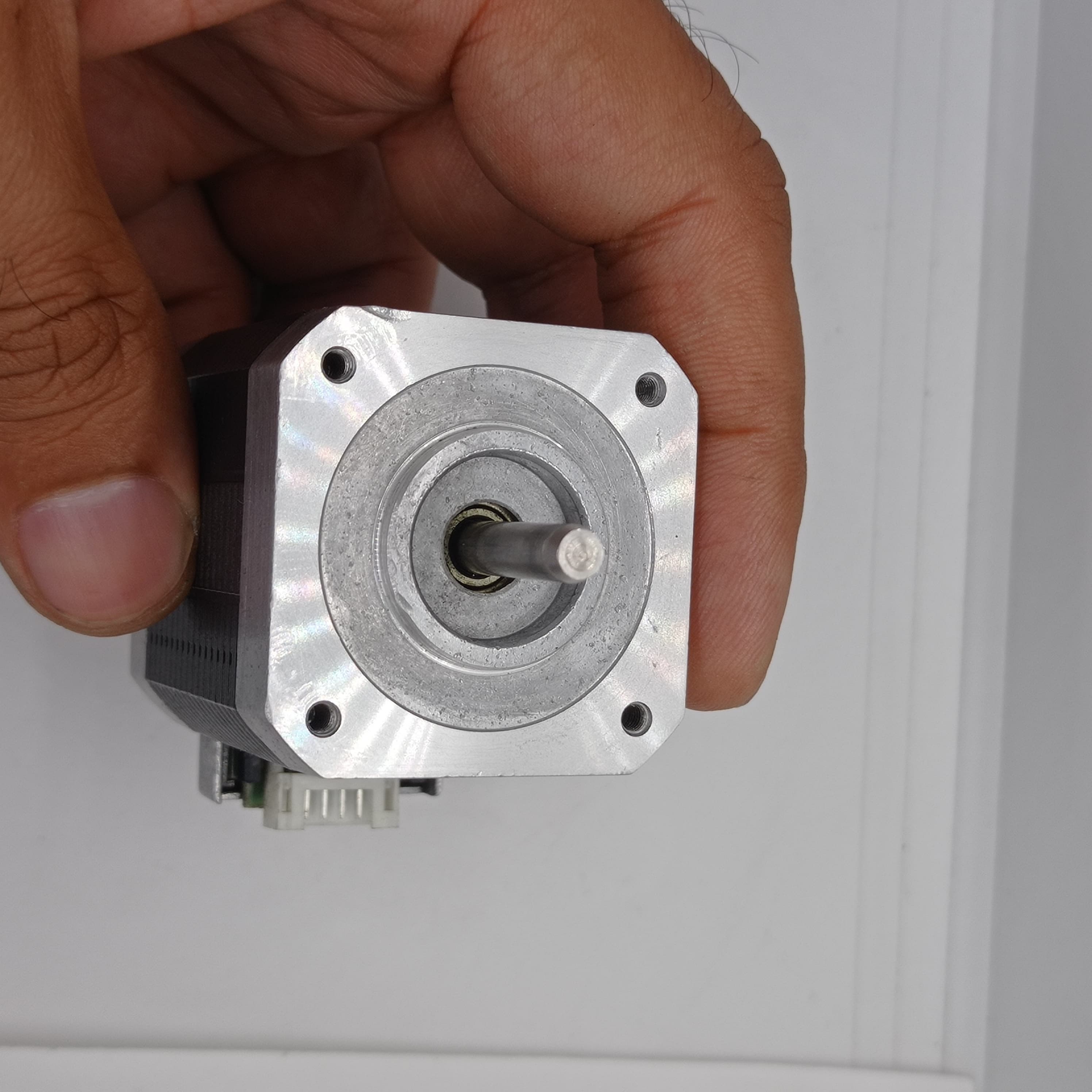

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - close-up view of the silver metal front face, circular mounting flange, central rotating shaft, and connector.

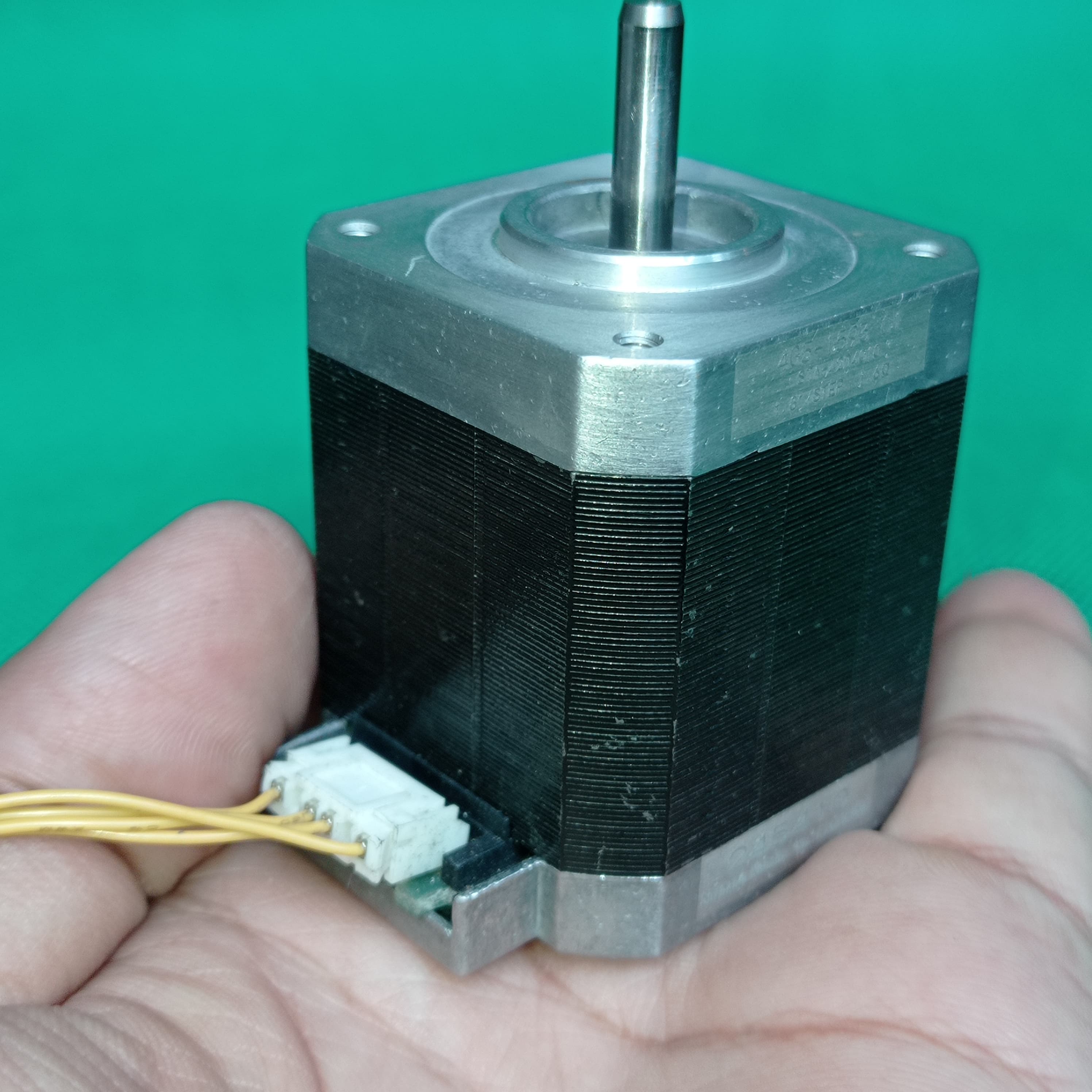

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - its black square body, silver top plate with a metal shaft, and a white connector port.

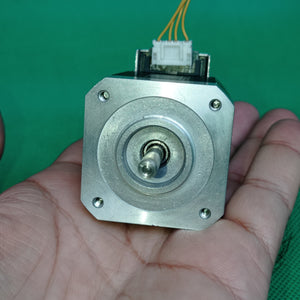

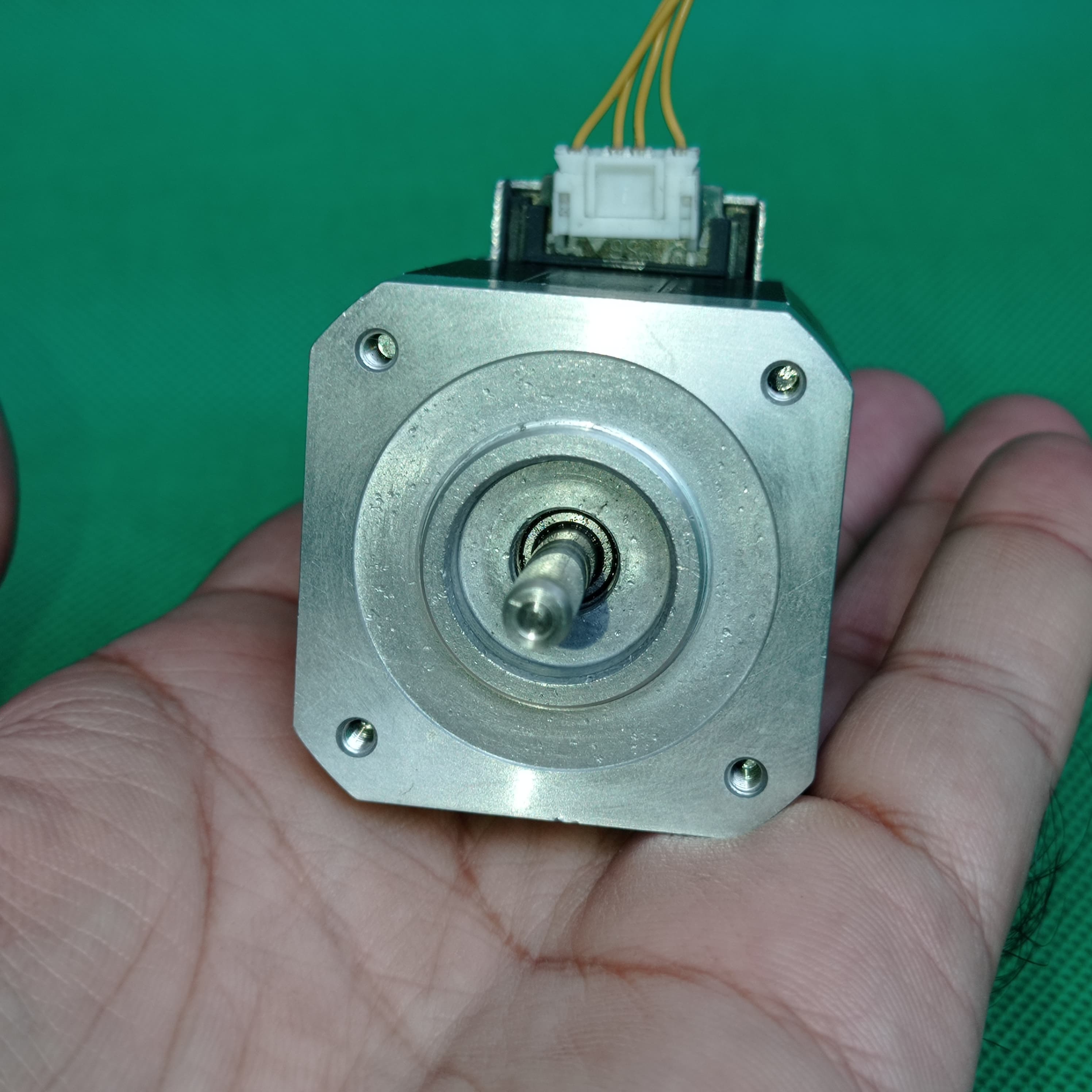

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - a silver square-bodied motor with a central shaft and a white electrical connector with yellow wires.

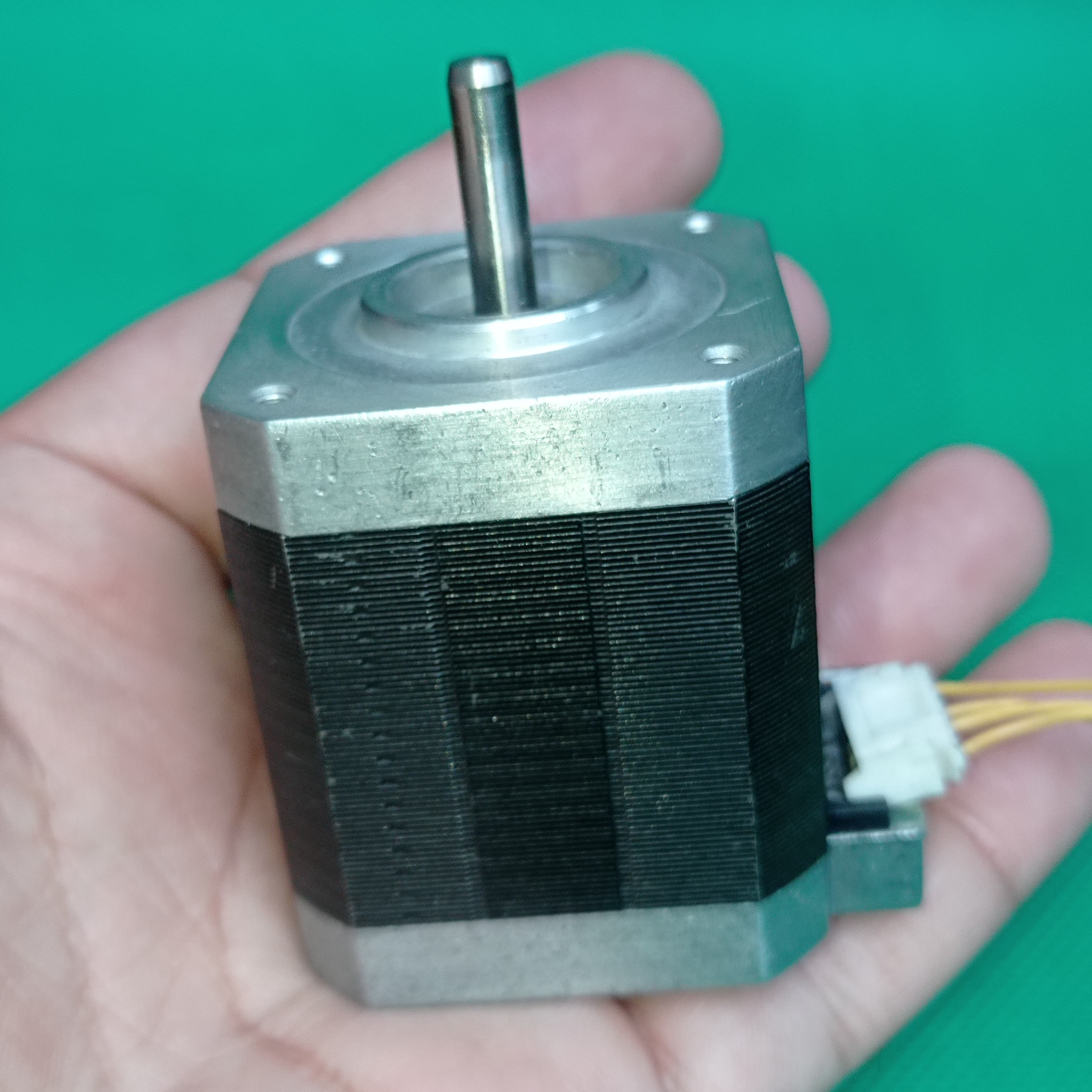

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - a silver metal body, a cylindrical shaft, and a white electrical connector with wires.

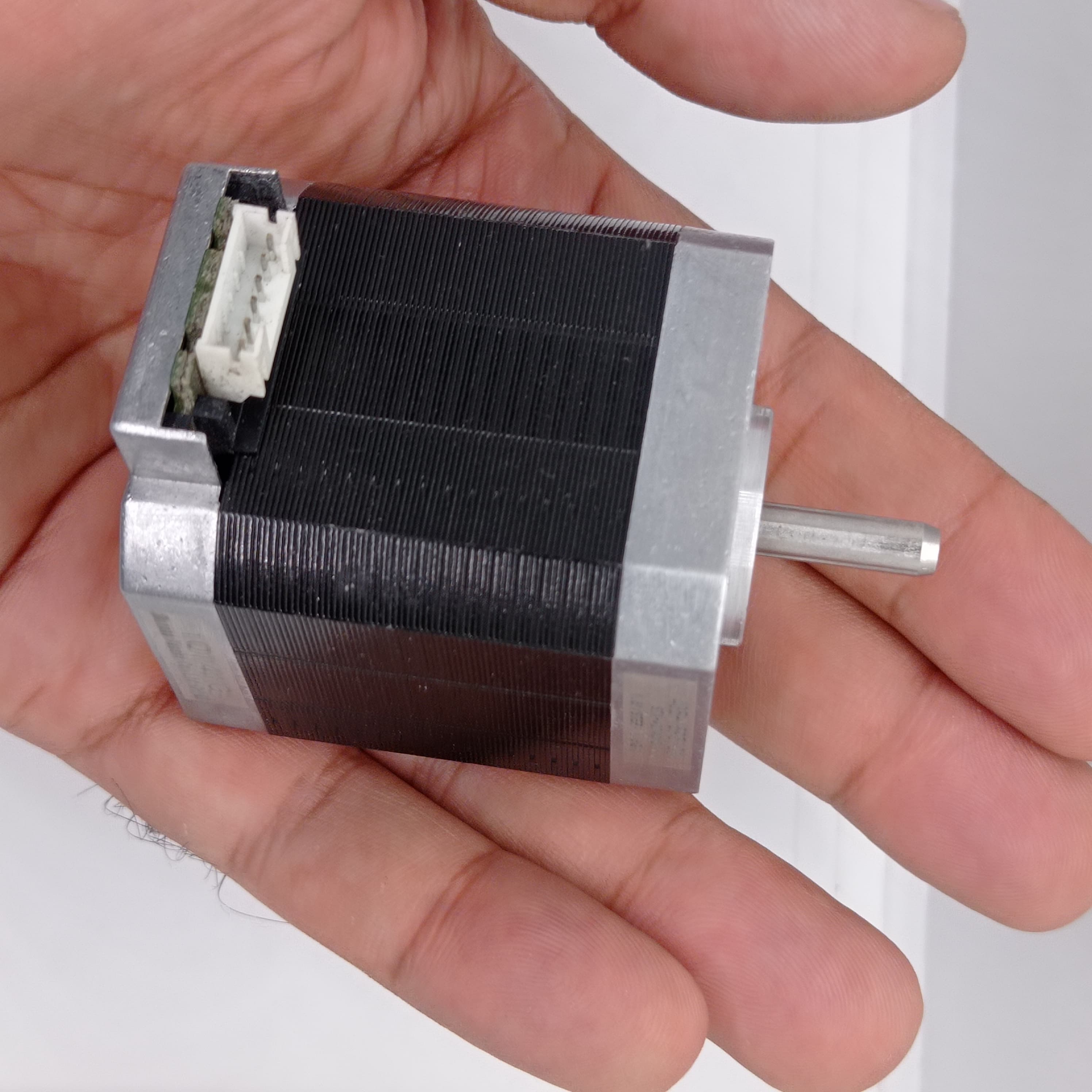

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - its black square body, silver metal ends, a rotating shaft, and a white electrical connector.

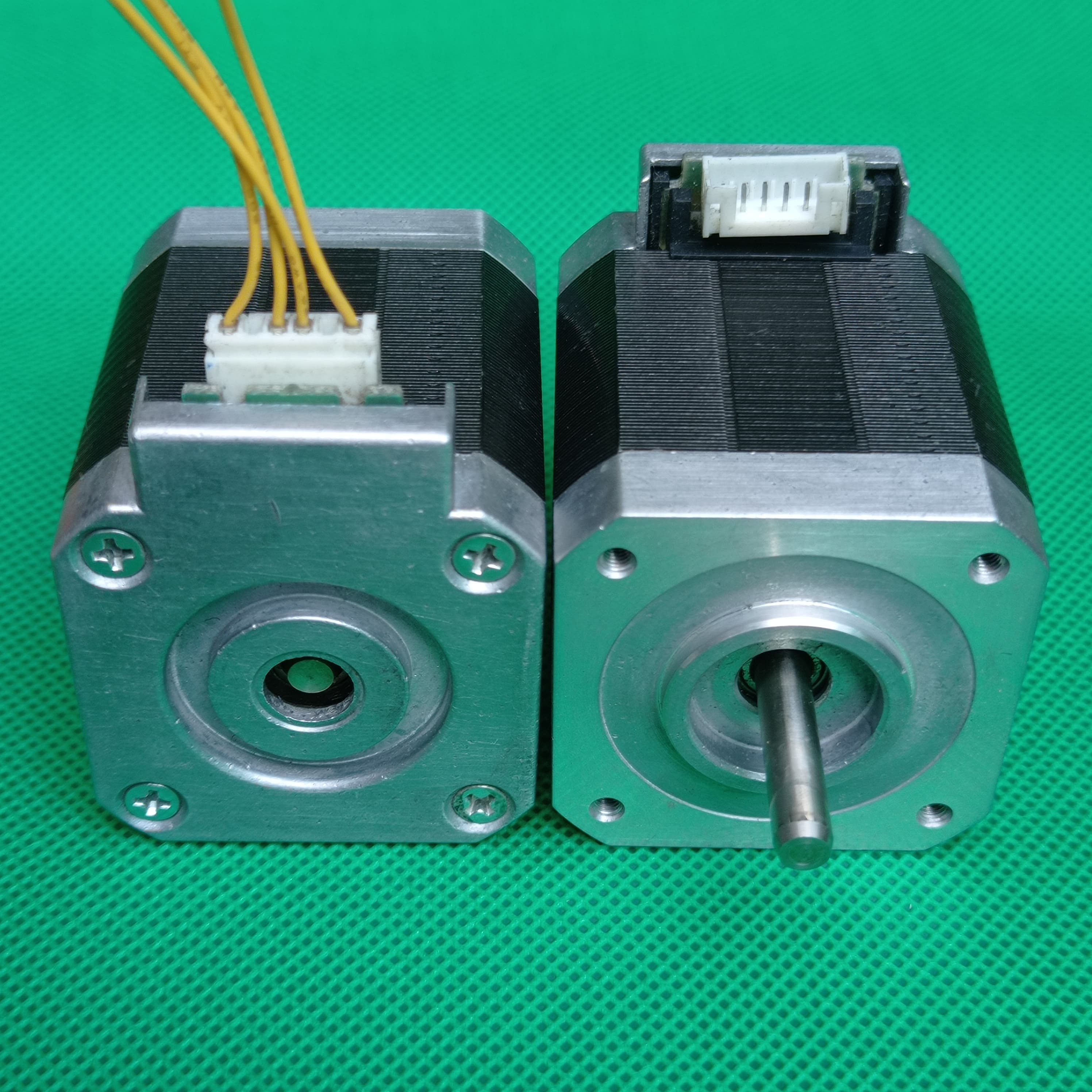

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - two silver and black square-bodied units with white 4-pin connectors and one protruding metal shaft.

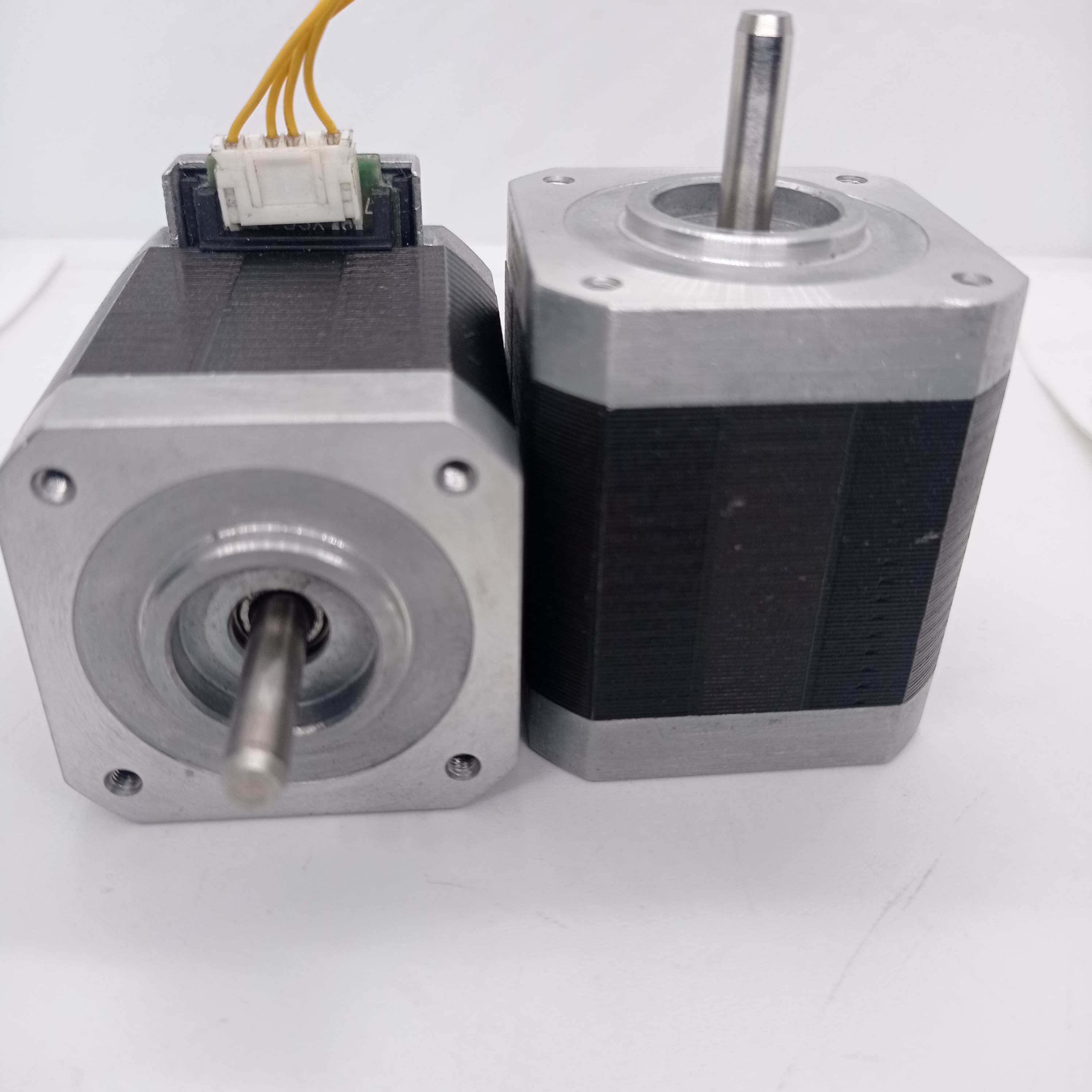

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - two silver and black square-bodied motors, one with a white electrical connector and yellow wires attached.

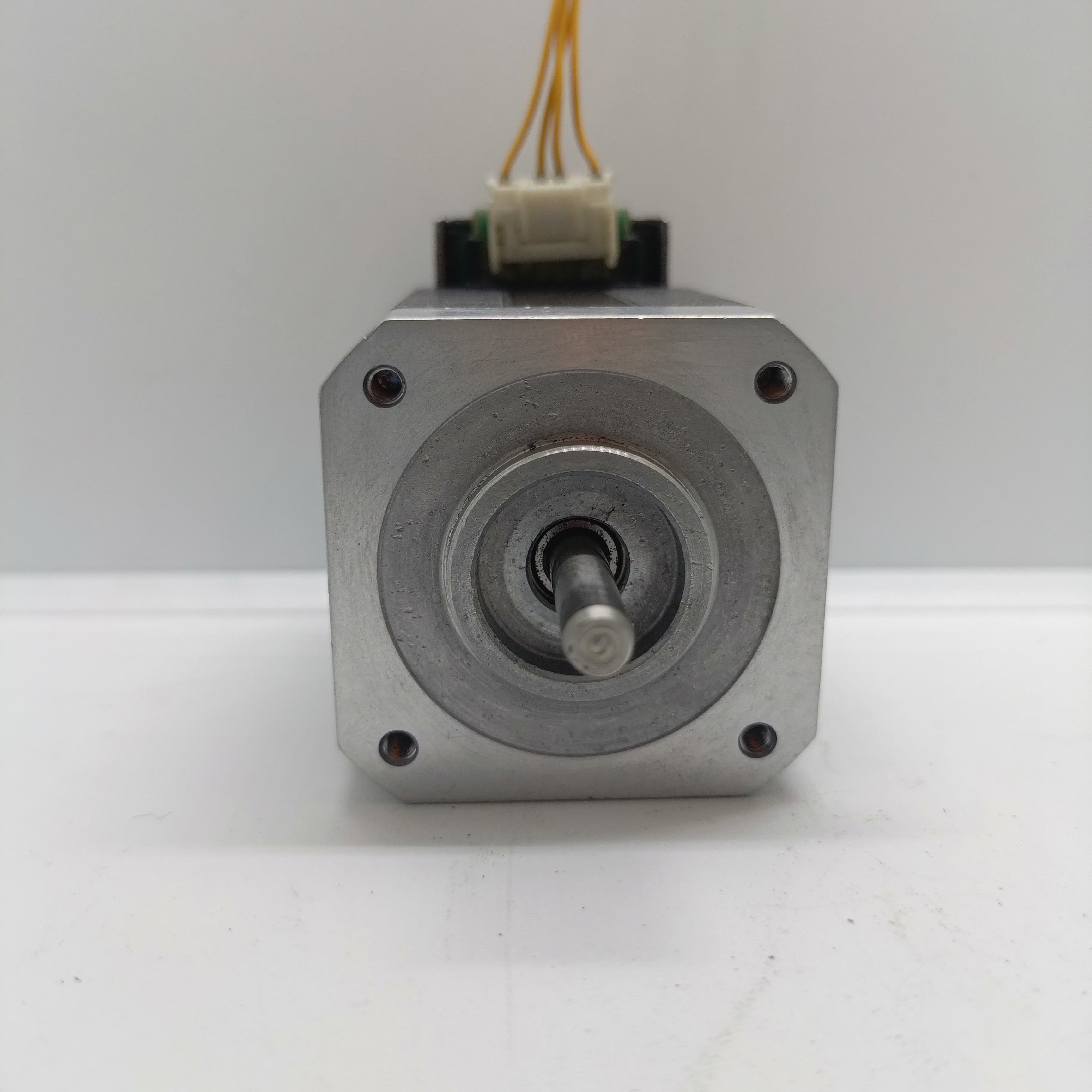

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - the silver square front face, central rotating shaft, four mounting holes, and a top white wire connector.

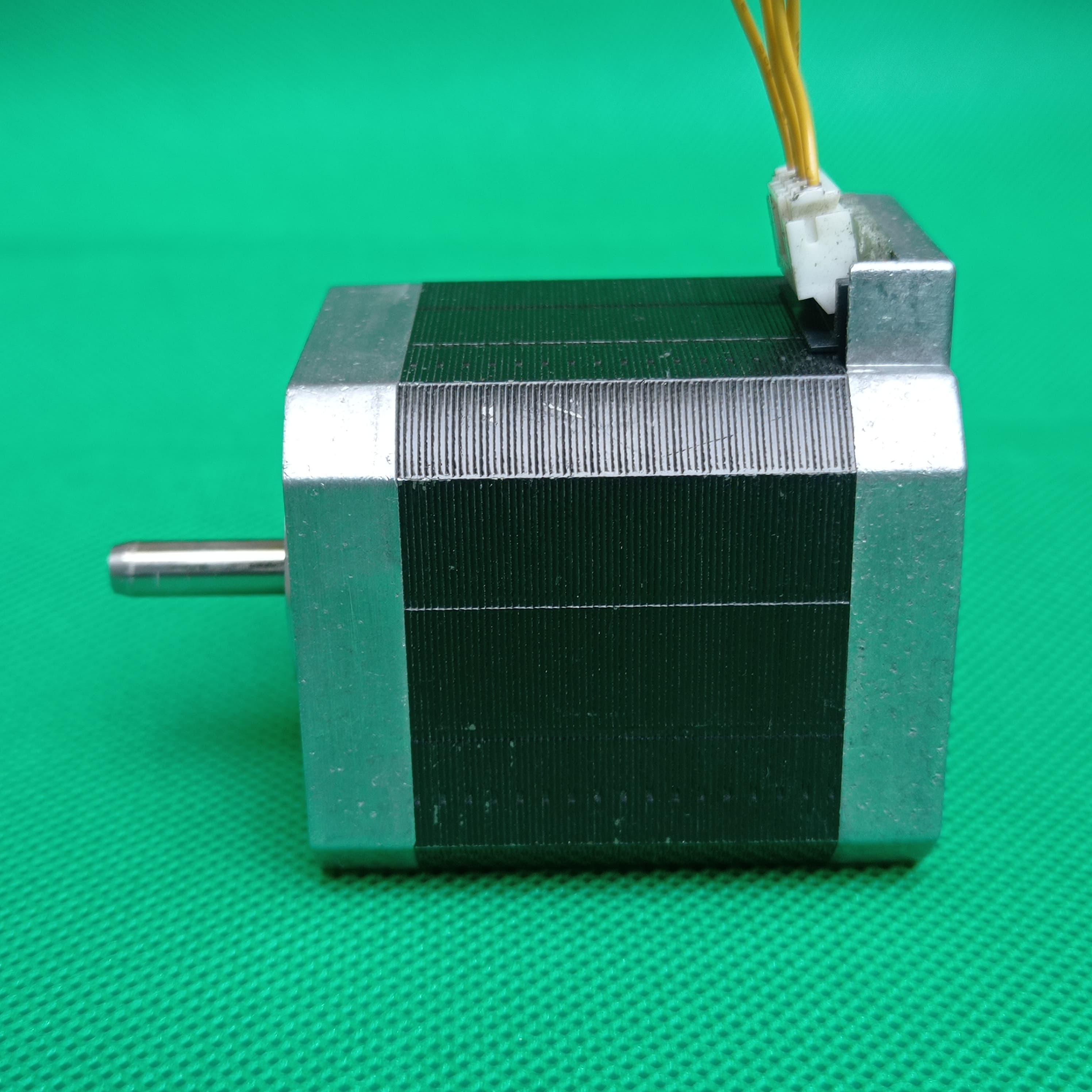

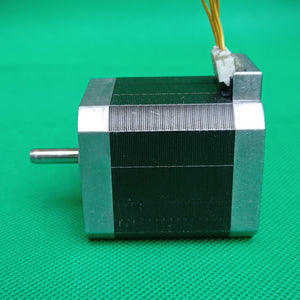

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - a silver and black square-bodied motor with a protruding metal shaft and a white four-pin connector on top.
Sold out
Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - a silver and black cylindrical unit with a metal shaft, featuring a white connector with yellow wires on a green background.
Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - a silver metal shaft, a black body with a label reading 4G5-1593 01, and a white electrical connector on the side.
Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - close-up view of the silver metal front face, circular mounting flange, central rotating shaft, and connector.
Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - its black square body, silver top plate with a metal shaft, and a white connector port.
Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - a silver square-bodied motor with a central shaft and a white electrical connector with yellow wires.
Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - a silver metal body, a cylindrical shaft, and a white electrical connector with wires.
Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - its black square body, silver metal ends, a rotating shaft, and a white electrical connector.
Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - two silver and black square-bodied units with white 4-pin connectors and one protruding metal shaft.
Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - two silver and black square-bodied motors, one with a white electrical connector and yellow wires attached.
Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - the silver square front face, central rotating shaft, four mounting holes, and a top white wire connector.
Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor - a silver and black square-bodied motor with a protruding metal shaft and a white four-pin connector on top.

Shinano Kenshi STP-42D4042 2A 1.8 Degree Per Step 0.53nm Stepper Motor

Sale price Rs 1,820
SKU: b165
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

The Shinano Kenshi brand NEMA17 stepper motor Model STP-42D4042 is a compact and powerful motor designed for automation equipment like 3d printer and CNC OR Any linear motion.
 specifications and features of :

  1. Brand Name: Shinano Kenshi
  2. Model Number: STP-42D4042
  3. Current per Phase: DC 2.0A/Phase
  4. Product Name: Shinano Kenshi 0.53Nm stepper motor NEMA17
  5. Application: Ideal for various automation applications, including robotics, CNC machines, 3D printers, and more.
  6. Supply Power: Operates within a voltage range of 12-24VDC.
  7. Resistance: The motor has a resistance of 1.6 Ohms.
  8. Inductance: With an inductance of 4.0mH, it provides smooth motion control.
  9. Lead Configuration: Equipped with 4 leads for flexible wiring options.
  10. Shaft Diameter: The motor’s shaft has a diameter of 5.0mm.
  11. Motor Length: Compact design with a length of 49.5mm.
  12. Weight: Lightweight at 0.38g, making it suitable for applications where weight matters.
  13. Packaging and Delivery: Sold as a single item. The motor is packaged in a box with dimensions of 20x10x15 cm and a gross weight of 1.000 kg.

The Shinano Kenshi NEMA17 stepper motor combines reliability, precision, and ease of use, making it an excellent choice for automation projects. Whether you’re building a 3D printer or enhancing your CNC machine, this motor delivers consistent performance.
