NEMA34 NEMA 34 8nm Torque 100mm Stepper Motor For 3d Printer & CNC
Frequently Bought Together
Customers building this project usually buy these together.
Pickup available at Digilog Electronics
Usually ready in 2 hours

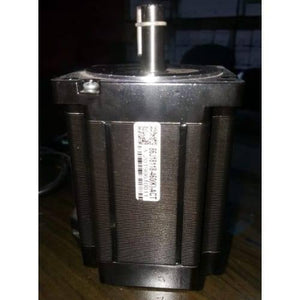

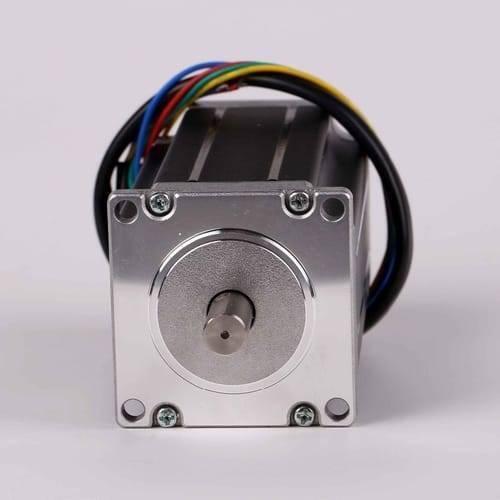

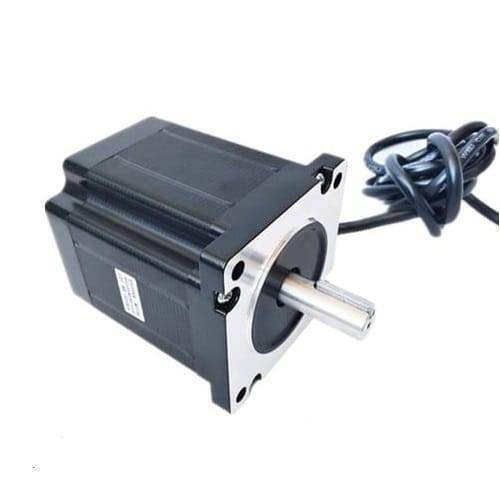

NEMA 34 100mm Stepper Motor is a high torque hybrid bipolar stepping motor with a 3.4×3.4 inch faceplate. NEMA 34 100mm Stepper Motor, Hybrid stepper has the combination of the features of the Variable Reluctance Stepper Motor and Permanent Magnet Stepper Motor. This motor has a step angle of 1.8 deg., which means that it has 200 steps per revolution and for every step, it will cover 1.8°. This NEMA 34 is a 2-Phase motor with 4 wires. Compatible controllers for this motor are CW230, CW250, and CW860.
Features of Nema 34 100mm Stepper Motor:
- High performance, low price
- Supply voltage from 24VDC
- Overvoltage, under voltage, overcorrect, phase short circuit protection
- Offline command input terminal
- Motor torque is related to speed, but not related to step/revolution
- High start speed
- High holding torque under high speed
Specifications of Nema 34 100mm Stepper Motor:
- Body Length: 100mm
- Shaft Length: 30mm
- Shaft Size: 10mm
- Ampere: 6AMP

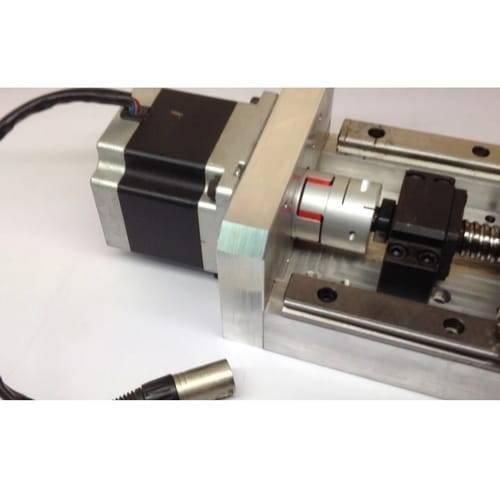

Stepper Motor Applications:
- CNC machines
- Precise control machines
- 3D printer/prototyping machines (e.g. RepRap)
- Laser cutters
- Pick and place machines
Package Includes:
- 1 x Nema 34 100mm Stepper Motor
