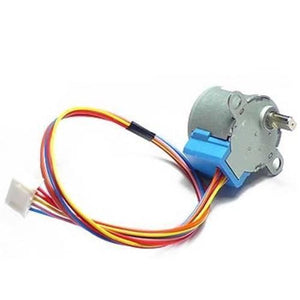

DC 12V 4 Phase Hq Gear Stepper Motor 28BYJ-48 - a silver cylindrical motor with a blue plastic base, a metal shaft, and a multi-colored wire harness.

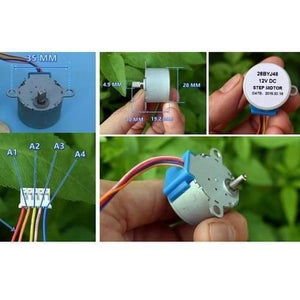

DC 12V 4 Phase Hq Gear Stepper Motor 28BYJ-48 - shown in a multi-panel image displaying its dimensions, wiring connector, and label specifications.
Sold out
DC 12V 4 Phase Hq Gear Stepper Motor 28BYJ-48 - a silver cylindrical motor with a blue plastic base, a metal shaft, and a multi-colored wire harness.
DC 12V 4 Phase Hq Gear Stepper Motor 28BYJ-48 - shown in a multi-panel image displaying its dimensions, wiring connector, and label specifications.

DC 12V 4 Phase Hq Gear Stepper Motor 28BYJ-48

Sale price Rs 360
SKU: B264,S,IMP50,TH25
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Mainly used in Air Conditioner Louver, Small Cooling/Heating Fan,  DIY projects Stable and all technical parameters are qualified for the national electronic standard of SJ/T10689-95.

Specifications:

  • Rated voltage :12VDC
  • Shaft: 13mm , Diameter: 5mm
  • Number of Phase : 4
  • Speed Variation Ratio : 1/64
  • Stride Angle : 5.625° /64
  • Frequency : 100Hz
  • DC resistance : 60O±7%(25?)
  • Idle In-traction : 300Hz
  • Idle Out-traction : 500Hz
  • In-traction Torque : >34.3mN.m(120Hz)
  • Self-positioning Torque :>34.3mN.m
  • Friction torque : 800-1300 gf.cm
  • Pull in torque : =350 gf.cm
  • Insulated resistance : >10MO(500V)
  • Insulated electricity power :600VAC/1mA/1s
  • Insulation grade :A
  • Rise in Temperature  <55K(120Hz)
  • Noise  <35dB(120Hz,No load,10cm)
  • Model : 24BYJ-48

Package Includes:

  • 1 x DC 12V 4 Phase HQ Gear Stepper Motor 24BYJ-48
