ADDITIONAL SUPPLIES KIT Makers Space IT Lab Punjab Government eproc.punjab.gov.pk here are list of required products.

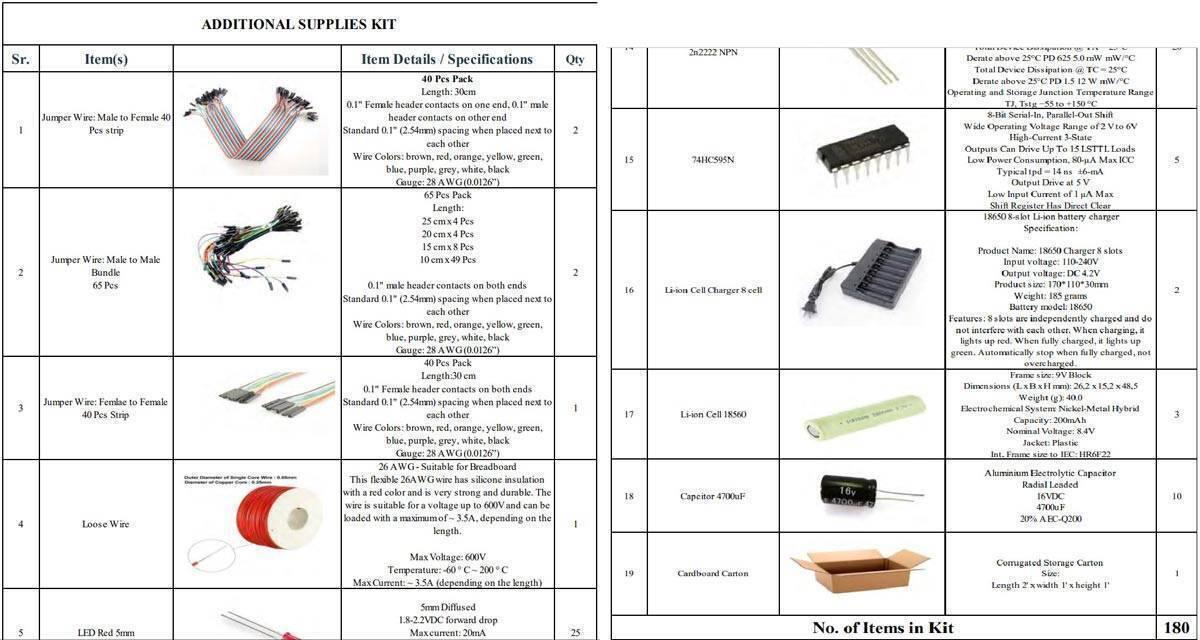

| ADDITIONAL SUPPLIES KIT | ||||||||||||||||||||||||||
| Sr. | Item(s) | Item Details / Specifications | Qty | |||||||||||||||||||||||
| 1 | Jumper Wire: Male to Female 40 Pcs strip | 40 Pcs Pack Length: 30cm 0.1" Female header contacts on one end, 0.1" male header contacts on other end Standard 0.1" (2.54mm) spacing when placed next to each other Wire Colors: brown, red, orange, yellow, green, blue, purple, grey, white, black Gauge: 28 AWG (0.0126”) |
2 | |||||||||||||||||||||||
| 2 | Jumper Wire: Male to Male Bundle 65 Pcs |
|
65 Pcs Pack Length: 25 cm x 4 Pcs 20 cm x 4 Pcs 15 cm x 8 Pcs 10 cm x 49 Pcs 0.1" male header contacts on both ends Standard 0.1" (2.54mm) spacing when placed next to each other Wire Colors: brown, red, orange, yellow, green, blue, purple, grey, white, black Gauge: 28 AWG (0.0126”) |
2 | ||||||||||||||||||||||
| 3 | Jumper Wire: Femlae to Female 40 Pcs Strip | 40 Pcs Pack Length:30 cm 0.1" Female header contacts on both ends Standard 0.1" (2.54mm) spacing when placed next to each other Wire Colors: brown, red, orange, yellow, green, blue, purple, grey, white, black Gauge: 28 AWG (0.0126”) |
1 | |||||||||||||||||||||||
| 4 | Loose Wire | 26 AWG - Suitable for Breadboard This flexible 26AWG wire has silicone insulation with a red color and is very strong and durable. The wire is suitable for a voltage up to 600V and can be loaded with a maximum of ~ 3.5A, depending on the length. Max Voltage: 600V Temperature: -60 ° C ~ 200 ° C Max Current: ~ 3.5A (depending on the length) |
1 | |||||||||||||||||||||||
| 5 | LED Red 5mm |
|
5mm Diffused 1.8-2.2VDC forward drop Max current: 20mA Suggested using current: 16-18mA Luminous Intensity: 150-200 mcd |
25 | ||||||||||||||||||||||
| 6 | LED Green 5mm |
|
5mm Diffused 1.8-2.2VDC forward drop Max current: 20mA Suggested using current: 16-18mA Luminous Intensity: 150-200 mcd |
25 | ||||||||||||||||||||||
| 7 | LED Blue 5mm | 5mm Diffused 1.8-2.2VDC forward drop Max current: 20mA Suggested using current: 16-18mA Luminous Intensity: 150-200 mcd |
25 | |||||||||||||||||||||||
| 8 | LED: RGB | 5mm Diffused 1.8-2.2VDC forward drop Max current: 20mA Suggested using current: 16-18mA Luminous Intensity: 150-200 mcd |
8 | |||||||||||||||||||||||
| 9 | RESISTOR 220R (10 Pcs Pack) |
|
220 Ohm Resistance 10pcs pack 1/4 Watt PTH Thick Leads Tolerance: +/-5 ohms |
15
|
||||||||||||||||||||||
| 10 | RESISTOR 1K (10 Pcs Pack) |
|
1 kilo Ohm Resistance 10pcs pack 1/4 Watt PTH Thick Leads Tolerance: +/-5 ohms |
15 | ||||||||||||||||||||
| 11 | RESISTOR 10K (10 Pcs Pack) |
|
10 kilo Ohm Resistance 10pcs pack 1/4 Watt PTH Thick Leads Tolerance: +/-5 ohms |
15 | ||||||||||||||||||||
| 12 | Potentiometer 50k |
|
1x Rotary Potentiometer - 50k Ohm, Logarithmic 1x Mounting Nut 1x Washer Electrical Characteristics Taper: Linear, audio Standard Resistance Range: 1K - 10K ohms Standard Resistance Tolerance: ±20 % Residual Resistance: 1 % max. Environmental Characteristics Operating Temperature ...-10 °C to +50 °C Power Rating Linear: 0.2 watt Dual Section: 0.125 watt Audio: 0.1 watt Dual Section: 0.06 watt Maximum Operating Voltage Linear : 200 V Audio: 150 V Sliding Noise: 47 mV max |
6 | ||||||||||||||||||||
| 13 | IN4001 Rectifier Diode |
|
1N4007 Rectifier Diode Low Forward Voltage Drop High surge Current Capability |
20 | ||||||||||||||||||||
| 14 | Transistor 2n2222 NPN |
|
2N2222 NPN Collector−Emitter Voltage 40 Vdc Collector−Base Voltage 75 Vdc Emitter−Base Voltage 6.0 Vdc Collector Current − Continuous IC 600 mAdc Total Device Dissipation @ TA = 25°C Derate above 25°C PD 625 5.0 mW mW/°C Total Device Dissipation @ TC = 25°C Derate above 25°C PD 1.5 12 W mW/°C Operating and Storage Junction Temperature Range TJ, Tstg −55 to +150 °C |
20 | ||||||||||||||||||||
| 15 | 74HC595N |
|
8-Bit Serial-In, Parallel-Out Shift Wide Operating Voltage Range of 2 V to 6V High-Current 3-State Outputs Can Drive Up To 15 LSTTL Loads Low Power Consumption, 80-µA Max ICC Typical tpd = 14 ns ±6-mA Output Drive at 5 V Low Input Current of 1 µA Max Shift Register Has Direct Clear |
5 | ||||||||||||||||||||
| 16 | Li-ion Cell Charger 8 cell | 18650 8-slot Li-ion battery charger Specification: Product Name: 18650 Charger 8 slots Input voltage: 110-240V Output voltage: DC 4.2V Product size: 170*110*30mm Weight: 185 grams Battery model: 18650 Features: 8 slots are independently charged and do not interfere with each other. When charging, it lights up red. When fully charged, it lights up green. Automatically stop when fully charged, not overcharged. |
2 | |||||||||||||||||||||
| 17 | Li-ion Cell 18560 |
|
Frame size: 9V Block Dimensions (L x B x H mm): 26,2 x 15,2 x 48,5 Weight (g): 40.0 Electrochemical System: Nickel-Metal Hybrid Capacity: 200mAh Nominal Voltage: 8.4V Jacket: Plastic Int. Frame size to IEC: HR6F22 |
3 | ||||||||||||||||||||
| 18 | Capcitor 4700uF | Aluminium Electrolytic Capacitor Radial Leaded 16VDC 4700uF 20% AEC-Q200 |
10 | |||||||||||||||||||||
| 19 | Cardboard Carton | Corrugated Storage Carton Size: Length 2' x width 1' x height 1' |
1 | |||||||||||||||||||||
| No. of Items in Kit | 180 | |||||||||||||||||||||||
