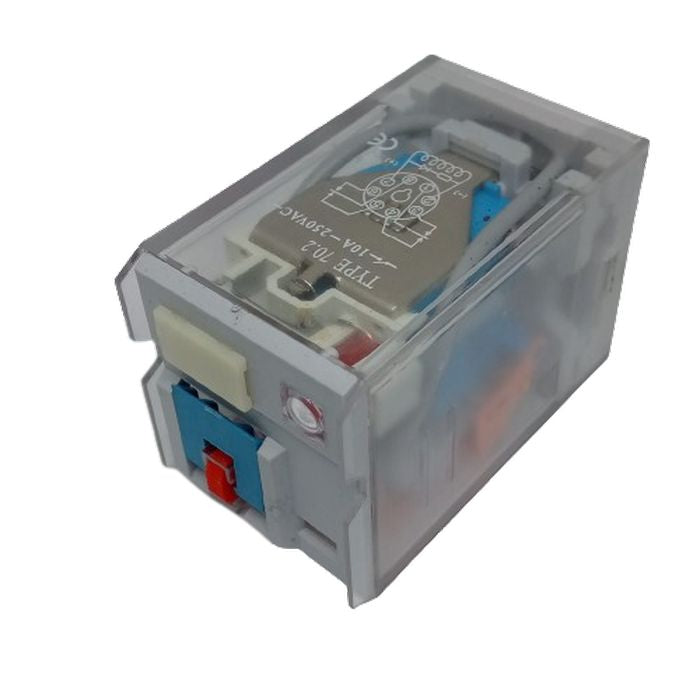

Finder Relay 12VDC 10A 60.12 With 8pin Rail-mount Relay Socket Relay Base
Pickup available at Digilog Electronics
Usually ready in 2 hours

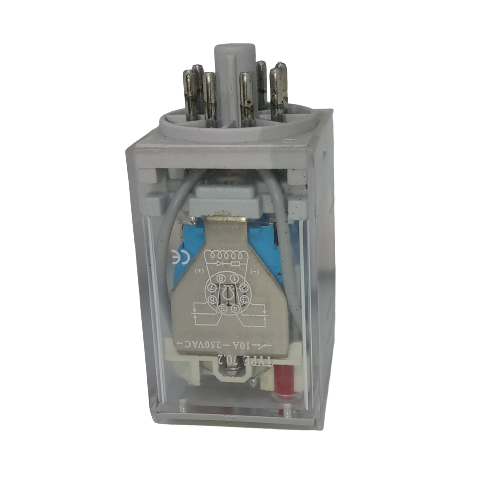

FINDER 12VDC RELAY 60.13 (8 PIN) is an electromagnetic Relay. This 60 series relay has 2CO (DPDT) cadmium-free Agni contacts. Mini Electromagnetic Relay has AC and DC coils. It has a Lockable test button with a mechanical flag. The dual-purpose Finder test button can be used in two ways:
Case1: The plastic pip (located directly above the test button) remains intact. In this case, when the test button is pushed, the contacts operate. When the test button is released the contacts return to their former state.
Case2: The plastic pip is broken-off (using an appropriate cutting tool). In this case, (in addition to the above function), when the test button is pushed and rotated, the contacts are latched in the operating state and remain so until the test button is rotated back to its former position. In both cases ensure that the test button actuation is swift and decisive

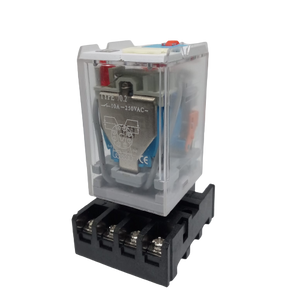

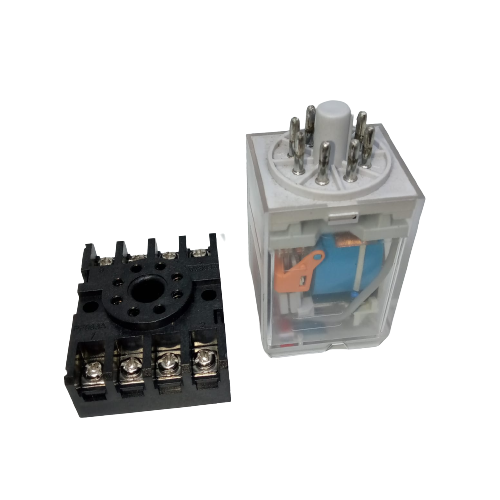

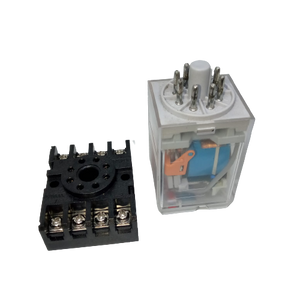

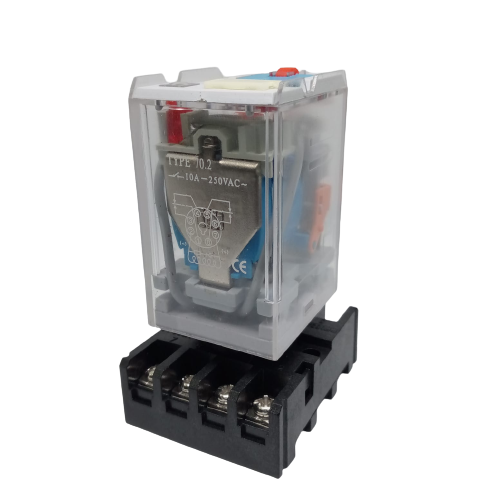

This Finder latching Relay comes with an 8pin Rail-Mount Relay Socket Relay Base
Features Of Mini Electromagnetic Finder Relay 12VDC 60.13 And PVC Base:
- 2 pole changeover contacts
- Cadmium Free contacts (preferred version)
- AC & DC coils, including “current sensing" versions
- UL Listing (certain relay/socket combinations)
- Version with bifurcated contacts for low-level switching
- Contact material options
- Lockable test button with a mechanical flag
- 90 series sockets
- Coil EMC suppression
- Timer accessories 86 series
- Socket base has screw fixed Holes
Specifications Of Finder PlugIn Non-Latching Relay 12VDC 10A switching Current:
- Model: 60.13.9.012.0040
- Type of relay: electromagnetic
- Maximum Switching Voltage AC: 400V ac
- Coil Voltage: 12VDC
- AC contacts rating: 10A / 250V AC
- DC contacts rating: 10A / 30VDC
- Contact current max. : 10A
- Relay variant: Industrial
- Mounting: Socket
- Relay series: 60.13
- Relay dimensions : 36.4 x 32.5 x 54.2mm
- Coil resistance: 445Ω
- Contact material: Agni
- Coil power consumption: 1.3W
- Number of pins of the relay: 8
- Base pins: 8
- Base Mount: DIN mount, screw
- Base Inner: Copper
Package Include:
- 1 x Finder Relay
- 1 x Relay base
Best Online Shopping Website For General Purpose Non-Latching Electromagnetic Finder Relay 12VDC 60.13(8 pins) With 8pin Rail-Mount Relay Socket Relay Base in cheap price in Lahore Islamabad Karachi Faislabad Peshawar Multan Quetta Gujranwala Rawalpindi Sukkur and all over Pakistan
Frequently Bought Together

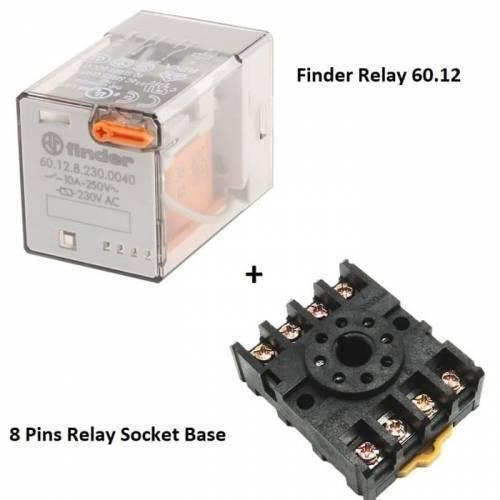

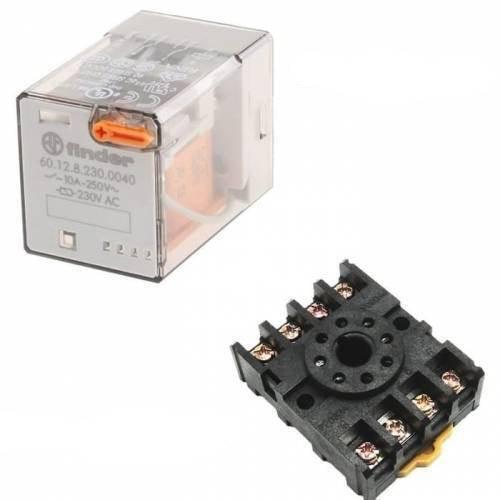

Finder Relay 220VAC 60.12 With 8pin Rail-mount Relay Socket Relay Base
