Raspberry Pi Kit Makers Space It Lab Punjab Government Eproc.punjab.gov.pk
RASPBERRY PI KIT Makers Space IT Lab Punjab Government eproc.punjab.gov.pk here are a list of required products.

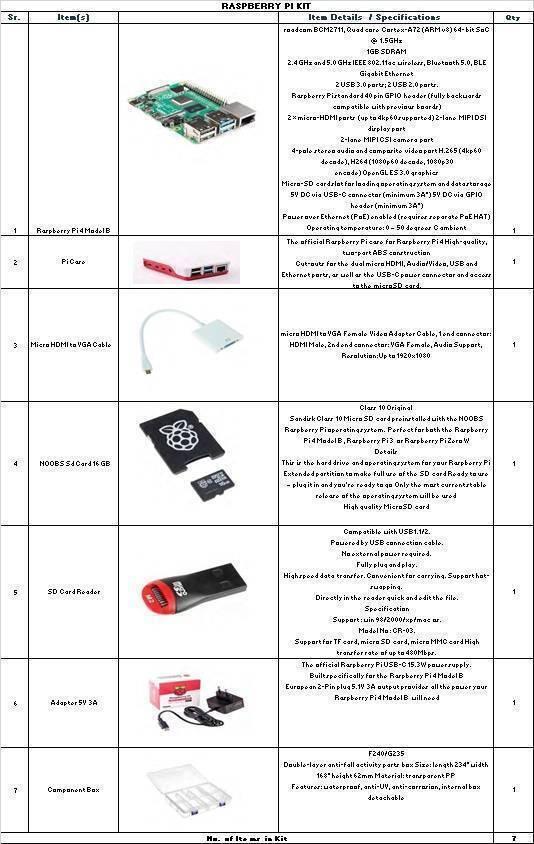

| RASPBERRY PI KIT | |||||||||||||||||||||||
| Sr. | Item(s) | Item Details / Specifications | Qty | ||||||||||||||||||||
| 1 | Raspberry Pi 4 Model B | roadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64- bit SoC @ 1.5GHz 1GB SDRAM 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE Gigabit Ethernet 2 USB 3.0 ports; 2 USB 2.0 ports. Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards) 2 × micro-HDMI ports (up to 4kp60 supported) 2-lane MIPI DSI display port 2-lane MIPI CSI camera port 4-pole stereo audio and composite video port H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode) OpenGL ES 3.0 graphics Micro-SD card slot for loading operating system and data storage 5V DC via USB-C connector (minimum 3A*) 5V DC via GPIO header (minimum 3A*) Power over Ethernet (PoE) enabled (requires separate PoE HAT) Operating temperature: 0 – 50 degrees C ambient |
1 | ||||||||||||||||||||
| 2 | Pi Case | The official Raspberry Pi case for Raspberry Pi 4 High-quality, two-part ABS construction Cut-outs for the dual micro HDMI, Audio/Video, USB, and Ethernet ports, as well as the USB-C power connector and access to the microSD card. |
1 | ||||||||||||||||||||
| 3 | Micro HDMI to VGA Cable | Micro HDMI to VGA Female Video Adapter Cable, 1 end connector: HDMI Male, 2nd end connector: VGA Female, Audio Support, Resolution: Up to 1920x1080 | 1 | ||||||||||||||||||||
| 4 | NOOBS Sd Card 16 GB | Class 10 Original Sandisk Class 10 Micro SD card preinstalled with the NOOBS Raspberry Pi operating system. Perfect for both the Raspberry Pi 4 Model B, Raspberry Pi 3, or Raspberry Pi Zero W Details This is the hard drive and operating system for your Raspberry Pi Extended partition to make full use of the SD card Ready to use – plug it in and you're ready to go Only the most current stable release of the operating system will be used High-quality MicroSD card |
1 | ||||||||||||||||||||
| 5 | SD Card Reader | Compatible with USB1.1/2. Powered by USB connection cable. No external power is required. Fully plug and play. High-speed data transfer. Convenient for carrying. Support hot-swapping. Directly in the reader quick edit the file. Specification Support: win 98/2000/XP/mac os. Model No: CR-03. Support for TF card, micro SD card, micro MMC card High transfer rate of up to 480Mbps. |
1 | ||||||||||||||||||||
| 6 | Adapter 5V 3A | The official Raspberry Pi USB-C 15.3W power supply. Built specifically for the Raspberry Pi 4 Model B European 2-Pin plug 5.1V 3A output provides all the power your Raspberry Pi 4 Model B will need |
1 | ||||||||||||||||||||
| 7 | Component Box | F240/G235 Double-layer anti-fall activity parts box Size: length 234* width 168* height 62mm Material: transparent PP Features: waterproof, anti-UV, anti-corrosion, internal box detachable |
1 | ||||||||||||||||||||
| No. of Items in Kit | 7 | ||||||||||||||||||||||
