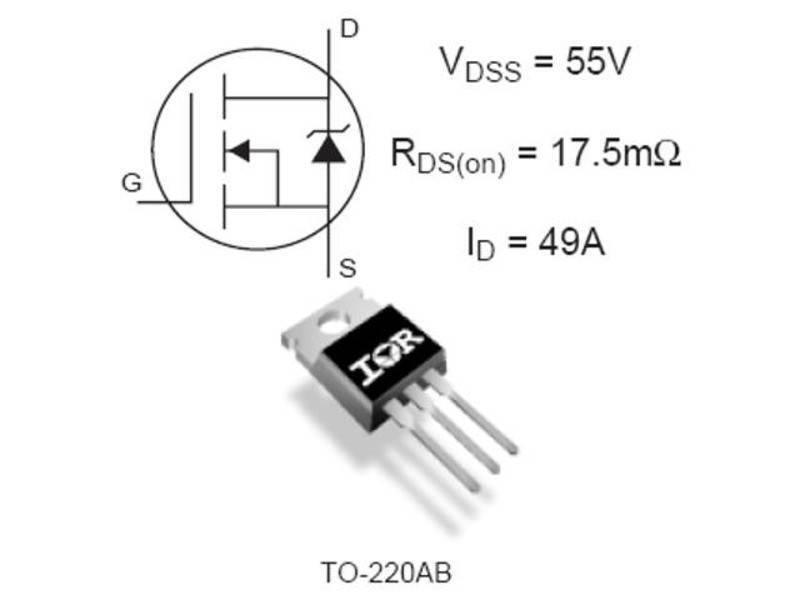

IRFZ44N Power MOSFET Refurb - shown with its schematic symbol, TO-220AB package, and specifications for VDS, RDS(on), and ID.
IRFZ44N Power MOSFET Refurb - shown as a black, three-pin electronic component with a silver metal mounting tab on a white background.
IRFZ44N Power MOSFET Refurb - shown with its schematic symbol, TO-220AB package, and specifications for VDS, RDS(on), and ID.

IRFZ44N Power MOSFET Refurb

Sale price Rs 80
SKU: B218,KRT113,IMP100,Th50,A
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

IRFZ44N Power MOSFET Refurb - shown as a black, three-pin electronic component with a silver metal mounting tab on a white background.
+

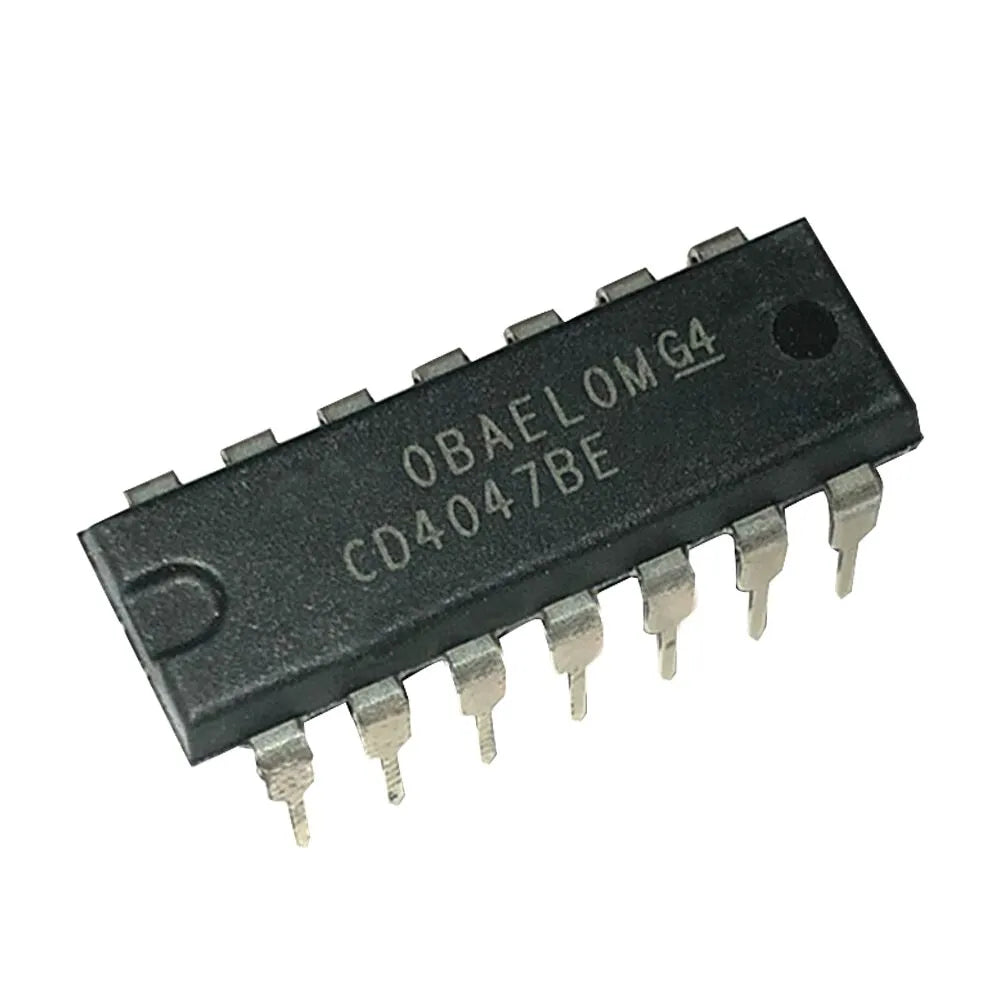

CD4047 CD4047BM CD4047BC Low Power Monostable Astable Multivibrator IC - CD4047BE IC, a black 14-pin dual in-line package integrated circuit with silver metal pins, shown from an angled perspective against a white background.
+
TIP32C Bipolar PNP Transistor 100V 3A TO-220 - shown as a single black TO-220 component with three metallic pins and a metal mounting tab with a hole.
+
IRF9530N P Channel MOSFET Orignal ( Used ) - a black, three-pin electronic component with a metal mounting tab, shown in a close-up against a white background.
IRF9530N P Channel MOSFET Orignal ( Used ) - a black, three-pin electronic component with a metal mounting tab, shown in a close-up against a white background.
This item: IRFZ44N Power MOSFET Refurb -
Sale price Rs 80
CD4047 CD4047BM CD4047BC Low Power Monostable Astable Multivibrator IC - CD4047BE IC, a black 14-pin dual in-line package integrated circuit with silver metal pins, shown from an angled perspective against a white background.
CD4047 CD4047BM CD4047BC Low Power Monostable Astable Multivibrator IC -
Sale price Rs 100
TIP32C Bipolar PNP Transistor 100V 3A TO-220 - shown as a single black TO-220 component with three metallic pins and a metal mounting tab with a hole.
TIP32C Bipolar PNP Transistor 100V 3A TO-220 -
Sale price Rs 50
IRF9530N P Channel MOSFET Orignal ( Used ) - a black, three-pin electronic component with a metal mounting tab, shown in a close-up against a white background.
IRF9530N P Channel MOSFET Orignal ( Used ) -
Sale price Rs 130
Price for all:
Sale total price Rs 360

Pickup available at Digilog Electronics

Usually ready in 2 hours

IRFZ44N Power MOSFET Refurb - shown as a black, three-pin electronic component with a silver metal mounting tab on a white background.

IRFZ44N Power MOSFET Refurb

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
IRFZ44N Power MOSFET Refurb - shown as a black, three-pin electronic component with a silver metal mounting tab on a white background.
IRFZ44N Power MOSFET Refurb
Sale priceRs 80



The IRFZ44N is a N-channel MOSFET with a high drain current of 49A and low Rds value of 17.5 mΩ. It also has a low threshold voltage of 4V at which the MOSFET will start conducting. Hence it is commonly used with microcontrollers to drive with 5V. However a driver circuit is needed if the MOSFET has to be switched in completely.

IRFZ44N Pinout

Features and Specifications

  • Small signal N-Channel MOSFET
  • Continuous Drain Current (ID) is 49A at 25°C
  • Pulsed Drain Current (ID-peak) is 160A
  • Minimum Gate threshold voltage (VGS-th) is 2V
  • Maximum Gate threshold voltage (VGS-th) is 4V
  • Gate-Source Voltage is (VGS) is ±20V (max)
  • Maximum Drain-Source Voltage (VDS) is 55V
  • Rise time and fall time is about 60ns and 45ns respectively.
  • It is commonly used with Arduino, due to its low threshold current.
  • Available in To-220 package

Package Includes:4

  •  1x irfz44n MOSFET

Note:

  1. Product Images are shown for illustrative purposes only and may differ from the actual product.
  2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.
