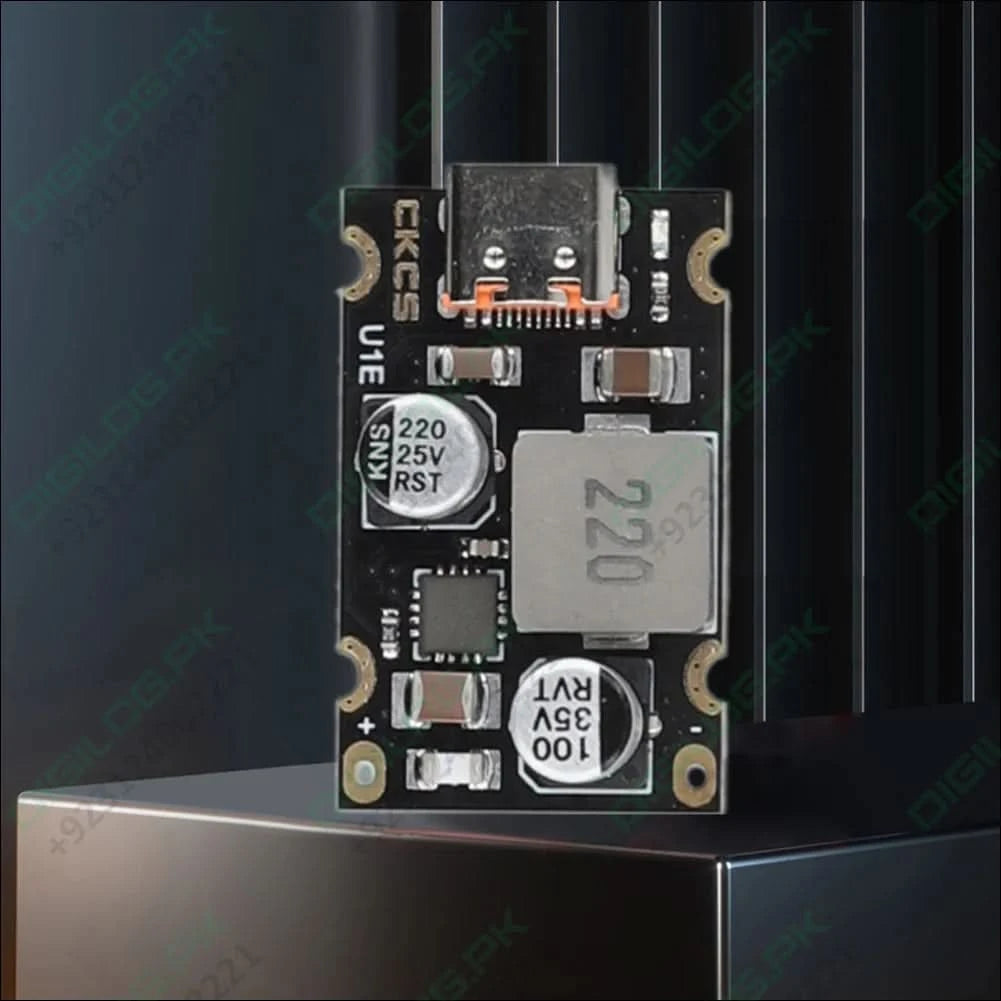

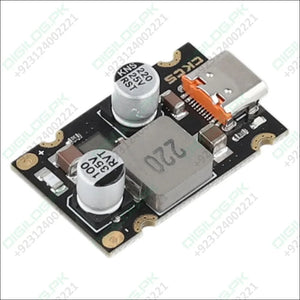

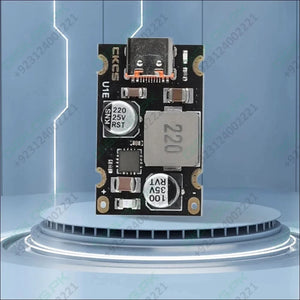

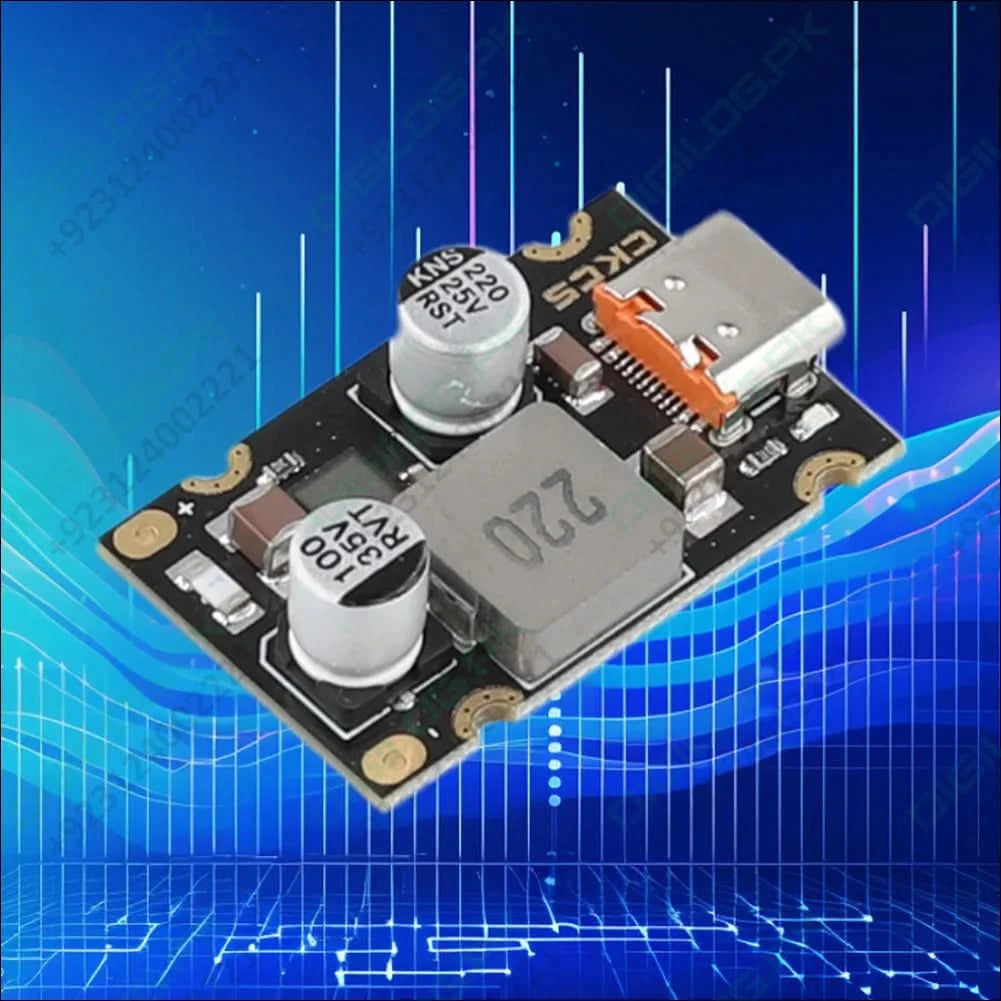

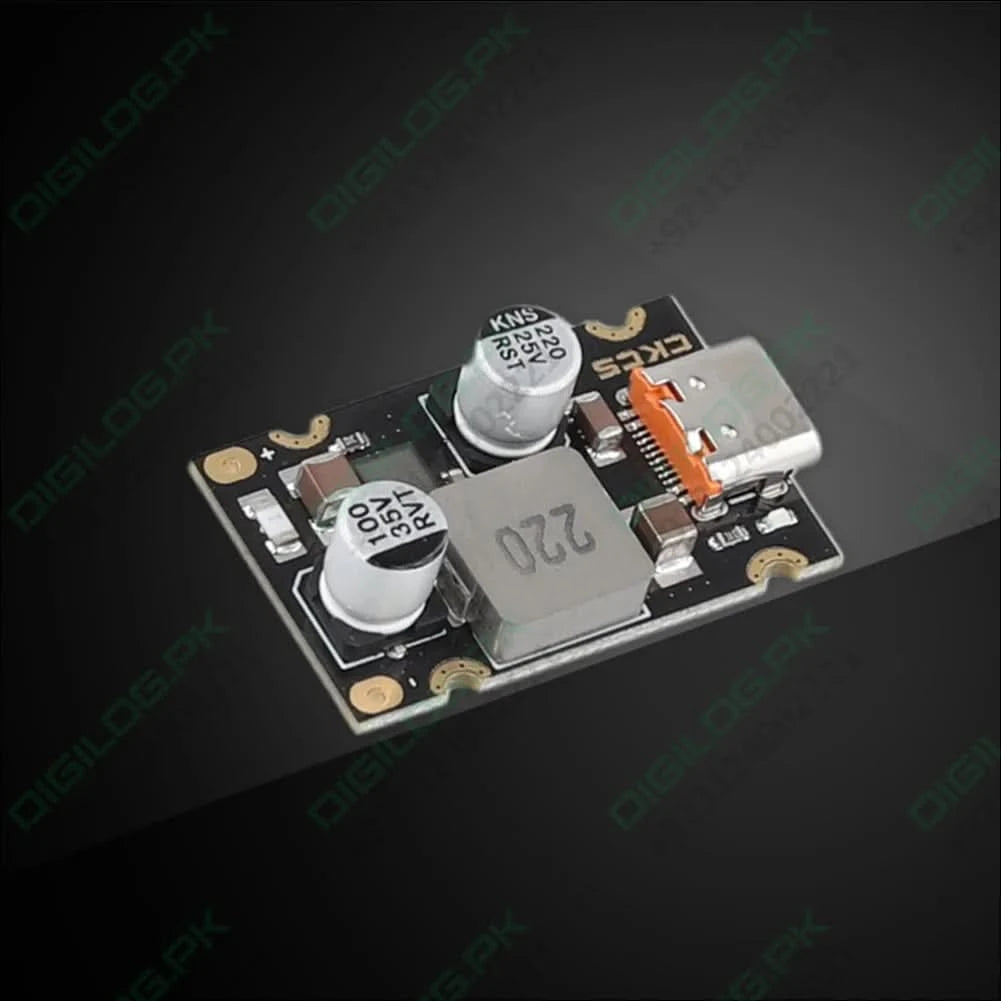

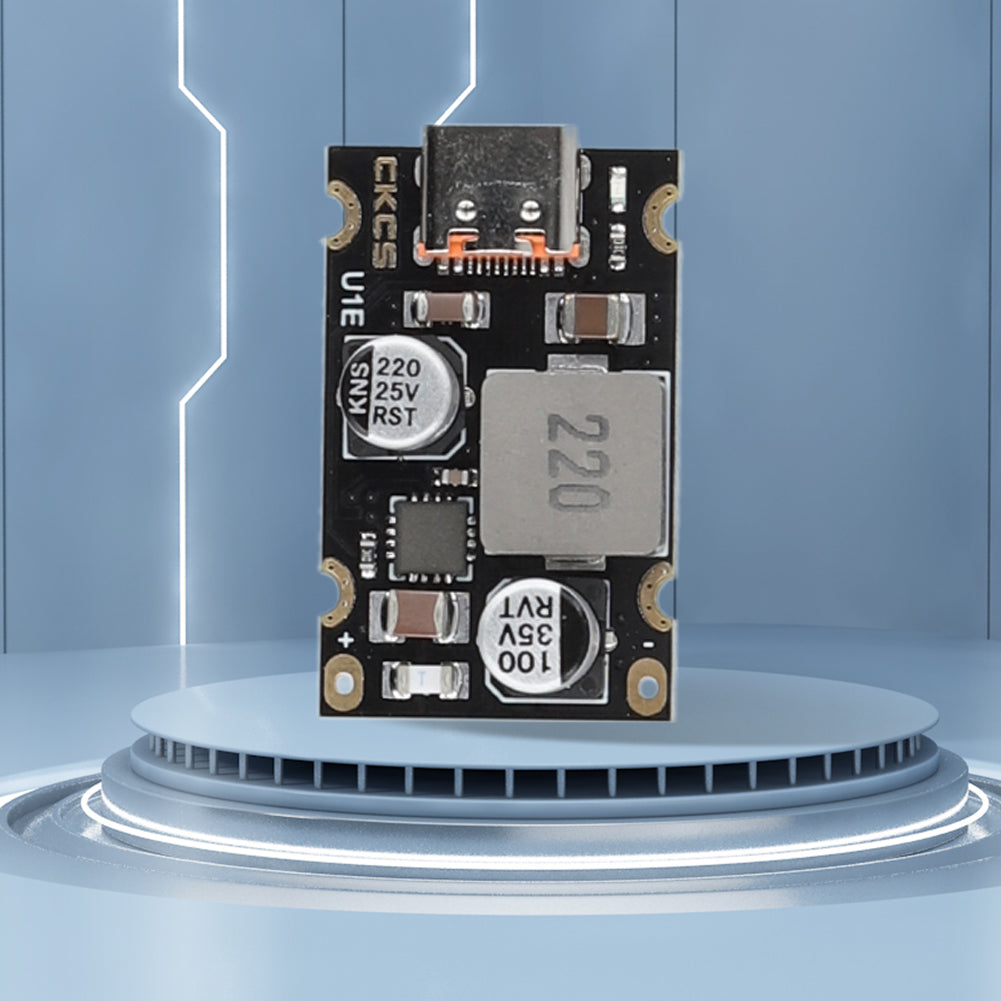

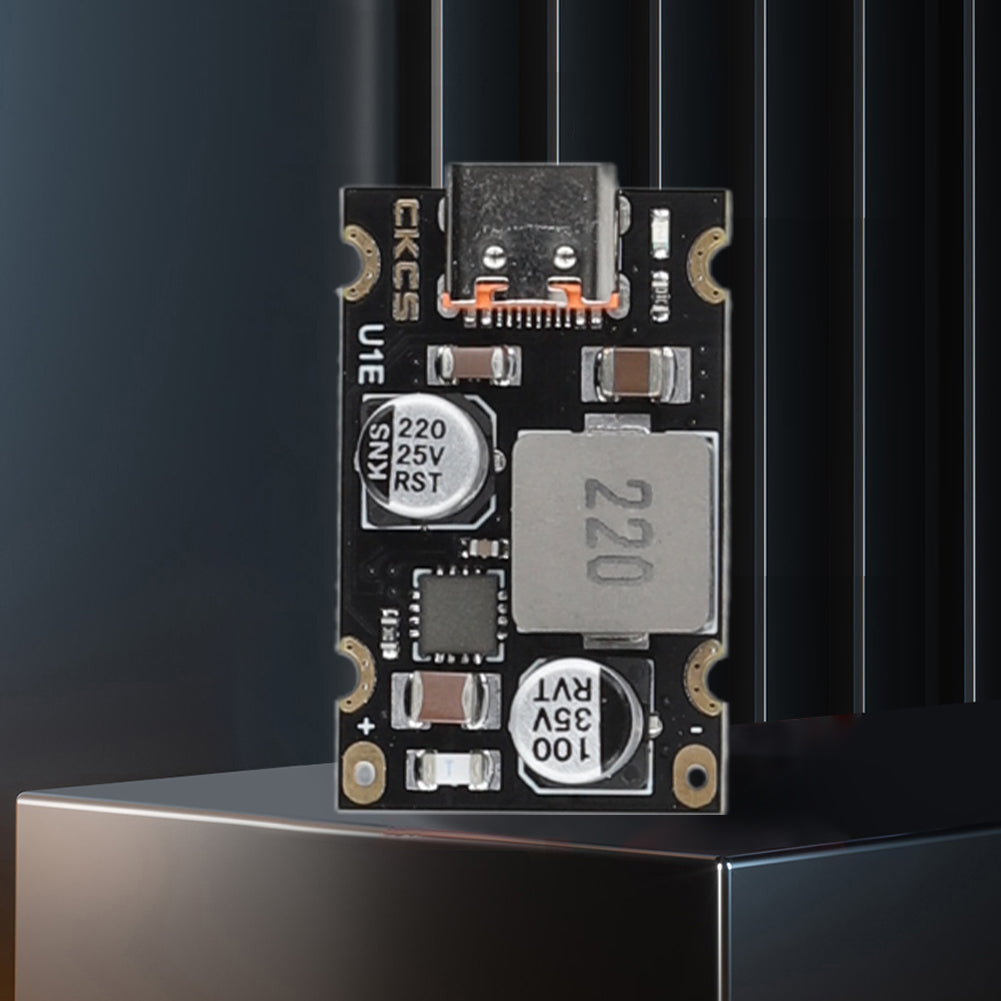

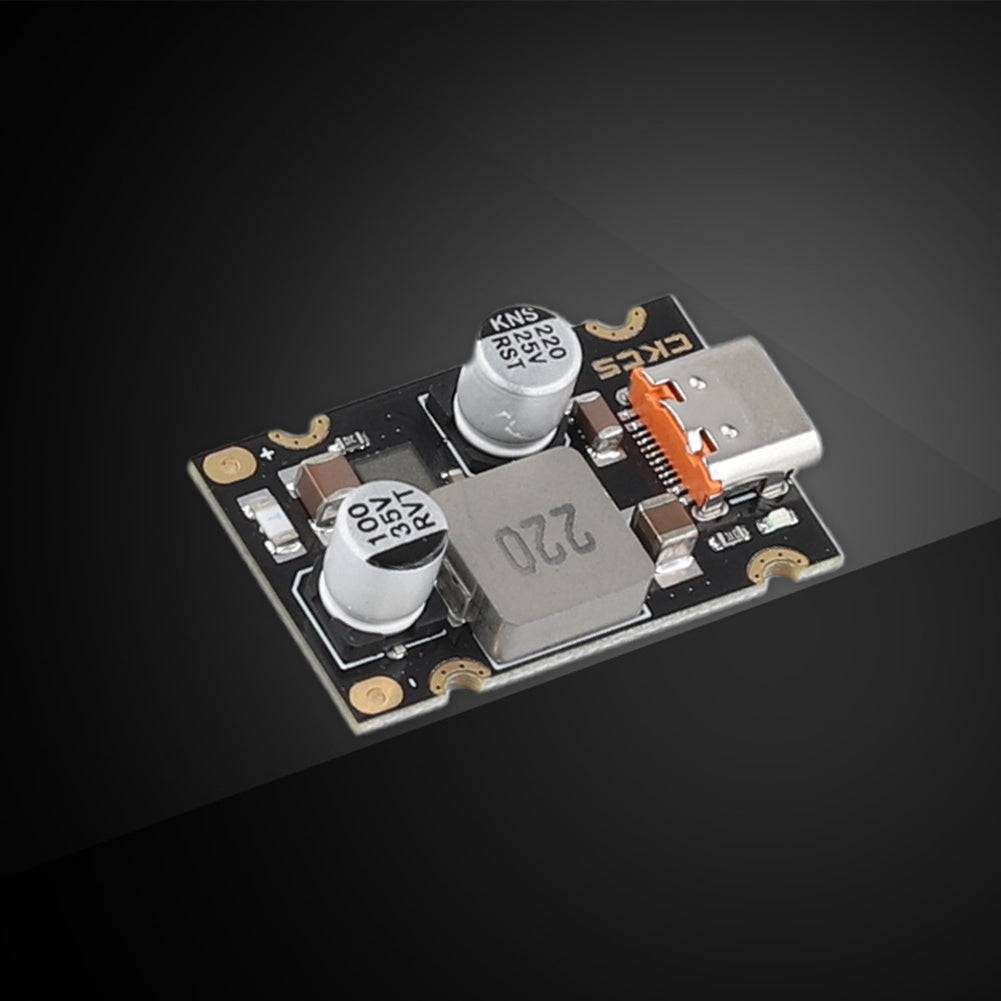

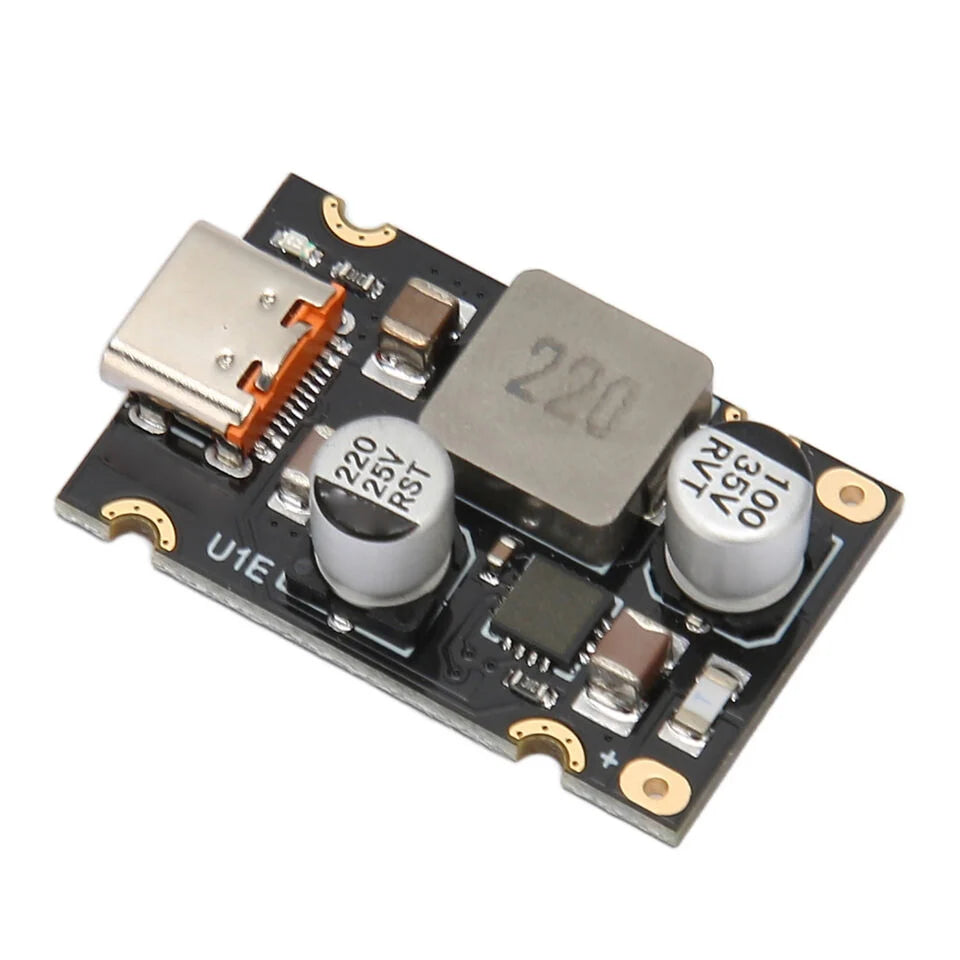

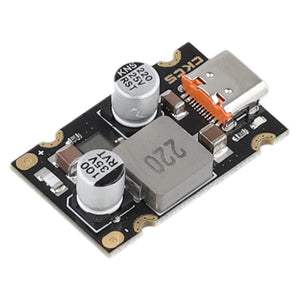

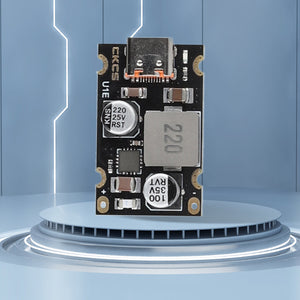

PD 65W Fast Charging Module Type C Interface Fast Charging Adapter Board DC8 to 32V Charging Protection
Overview: Compact PD 65W USB-C charging module supporting PD3.1, QC3.0, SCP, FCP, BC1.2, and PPS protocols. Perfect for laptops, tablets, smartphones, and DIY power projects.
- High Power: Delivers up to 65W for faster charging.
- Input Voltage: DC 8–32V
- Output Voltage: Automatically adjusts between 3.3V–21V (max 65W). To enable 20V output, input must be >20V.
- Efficiency: 92%–97%
- Protection: Over-current, over-voltage, under-voltage, short-circuit, and over-temperature protection.

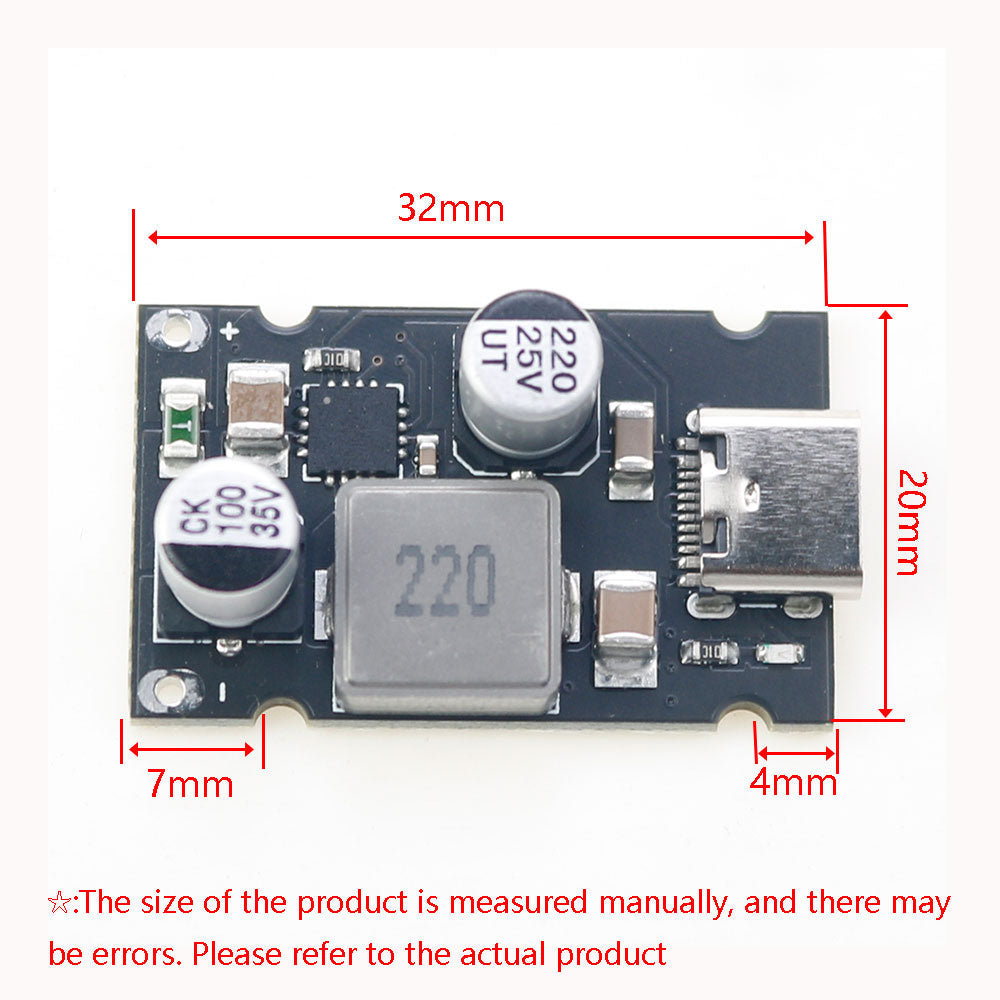

- Size: 33 × 21 × 10 mm
Specifications:
| Parameter | Value |
|---|---|
| Origin | Mainland China |
| Type | Module |
| Input Voltage | DC 8–32V |
| Output Voltage | Auto 3.3–21V |
| Max Output Power | 65W (5V/3A, 9V/3A, 12V/3A, 20V/3.25A) |
| Conversion Efficiency | 92%–97% |
| Ripple (No Load) | <200mV |
| No-load Current | <3mA |
| Size | 33 × 21 × 10 mm |
Package Includes:
1 × PD 65W Fast Charging Module Board (Type-C Interface)
Applications:
- Fast charging for USB-C devices, laptops, and smartphones
- DIY power supply projects
- Type-C PD trigger module for electronics testing
