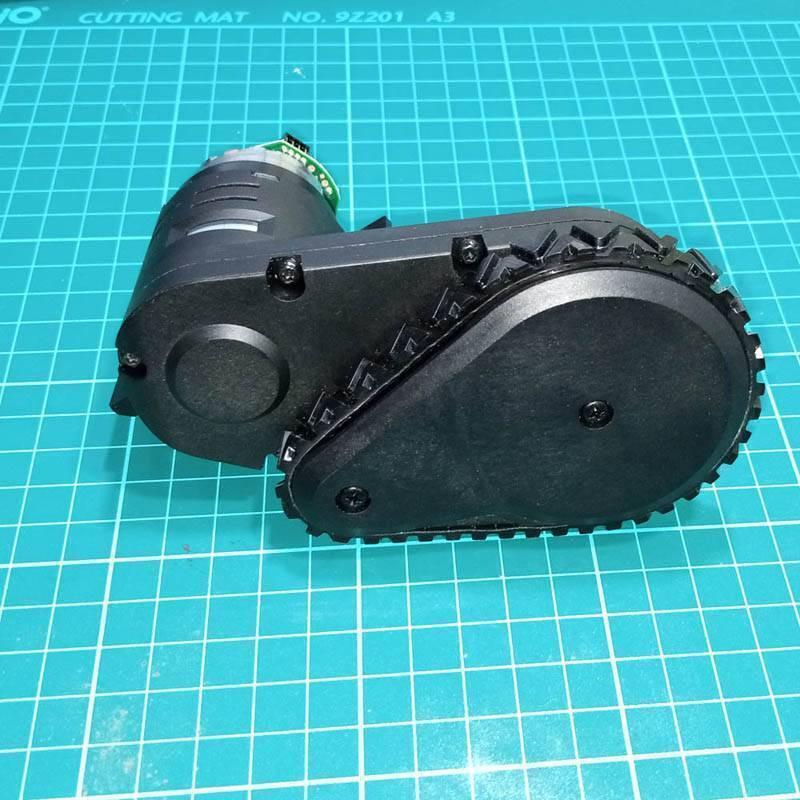

DC Gear Motor With Encoder With Wheel - black motor assembly with an attached encoder circuit board and a black plastic wheel, resting on a green mat.

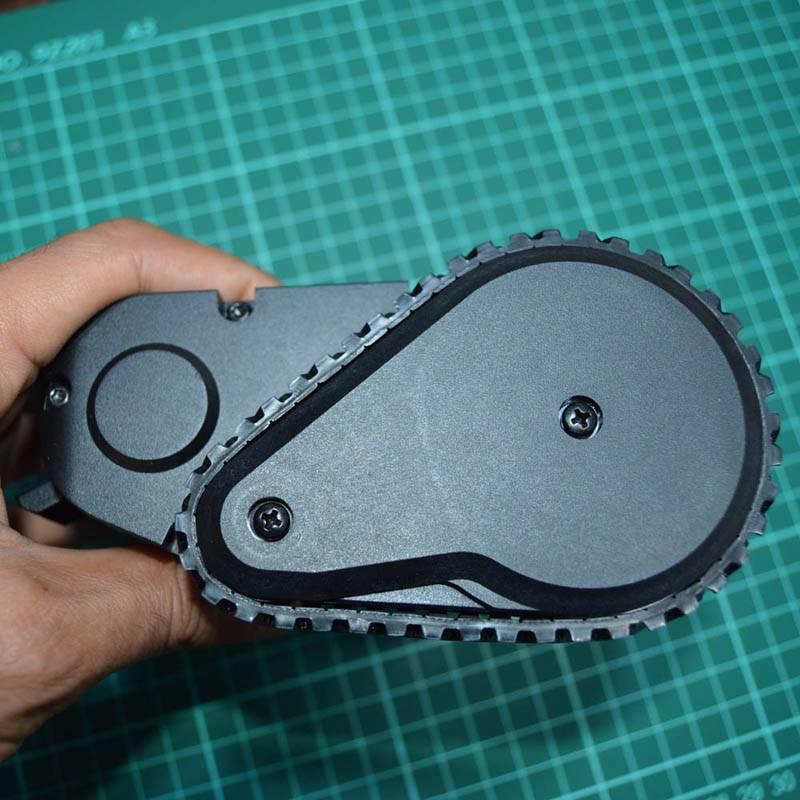

DC Gear Motor With Encoder With Wheel - a close-up of a black gear motor assembly with a rubber track wheel held in a hand over a green mat.

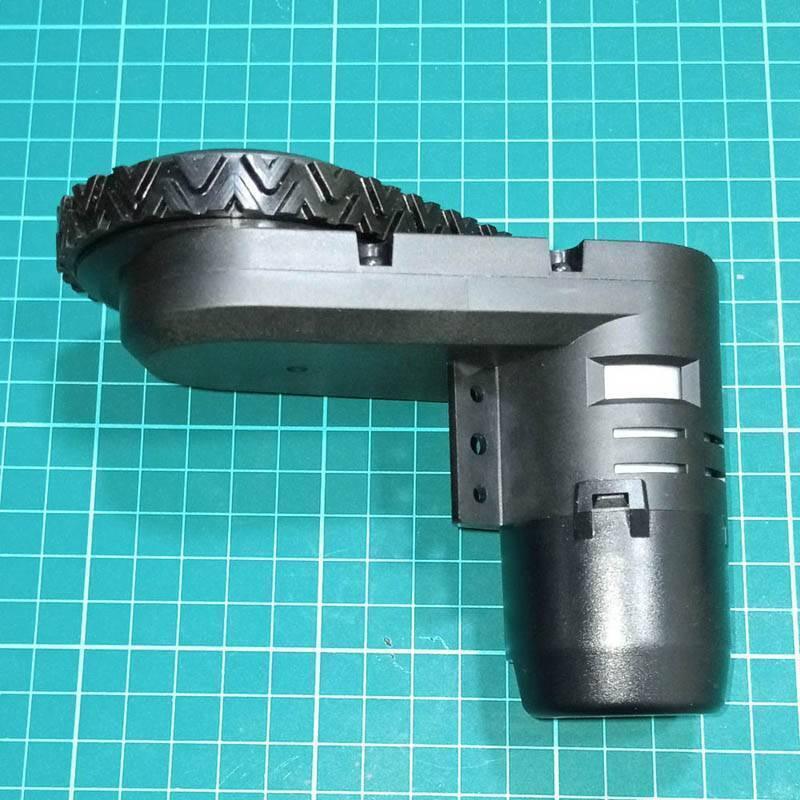

DC Gear Motor With Encoder With Wheel - a black motor assembly with an attached black rubber-treaded wheel resting on a green grid mat.

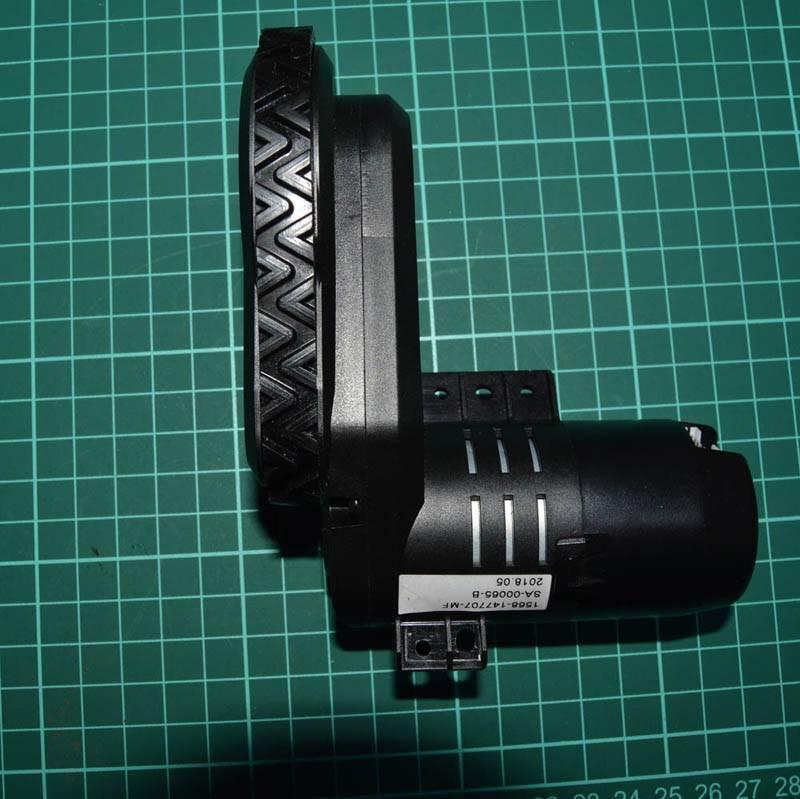

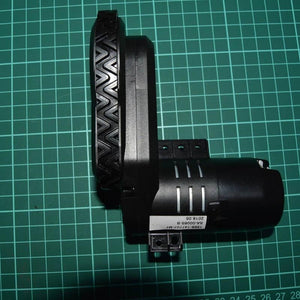

DC Gear Motor With Encoder With Wheel - black in colour, shown from the side with a label reading 1568-147707-MF, SA-00065-B, and 2018.05.

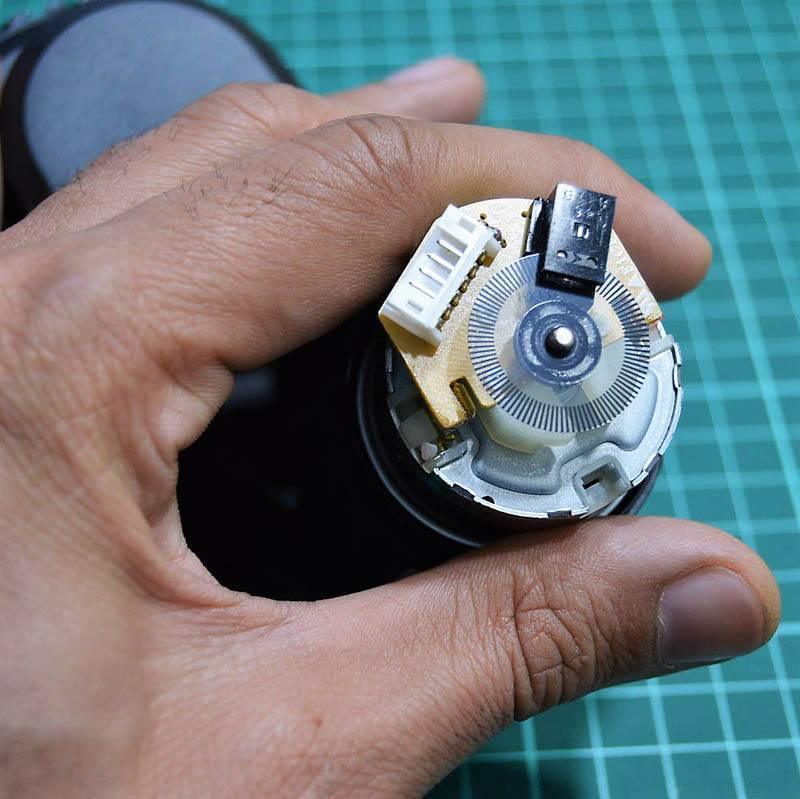

DC Gear Motor With Encoder With Wheel - close-up view of the motor rear showing the circular encoder disc, sensor module, and a white connector port.

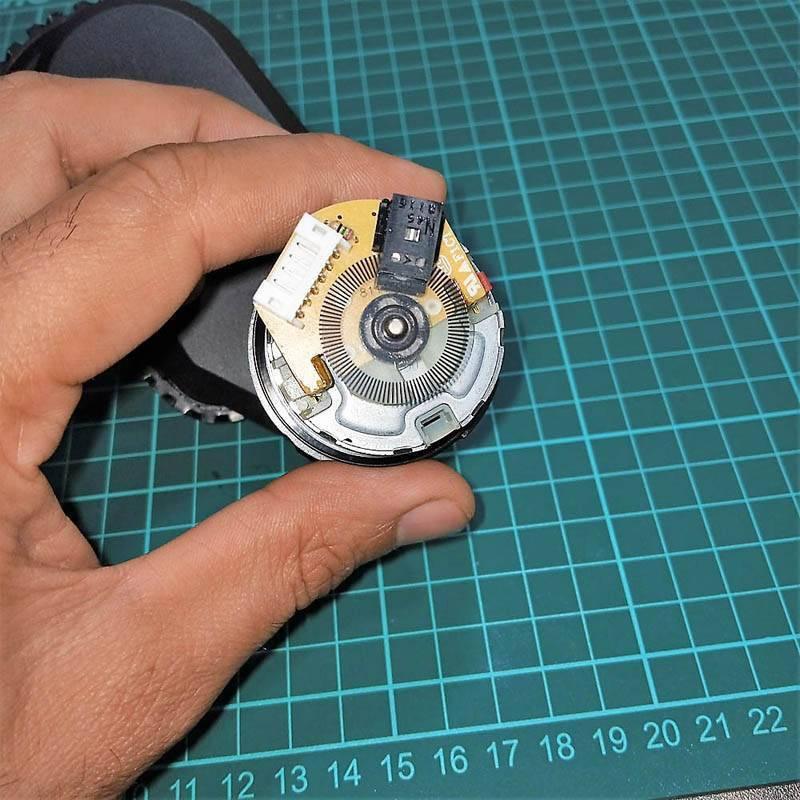

DC Gear Motor With Encoder With Wheel - close-up of the circular encoder disc, circuit board, white connector, and black optical sensor held by a hand.

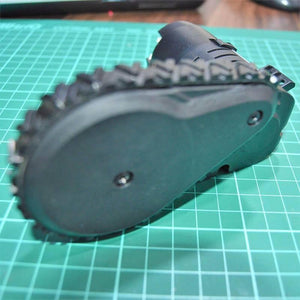

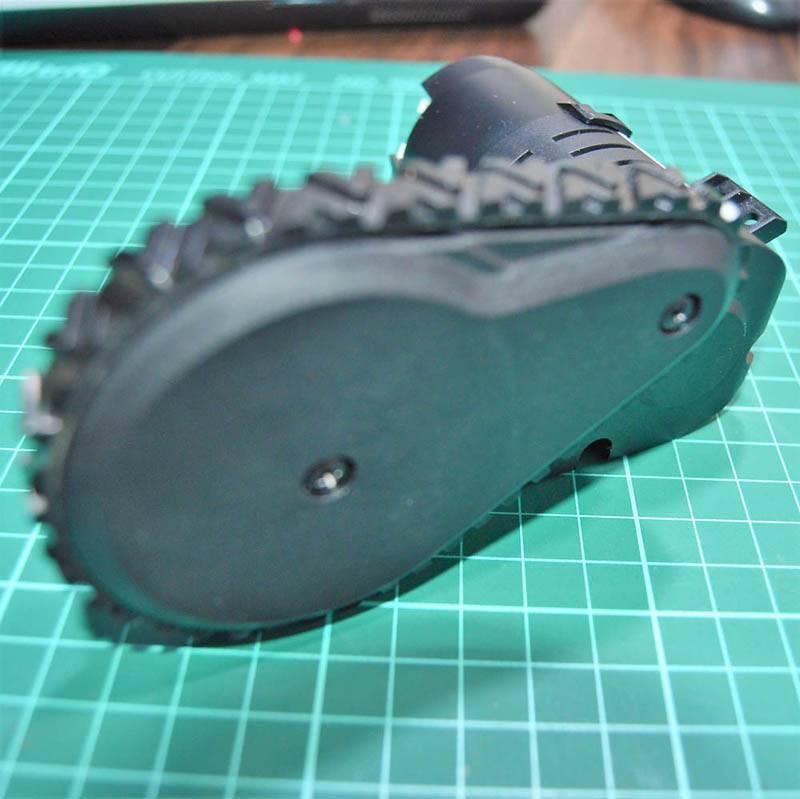

DC Gear Motor With Encoder With Wheel - a black motor assembly with a treaded rubber wheel mounted on a green cutting mat.

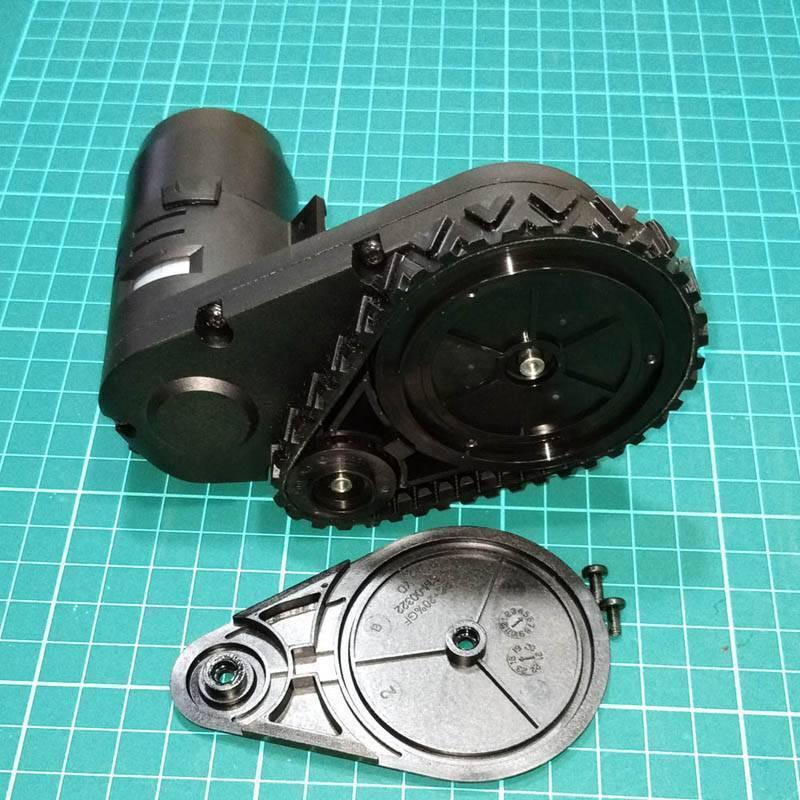

DC Gear Motor With Encoder With Wheel - shown as a black motor assembly with a tracked wheel, a detached side cover, and two small screws on a grid mat.
Sold out
DC Gear Motor With Encoder With Wheel - black motor assembly with an attached encoder circuit board and a black plastic wheel, resting on a green mat.
DC Gear Motor With Encoder With Wheel - a close-up of a black gear motor assembly with a rubber track wheel held in a hand over a green mat.
DC Gear Motor With Encoder With Wheel - a black motor assembly with an attached black rubber-treaded wheel resting on a green grid mat.
DC Gear Motor With Encoder With Wheel - black in colour, shown from the side with a label reading 1568-147707-MF, SA-00065-B, and 2018.05.
DC Gear Motor With Encoder With Wheel - close-up view of the motor rear showing the circular encoder disc, sensor module, and a white connector port.
DC Gear Motor With Encoder With Wheel - close-up of the circular encoder disc, circuit board, white connector, and black optical sensor held by a hand.
DC Gear Motor With Encoder With Wheel - a black motor assembly with a treaded rubber wheel mounted on a green cutting mat.
DC Gear Motor With Encoder With Wheel - shown as a black motor assembly with a tracked wheel, a detached side cover, and two small screws on a grid mat.

DC Gear Motor With Encoder With Wheel

Sale price Rs 810
SKU: B739,L2,Th1
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

This is the DC Gear Motor With Encoder and wheel already installed. This DC Gear Motor has builtin an optical quadrature type rotary encoder. The quadrature encoders provide two pulses that are out of phase, for sensing the direction of the shaft rotation. Hence, DC Geared Motor with Encoder features both advantages of position sensing as well as direction sensing of the rotating shaft. This application flexibility of the encoders will allow you to control the speed of the base motor very precisely.

Features Of DC Motor With Encoder:

  1. Rpm=250 (at 12v)
  2. Operating Voltage=3v To 24V
  3. No-load current= 0.3A
  4. Maximum Load Current=2.5A
  5. Encoder Voltage=3V To 5V
  6. Pulse/Revolution=100 (without gear reduction)
  7. You can monitor both the position and the direction of rotation
  8. Perfect for Bidirectional Position Sensing
  9. Diy robot chassis deceleration track motor, high quality,
  10. Metal reduction gear, with grating speed encoder, silicone anti-skid track
  11. The best products to refit, such as tanks, excavators, etc.,
  12. The bottom also has a non-slip rubber belt, a very good robot chassis motor.

Package Includes:

 You will get 1 motor at a given price.

Note:

   You need to order a minimum of 2pcs because you need 1x right side motor and 1x left side motor.



Dc Gear Motor With Encoder Wheel

Dc Gear Motor With Encoder Wheel

Frequently Bought Together

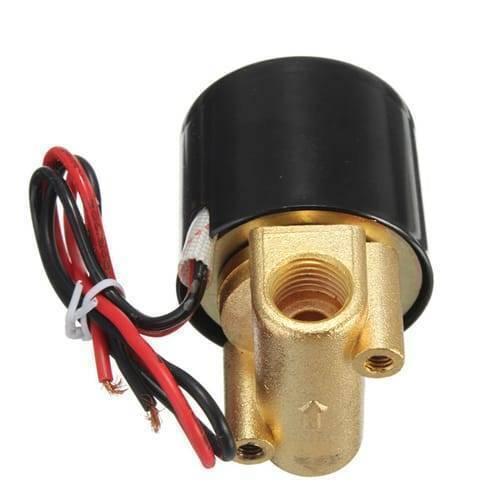

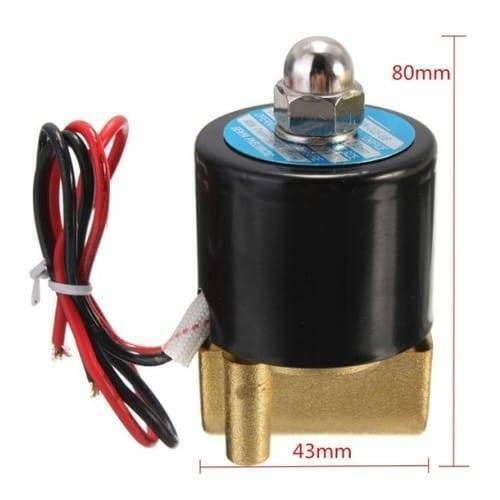

1/4 Inch 12V DC 24V DC Solenoid Valve For Water Air Gas - a brass valve body with a black cylindrical solenoid and two red and black wire leads. 1/4 Inch 12V DC 24V DC Solenoid Valve For Water Air Gas - a brass-bodied valve with a black cylindrical solenoid coil, red and black wires, and dimension labels.
