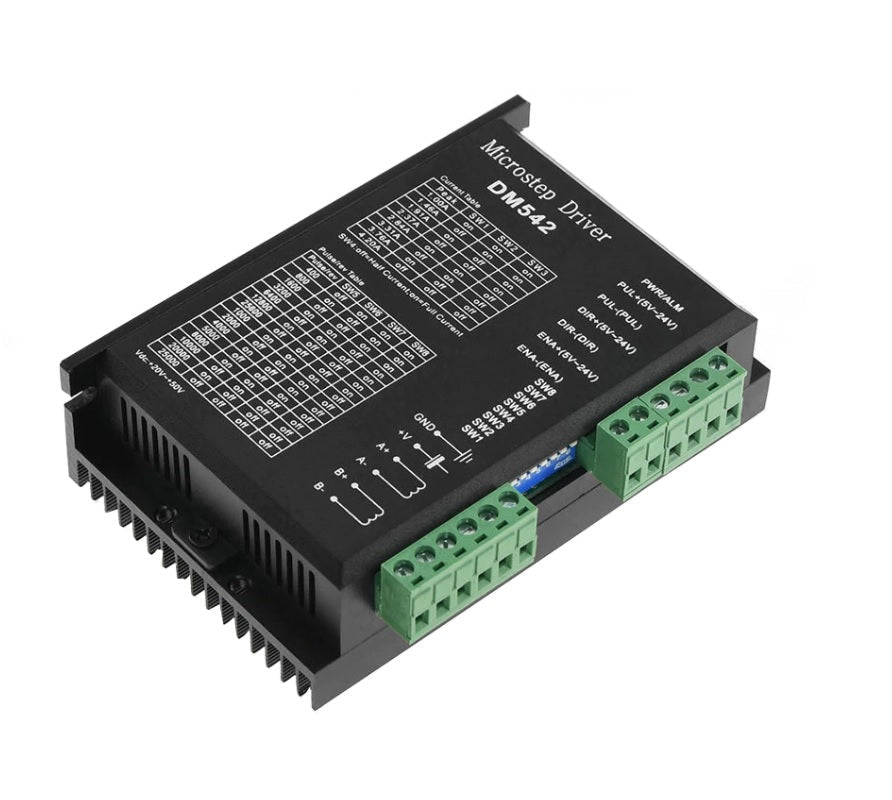

2DM542 Stepper Motor Driver - a black rectangular electronic module with a finned heat sink, green screw-terminal blocks, and a printed configuration table.

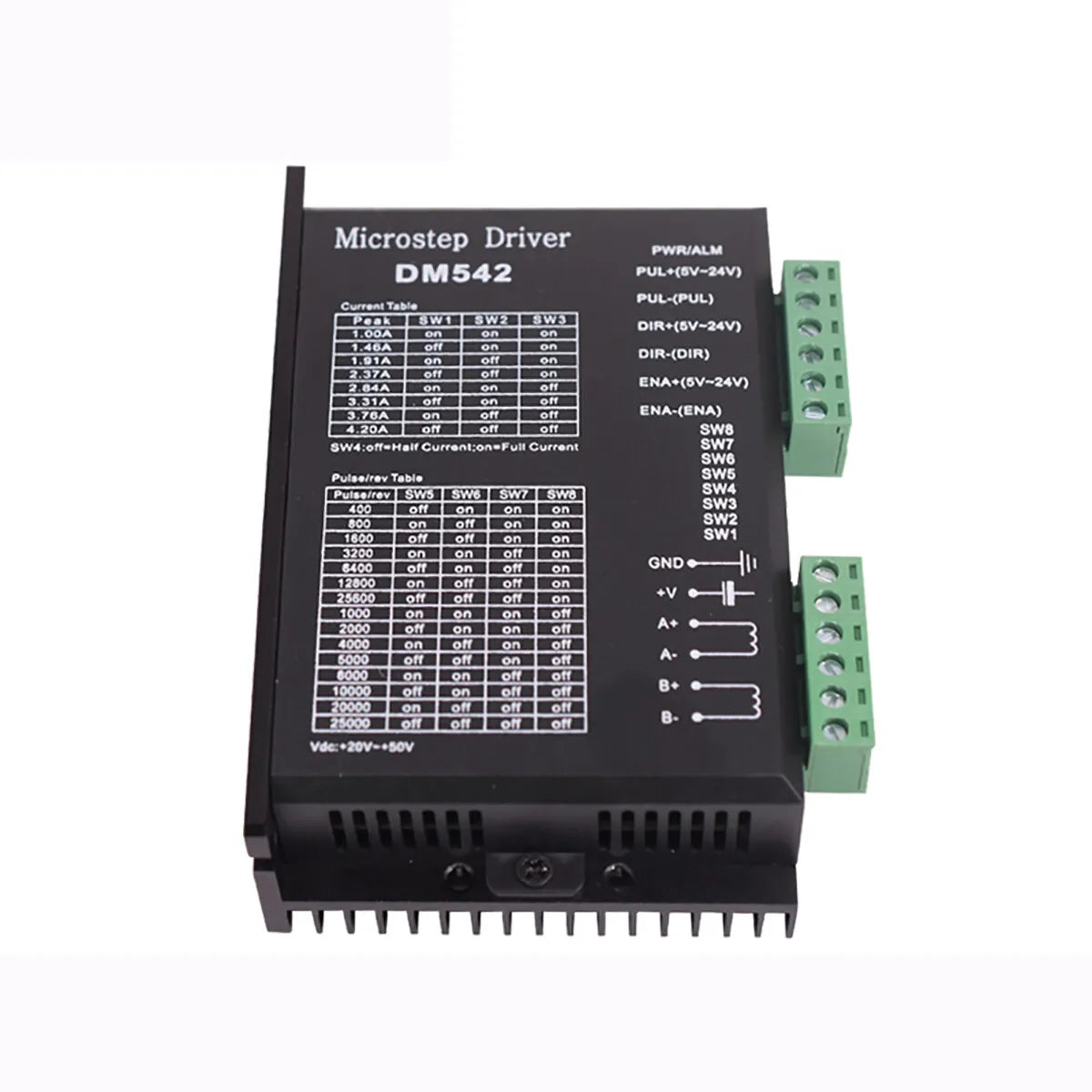

2DM542 Stepper Motor Driver - a black rectangular electronic module with two green terminal blocks, side-mounted DIP switches, and printed configuration tables.

2DM542 Stepper Motor Driver - a black rectangular electronic module with a finned heat sink, green screw-terminal blocks, and a printed configuration table.

2DM542 Stepper Motor Driver - a black rectangular electronic module with two green terminal blocks, side-mounted DIP switches, and printed configuration tables.

2DM542 Stepper Motor Driver

Rs 7,060

SKU: B845

Pickup available at Digilog Electronics

Usually ready in 2 hours

2DM542 Stepper Motor Driver - a black rectangular electronic module with a finned heat sink, green screw-terminal blocks, and a printed configuration table.

2DM542 Stepper Motor Driver

Rs 7,060

Just Motion DM542 is 4.2 Ampare stepper motor driver with options for microstepping in the range from 400 to 25600steps/rev. 2DM542 Current setting can be set from 1A to 4.2A. An automatic parameter tuning is integrated inside this driver, this can help the driver automatically adjust to best operation parameters to maximize performance of different stepper motors.

Features:

Supply voltage range 24-48V, typically 36V
32-bit DSP technology
Optically isolated differential inputs (26LS32)
Ultra-low noise and vibration
The range of micro steps is 2-128
Built in 500 times high frequency micro steps
Driver 2 phase step motor with 4leads,6leads and 8leads
Current settings is optional between ratings
Current will automatically halved when stand still
Pulse frequency response up to 200KHz
Overvoltage, undervoltage, short circuit protection
Alarm output function I / O ports

Similar Products

Motor Driver Module L298N For Arduino Dual h Bridge Motor Driver - a red circuit board with a black heat sink, blue screw terminals, two cylindrical capacitors, and pins.

Motor Driver Module L298N For Arduino Dual h Bridge Motor Driver - a red circuit board featuring a black heatsink, three blue screw terminal blocks, capacitors, and multiple pin headers.

Motor Driver Module L298N For Arduino Dual h Bridge Motor Driver

Rs 410

A4988 Stepper Motor Driver - module on a red PCB with a silver heatsink, featuring a small adjustment potentiometer and multiple pin headers.

A4988 Stepper Motor Driver - with a red circuit board, a small silver heatsink, a potentiometer, and pin headers.

A4988 Stepper Motor Driver

Rs 310

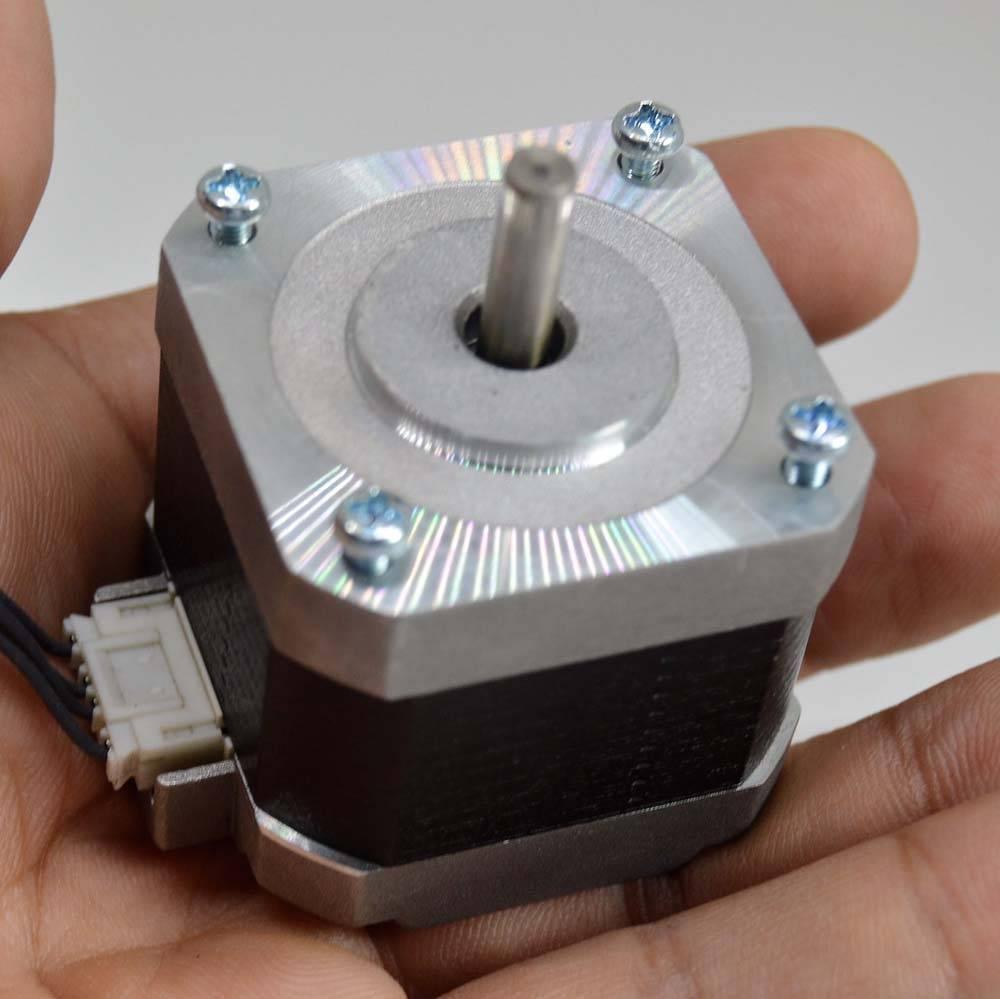

NEMA 17 4 Wire Stepper Motor NEMA17 Stepper Motor REFIRBISHED - shown as a silver and black square motor held in a hand with a central shaft and a white connector port.

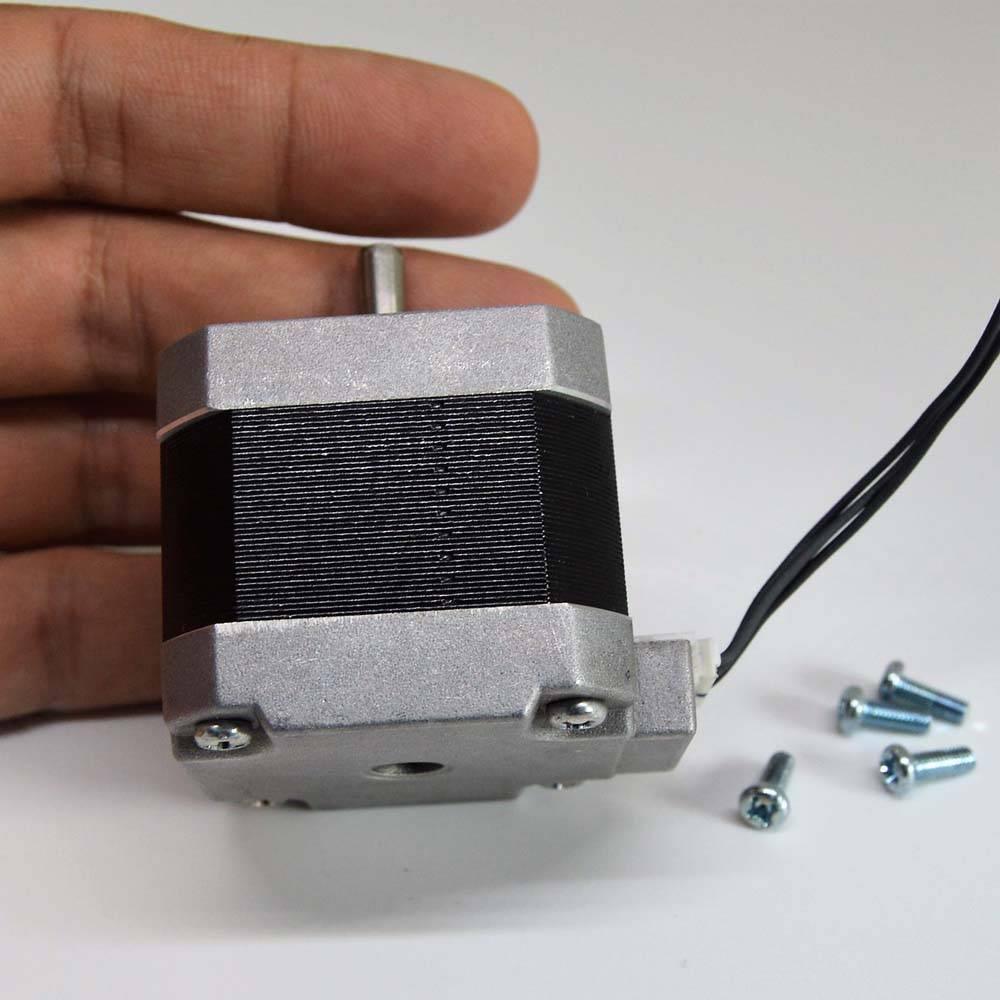

NEMA 17 4 Wire Stepper Motor NEMA17 Stepper Motor REFIRBISHED - a silver and black square motor with a metal shaft, a white connector, and three small mounting screws.

-2%

NEMA 17 4 Wire Stepper Motor NEMA17 Stepper Motor REFIRBISHED

Rs 660

Rs 650

DRV8825 Stepper Motor Driver With Aluminum Heat Sink - a purple circuit board with a black chip, a small potentiometer, and a separate silver aluminum heat sink.

DRV8825 Stepper Motor Driver With Aluminum Heat Sink - a purple rectangular circuit board with a central microchip, header pins, and a small adjustable potentiometer.

DRV8825 Stepper Motor Driver With Aluminum Heat Sink

Rs 460

2 Meter GT2 Timing Belt With 2pcs Of 5mm GT2 Pulley 16 Teeth - shown as a coiled black belt with two silver pulleys and an L-shaped hex key.

2 Meter GT2 Timing Belt With 2pcs Of 5mm GT2 Pulley 16 Teeth - two silver-colored aluminum GT2 timing pulleys with 16 teeth and set screw holes.

Sold out

2 Meter GT2 Timing Belt With 2pcs Of 5mm GT2 Pulley 16 Teeth

Rs 910

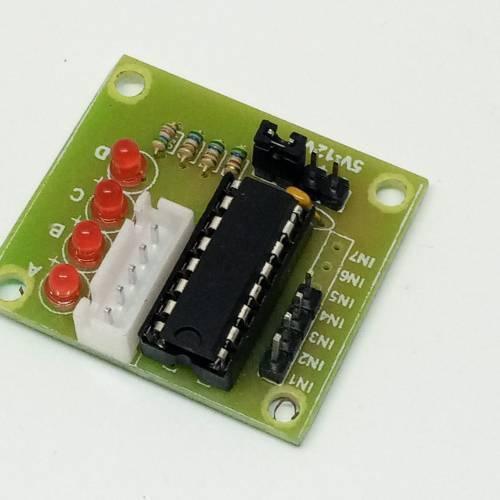

ULN2003 Stepper Motor Driver Board For Arduino Avr SMD - a green circuit board with four red LEDs, a white connector, and an integrated circuit.

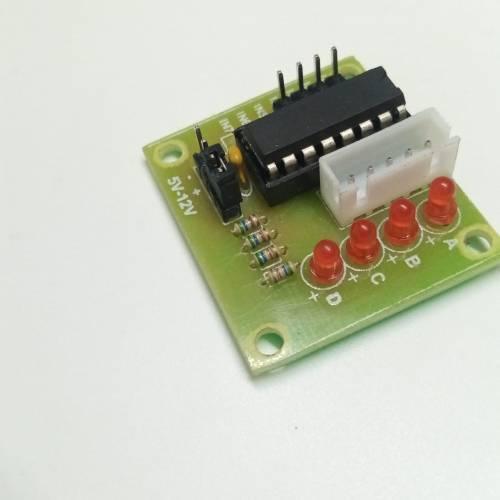

ULN2003 Stepper Motor Driver Board For Arduino Avr SMD - a green circuit board with an integrated chip, four red LEDs, a white connector, and input pins.
