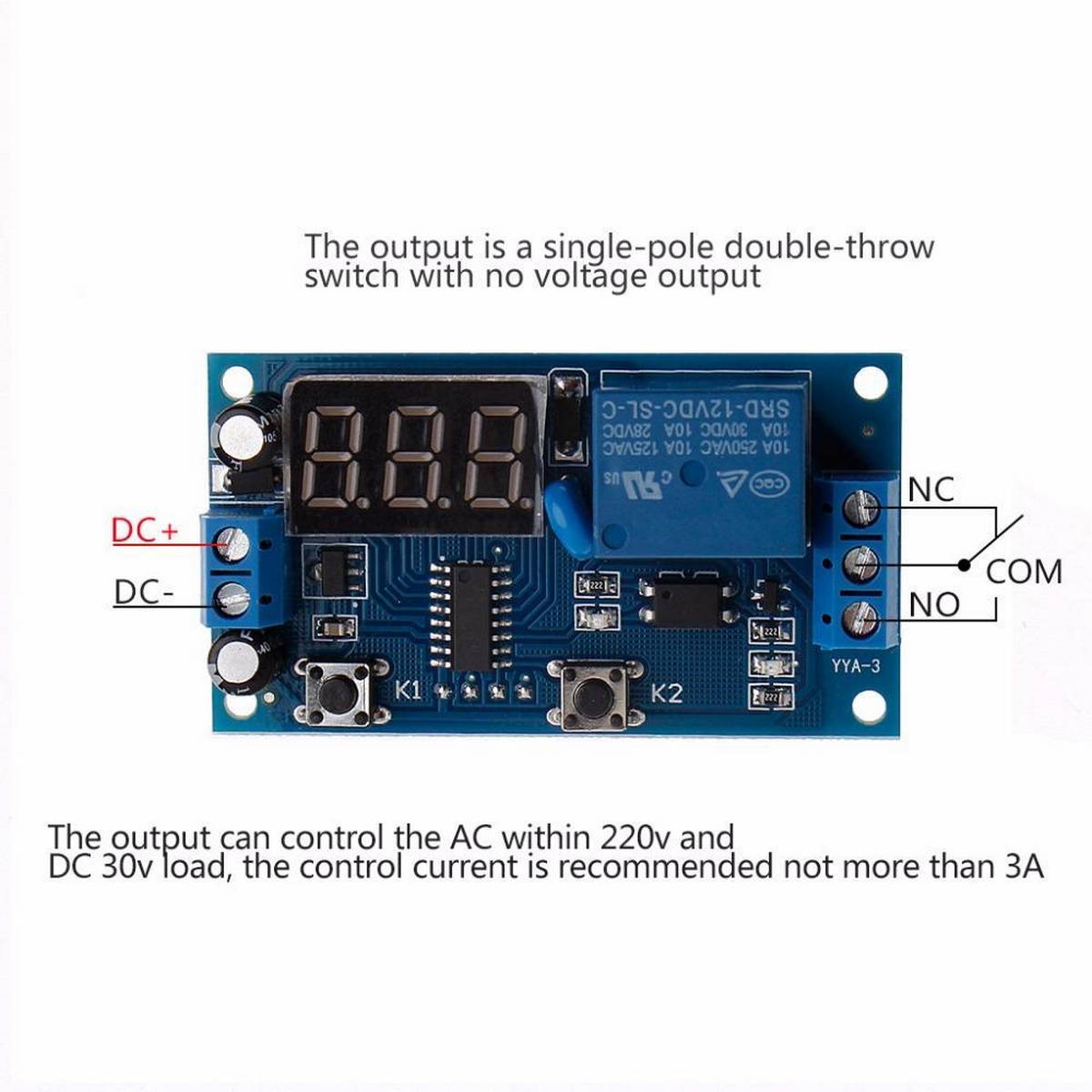

12V Digital LED Timer Module Adjustable Timer Relay Time Control Switch Trigger Timing Board
This DC 12V Timer Delay Relay Module is designed to provide timing control for various electronic devices. With adjustable delay time settings. However this module allows users to customize the timing function according to their specific needs.
Features Of DC 12V Timer Delay Relay Module :
- anti-reverse voltage input circuit, worry-free wiring.
- Signal input optocoupler isolation, anti-interference ability.
- Set the parameters of power and permanent memory.
- Powerful flash MCU online programming capabilities, according to user needs can also contact the manufacturers to customize the functionality.
- Receives a trigger signal to start the countdown, while the relay, timing the end of the relay to stop working, time to recover to the set, waiting for the next trigger.
Specifications Of 12V Control Programmable Timer Switch Trigger Cycle Module:
- Product Name: Programmable timer relay module
- Working voltage: DC12V (normal operating voltage DC10V-16V)
- Source: DC4V ~ 20V (positive trigger common power button, PNP sensors, PLC signals, etc.)
- Output capability: You can control the DC or AC 220v5A within 30v5A within
- Quiescent Current: 20mA,
- working current: 50mA
- Life: more than 10 million times;
- Working temperature: -40 ~ 85'C;
- Dimensions: 64.2mm * 34.8mm * 18.5mm
Instructions:
Click K1 enter the time setting, one hundred digital starts flashing, then press K2, one hundred the number of changes; then click K1 ten digital start flashing, then press K2, the tens digit changes; then click K1 bit digital start flashing, then press K2, single-digit change; then click K1, exit the setting, LED no longer flashes.
Normal digital tube display, press K2, shifting the decimal point, a decimal point indicates 0-999 minutes in 10 bit from 0 to 99.9 seconds with no decimal point represent 0-999 seconds; to this time setting is completed.
Package Include:
- 1x 1 x DC 12V Timer Delay Relay Module
