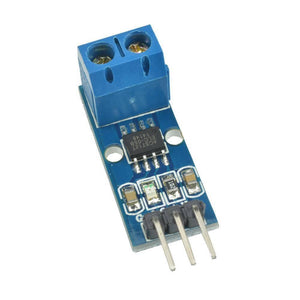

30A Range Current Sensor Module ACS712 - a blue circuit board with a screw terminal block, an integrated chip, and a three-pin header connector.

30A Range Current Sensor Module ACS712 - a blue circuit board featuring a screw terminal block, an integrated circuit, and three connection pins.

30A Range Current Sensor Module ACS712 - a blue circuit board with a screw terminal block, an integrated chip, and a three-pin header connector.

30A Range Current Sensor Module ACS712 - a blue circuit board featuring a screw terminal block, an integrated circuit, and three connection pins.

30A Range Current Sensor Module ACS712

Rs 330

SKU: B606,Krt45,IMP200,Th100,A

Pickup available at Digilog Electronics

Usually ready in 2 hours

30A Range Current Sensor Module ACS712 - a blue circuit board with a screw terminal block, an integrated chip, and a three-pin header connector.

30A Range Current Sensor Module ACS712

Rs 330

Accurately measure AC or DC current with the ACS712 30A current sensor module. This reliable device is ideal for applications requiring precise current sensing and control.

Key Features:

Wide measurement range: -30A to 30A
High accuracy and sensitivity
Low offset voltage
Compact and lightweight design
Easy to integrate into your projects

Specifications:

Supply voltage: 4.5V-5.5V DC
Sensitivity: 66mV/A
Current sensor chip: ACS712ELC-30B
Dimensions: 31 x 13 x 14 mm (LxWxH)
Weight: 3 gm

Applications:

Over-current protection circuits

Battery chargers

Switching mode power supplies

Digital watt meters

Programmable current sources

Attachments and Links:

ACS712 Datasheet:
