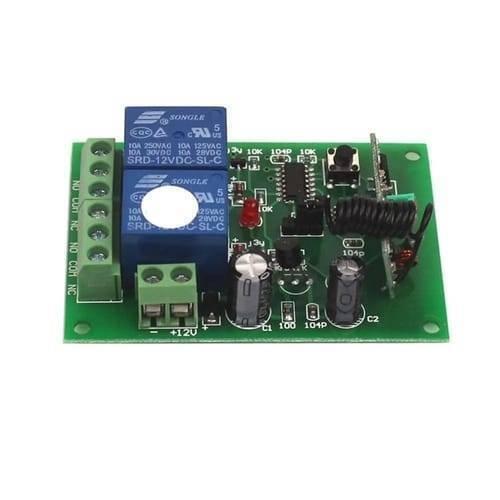

Experience the convenience of 2 Channel 12V 10A RF Wireless Remote Switch Module! This versatile system allows you to remotely operate two devices up to 10A each. Perfect for home automation, garage doors, lighting, and also more. The 315MHz frequency ensures reliable operation, while the included shell provides added protection.

Key Features of  2 Channel 12V 10A RF Wireless Remote Switch :

• 2 Channels for independent control
• 12V DC operating voltage
• Up to 10A load capacity per channel
• 315MHz wireless frequency
• Easy installation and use

Benefits:

• Save time and energy with remote control
• Enhance home comfort and security
• Expand smart home capabilities
• Versatile applications for various devices

Specifications Of 2 Channel 12V 10A RF Wireless Remote Switch:

• Channel: 2 CH 2 channel work way
• Decode: Learning code
• Working Voltage: DC 12V
• Output way:  Momentary defaults,(another model can change by yourself in work pin)
• Maximum Load Current: 10A
• Relay load:10A 220/110V
• Receiver Sensitivity: -105dBm
• Working temperature :  -40'C - +80'C
• Size: 68mm x 48mm x 15mm

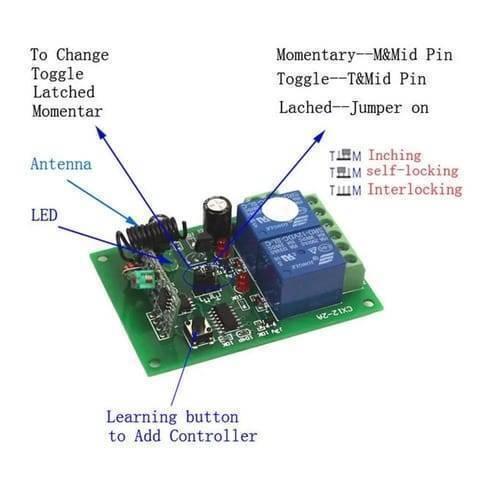

1. Jog/momentray: Press one button is Working /ON.  Loosen your finger on the same button is Stop/OFF.   However One channel switch needs one button remote control.
2. Self-lock/Self-Latched: Press one button for one time is working/ON.  Press the same button again is stop/OFF.  One channel switch needs one-button remote control.
3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF.  One channel switch need 2 buttons remote control.

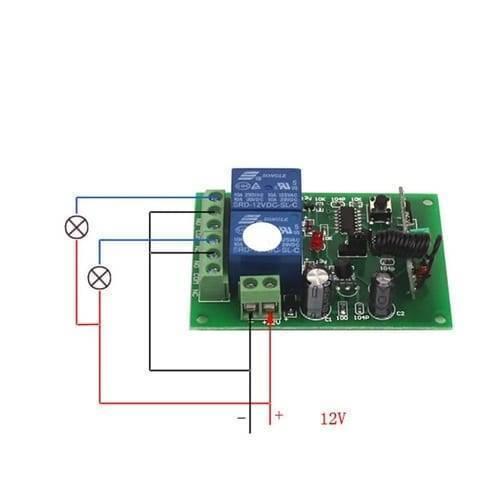

1. Connector the switch to 12V...
2. press the switchboard learn button (1-3 seconds), till the switch LED lighting.
3. after press the remote control button(A.B), till the switch LED lighting.. the relay will be ON or OFF.
4. test  the controller control the switch.. press the control button, the relay will be on and off.. so you can hear it.

1. Connector the switch to 12V.
2. Press the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted. The remote controller can not control the switch relay.

Package Include:

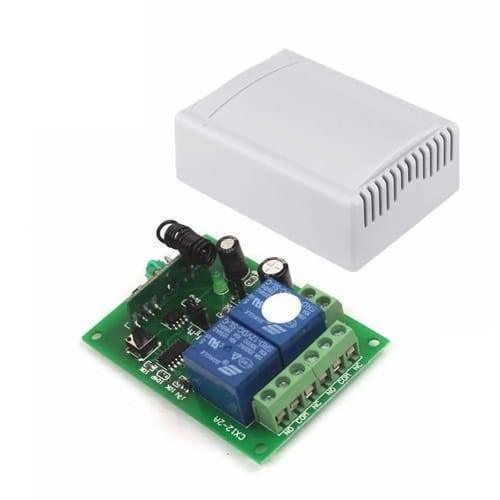

• 1 x 2 Channel RF Wireless System Remote Control Switch with Shell
