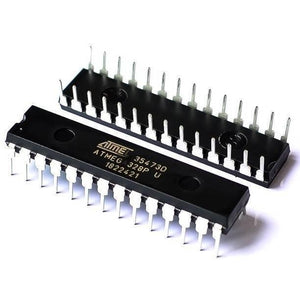

Atmel ATMEGA328P 8 Bit 28 Pins Microcontroller is a high-performance, low-power controller from a ​​​​​​microchip. Atmel ATMEGA328P Arduino is like the ATmega168, with double the flash space. 32K of program space. 23 I/O lines, 6 of which are channels for the 10-bit ADC. Runs up to 20MHz with an external crystal. The package can be Arduino programmed in a circuit. 1.8V to 5V operating voltage. Atmega328p programming controller is an 8-bit microcontroller based on AVR RISC architecture. Atmega-328p ic chip is the most popular of all AVR controllers as it is used in ARDUINO boards.

Features of Atmel ATMEGA328P 8 Bit 28 Pins Microcontroller 28-DIP Atmega-328P Arduino Programming Controller IC Chip Micro Chip:

• Practically does the work for you, durable and useful.
• Good reliability and lifelong lasting time are useful and durable.
• Only an ATmega328 in the DIP package, without the optiboot bootloader pre-loaded.
• You have to use code in your custom embedded project.
• It's like the ATmega168, with double the flash space.
• 32K of program space. 23 I/O lines, 6 of which are channels for the 10-bit ADC.
• Runs up to 20MHz with an external crystal.
• The package can be programmed in a circuit. 1.8V to 5V operating voltage!

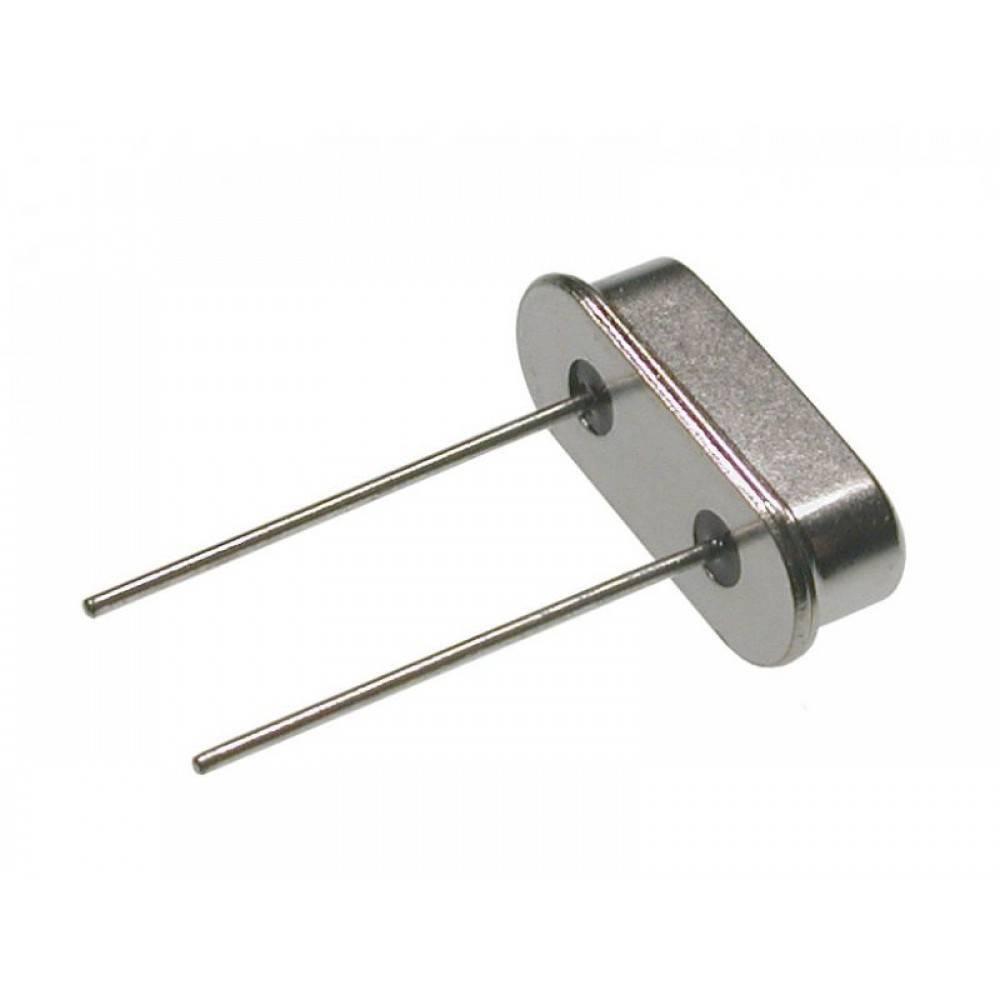

• To get this chip working with IDE, you will need an external 16MHz crystal or resonator, a 5V supply, and a serial connection.

Specifications of Atmel 8 Bit 28 Pins Microcontroller ATMEGA328P Microchip:

1. 4.5V-5.5V operating range
2. Up to 20MHz

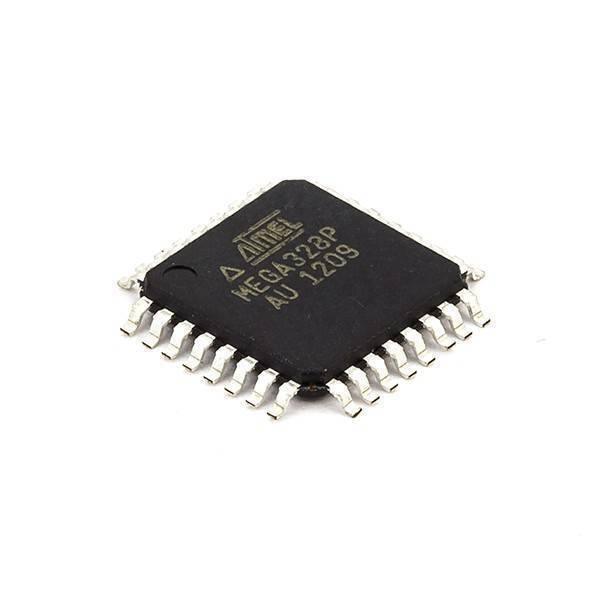

3. Part: ATMEGA328P-AU
4. 32kB Flash program memory
5. 1kB EEPROM
6. 2kB Internal SRAM
7. Two8-bit Timer/Counters
8. One16-bit Timer/Counter
9. RTC with separate oscillator
10. 6 PWM Channels
11. 8 Channel 10-bit ADC
12. Serial USART
13. Master/Slave SPI interface
14. 2-wire (I2C) interface
15. Watchdog timer
16. Analog comparator
17. 23 IO lines
18. Data retention: 20 years at 85oC/ 100 years at 25oC

Package Includes:

• 1 x Atmel ATMEGA328P 8 Bit 28 Pins Microcontroller IC Chip

Documents:

• Datasheet
• Atmel Product Page
