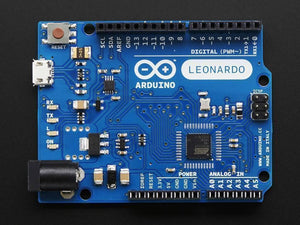

Arduino Leonardo R3 Board – ATMEGA32U4 Microcontroller, 20 I/o Pins, USB, 16MHz - a blue rectangular microcontroller circuit board featuring a USB port, power jack, reset button, and various pin headers.

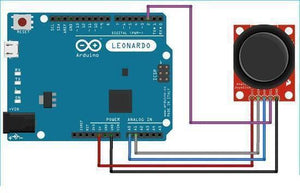

Arduino Leonardo R3 Board – ATMEGA32U4 Microcontroller, 20 I/o Pins, USB, 16MHz - connected by wires to a red analog joystick module, showing the wiring layout between the board's pins and the joystick.

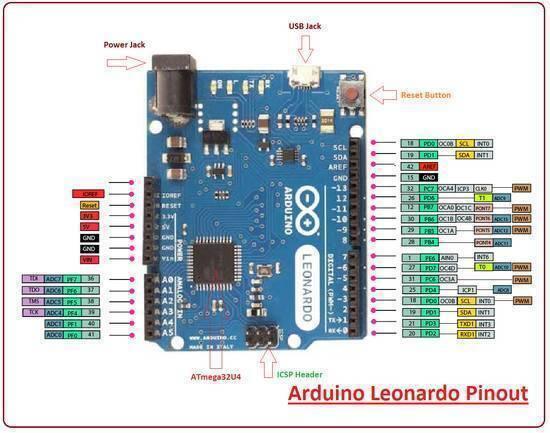

Arduino Leonardo R3 Board – ATMEGA32U4 Microcontroller, 20 I/o Pins, USB, 16MHz - the blue microcontroller board with its USB jack, power jack, reset button, and labeled pin headers.
Arduino Leonardo R3 Board – ATMEGA32U4 Microcontroller, 20 I/o Pins, USB, 16MHz - a blue rectangular microcontroller circuit board featuring a USB port, power jack, reset button, and various pin headers.
Arduino Leonardo R3 Board – ATMEGA32U4 Microcontroller, 20 I/o Pins, USB, 16MHz - connected by wires to a red analog joystick module, showing the wiring layout between the board's pins and the joystick.
Arduino Leonardo R3 Board – ATMEGA32U4 Microcontroller, 20 I/o Pins, USB, 16MHz - the blue microcontroller board with its USB jack, power jack, reset button, and labeled pin headers.

Arduino Leonardo R3 Board – ATMEGA32U4 Microcontroller, 20 I/o Pins, USB, 16MHz

Sale price Rs 1,570
SKU: B141,krt2,IMP10,Th5,A
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

Arduino Leonardo R3 Board – ATMEGA32U4 Microcontroller, 20 I/o Pins, USB, 16MHz - a blue rectangular microcontroller circuit board featuring a USB port, power jack, reset button, and various pin headers.

Arduino Leonardo R3 Board – ATMEGA32U4 Microcontroller, 20 I/o Pins, USB, 16MHz

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Arduino Leonardo R3 Board – ATMEGA32U4 Microcontroller, 20 I/o Pins, USB, 16MHz - a blue rectangular microcontroller circuit board featuring a USB port, power jack, reset button, and various pin headers.
Arduino Leonardo R3 Board – ATMEGA32U4 Microcontroller, 20 I/o Pins, USB, 16MHz
Sale priceRs 1,570

📝 Product Description:

The Arduino Leonardo R3 is a powerful microcontroller board based on the ATmega32u4, designed for beginners, hobbyists, and professionals in electronics and embedded systems. With 20 digital I/O pins (7 PWM outputs, 12 analog inputs), a 16 MHz crystal oscillator, micro USB connection, power jack, ICSP header, and reset button, it provides everything needed to start building projects instantly.

Unlike earlier Arduino boards, the Leonardo features native USB communication, eliminating the need for a secondary processor. This allows it to appear to your computer as a keyboard, mouse, and virtual serial COM port, making it ideal for DIY projects, automation, robotics, and human-computer interaction applications.

🔧 Key Features

  • ✅ Microcontroller: ATmega32u4

  • 🔌 Native USB Communication – Acts as keyboard, mouse, or virtual COM port

  • ⚡ 20 Digital I/O Pins – 7 PWM outputs & 12 analog inputs

  • 🖥 Crystal Oscillator: 16 MHz for stable performance

  • 🔋 Operating Voltage: 5V, Input 7–12V (recommended)

  • 🧰 Onboard Interfaces: Micro USB, power jack, ICSP header, reset button

  • 🏭 Compatible With: Arduino IDE & 100% Pro Micro compatible

📋 Technical Specifications:

Attribute Details
Microcontroller ATmega32u4
Operating Voltage 5V
Input Voltage (Recommended) 7–12V
Input Voltage (Limits) 6–20V
Digital I/O Pins 20
PWM Channels 7
Analog Input Channels 12
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (4 KB used by bootloader)
SRAM 2.5 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 68.6 × 53.3 mm
Weight 20 g

🌍 Applications

  • Robotics & automation

  • Human-computer interaction (keyboard/mouse emulation)

  • Embedded system development

  • Sensor interfacing & control systems

  • DIY electronics & prototyping

📦 Package Includes

  • 1 × Arduino Leonardo R3 Board


Frequently Bought Together

1meter 7mm Width GT3 Open Timing Belt For CNC And 3d Printer - a black, toothed rubber belt coiled into a circular shape on a white background. 1meter 7mm Width GT3 Open Timing Belt For CNC And 3d Printer - a coiled black rubber toothed belt with an inset circular close-up showing the ribbed texture of the belt surface.
Sold out
 Log in to use Wishlist
Add to Compare
View product

1meter 7mm Width GT3 Open Timing Belt For CNC And 3d Printer

Sale priceRs 660

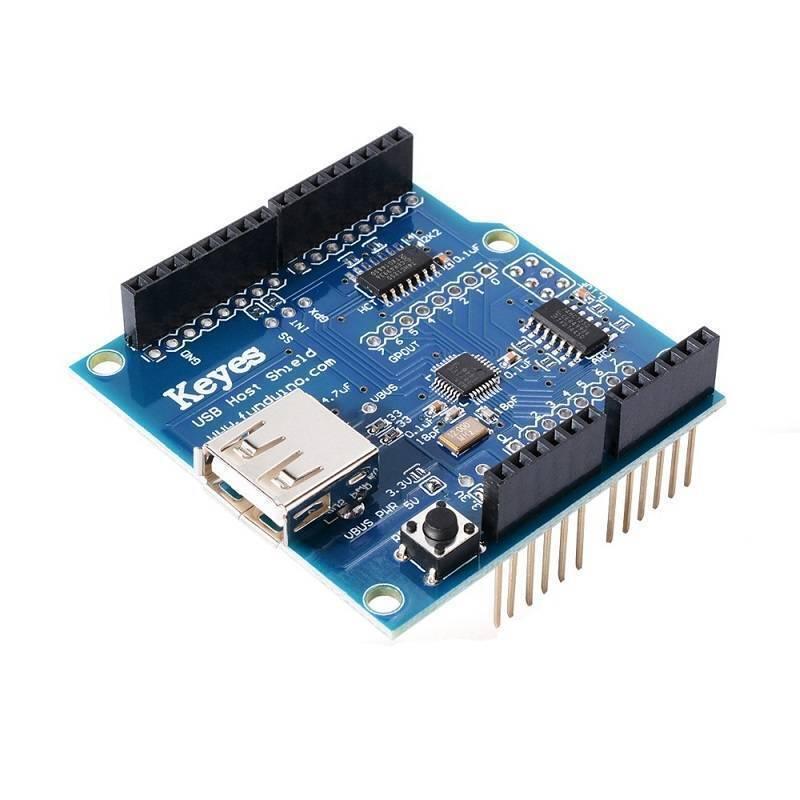

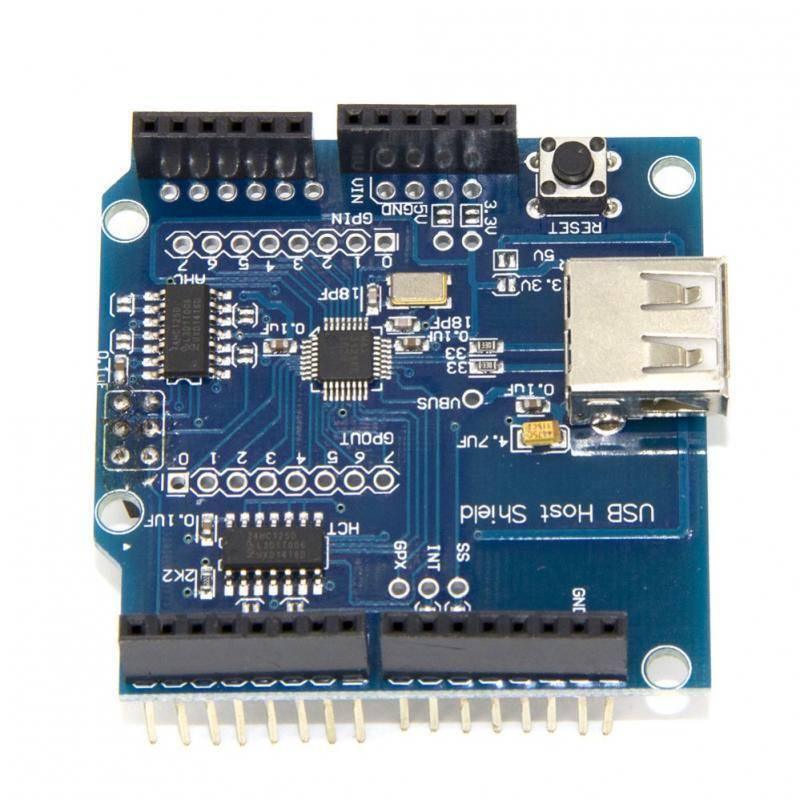

Arduino Compatible USB Host Shield - a blue circuit board featuring a USB Type-A port, a reset button, multiple pin headers, and integrated chips. Arduino Compatible USB Host Shield - shown as a blue circuit board with a USB port, a black reset button, and black pin headers on a white background.
-22%
 Log in to use Wishlist
Add to Compare

Arduino Compatible USB Host Shield

Regular price Rs 2,400 Sale priceRs 1,870

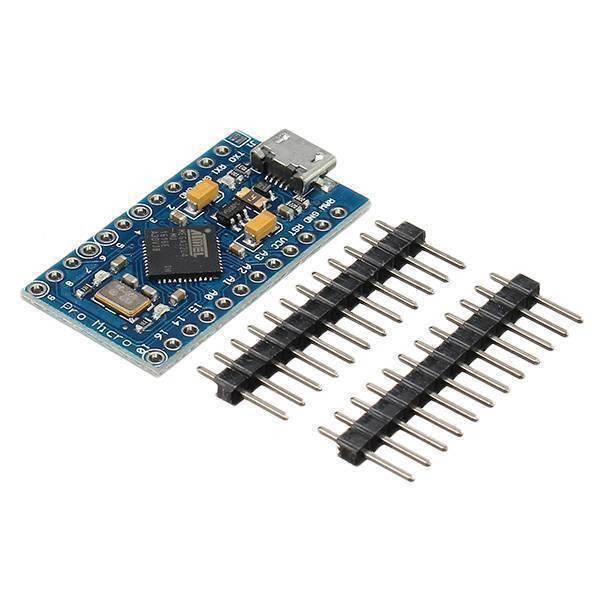

Arduino Pro Micro 5V 16M ATMEGA32U Rubber Ducky Rubberducky - a blue rectangular microcontroller board with a micro-USB port and two strips of black header pins. Arduino Pro Micro 5V 16M ATMEGA32U Rubber Ducky Rubberducky - a blue rectangular microcontroller board with a USB port and two separate rows of black header pins.
Log in to use Wishlist
Add to Compare

Arduino Pro Micro 5V 16M ATMEGA32U Rubber Ducky Rubberducky

Sale priceRs 1,260

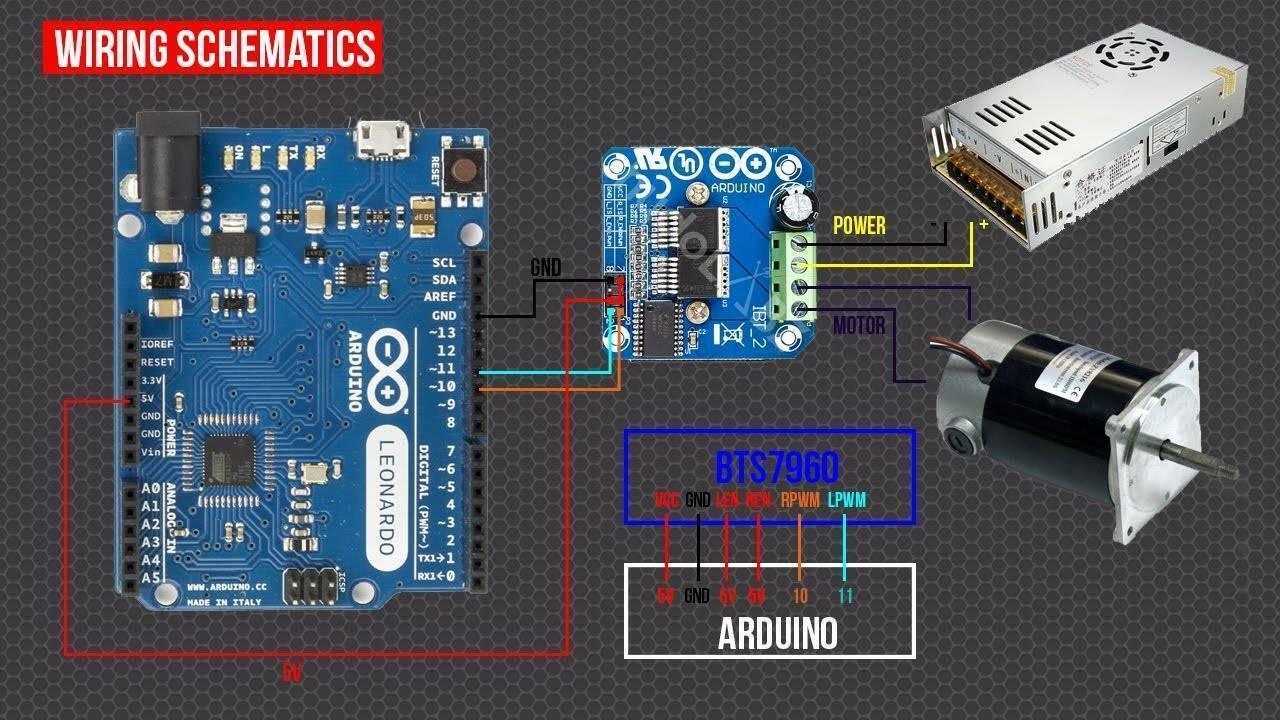

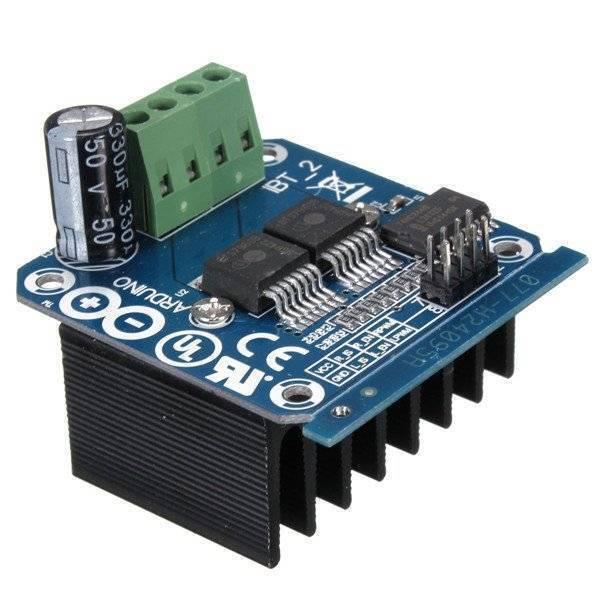

IBT2 BTS7960B BTS7960 43A H-bridge Motor Driver Module For Arduino - a blue circuit board, a green terminal block, a black heatsink, and a 330uF 50V capacitor. IBT2 BTS7960B BTS7960 43A H-bridge Motor Driver Module For Arduino - connections between an Arduino Leonardo, a power supply, and a DC motor.
