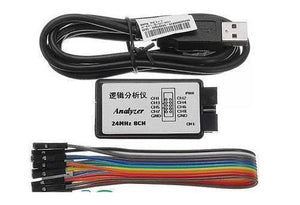

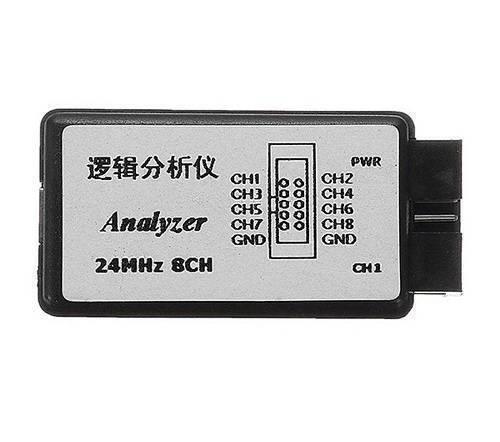

24MHz 8ch USB Logic Analyzer
Pickup available at Digilog Electronics
Usually ready in 2 hours
24MHz 8ch USB Logic Analyzer
USB Logic Analyzer is an instrument, captures/displays multiple signals from a digital system/digital circuit. USB Logic Analyzer may convert the captured data into timing diagrams, protocol decodes, state machine traces, assembly language, or may correlate assembly with source-level software. Logic analyzers have advanced triggering capabilities, and are useful when a user needs to see the timing relationships between many signals in a digital system.
Features of 24Mhz 8CH USB Logic Analyzer:
- USB Logic Analyzer
- 24mhz Logic Analyzer
- Logic Analyzer Fpga
- Parameter: 1. 8 channels input;
- Logical indication: a small indicate CHO electrical level;
- Input feature: 5PF, 100K Ohm;
- USB power supply
Specifications of 24Mhz 8CH USB Logic Analyzer:
- 8 channels input
- Logical light indication: a small light indicate CHO electrical level;
- Input feature: 5PF, 100K Ohm
- USB power supply
- The sampling rate can be set as 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz
- Data upload real-time, the max of the depth of the collection is 10T, far from the practical need
- Support WIN7(32&64), 2K, XP, LINUX
Package Includes:
1 x USB Logic Analyzer 24M 8CH Microcontroller ARM FPGA Debug Tool
Frequently Bought Together

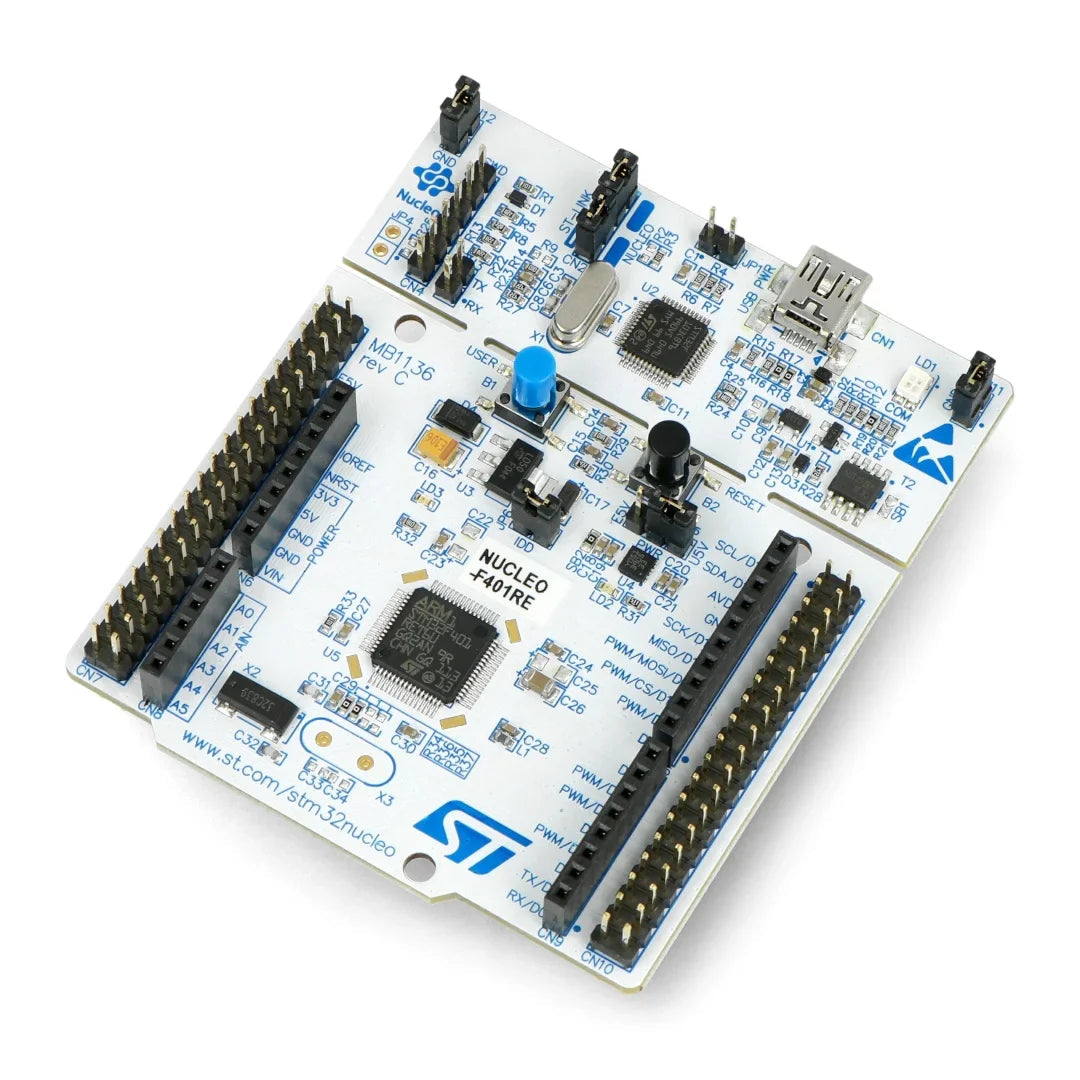

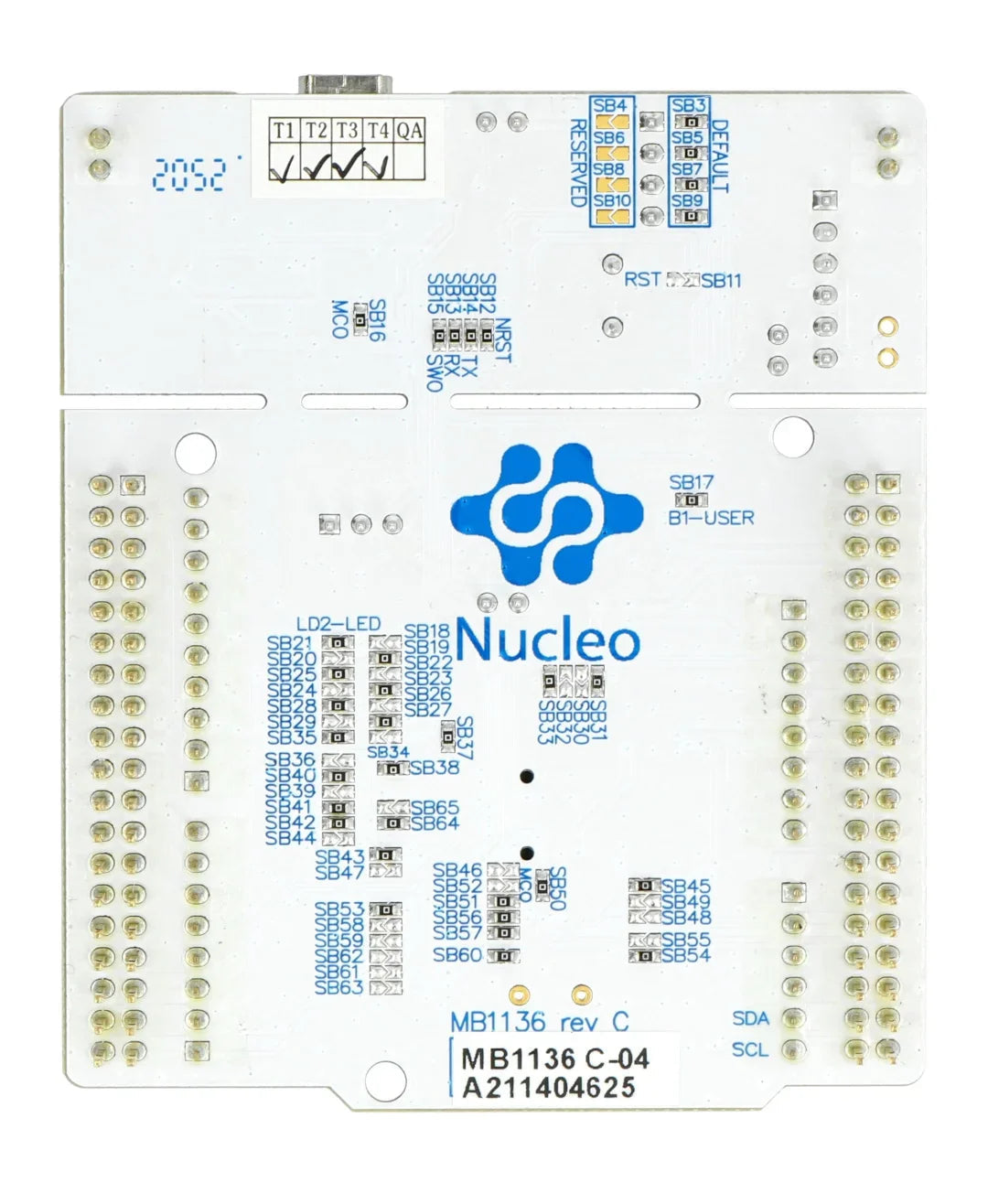

STMicroelectronics NUCLEO-F401RE STM32 Nucleo-64 Development Board with STM32F401RE MCU, USB, ST Morpho Connectivity, On-Board ST-LINK/V2-1 Debugger/ Programmer
