Digital Soldering And SMD Rework Station Kada 852D+
Pickup available at Digilog Electronics
Usually ready in 2 hours

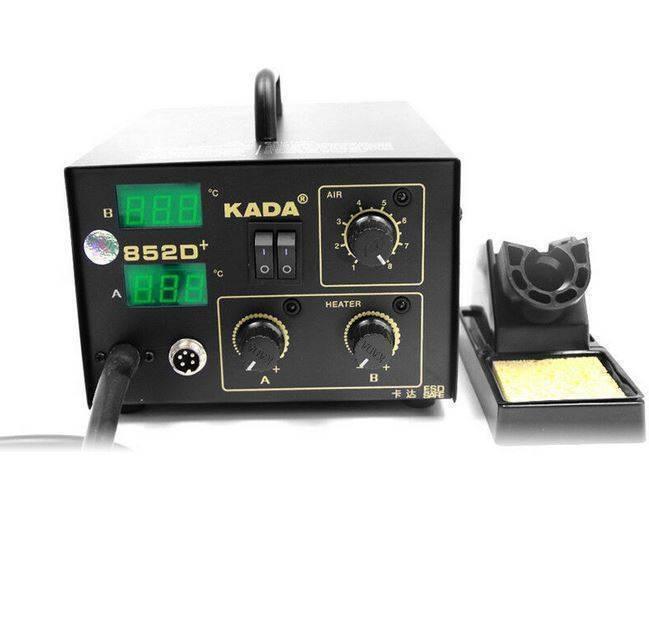

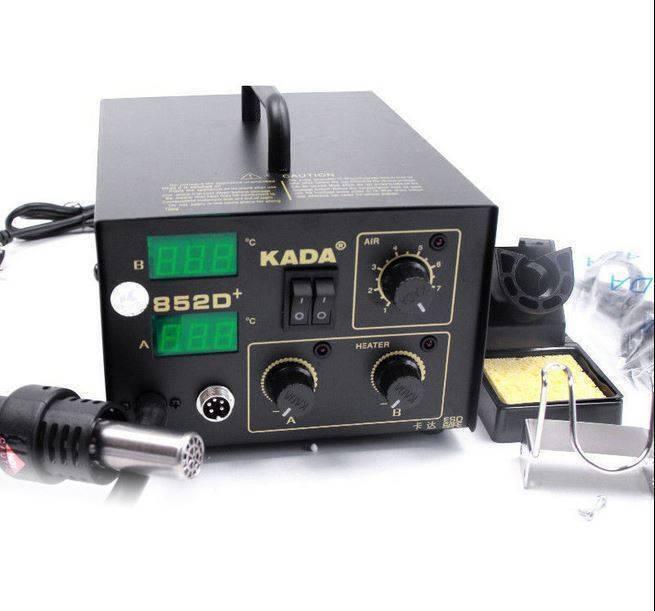

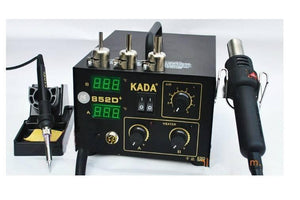

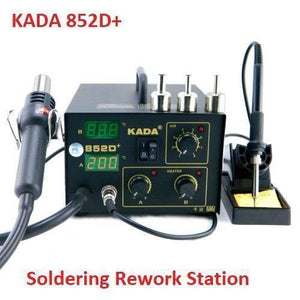

KADA 852D+ digital soldering station is a combination of both hot air soldering station and soldering iron for soldering or desoldering SMD components and through-hole components. The hot air gun can be used for easily removing or soldering various devices such as BGA, QFP, SOP, PLCC, SOJ chips and etc. KADA 852D+ digital soldering station has three knobs that control hot air volume, hot air temperature, and soldering iron temperature
Features:
- The hot air knob has 8 shifts, which provide different speeds and volumes of airflow for different use
- The Diaphragm Pump capable of producing strong and stable airflow (0.3--24L/min)
- Two LED displays for hot air and iron, you can easily get your desired temperatures
- The machine provides stable temperature which is not affected by the volume of airflow.
- The soldering iron can be unplugged easily
- ESD SAFE design provides extra safety for sensitive components
- High quality ceramic heating element rises the iron temperature rapidly in 3 seconds
- KADA 852D+ digital soldering station also has an automatic cooling system
Soldering Station Specification:
- Working Voltage: 24V AC 50Hz
- Output Power: 60W
- Temperature Range: 200°C-480°C
- Leakage Voltage of Iron Tip: <0.5mV
- Standard Iron Tip: AT-900M
Rework Station Specifications:
- Input Voltage : AC 220V ~ 240V
- Input Frequency: 50/60Hz
- Power consumption (Heater): 250W
- Pump: Diaphragm Pump
- Power consumption (Pump): 45W
- Temperature Range: 100°C ~ 420°C
- Air Flow : 24L/min (max)
- Outer Dimensions: 187(W)x150(H)x245(D)mm
- Weight: 4kg
Buy Digital Soldering Rework Station KADA 825D+ at Pakistan's Best Online Shopping Store at cheap price. Here you get a wide range of Soldering tools and SMD Rework station. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all Over Pakistan

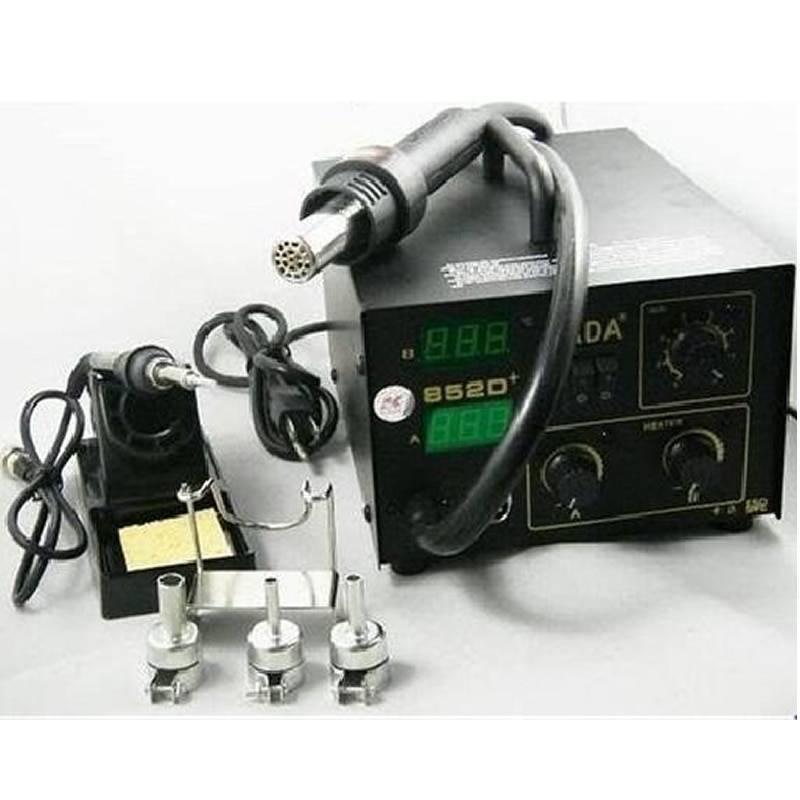

Package Include:
- 1 x 2-in-1 Rework Station 240v
- 1 x Hot Air Gun (attached)
- 1 x Soldering iron

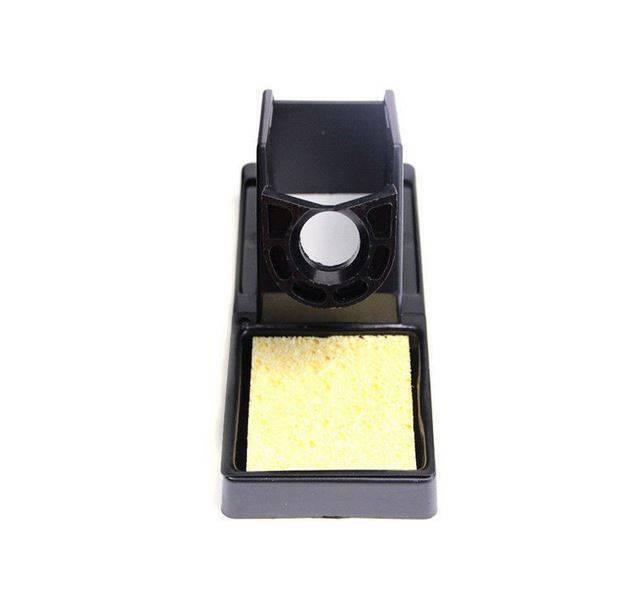

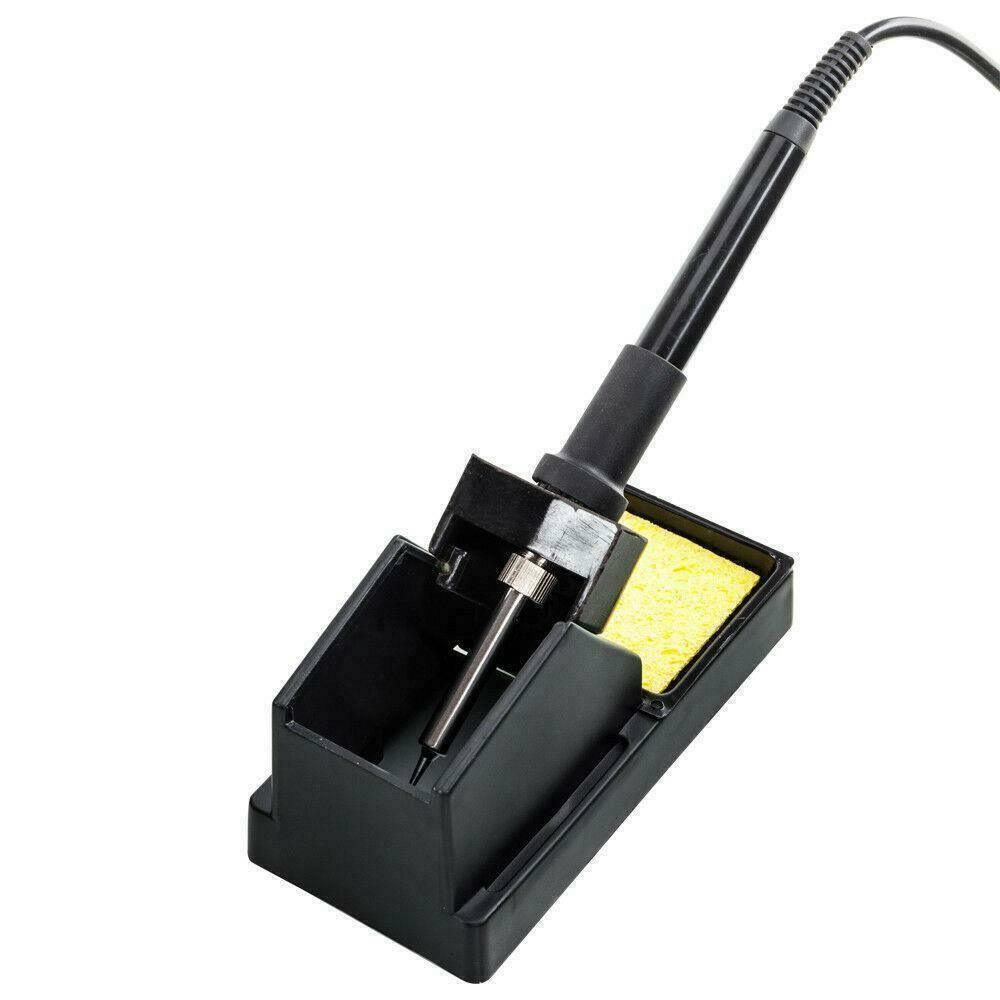

- 1 x Soldering iron stand
- 1 x Cleaning sponge
- 1 x Conical shape soldering tip (Installed)

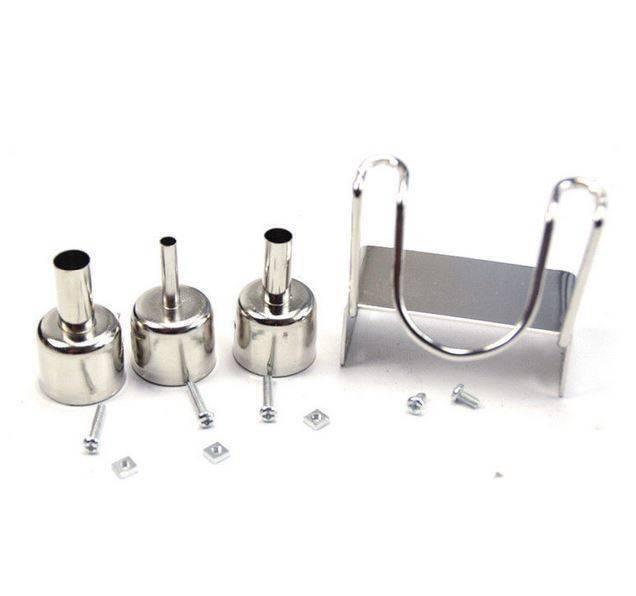

- 3 x Hot air nozzles
