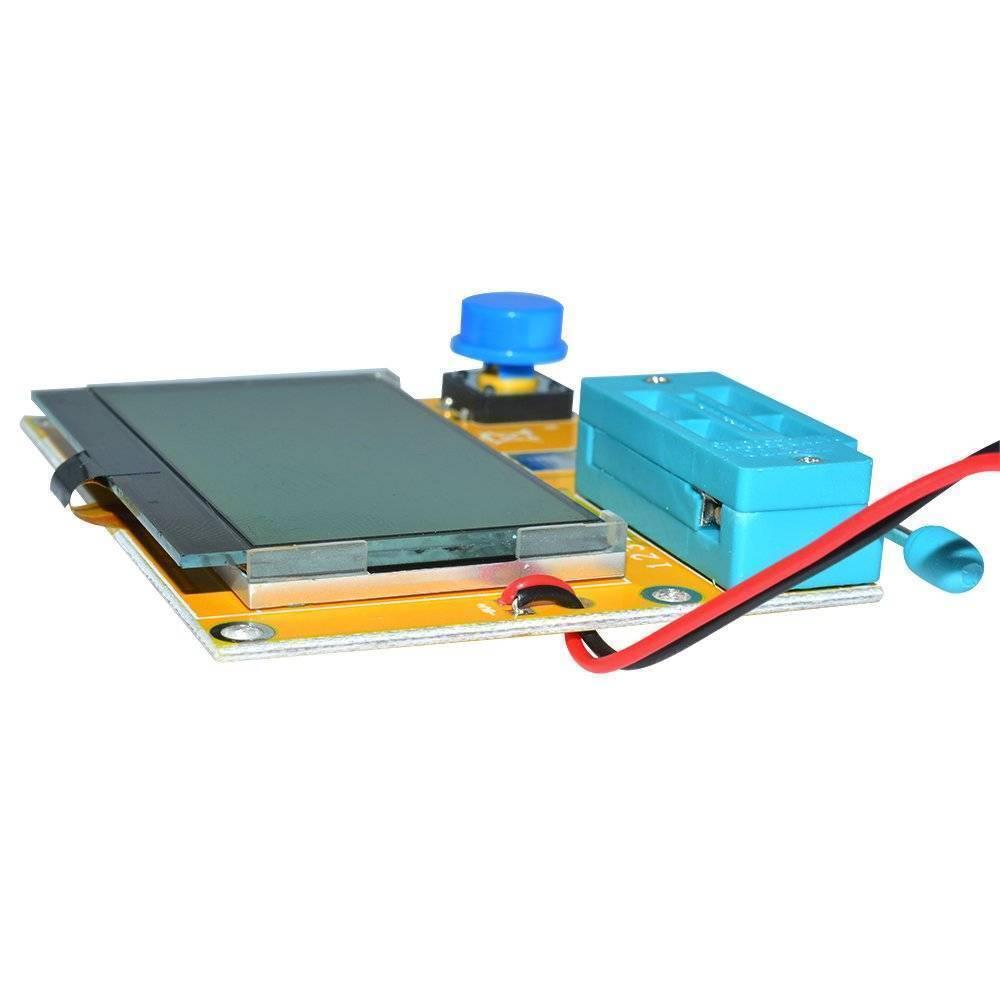

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - a yellow circuit board with a blank LCD screen, a blue button, and a blue ZIF socket.

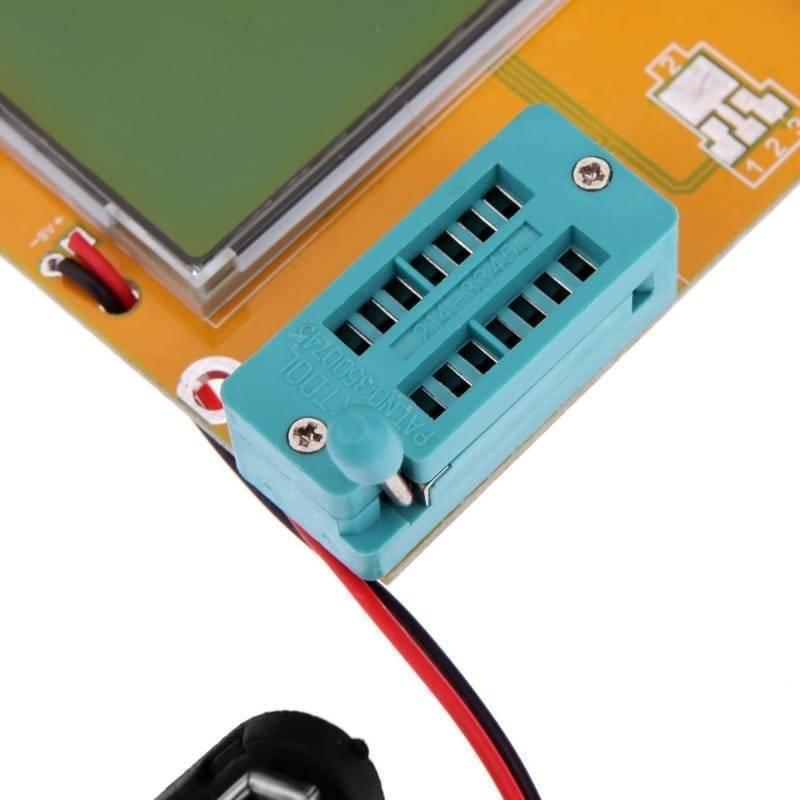

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - close-up of the teal ZIF socket on a yellow circuit board with a partial LCD screen visible.

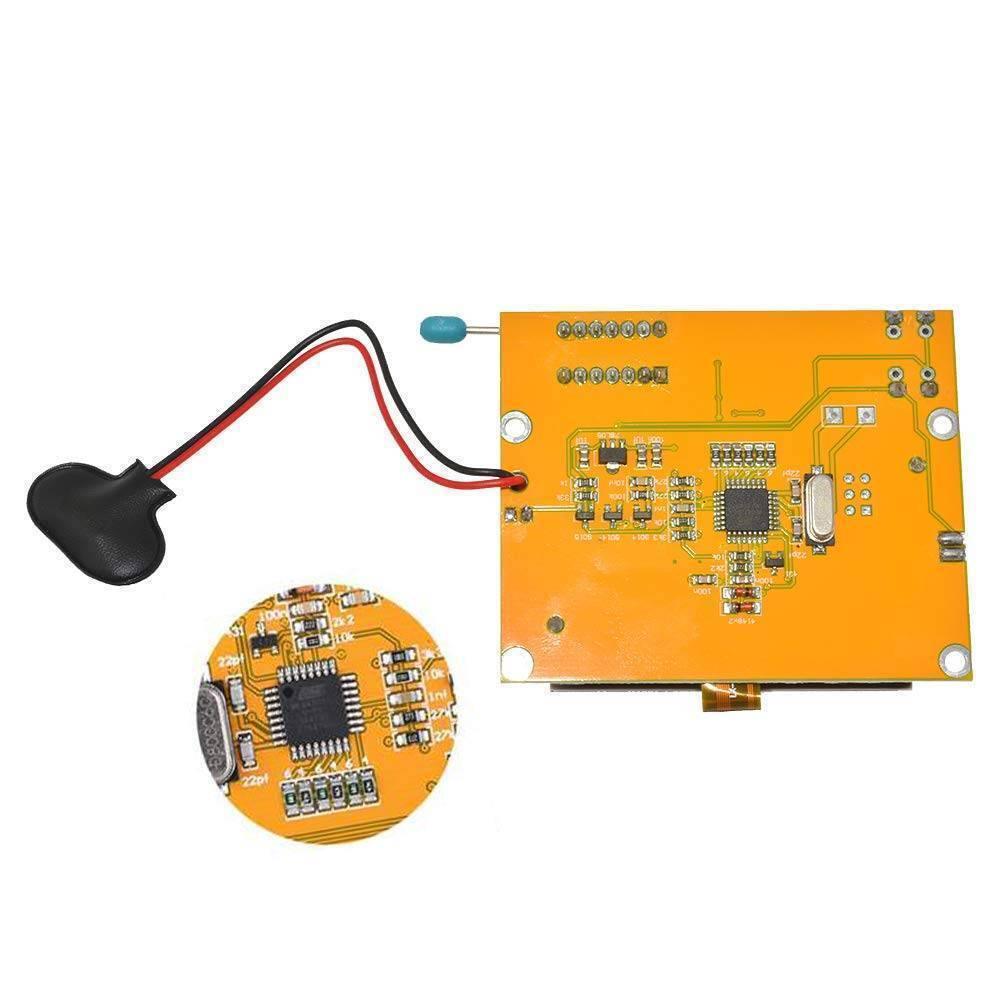

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - the yellow circuit board, a black sensor probe, and a circular close-up of the chip.

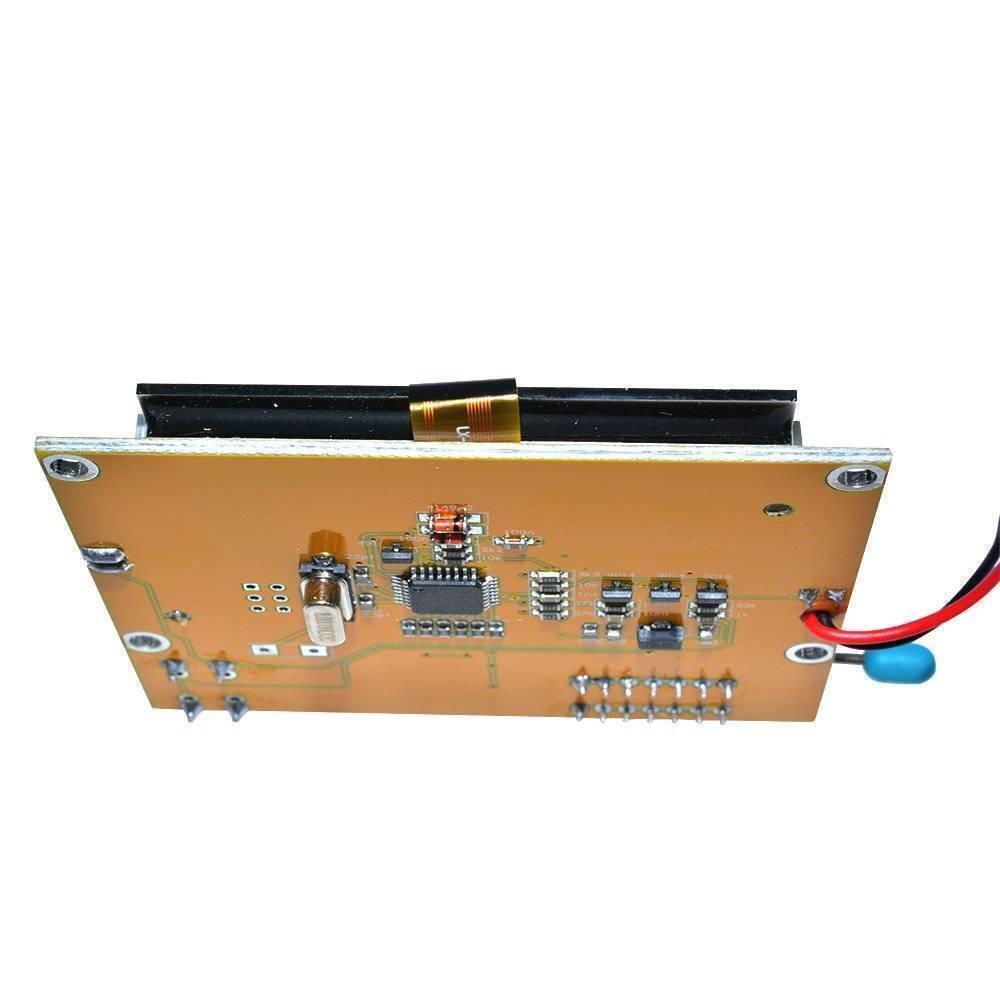

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - the orange circuit board, a black display module, and connected red and black wires.

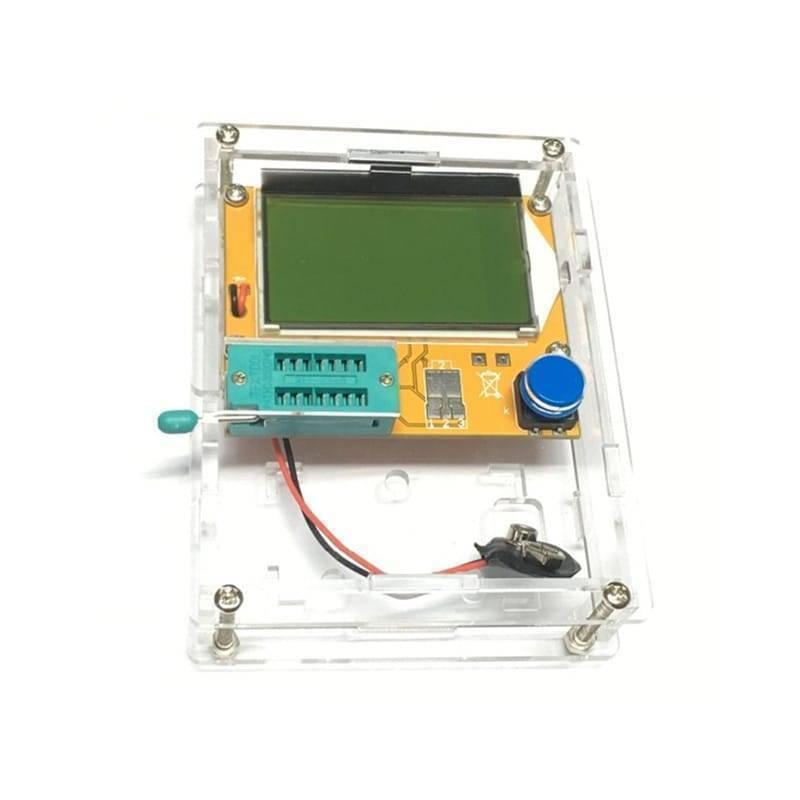

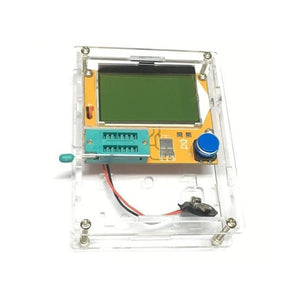

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - with a blank green LCD, a blue button, and a ZIF socket housed in a clear acrylic case.

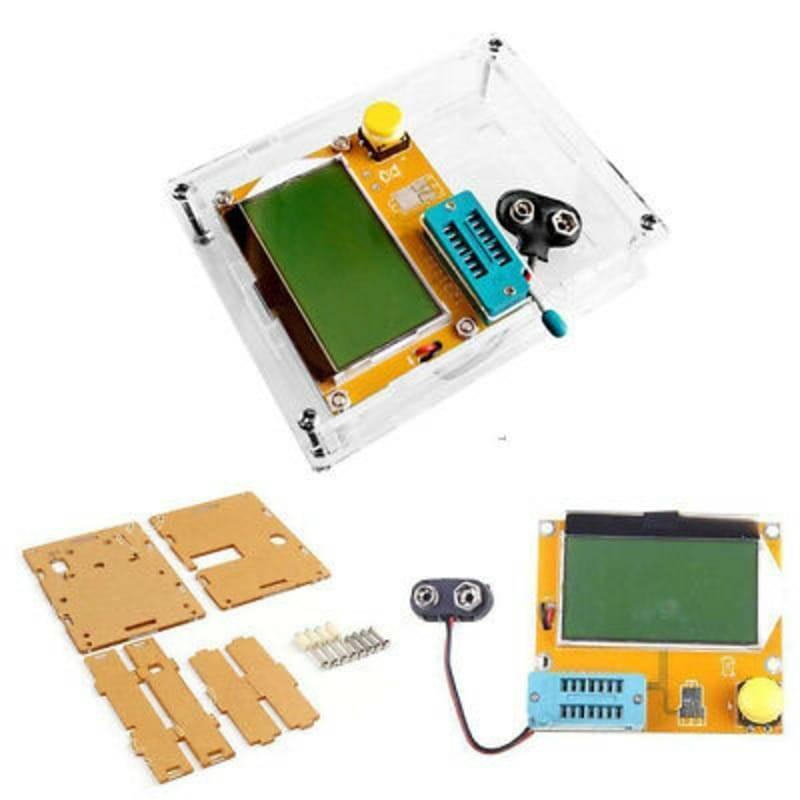

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - an assembled unit, its disassembled acrylic case parts, and a battery connector.

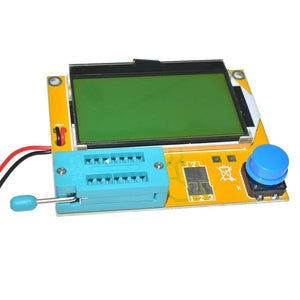

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - a blank green LCD screen, a blue ZIF socket, and a blue push-button on a yellow PCB.

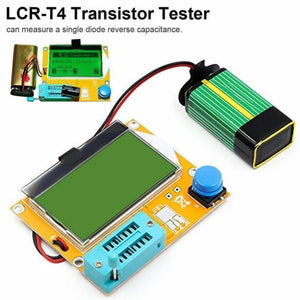

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - a yellow circuit board with a green screen, a blue ZIF socket, a blue button, and a connected 9V battery.

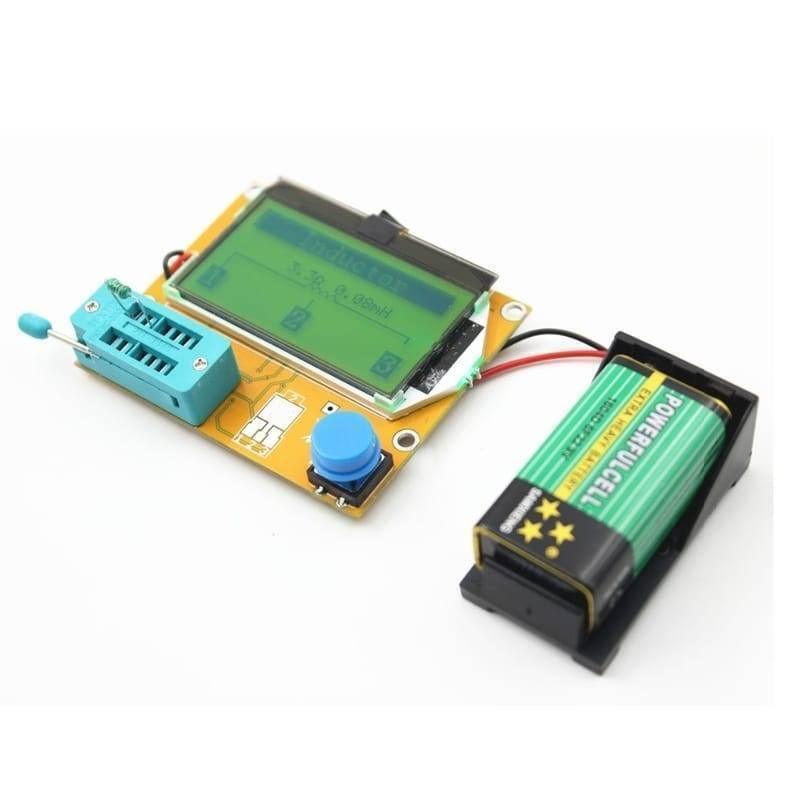

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - with a yellow circuit board, blue ZIF socket, blue button, LCD screen, and 9V battery.

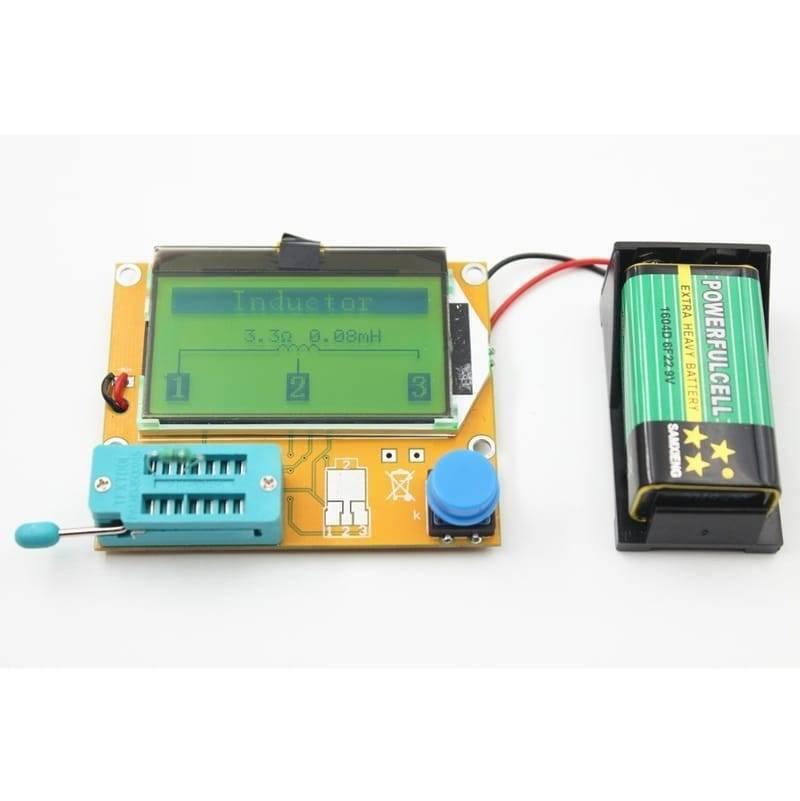

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - a yellow circuit board, a blue ZIF socket, a blue button, and a 9V battery.
Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - a yellow circuit board with a blank LCD screen, a blue button, and a blue ZIF socket.
Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - close-up of the teal ZIF socket on a yellow circuit board with a partial LCD screen visible.
Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - the yellow circuit board, a black sensor probe, and a circular close-up of the chip.
Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - the orange circuit board, a black display module, and connected red and black wires.
Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - with a blank green LCD, a blue button, and a ZIF socket housed in a clear acrylic case.
Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - an assembled unit, its disassembled acrylic case parts, and a battery connector.

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4

Sale price Rs 2,020
SKU: b92,krt62,IMP10,Th5,A
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - a blank green LCD screen, a blue ZIF socket, and a blue push-button on a yellow PCB.

Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4 - a blank green LCD screen, a blue ZIF socket, and a blue push-button on a yellow PCB.
Diode Triode Capacitance ESR Meter Transistor Tester Lcr T4
Sale priceRs 2,020

LCR-T4 ESR Meter is an all in one universal LCR Meter and NPN, PNP, FET, MOSFET, Transistor, Inductor, Resistor, Capacitor LED and Diode tester. This LCRT4 diode triode Capacitance best transistor tester automatic test the pin of a component, and display on the LCD. Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage. This digital transistor tester measures the gate and gate capacitance of the MOSFET threshold voltage. This tester ESR digital can simultaneously measure two resistors and resistor symbol is displayed. Can measure the capacitance of 30pF-100mF, resolution 1pF.



Features Of LCR T4 Diode Triode Capacitance Best ESR Meter:

  • Measures Inductors with ESR (in ohms)
  • Measures capacitance and ESR
  • Auto Detects and Measures forward voltages of diodes, dual diode, and LEDs
  • Test FETs gate capacitance and turn-on gate voltage
  • Discovers transistor for NPN or PNP type and measures HFE / Gain and Saturation Voltage
  • Test SCR,
  • Can also test voltage regulators including surface mount regulators
  • Measures Resistance, and Adjustable potentiometers
  • Auto operation, Auto detects pinout of transistors, fets, LEDs, diodes and voltage regulators
  • Bright Backlight
  • One-touch operation
  • Battery voltage display at power-up and low battery display

Specifications Of  LCR-T4 Diode Triode Capacitance ESR Meter:

  1. Graphic LCD Resolution: 128×64 pixel
  2. LCD Backlight: Yes
  3. Controller: ATMEGA328P
  4. Power Voltage: 9V layer-built battery / 2 li-ion batteries to form a 8.4V battery pack
  5. Testing Speed: 2 seconds (1 minute is normal for large capacitor)
  6. Shutdown Current: 20nA
  7. Capacitance: 25pf-100mF (resolution 1pF)
  8. Inductance: 0.01mH-20H
  9. Resistance: ≤2100Ω
  10. Resolution of Resistance Measurement: 0.1 ohms
  11. The Highest Measured Value: 50M ohms
  12. Provided Testing Current: Approx. 6mA
  13. Product Size: 7.2 * 6.25cm (L * W)

[!] Note: These low price universal testers may have re-cycled 128×64 LCD modules, therefore, expect some scratches on the display

Documents and Downloads:

  • Download 3D Printed Box files for LCR-T4 from Thingiverse
  • Youtube Review – LCR-T4 All-In-One “LCR Meter” Review and Tests by Mark Furneaux

Package Includes:

  • LCR-T4 All-In-One LCR Meter Transistor Diode Tester with 12864 Graphic LCD
  • The battery is not included
