DESCRIPTION
·With TO-220 package
·Complement to type 2SA473
·Collector current :IC=3A
·Collector dissipation:PC=10W@TC=25?
APPLICATIONS
·Low frequency power amplifier
·Power regulator

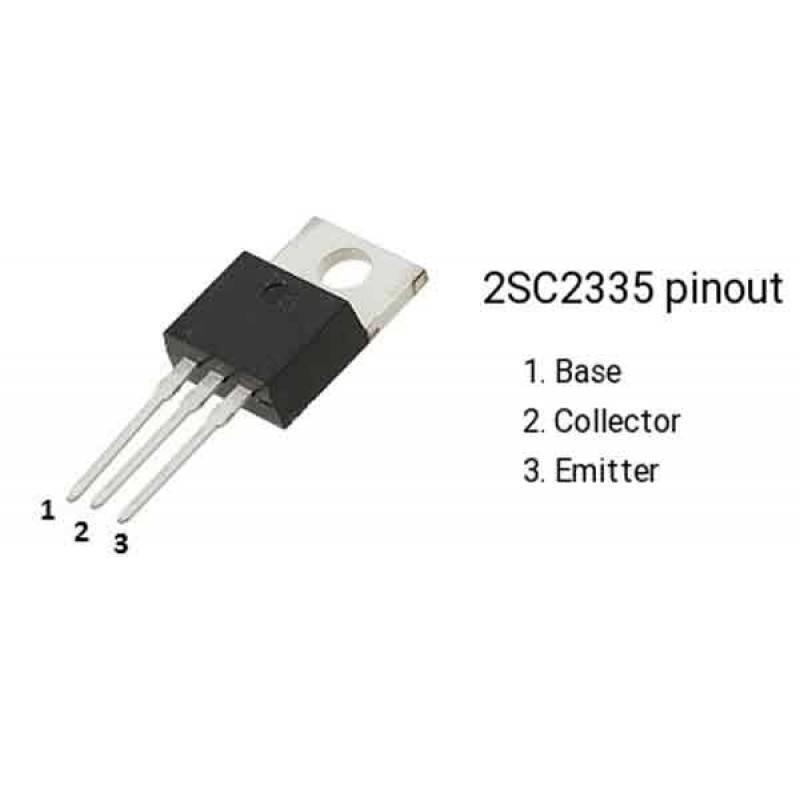

PINNING
PIN DESCRIPTION
1 Base
2 Collector;connected to
mounting base
3 Emitter
Absolute maximum ratings (Ta=25? )
SYMBOL PARAMETER CONDITIONS VALUE UNIT
VCBO Collector-base voltage Open emitter 30 V
VCEO Collector-emitter voltage Open base 30 V
VEBO Emitter-base voltage Open collector 5 V
IC Collector current (DC) 3 A
PC Collector power dissipation TC=25? 10 W
Tj Junction temperature 150 ?
Tstg Storage temperature -55~150 ?
