2SC1383 NPN Transistor - shown as a black, semi-circular component with three downward-facing metal pins and a pinout diagram labeled 1, 2, and 3.

2SC1383 NPN Transistor

Rs 20

SKU: b194,LIMP50,Th25,AL

Pickup available at Digilog Electronics

Usually ready in 2 hours

2SC1383 NPN Transistor - shown as a black, semi-circular component with three downward-facing metal pins and a pinout diagram labeled 1, 2, and 3.

2SC1383 NPN Transistor

Rs 20

Introducing the 2SC1383, a powerful NPN transistor designed for a wide range of applications. This versatile component offers excellent performance and reliability, making it ideal for both general-purpose and demanding electronic circuits.

Key Features:

NPN Transistor Type: Suitable for various circuit configurations.
High Voltage and Current Ratings: Handles demanding applications.
High Transition Frequency: Capable of operating at high frequencies.
TO-92 Package: Compact and easy-to-use.
Wide Operating Temperature Range: Performs reliably in various environments.

Specifications:

Type: N-P-N
Collector-Emitter Voltage: 25V
Collector-Base Voltage: 30V
Emitter-Base Voltage: 5V
Collector Current: 1A
Collector Dissipation: 1W
DC Current Gain (hfe): 85-340
Transition Frequency: 200MHz
Operating and Storage Junction Temperature Range: -55°C to 150°C
Package: TO-92MOD

Applications:

Amplifiers: Amplify various types of electronic signals.
Switching Circuits: Control the flow of current in different applications.
General-Purpose Electronics: Use in a wide range of electronic devices.

Order Your 2SC1383 Transistor Today!

Enhance your electronic projects with this reliable and versatile component.

Frequently Bought Together

2SA1273 A1273 TO-92L PNP Transistor IC Chip - a black electronic component with three metal pins and the text "A1273 Y 3AL" printed on its front face.

2SA1273 A1273 TO-92L PNP Transistor IC Chip

Rs 20

2SC2655 NPN Transistor - a black, rectangular electronic component with three metal leads and the text "C2655 Y 7E" printed on its surface.

2SC2655 NPN Transistor

Rs 20

TIP142 NPN Darlington Transistor - shown as two identical black, three-pin electronic components with metal mounting tabs and printed text labels.

TIP142 NPN Darlington Transistor - shown as a black TO-220 package with three pins and a corresponding schematic diagram illustrating the pinout.

TIP142 NPN Darlington Transistor

Rs 70

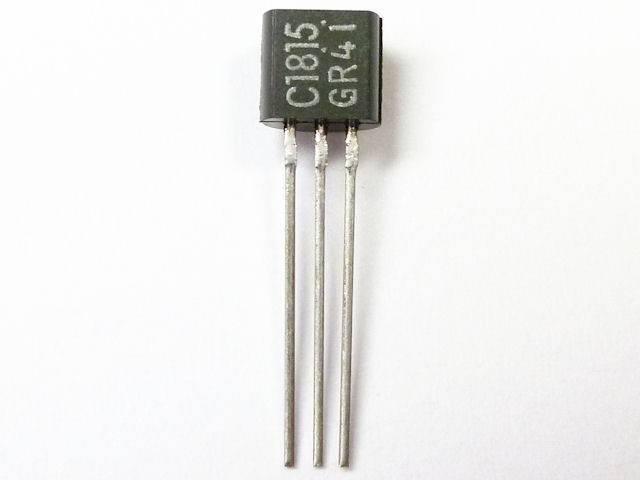

2SC1815 NPN - a black three-pin electronic component with the text "C1815 GR41" printed on its flat face, shown against a white background.

2SC1815 NPN

Rs 10

2SC945 C945 50V 0.15A Bipolar NPN Transistor - a small black electronic component with three metal pins and the text "C945 GR331" printed on its flat face.

2SC945 C945 50V 0.15A Bipolar NPN Transistor - the black body with C945 GR3 text and a diagram indicating the Emitter, Collector, and Base pin assignments.

2SC945 C945 50V 0.15A Bipolar NPN Transistor

Rs 10

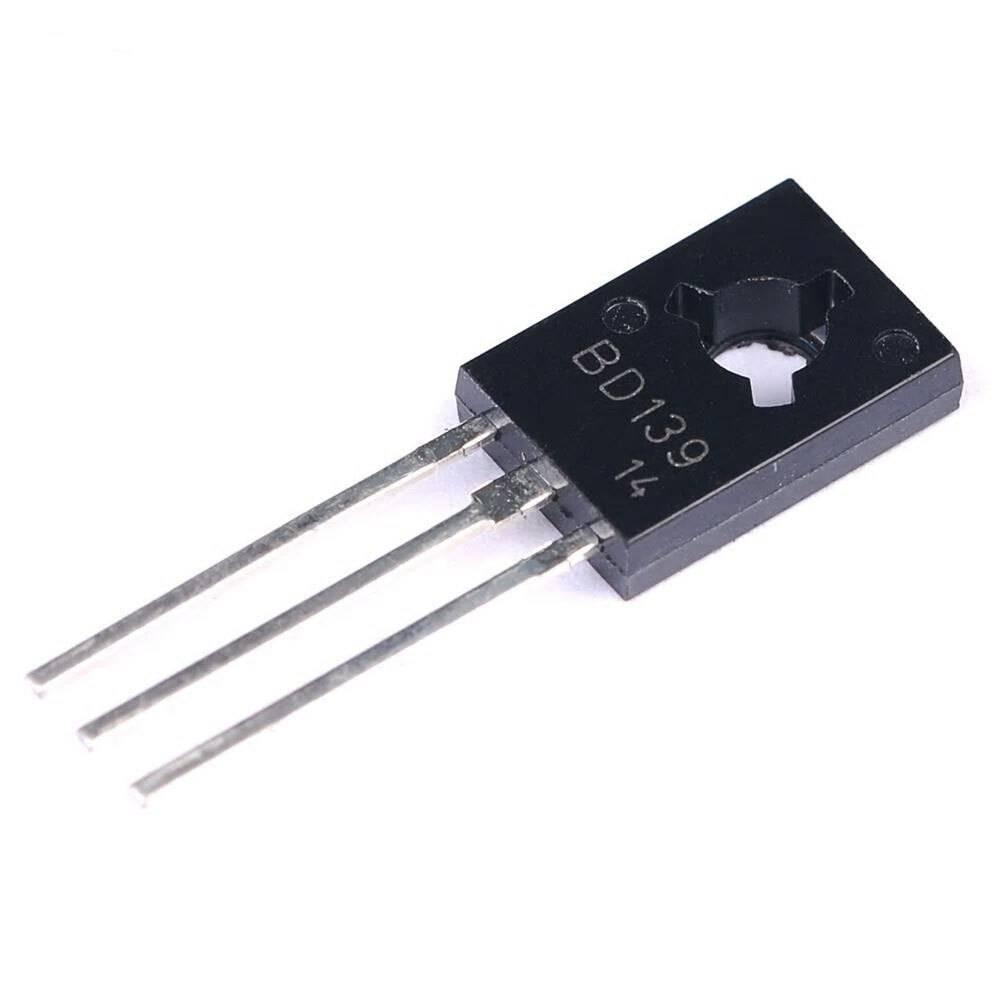

BD139 NPN Transistor - a black electronic component with three metal pins and a mounting hole, shown from a top-down angle against a white background.
