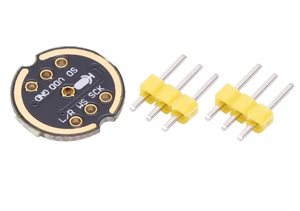

INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module - a circular black PCB with gold pins labeled SD, VDD, GND, L/R, WS, SCK, alongside two sets of yellow header pins.

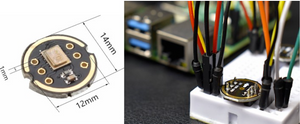

INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module - a dimensioned product diagram next to the circular black circuit board connected to a breadboard with wires.

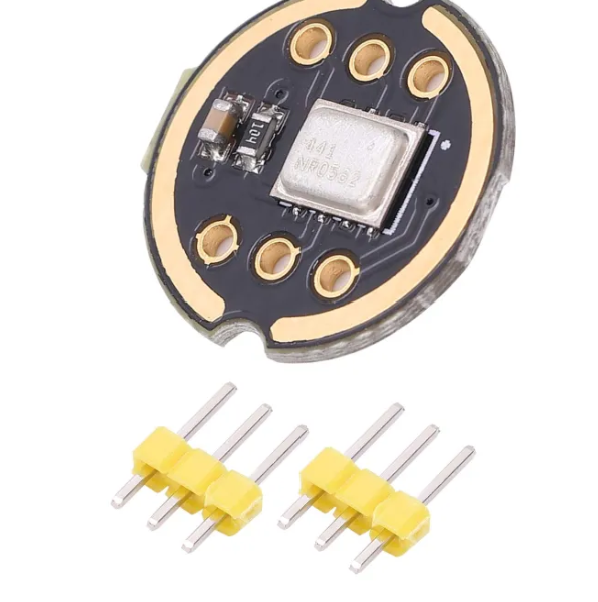

INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module - a round black circuit board with a central metal sensor and two separate three-pin yellow header connectors.

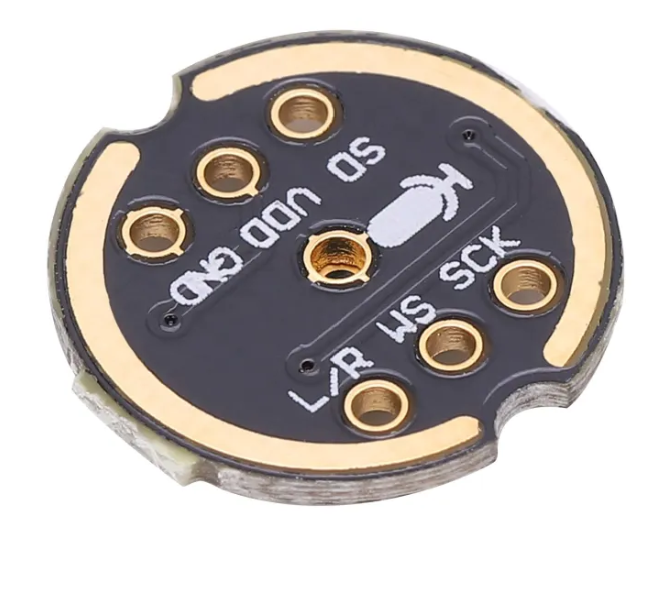

INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module - a circular black PCB with gold-plated mounting holes labeled SD, VDD, GND, L/R, WS, and SCK.
-47%
INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module - a circular black PCB with gold pins labeled SD, VDD, GND, L/R, WS, SCK, alongside two sets of yellow header pins.
INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module - a dimensioned product diagram next to the circular black circuit board connected to a breadboard with wires.
INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module - a round black circuit board with a central metal sensor and two separate three-pin yellow header connectors.
INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module - a circular black PCB with gold-plated mounting holes labeled SD, VDD, GND, L/R, WS, and SCK.

INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module

Regular price Rs 750 Sale price Rs 400
SKU: b579,krt27
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module - a circular black PCB with gold pins labeled SD, VDD, GND, L/R, WS, SCK, alongside two sets of yellow header pins.

INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module - a circular black PCB with gold pins labeled SD, VDD, GND, L/R, WS, SCK, alongside two sets of yellow header pins.
INMP441 Mems High Precision Omnidirectional Microphone I2s Snr Low Power Module
Regular price Rs 750 Sale priceRs 400

INMP441 MEMS High Precision Omnidirectional Microphone I2S SNR Low Power Module

The INMP441 is a high-performance, low-power, digital-output, omnidirectional MEMS microphone module designed for advanced audio and voice recognition applications. It integrates a MEMS sensor, signal conditioning, an analog-to-digital converter (ADC), anti-aliasing filters, power management, and a standard 24-bit I²S interface, allowing seamless connection to digital processors without the need for an audio codec.

Key Features:

  • Digital I²S interface with high-precision 24-bit data
  • High Signal-to-Noise Ratio (SNR) of 61 dBA
  • Sensitivity: -26 dBFS
  • Flat frequency response from 60 Hz to 15 kHz
  • Low current consumption of 1.4 mA
  • High Power Supply Rejection (PSR) of -75 dBFS
  • Compact surface-mount package: 4.72 × 3.76 × 1 mm
  • RoHS/WEEE compliant

Related Products

Learn More about MEMS Microphones

For a deeper understanding of MEMS microphone technology and its applications, explore resources like Wikipedia on MEMS Microphones.

Frequently Asked Questions (FAQ)

What is the operating voltage range for the INMP441 module?

The INMP441 operates within a voltage range of 1.8 V to 3.3 V.

Can this module be used with microcontrollers that have an I²S interface?

Yes, the INMP441 is designed to interface directly with microcontrollers and digital signal processors (DSPs) that support the I²S protocol.

Is the INMP441 suitable for far-field voice recognition applications?

While the INMP441 has a high SNR and flat frequency response, it is optimized for near-field applications. For far-field voice recognition, additional signal processing may be required.

Package Includes:

  • 1 x INMP441 MEMS High Precision Omnidirectional Microphone Mod

Frequently Bought Together

MAX98357 I2s Pcm Digital Audio Amplifier Board - 3W Class D DAC Decoder - a purple square PCB with a central chip, surface-mount components, and pin labels. MAX98357 I2s Pcm Digital Audio Amplifier Board - 3W Class D DAC Decoder - a purple circuit board with a green screw terminal, a small black chip, and yellow header pins.
-14%
 Log in to use Wishlist
Add to Compare

MAX98357 I2s Pcm Digital Audio Amplifier Board - 3W Class D DAC Decoder

Regular price Rs 700 Sale priceRs 600

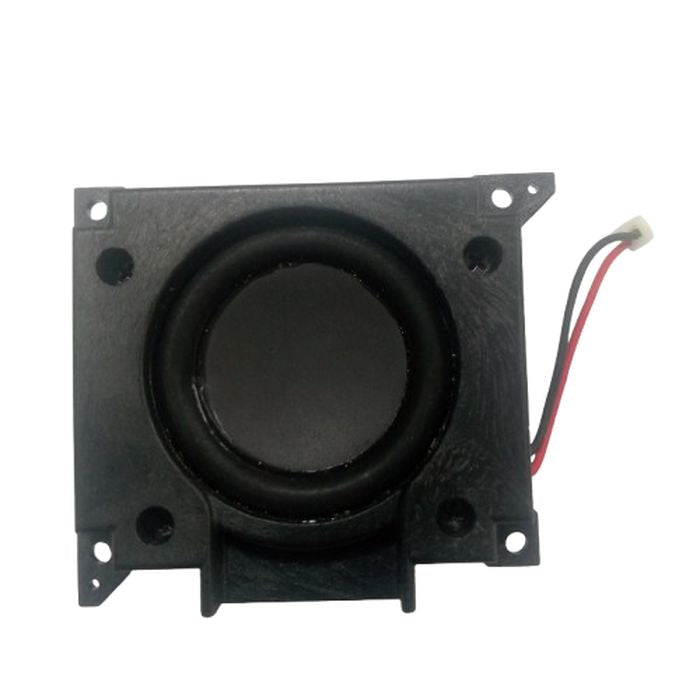

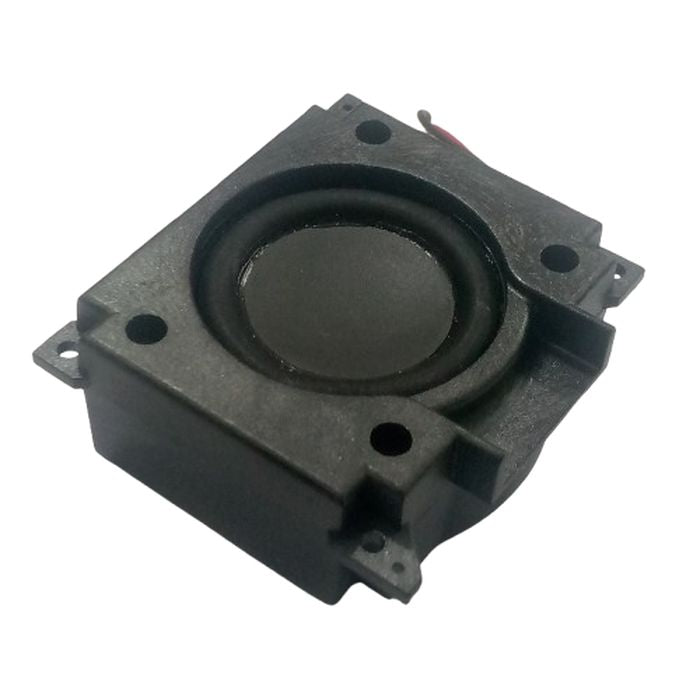

8 Ohm 1 watt Buffer speaker - a black square speaker with a circular cone, mounting holes at the corners, and a two-wire connector. 8 Ohm 1 watt Buffer speaker - shown as a black, square-shaped speaker component with mounting tabs and a small red wire extending from the back.
Sold out
 Log in to use Wishlist
Add to Compare
View product

8 Ohm 1 watt Buffer speaker

Sale priceRs 130
4 Ohm 5 Watt Speaker - the back of the square metal frame with a circular black magnet and two soldered terminal connection points. 4 Ohm 5 Watt Speaker - shown in a close-up view held by fingers, featuring a circular black speaker cone with a metallic frame and two solder terminals.
Log in to use Wishlist
Add to Compare

4 Ohm 5 Watt Speaker

Sale priceRs 150
ESP32-S3 Devkitc-1 N16R8 Development Board – 16MB Flash, 8MB Psram, Wi-Fi & Bluetooth 5.0 Le - Labelled diagram of the ESP32-S3-DevKitC board showing the WROOM-1 module, power chip, WS2812 RGB LED, RST and BOOT buttons and dual USB-C ports. ESP32-S3 Devkitc-1 N16R8 Development Board – 16MB Flash, 8MB Psram, Wi-Fi & Bluetooth 5.0 Le - shown from the front and back, featuring two USB-C ports, a reset button, a boot button, and an RGB LED.
Log in to use Wishlist
Add to Compare

ESP32-S3 Devkitc-1 N16R8 Development Board – 16MB Flash, 8MB Psram, Wi-Fi & Bluetooth 5.0 Le

Sale priceRs 1,870
Gy BME280 5V Temperature And Humidity Sensor - shown as a purple circuit board with four pins and a small inset view of the labeled connection points. Gy BME280 5V Temperature And Humidity Sensor - shown as a purple circuit board with four pin holes, a header strip, and a small rear view component.
Sold out
 Log in to use Wishlist
Add to Compare
View product

Gy BME280 5V Temperature And Humidity Sensor

Sale priceRs 960

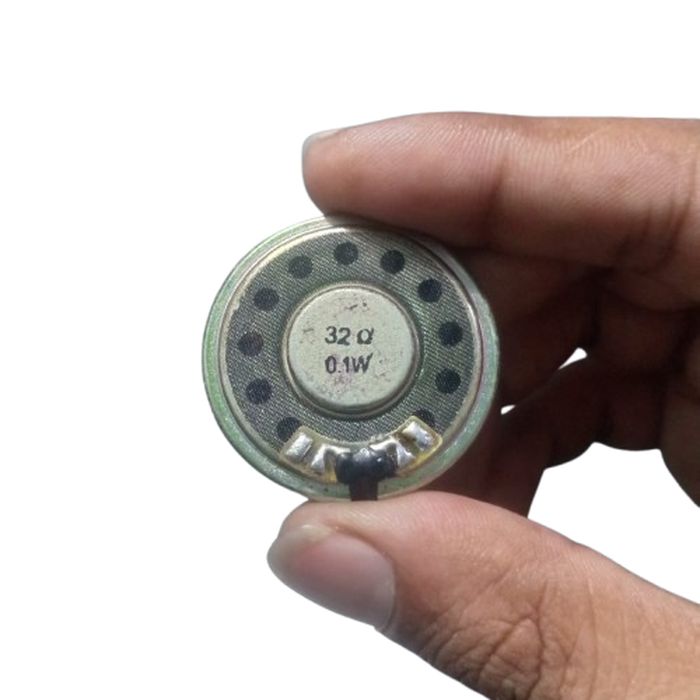

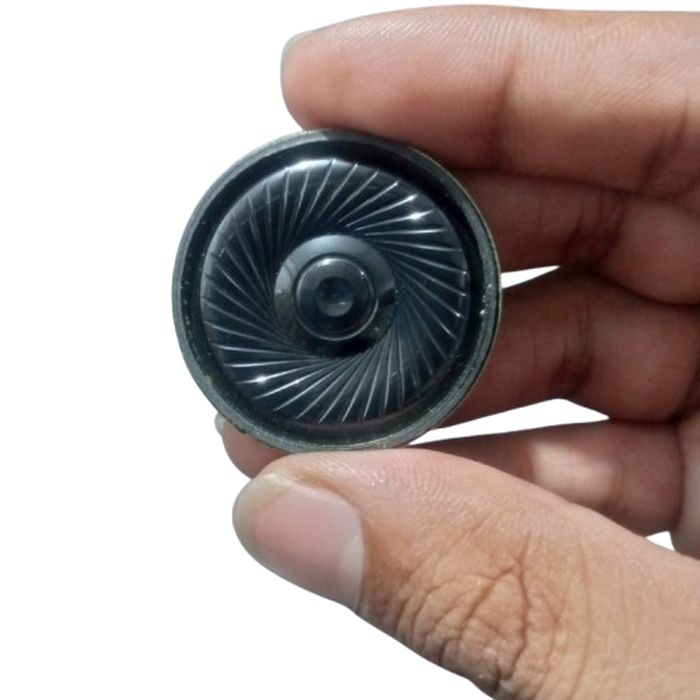

32 ohm 0.1W speaker - a close-up of a small, round, black speaker with a ridged diaphragm held between a person's thumb and index finger. 32 ohm 0.1W speaker - a small circular metal component held by a hand, showing the printed text "32 Ω" and "0.1W" on its back surface.
