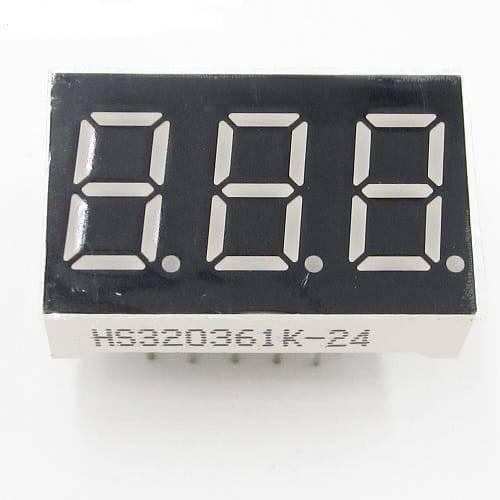

3 Digit Common Cathode 7 Segment LED Display - a rectangular black component with three numeric segments and decimal points labeled HS320361K-24.

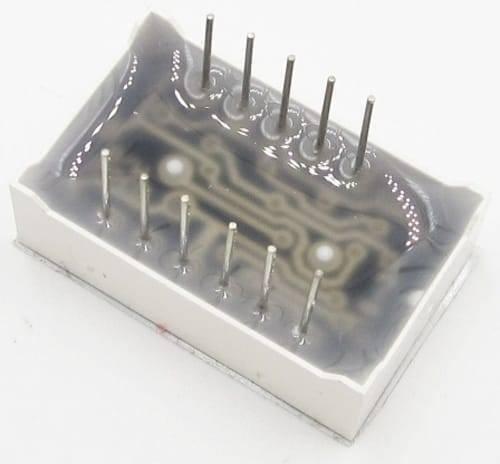

3 Digit Common Cathode 7 Segment LED Display - shown from the rear side with eleven metal pins protruding from a dark, resin-filled rectangular base.
3 Digit Common Cathode 7 Segment LED Display - shown as two black rectangular modules with three numeric displays and decimal points on a white background.
3 Digit Common Cathode 7 Segment LED Display - shown as two units, one displaying the front face and one showing the rear pins with labels HS320361K-24.
3 Digit Common Cathode 7 Segment LED Display - a rectangular black component with three numeric segments and decimal points labeled HS320361K-24.
3 Digit Common Cathode 7 Segment LED Display - shown from the rear side with eleven metal pins protruding from a dark, resin-filled rectangular base.

3 Digit Common Cathode 7 Segment LED Display

Sale price Rs 70
SKU: B675,L10,TH5
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

3 Digit Common Cathode 7 Segment LED Display - shown as two black rectangular modules with three numeric displays and decimal points on a white background.

3 Digit Common Cathode 7 Segment LED Display

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
3 Digit Common Cathode 7 Segment LED Display - shown as two black rectangular modules with three numeric displays and decimal points on a white background.
3 Digit Common Cathode 7 Segment LED Display
Sale priceRs 70

3 Digit Common Cathode 7 Segment LED Display has low power consumption with extremely low current. This display has stable performance with long viewing angle. Its colour is bright orange which is fully attractive and eye-catching for your projects and other devices.

Features:

  • High luminous intensity
  • Low power consumption
  • Extremely low current
  • Stable performance
  • Big viewing angle
  • Long lifetime
  • Easy mounting on PC boards and sockets
  • IC compatible
  • Certificate: RoHS

Specifications:

  1. Common: Cathode
  2. Character height: 20.32mm (0.8 inches)
  3. Dimension: 38mm L x 19 mm W, 8mm h
  4. LED Colour: Orange
  5. Wavelength: 585-590nm
  6. Luminous intensity: 70-80mcd
  7. Forward voltage: 1.8-2.3V/LED
  8. Forward current: 12-15mA/LED

3 Digit Common Cathode 7 Segment Led Display

3-digit DVM module

Applications:

  1. Instrument panels, audio equipment, home appliances, digital indicators, numeric displays and so on

Package Includes:

1 x 3 Digit Common Cathode 7 Segment LED Display
