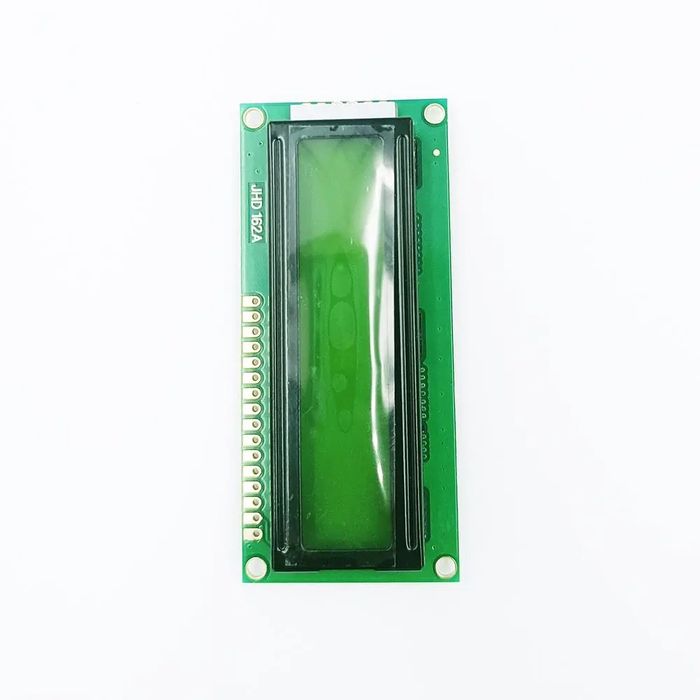

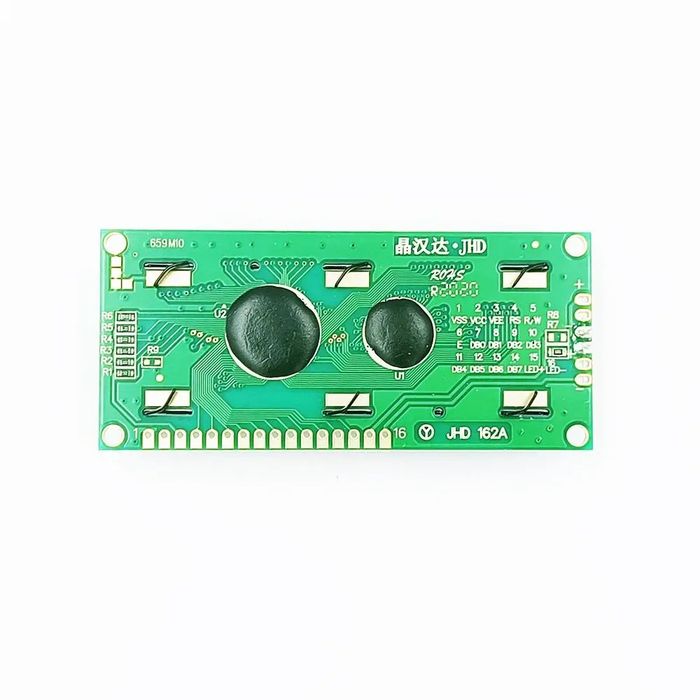

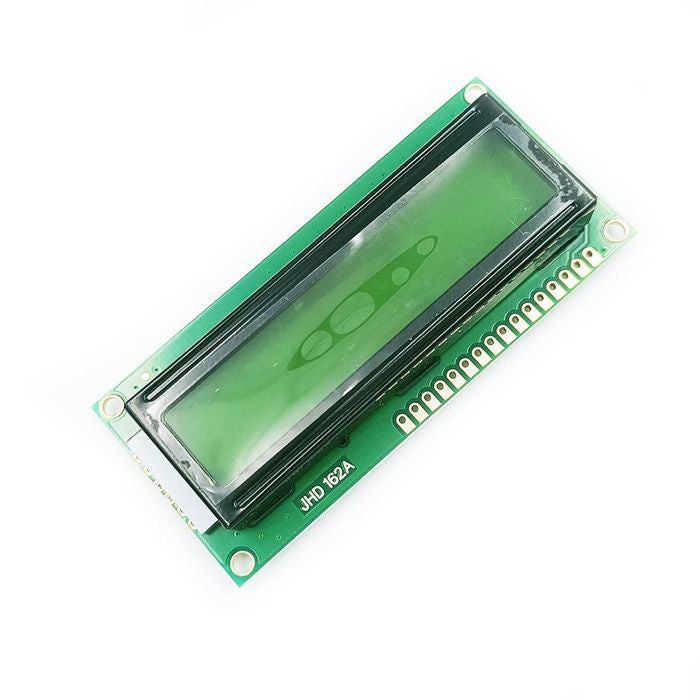

Original Jhd Green 1602 LCD 16x2 Character LCD Arduino Display For Arduino
1602 16x2 Green Character LCD Display For Arduino is a basic 16 character by 2 lines Alphanumeric display. This LCD 16x2 Character LCD Display has White text on a green background. Utilizes the extremely common HD44780 parallel interface chipset. Interface code is freely available. You will need Minimum 6 general I/O pins to interface to this LCD screen. Includes LED backlight. Works in 4bit and 8 bit Mode.
Features of Green 1602 LCD 16x2 Character LCD Display For Arduino:
- 16 Characters x 2 Lines
- Green Backlight
- 5x7 Dot Matrix Character + Cursor
- HD44780 Equivalent LCD Controller/driver Built-In
- 4-bit or 8-bit MPU Interface
- Standard Type
- Works with almost any Microcontroller
Specifications of Green 1602 16x2 Green Character LCD Display For Arduino:
| Construction | COB (Chip-on-Board) |
| Display Format | 16x2 Characters |
| Display Type | STN, Transflective, Positive |
| Controller | SPLC780D1 or equivalent controller |
| Interface | 8-bit Parallel Interface |
| LCD Color | Black Text on Green Backlight |
| Backlight | LED |
| Viewing Direction | 6 O'Clock |
| Driving Scheme | 1/16 Duty Cycle, 1/5 Bias |
| Power Supply Voltage | 5.0 V |
| VLCD Adjustable For Best Contrast | 5.0 V (Vop.) |
| Operating Temperature | -20⁰C ~ 70⁰C |
| Storage Temperature | -30⁰C ~ 80⁰C |
Package includes:
- 1x 1602 16x2 Blue Character LCD Display For Arduino
Tutorial:
https://ucbeginner.com/liquid-crystal-display-with-arduino/
