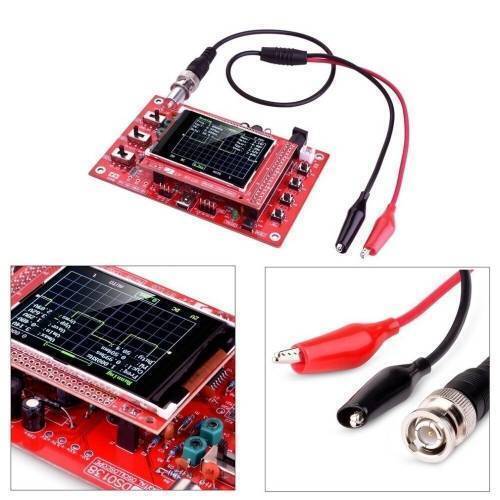

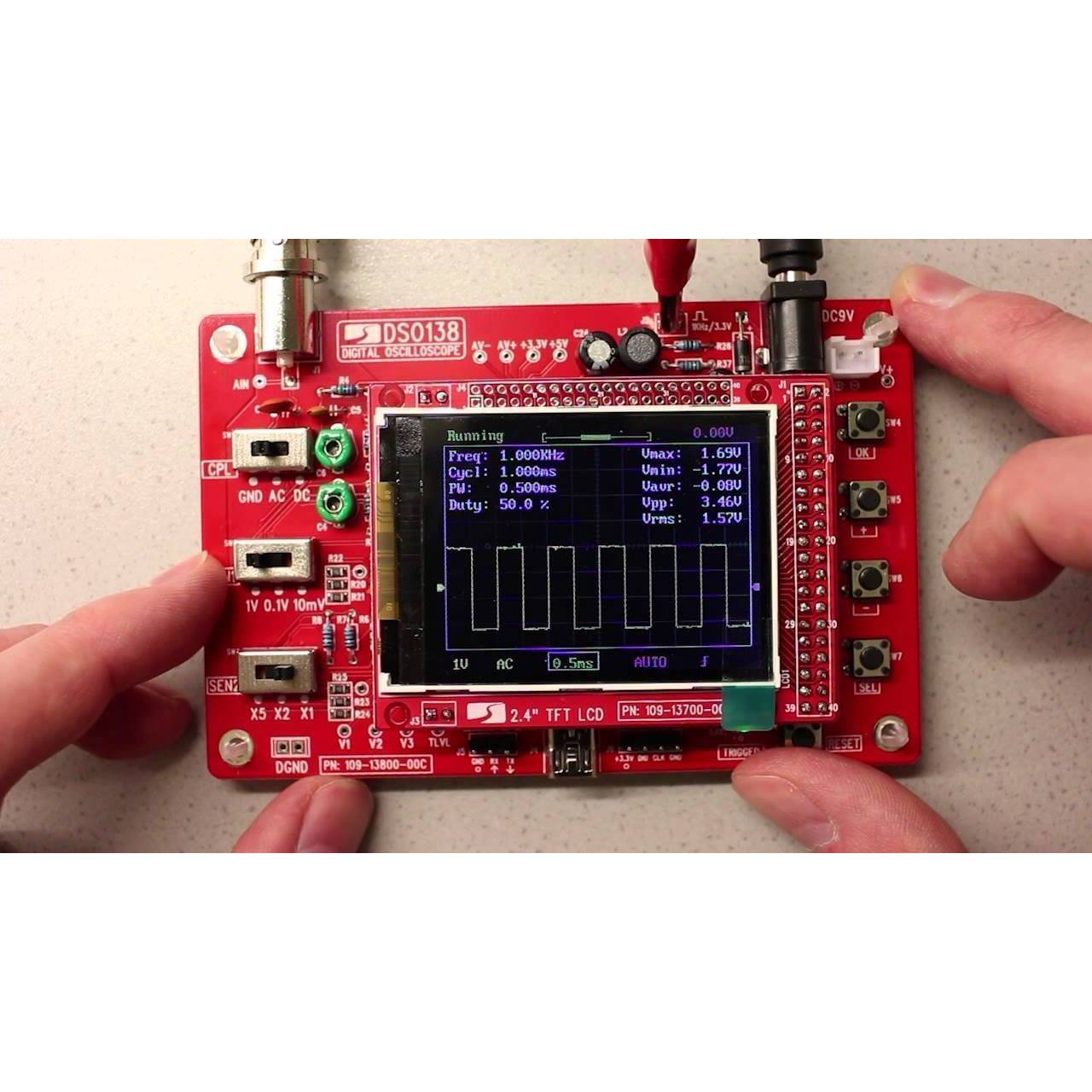

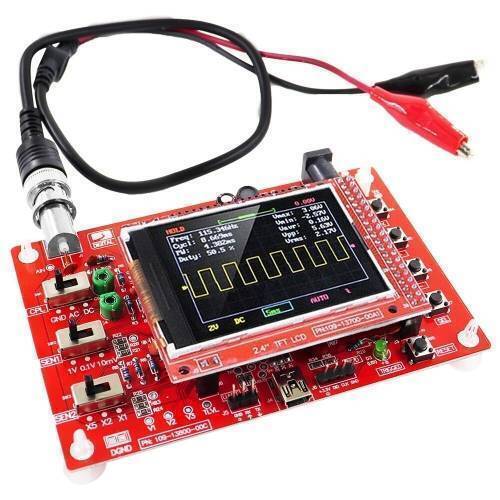

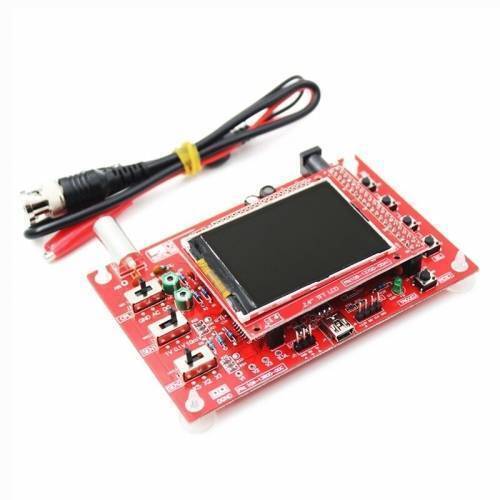

This Fully Assembled DSO138 2.4″ TFT Digital Oscilloscope In Pakistan is a cheap and small size oscilloscope.  This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It’s easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.This boost converter is a great match for the DSO138 oscilloscope kit. It can be connected directly to the DSO138 motherboard(not included), make the DSO138 oscilloscope to be a portable oscilloscope for better use.

Features Of DSO138 Oscilloscope:

1. This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as the ARM test development board.
2. Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
3. Adjustable vertical displacement, and with instructions.
4. With automatic, regular and one-shot modes, easy to capture the moment waveform.
5. Available rising or falling edge trigger.
6. Observable previous trigger waveform (negative delay).
7. Can freeze at any time waveform display (the HOLD function).
8. Comes 1Hz /3.3V square wave test signal source.
9. With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Specifications Of DSO138 Oscilloscope:

• Supply Voltage (V)    9V DC
• Input Impedance (Ω)    1MΩ
• Maximum Real-time Sampling Rate    1Msps
• Sampling Buffer Depth    1024 bytes
• Analog Bandwidth    0-200KHz
• Vertical Sensitivity    10mV / Div – 5V / Div (1-2-5 progressive manner)
• Accuracy    12Bit
• Coupling Modes    DC / AC / GND
• The Horizontal Time Base Range    10μs / Div – 50s / Div (1-2-5 progressive manner)
• Length (mm)    118
• Width (mm)    77
• Height (mm)    19
• Weight (gm)    130
• Shipment Dimensions    17 × 12 × 3 cm


Package Includes In DSO138 Oscilloscope:

• 1 x DSO138 DIY Digital Oscilloscope Kit.
• 1 x Probe.
