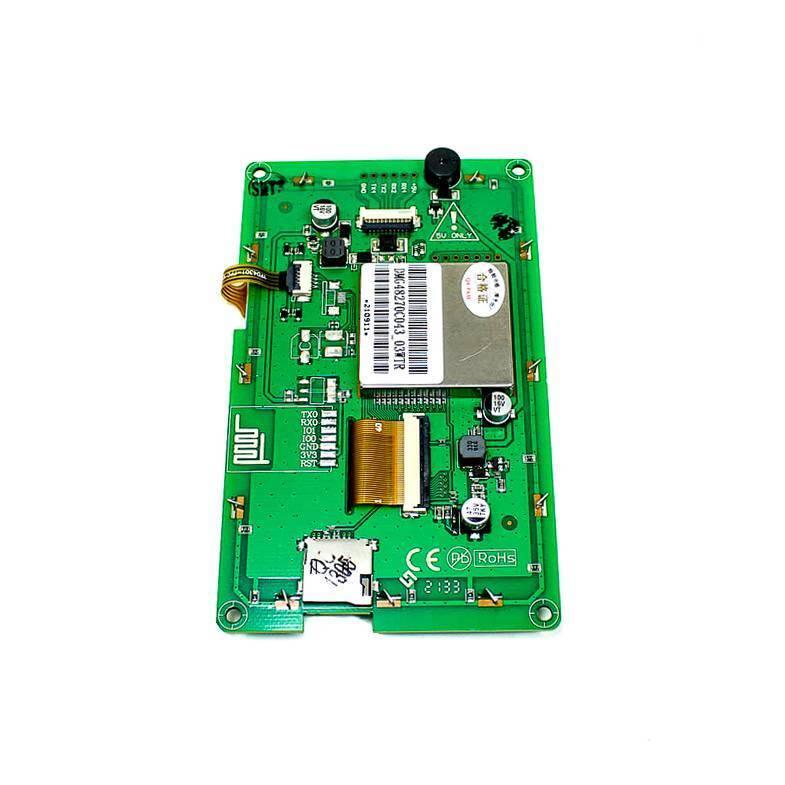

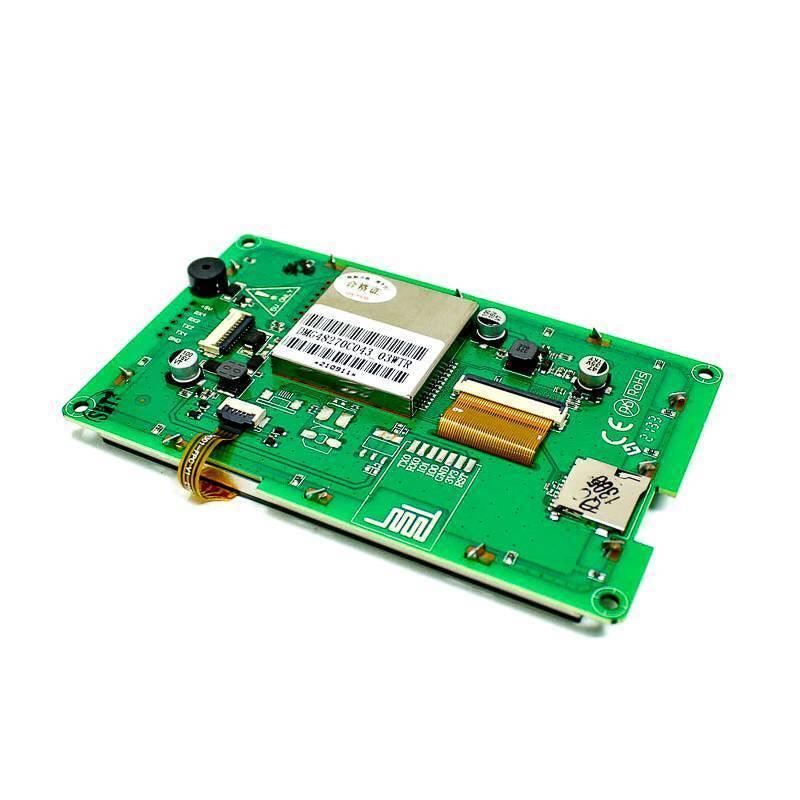

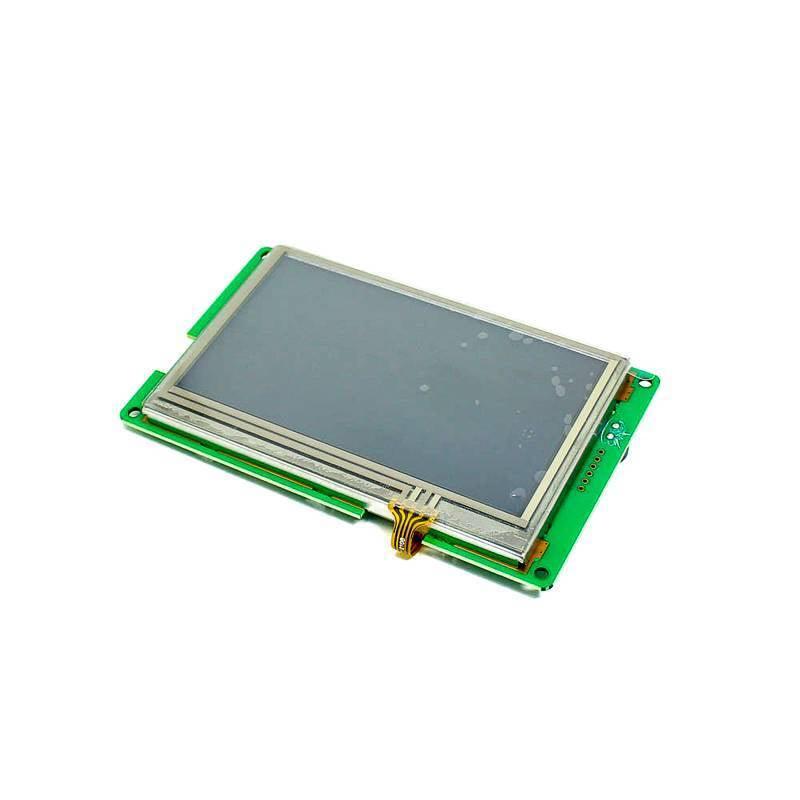

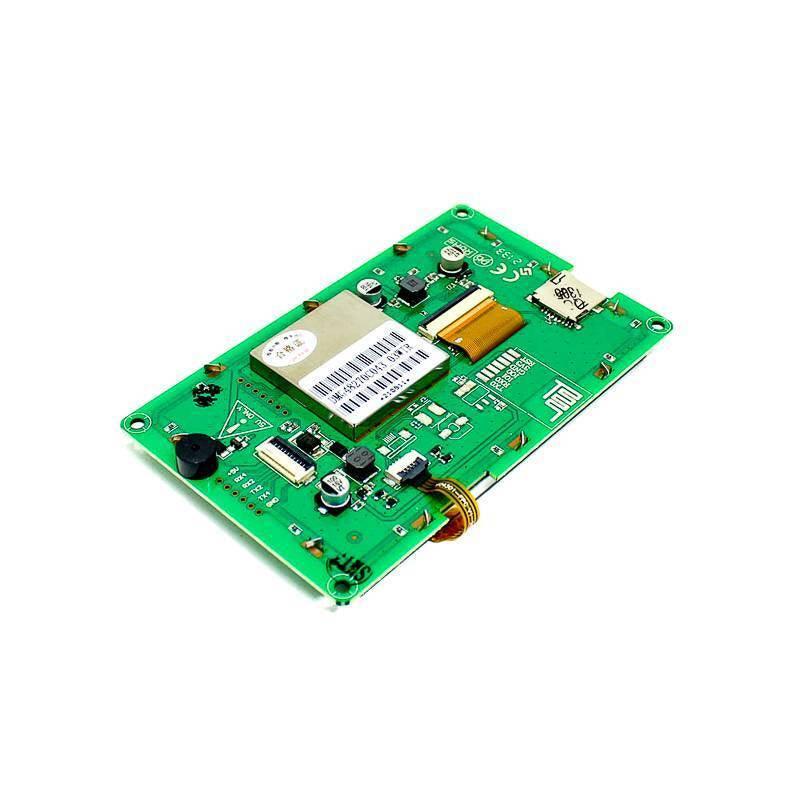

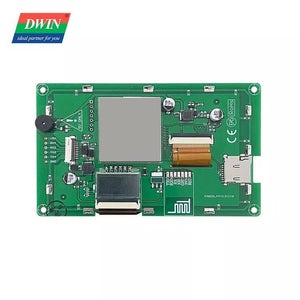

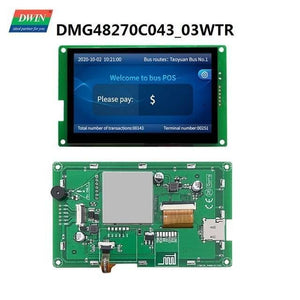

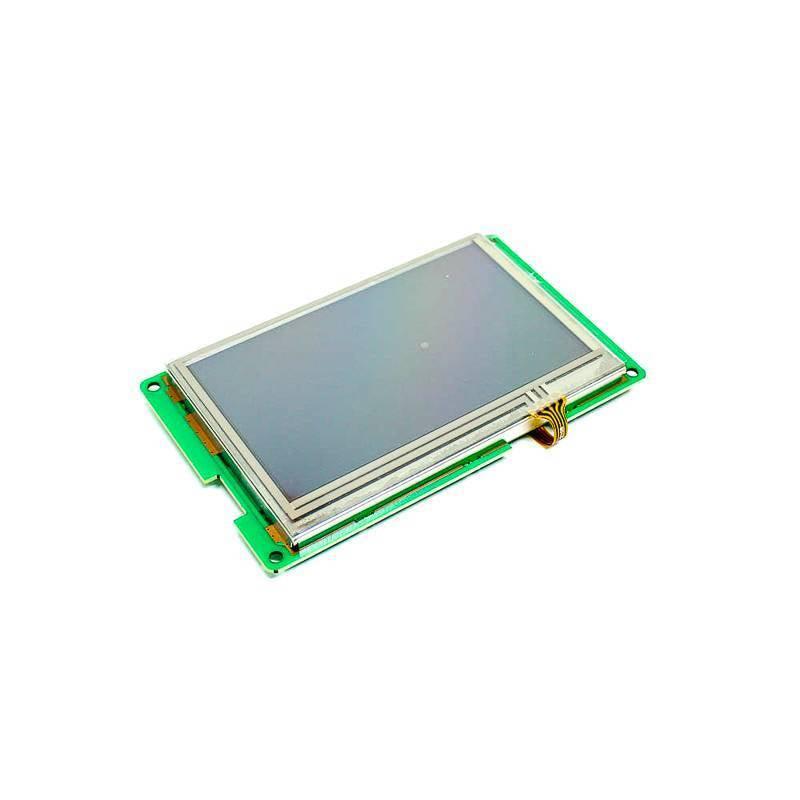

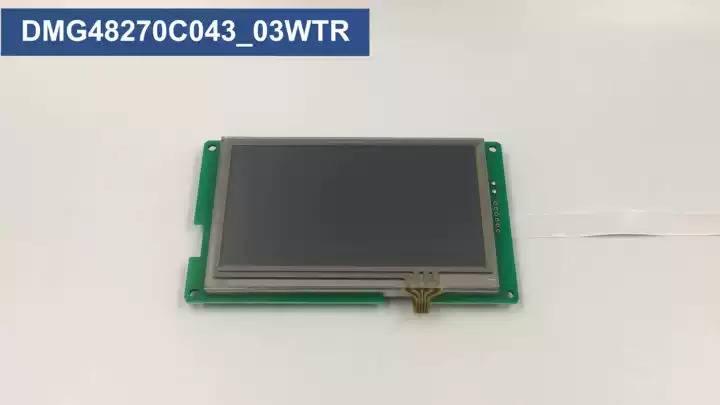

Dwin 4.3 Inch HMI TFT Touch Screen LCD Display DMG48270C043-03WTR
DWIN 4.3 Inch HMI TFT Touch Screen LCD Display DMG48270C043-03WTR
This DWIN 4.3 inch SMART Screen is quite useful and is full features load SMART screen. It is called a SMART screen because it comes with UI development Software from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI such as a button, slider, Graph, Text Display, etc on their own.

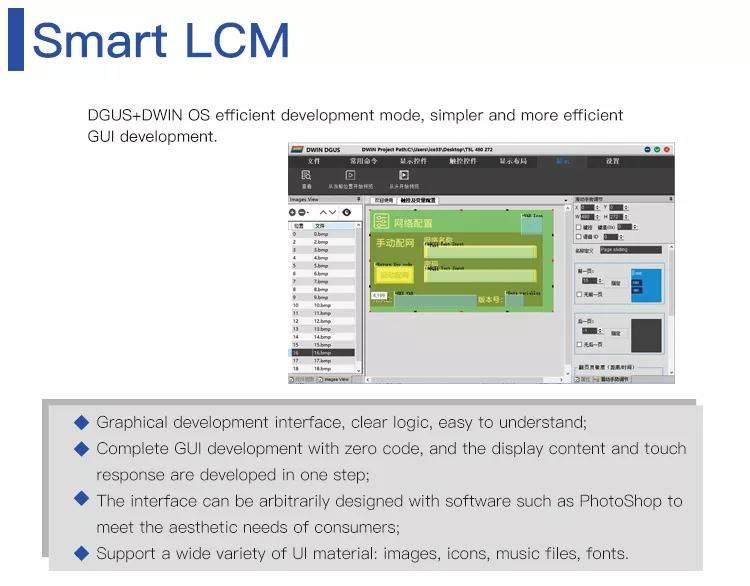

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed). Also, it is supported with RGB colours and 16.7M colours. It is also equipped with 200nitnit brightness which makes it visible in daylight too.
It is compatible with All micro-controller Boards. which can be interfaced with I2C communications.
Features:
- UI Version: TA / DGUS II ( DGUS II pre-installed)
- Powerful data management
- Dimensions:121.9(W) × 73.2(H) ×14.1 (T) mm
- Capacitance touch panel, Buzzer, WIFI module interface
- Powerful data management
- Built-in DGUS II intelligent software
Display:
- Size -4.3″
- Display Format -480×800 Pixel Matrix
- Brightness -200nit
- Active Area – 56.16mm (W) ×93.6mm (H)
- Colour – 24-bit colour 8R8G8B
- Backlight – LED
Interface:
- UART2: N81, 3.3V TTL/CMOS
- UART4: Optional N81/E81/O81/N82 four mode, 3.3V TTL/CMOS
|
Operating Voltage (VDC) |
4.5 ~ 5.5 |
|
RAM |
128KB |
|
Flash Memory |
16MB |
|
Interface |
I2C |
|
LED Brightness (MCD) |
200 |
|
Touch Type |
Resistive |
|
Shipment Weight |
0.176 kg |
|
Shipment Dimensions |
16 × 11 × 5 cm |
About this screen:

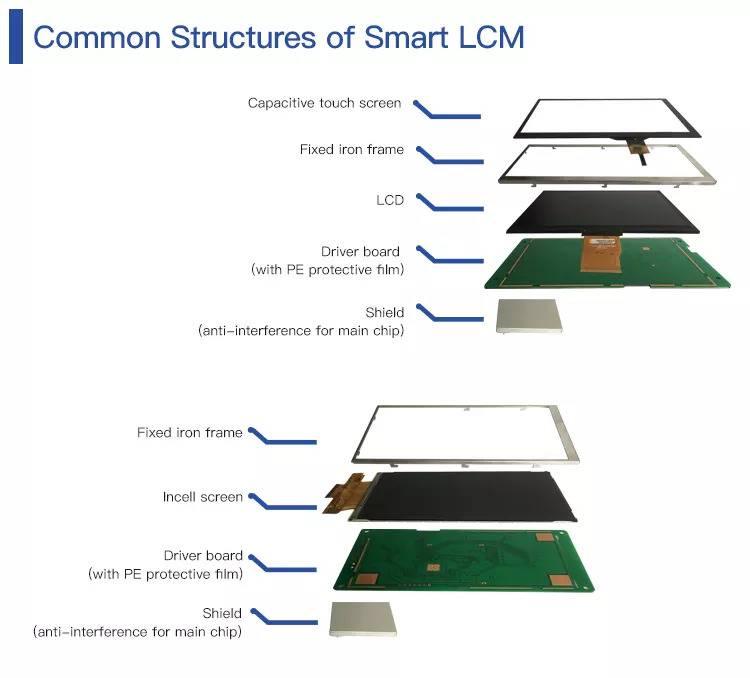

DWIN 4.3 Inches, 480xRGBx272, 262K Colors, TN screen, no touch, capacitive touch screen, and resistive screen can be supported.
Commercial smart screen, Standard instruction set (TA) / DGUSⅡ system、Cost-Effective screen.
About DWIN:
DWIN can provide LCD modules, smart LCM, Android LCM, Linux LCM, HDMI, COF display, AIOT display, ASIC, smart solutions, etc., and accept all customization. Our touch panel sizes range from1.54~ 21.5 inches to medical equipment inches, suitable for new energy, financial equipment, construction machinery, industrial equipment, consumer electronics, and beauty equipment. We can be your best win-win partner.
Package Includes :
1 x DWIN 4.3 Inch HMI TFT Touch Screen LCD Display DMG48270C043-03WTR In Pakistan
