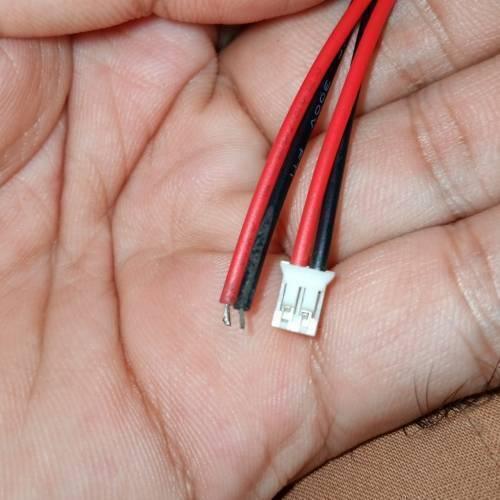

2mm Pitch JST2.0 Plug 2 Pin Extension Wire Connector - a white two-pin connector attached to a red and black wire pair.
2mm Pitch JST2.0 Plug 2 Pin Extension Wire Connector -
Sale price Rs 40
JST2.0 2mm Pitch 4 Pin Connector Wire - a close-up showing a white four-pin connector attached to red and black ribbon wires held by a hand.
JST2.0 2mm Pitch 4 Pin Connector Wire -
Sale price Rs 80
4 Pin JST Connector Male - 2.0mm Pitch - a close-up shot of a white plastic four-pin connector with four metal pins extending from the base.
4 Pin JST Connector Male - 2.0mm Pitch -
Sale price Rs 20
Price for all:
Sale total price Rs 160

Pickup available at Digilog Electronics

Usually ready in 2 hours

2 Pin JST Ph Connector 2.0mm Pitch - shown as a white plastic two-pin electrical connector with two vertical metal contact pins.

2 Pin JST Ph Connector 2.0mm Pitch

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
2 Pin JST Ph Connector 2.0mm Pitch - shown as a white plastic two-pin electrical connector with two vertical metal contact pins.
2 Pin JST Ph Connector 2.0mm Pitch
Sale priceRs 20

Enhance your electronic projects with our high-quality 2 Pin JST PH Connector! Specifically designed for efficient and secure connections, this connector is perfect for various applications. Featuring a compact 2.0mm pitch, it's ideal for space-constrained designs. Made with durable materials, also  this connector ensures long-lasting performance. Although  Available in Pakistan, it's the perfect choice for your electronic needs.

Most mobile hacker projects these days use a Lithium Polymer (LiPoly) battery, which often use this style of connector when the power demand isn’t very high. These are common, inexpensive, and small, so you’ll find them in many portable electronics as battery connections and board interconnects.

This is just the male portion of the 14183 JST-PH set.

Features of 2-pin JST PH connector:

  • Commonly found on smaller LiPoly cells
  • Fully shrouded header
  • Retention mechanism
  • The dimple at the center of the contact ensures positive contact and low contact resistance at all times
  • Connects with our Battr15 and USB Lipoly Charger.
  • 2-pin configuration
  • 2.0mm pitch for compact designs
  • Reliable and durable construction
  • overall Suitable for various electronic projects

Specifications:

  • JST-PH family
  • 2mm pin pitch
  • 89mm x 4.5mm wide
  • 2 position MALE (board) header
  • Rated 2A AC, DC(AWG #24), 100V AC, DC
  • Initial contact resistance of 10mΩ max.
  • Insulation resistance: 1000 MΩ min
  • Withstanding voltage: 800V AC/minute
  • Applicable wire: AWG #32 to #24
  • Applicable PC board thickness: 0.8 to 1.6mm
  • The contact has a long wire strip holding length of 2.6 +/-0.4mm.

Package Include:

  • 1x 2 pin JST PH Connector 2.0mm Pitch
