Name: Pull-out US21700VTC6A Vtc6a Sony Murata Original Japanese 21700 Lithium Ion Cell 3.7V 4100mA Li Ion Battery Cell
Brand: Pakistan
SKU: b130,L500,Th50
Price: 410.0 PKR
Availability: OutOfStock

Home Battery & Cells

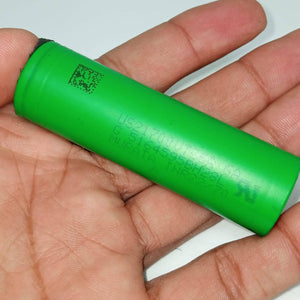

Pull-out US21700VTC6A Vtc6a Sony Murata Original Japanese 21700 Lithium Ion Cell 3.7V 4100mA Li Ion Battery Cell - the green cylindrical body with printed technical text and a QR code.

Pull-out US21700VTC6A Vtc6a Sony Murata Original Japanese 21700 Lithium Ion Cell 3.7V 4100mA Li Ion Battery Cell - a group of six green cylindrical batteries held in a hand, showing the top terminals with black insulating rings.

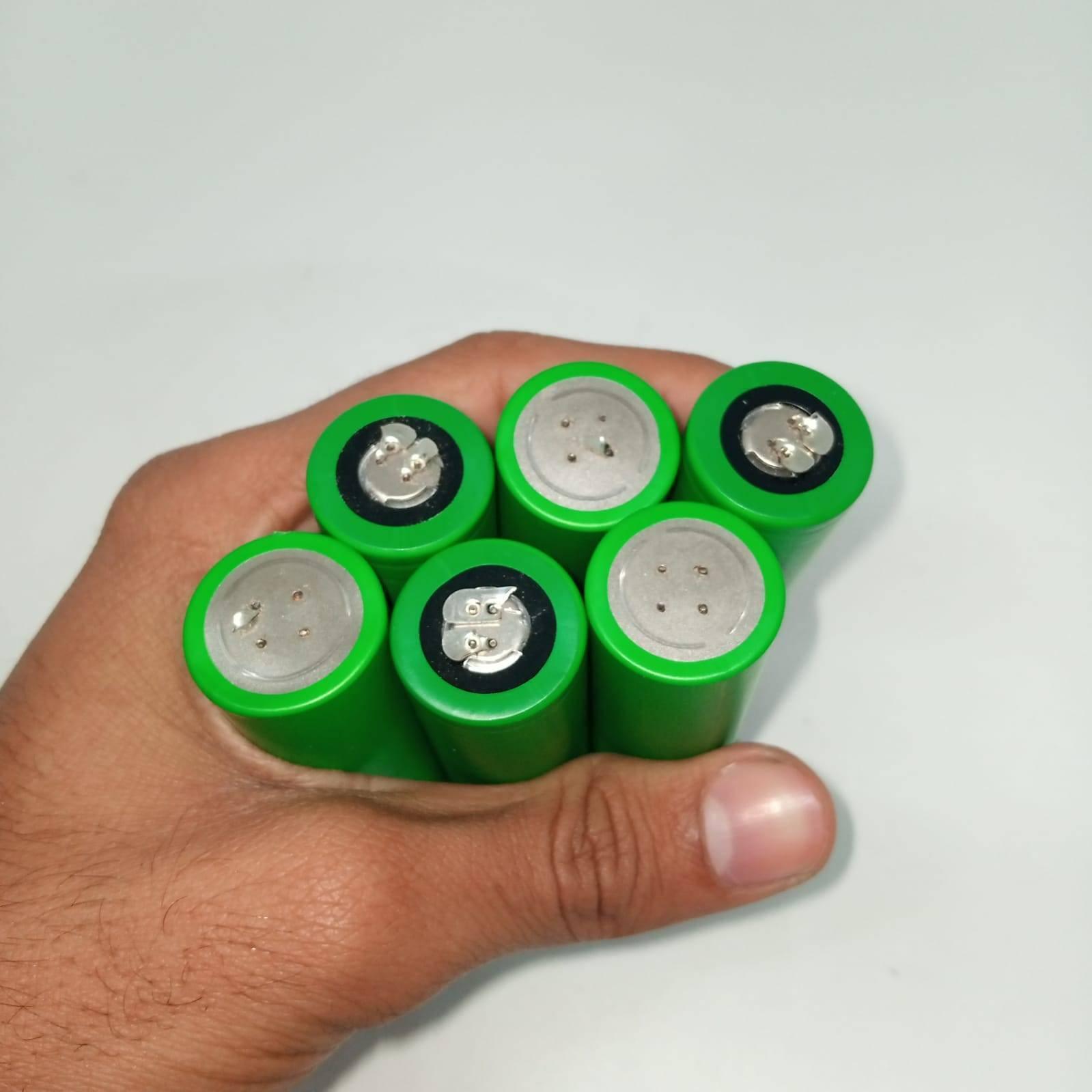

Pull-out US21700VTC6A Vtc6a Sony Murata Original Japanese 21700 Lithium Ion Cell 3.7V 4100mA Li Ion Battery Cell - a hand holding five green cylindrical battery cells with exposed metal terminals.

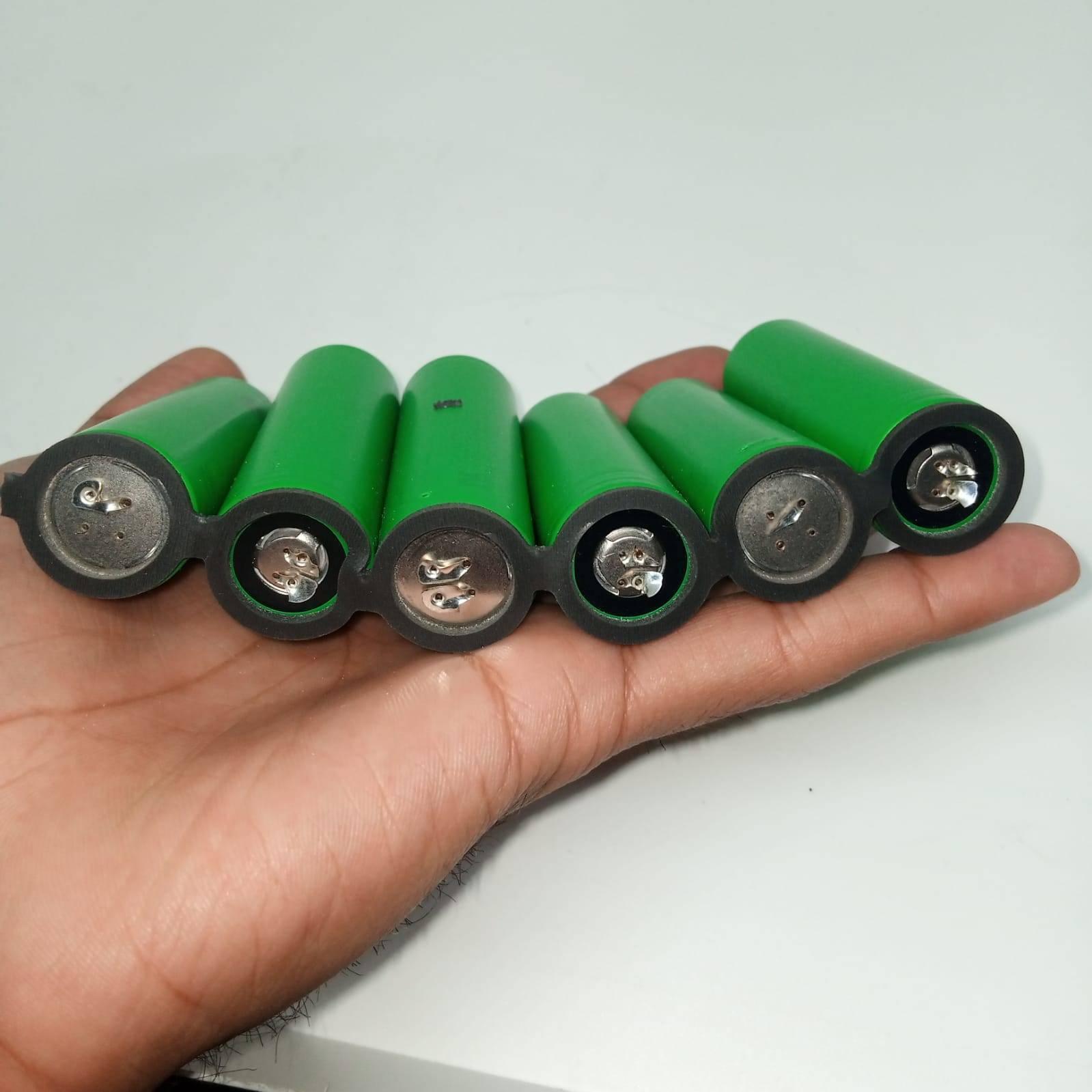

Pull-out US21700VTC6A Vtc6a Sony Murata Original Japanese 21700 Lithium Ion Cell 3.7V 4100mA Li Ion Battery Cell - a row of six green cylindrical batteries held together in a black plastic spacer.

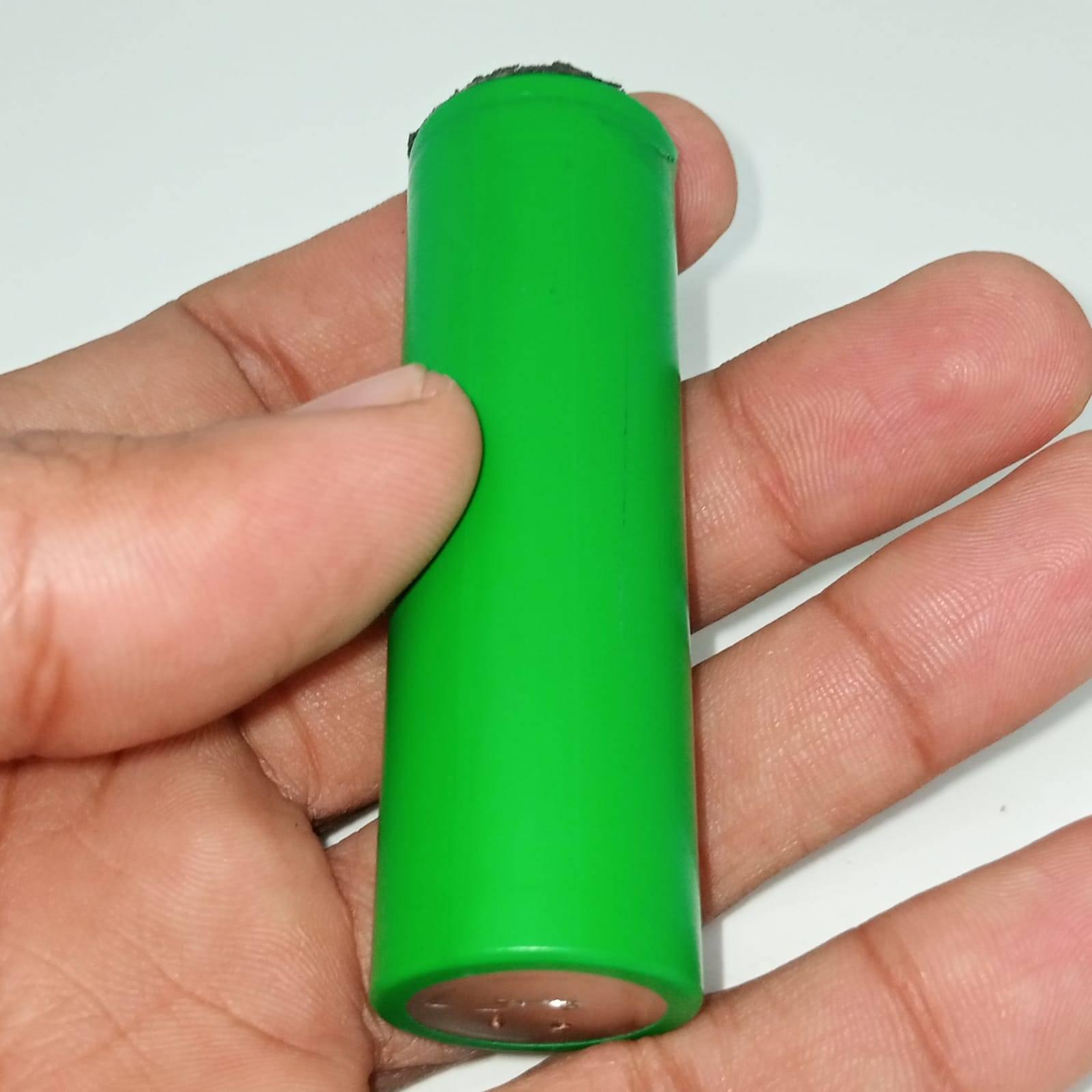

Pull-out US21700VTC6A Vtc6a Sony Murata Original Japanese 21700 Lithium Ion Cell 3.7V 4100mA Li Ion Battery Cell - a single green cylindrical battery held in a person's hand, showing the flat top and bottom terminals.

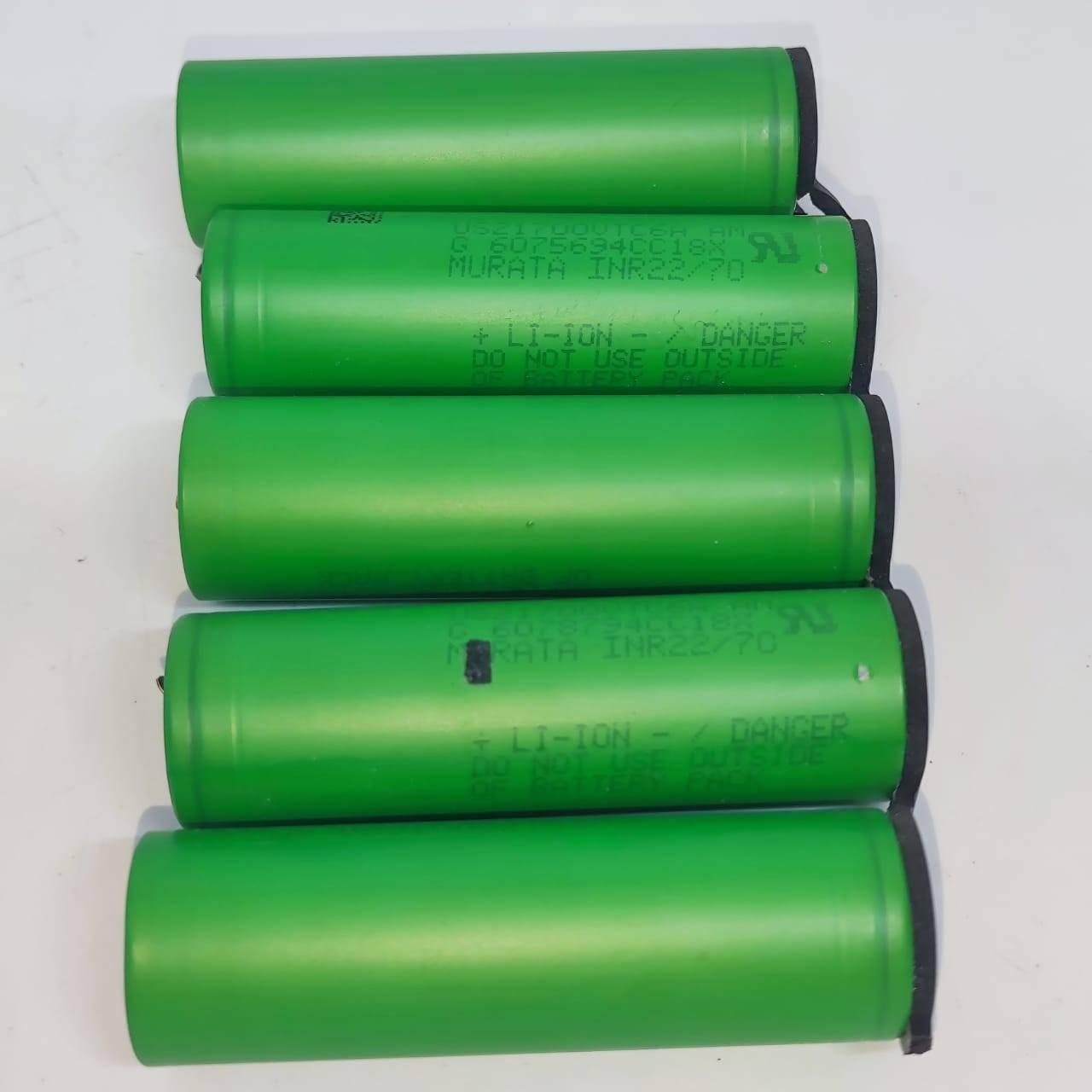

Pull-out US21700VTC6A Vtc6a Sony Murata Original Japanese 21700 Lithium Ion Cell 3.7V 4100mA Li Ion Battery Cell - a group of five green cylindrical 21700 batteries arranged in a vertical stack.

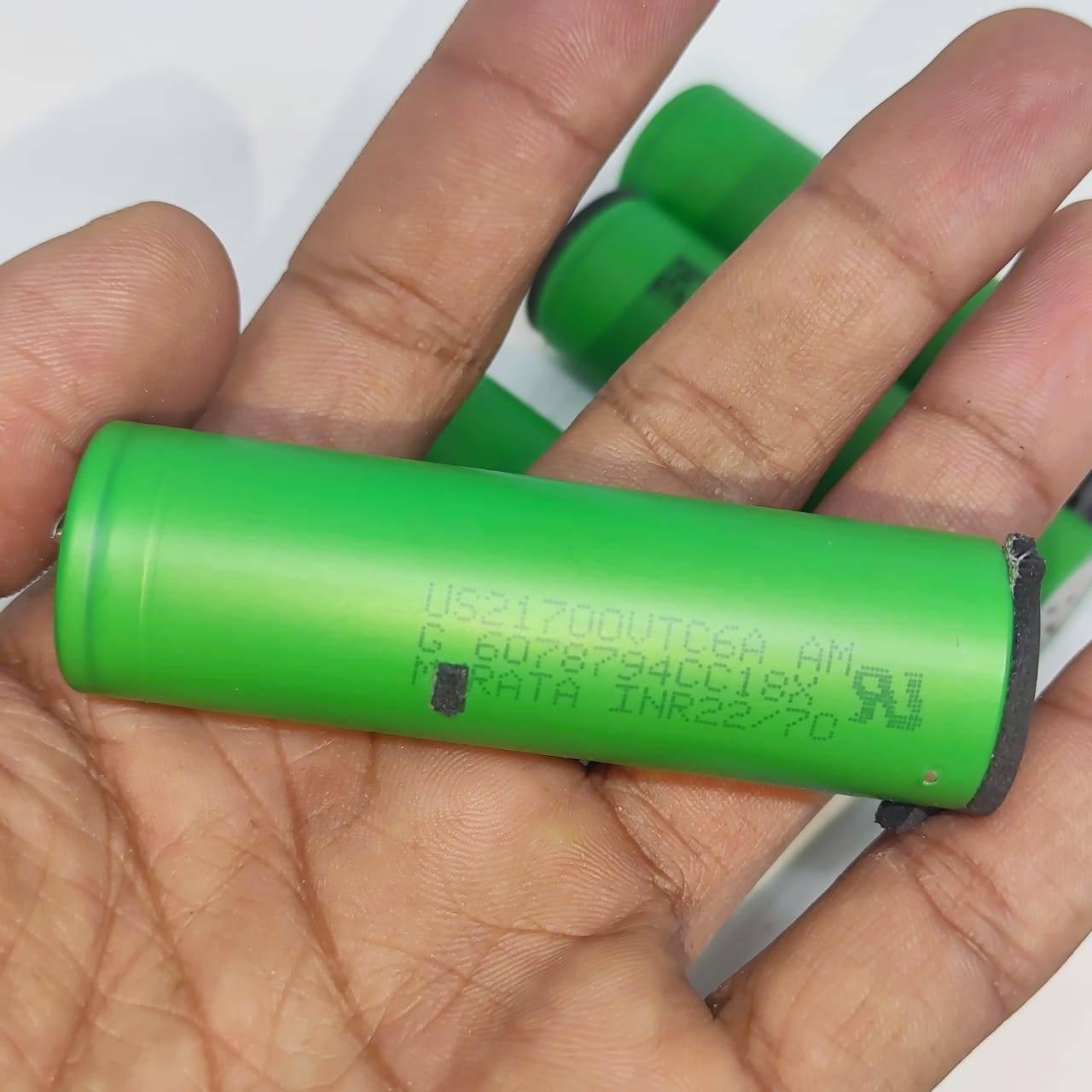

Pull-out US21700VTC6A Vtc6a Sony Murata Original Japanese 21700 Lithium Ion Cell 3.7V 4100mA Li Ion Battery Cell - a green cylindrical battery held in a hand with printed model and manufacturer text visible.

Sold out

Pull-out US21700VTC6A Vtc6a Sony Murata Original Japanese 21700 Lithium Ion Cell 3.7V 4100mA Li Ion Battery Cell

Rs 410

SKU: b130,L500,Th50

Murata VTC6A 21700 4100mAh 40A Battery - US21700VTC6A

SPECIFICATIONS:

Model: US21700VTC6A
Capacity: 4000mAh
Rated Voltage 3.6V - 3.7V
Charging cycle termination voltage 4.20V ± 0.05V
max. discharge current: 30A
Do not discharge deeper than 2.5V
Plus pool: Flat top
Chemistry: Li-ion
Protection circuit: Without
Weight: 72.7g

Cell model Sony US21700VTC6A
Rated capacity 4000mAh
Nominal capacity 4100mAh
Nominal voltage 3.6V
Max. continuous discharge current 30A
Cell specification Datasheet download
Applications Power tools, Electric robot, E-bikes, Electirc scooters

Technical Documentation:

Murata

Datasheet:

Click Me For Datasheet

Differences between batterey chemistry;

LG 18650 Batteries

LG batteries are known worldwide for their consistent quality, high performance, and long-lasting power. These batteries are ideal for the creation of battery packs used in the manufacturing and production of industrial electronics. Available in incredibly stable ICR, INR, and IMR chemistries, LG batteries push the cutting edge of battery technology and offer safe, reliable power for even the most demanding devices.

ICR Batteries

Lithium cobalt rechargeable or ICR Batteries use a LiCoO2 lithium cobolt oxide (LCO) chemistry and are well known for having high specific energy, even amongst its powerful li-ion brothers. Therefore when using an ICR, a PCB protection circuit should always be used in the final product.

IMR Batteries

Lithium manganese rechargeable or IMR Batteries are a classic standard of Li-ion cells, utilizing stable LiMn2O4 lithium manganese oxide (LMO) chemistry for high discharge rates and steady performance.

INR Batteries

Lithium nickel rechargeable or INR Batteries use a LiNiMnCoO2 nickel-manganese-cobolt oxide (NMC) hybrid chemistry for increased energy capacity. While relatively safe on its own, it is still recommended to add a PCB when adding this to any electronic device.
