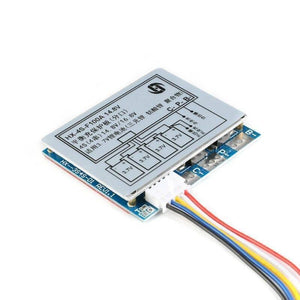

3.7V HX-4s-F100A 100A 4s BMS 18650 Battery Protection Board 4s 100A BMS Module - a rectangular blue circuit board with a silver metal heat sink, labeled ports, and a multi-colored wire harness connector.

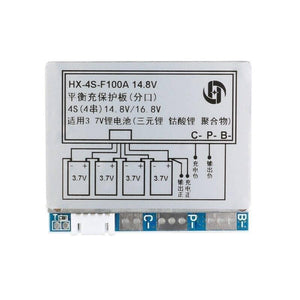

3.7V HX-4s-F100A 100A 4s BMS 18650 Battery Protection Board 4s 100A BMS Module - a rectangular white circuit board with a wiring diagram label, a white connector, and three labeled solder pads: C-, P-, and B-.
Sold out
3.7V HX-4s-F100A 100A 4s BMS 18650 Battery Protection Board 4s 100A BMS Module - a rectangular blue circuit board with a silver metal heat sink, labeled ports, and a multi-colored wire harness connector.
3.7V HX-4s-F100A 100A 4s BMS 18650 Battery Protection Board 4s 100A BMS Module - a rectangular white circuit board with a wiring diagram label, a white connector, and three labeled solder pads: C-, P-, and B-.

3.7V HX-4s-F100A 100A 4s BMS 18650 Battery Protection Board 4s 100A BMS Module

Sale price Rs 1,370
SKU: B819,IMP2,Th1,KRT50
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

This HX-4S-F100A based 100A BMS board also called ( battery management system ). HX-4S-F100A is a protection board for li-ion 18650 cells. There are 10 MOSFET'S, strong heat-dissipating aluminum sheet installed on it, and the continuous current limit is 100A. It is suitable for 4 series lithium battery pack. This Battery Protection board have overcharge protection, over-discharge protection, over current protection, short circuit protection, temperature protection.

4S 100A 14.8V Li ion Lithium 18650 Battery BMS PCM Protection Board with Balance Regulator Breadboard Dropship|Integrated Circuits| - AliExpress

Features of HX-4S-F100A:

  1. Operating voltage 14.8v to 16.8v
  2. Overcharge protection
  3. Over-discharge protection
  4. Overheat protection
  5. Overload protection
  6. charging current 10A

Package Contents Of  HX-4S-F100A:

1 x4S 100A Balance 3.7V 18650 Battery Cell PCB BMS Protection Board
1 x cable

1AA700487

1AA700487-3 1AA700487-4 1AA700487-5 1AA700487-6 1AA700487-7
