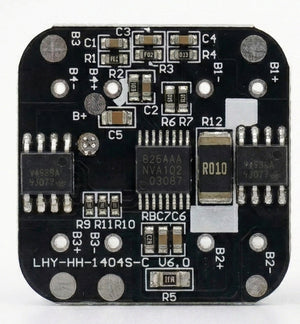

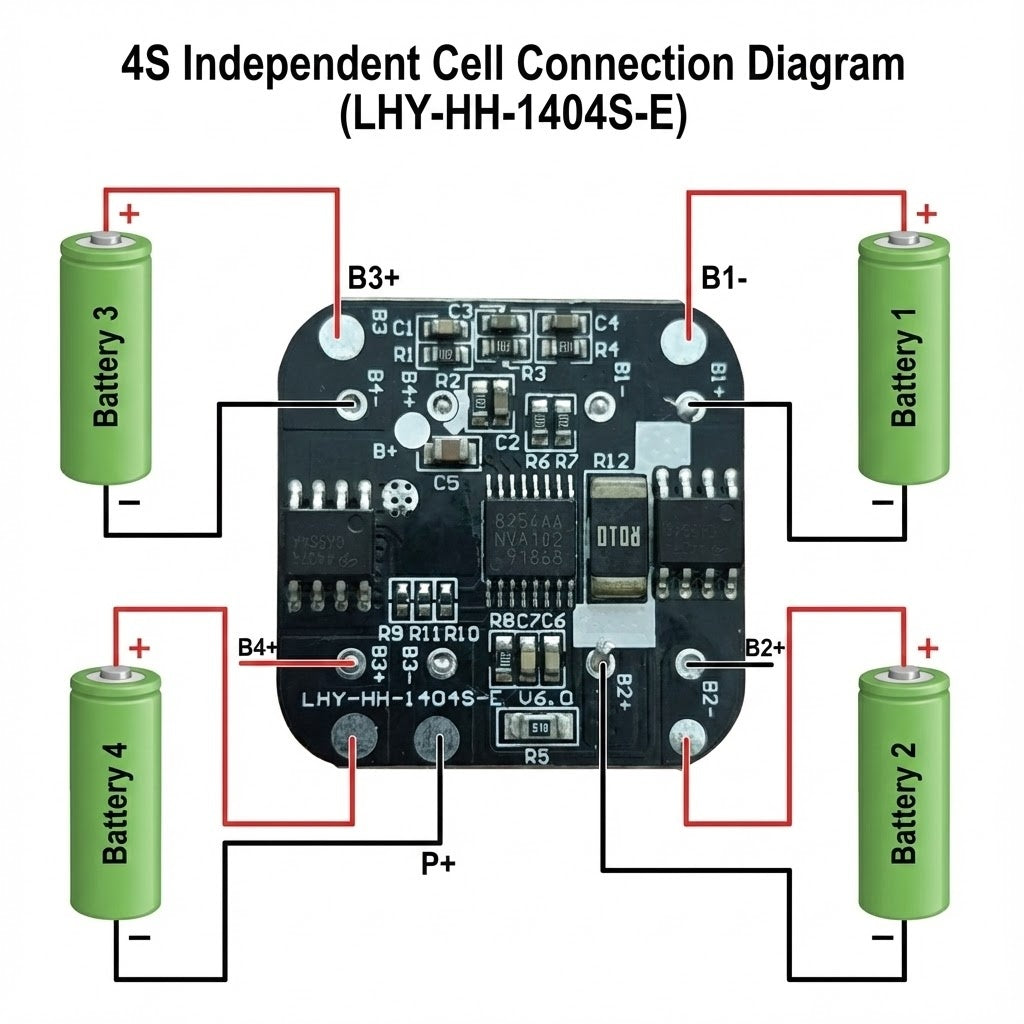

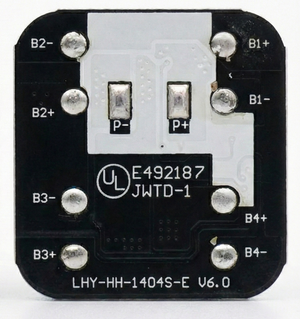

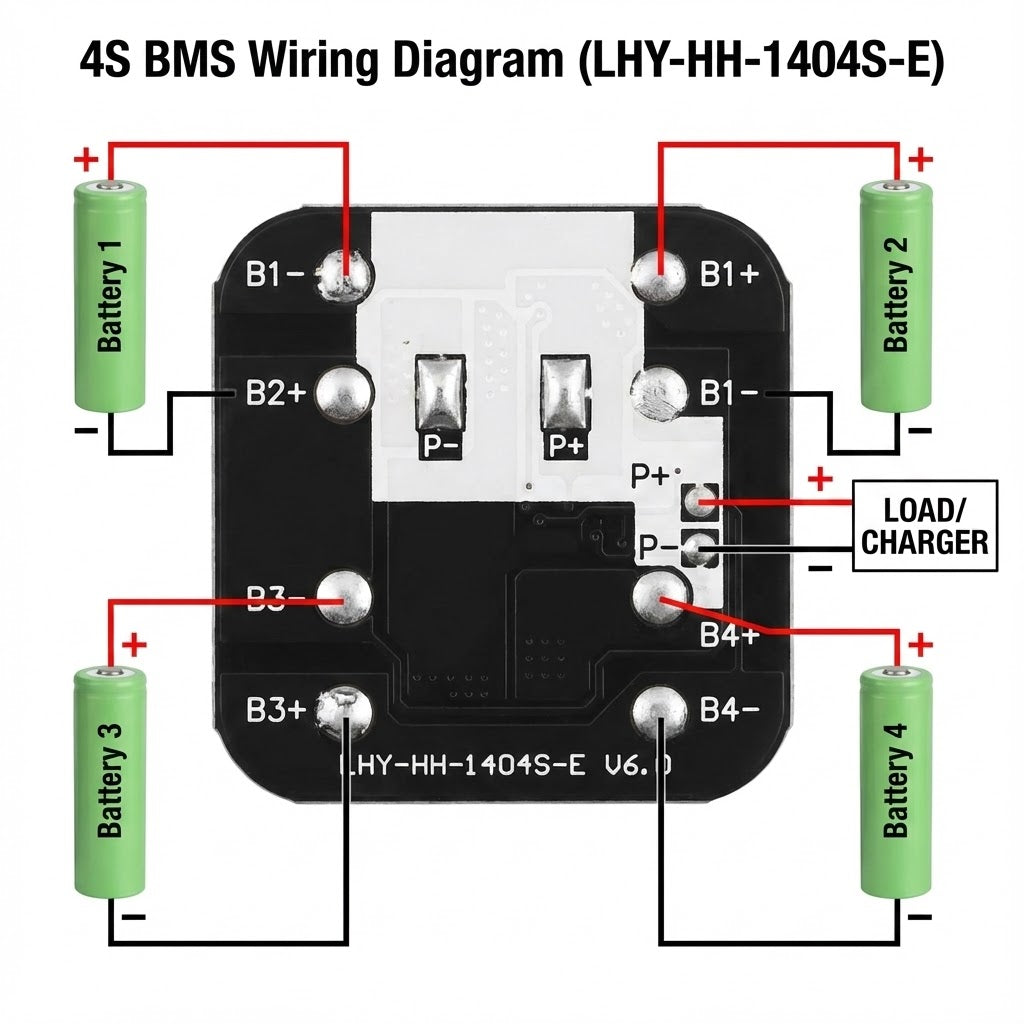

4s 10A BMS Battery Management System - Lithium Ion Protection Board ( Used )
Pickup available at Digilog Electronics
Usually ready in 2 hours
4S 10A Battery Management System (BMS) for Lithium-Ion Packs
Professional-grade 4-cell battery management system designed for lithium-ion battery pack protection and balanced charging. This compact BMS board delivers reliable 10A continuous current handling with comprehensive safety features.
Key Specifications
- Model: LHY-HH-1404S-C/E V6.0
- Configuration: 4S (4-cell series)
- Current Rating: 10A continuous
- Battery Type: Lithium-ion (Li-ion)
- Protection Features: Overcharge, over-discharge, overcurrent, short circuit
- Balancing: Active cell balancing during charge
Protection Features
This BMS provides complete protection for your 4S lithium battery pack with built-in circuits that prevent overcharging, over-discharging, overcurrent conditions, and short circuits. The balanced charging circuitry ensures all cells charge evenly, extending battery life and improving safety.
Applications
- DIY electric vehicle battery packs
- Power tool battery rebuilds
- Solar energy storage systems
- Portable power stations
- Robotics and RC projects
- Custom lithium battery assemblies
Why Choose This BMS?
Compact PCB design fits easily into battery enclosures while providing professional-grade protection. Perfect for makers, engineers, and electronics enthusiasts building custom lithium-ion battery solutions in Pakistan.
Frequently Bought Together

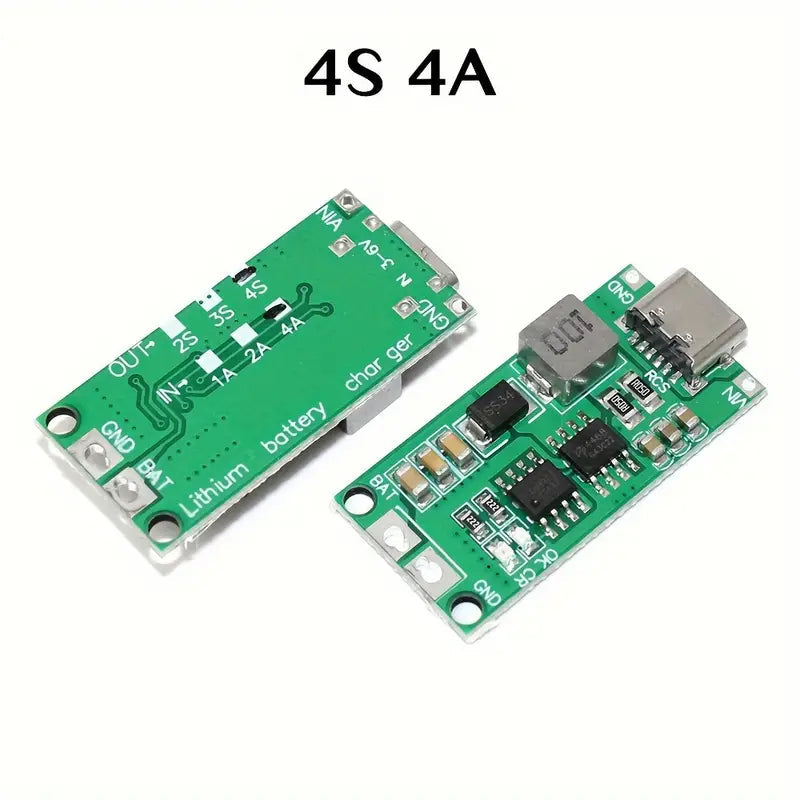

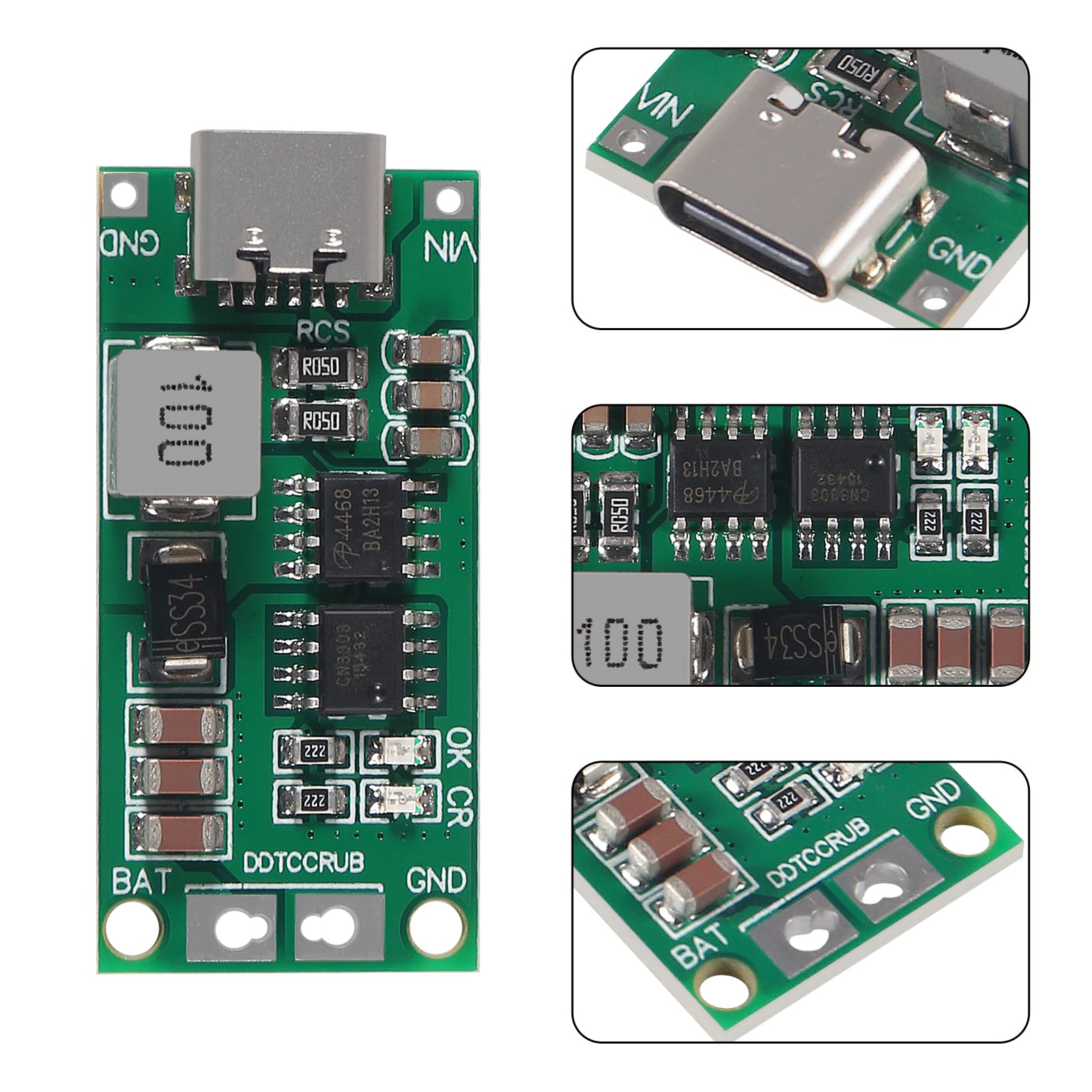

4S Type C 16.8V Step-Up Boost LiPo Polymer Li-ion Charger 14.8Vdc 18650 Lithium Battery

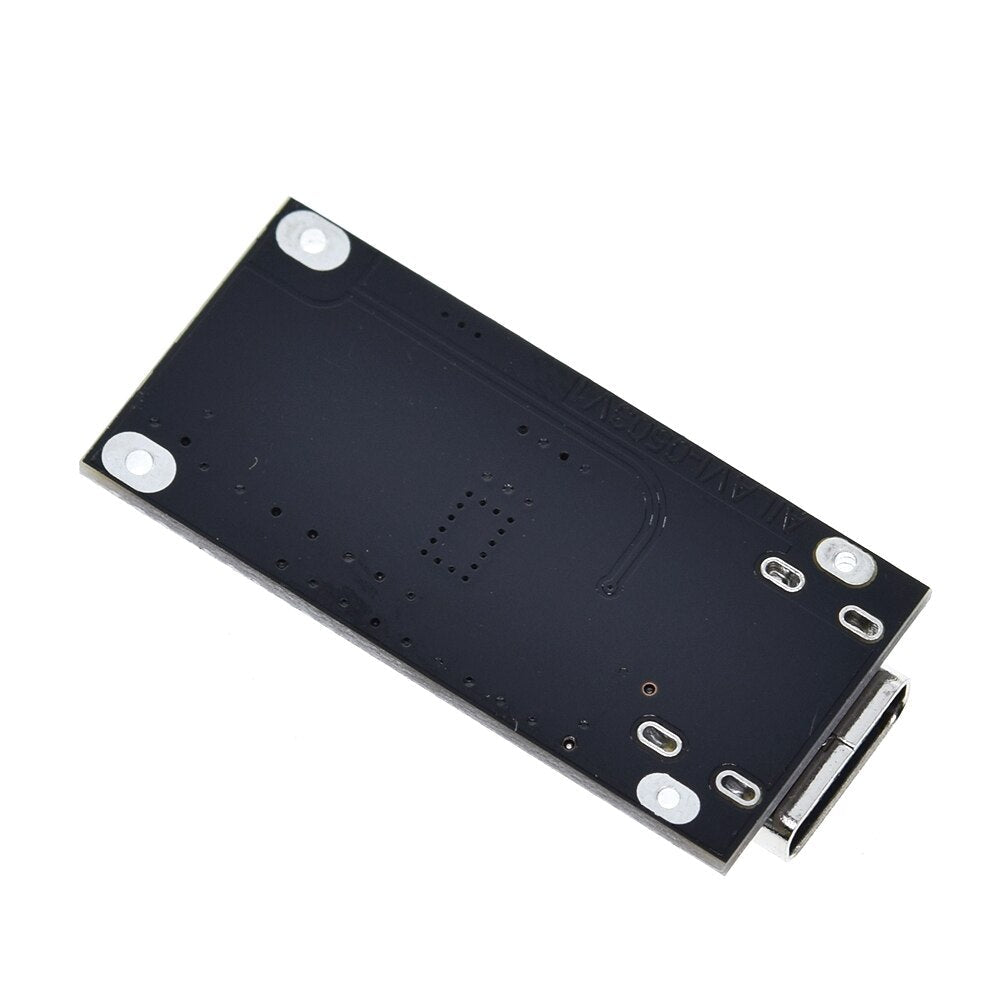

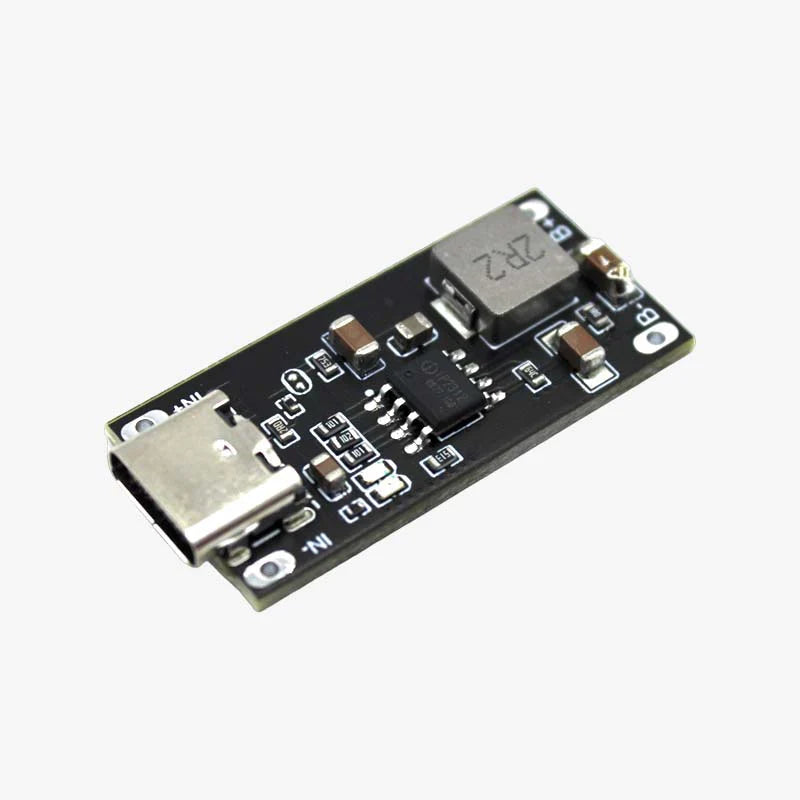

IP2312 Type C USB C Input High Current 3A 5V To 4.2V 4.35V Polymer Ternary Lithium Battery Fast Charging Board Type C USB C Input High Current 3A 5V
4s BMS 4s 40A BMS Li-ion Battery Protection Board Balanced Version 40 A BMS:

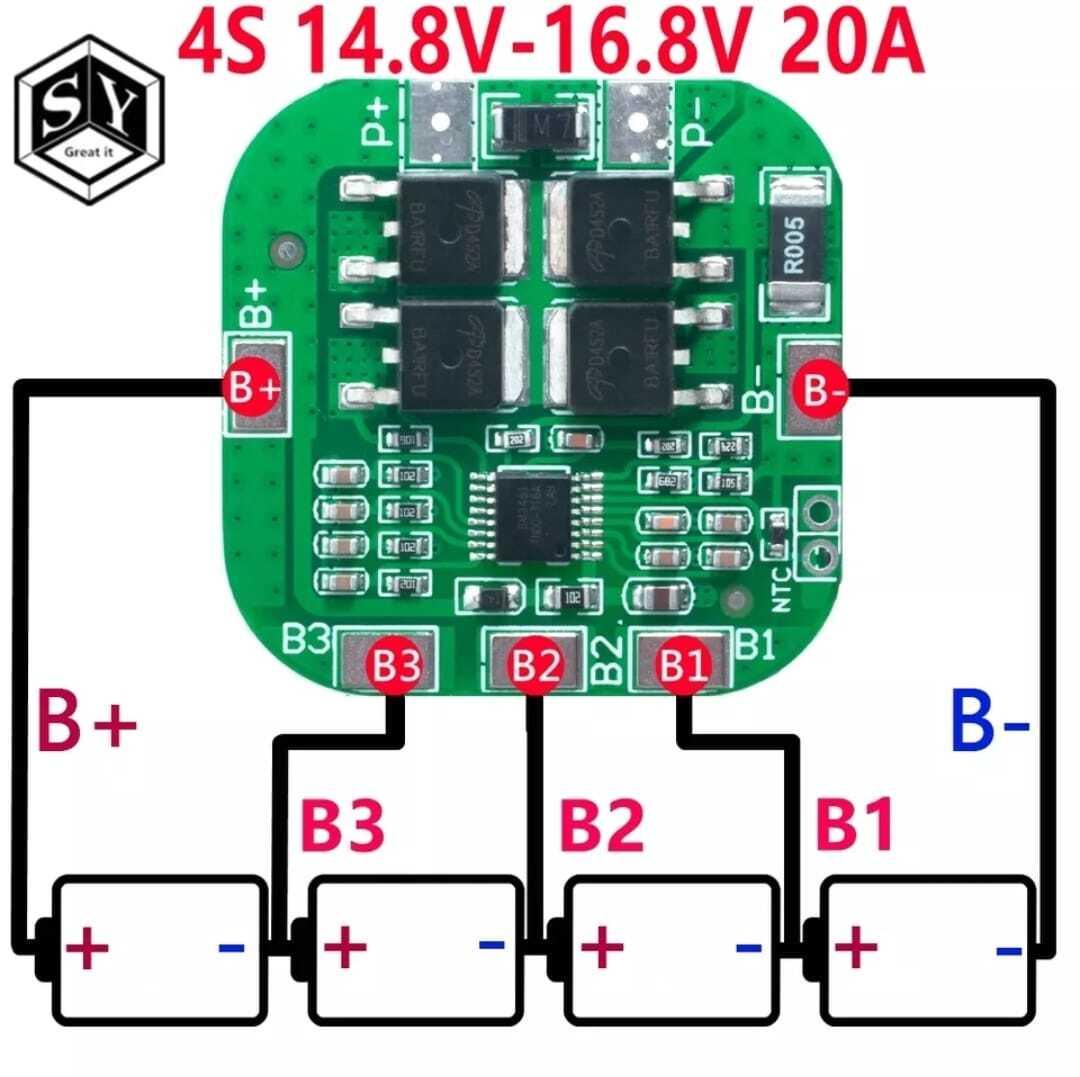

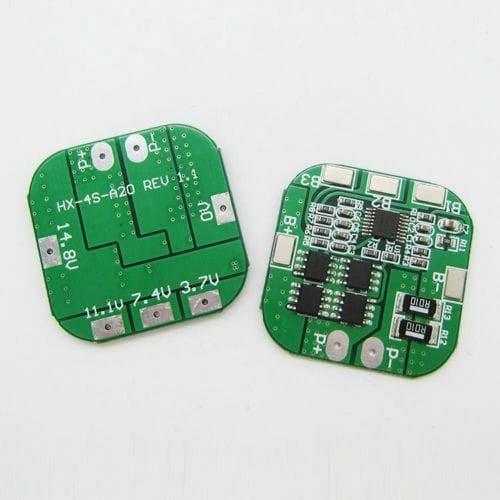

Battery Protection Board 4s 20A 14.8V BMS For 18650 Lithium Ion Cells HX-4s-A20
