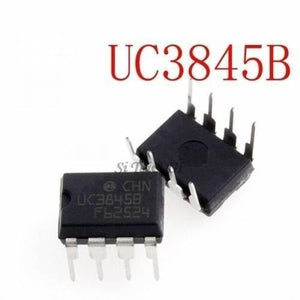

The Current Mode Pwm Controller UC3845B is a high performance fixed frequency current mode controller. This current mode PWM is specifically designed for Off-Line and dc-to-dc converter applications offering the designer a cost-effective solution with minimal external components. This PWM controller features an oscillator, a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET.

Also included are protective features consisting of input and reference under-voltage lockouts each with hysteresis, cycle-by-cycle current limiting, a latch for single pulse metering, and a flip-flop which blanks the output of every other oscillator cycle, allowing output deadtimes to be programmed from 50% to 70%.

Features Of High-Performance Current Mode PWM Controller UC3845B:

• Trimmed oscillator for precise frequency control.
• Oscillator frequency guaranteed at 250 kHz.
• Current mode operation to 500 kHz output switching frequency.
• Output deadtime adjustable from 50% to 70%.
• Automatic feed-forward compensation.
• Latching PWM for cycle-by-cycle current limiting.
• Internally trimmed reference with undervoltage lockout.
• High current totem pole output.
• Under-voltage lockout with hysteresis.
• Low startup and operating current.

Specifications Of Best 8 Pins PWM Controller IC UC3845B:

1. Supply Voltage (low impedance source): 30V
2. Supply Voltage (Ii < 30mA): Self Limiting
3. Output Current: ±1A
4. Output Energy (capacitive load): 5µJ
5. Analog Inputs (pins 2, 3): – 0.3 to 5.5V
6. Error Amplifier Output Sink Current: 10mA
7. Power Dissipation at Tamb: ≤ 25°C (Mini dip) 1.25W
8. Power Dissipation at Tamb: ≤ 25°C (SO8) 800mW
9. Storage Temperature Range: – 65 to 150°C
10. Operating Temperature: – 40 to 150°C
11. Temperature (soldering 10s): 300°C

Package Includes:

• 1 x Current Mode PWM Controller UC3845B

Best Online Shopping website for Current Mode PWM Controller UC3845B 8 Pin PWM Controller IC in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
