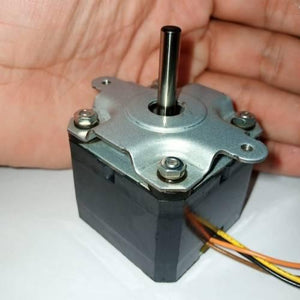

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - shown as a black square motor with a silver mounting plate, metal shaft, and colored wires.

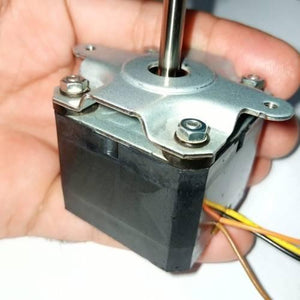

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a close-up of the black motor body, metal mounting bracket, shaft, and colored wires.

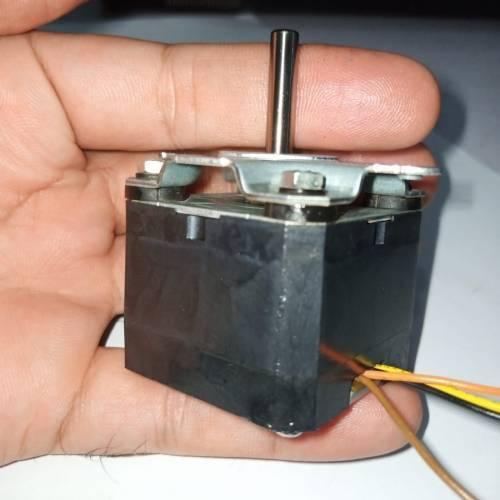

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a black square motor with a silver shaft and attached wires, held in a hand.

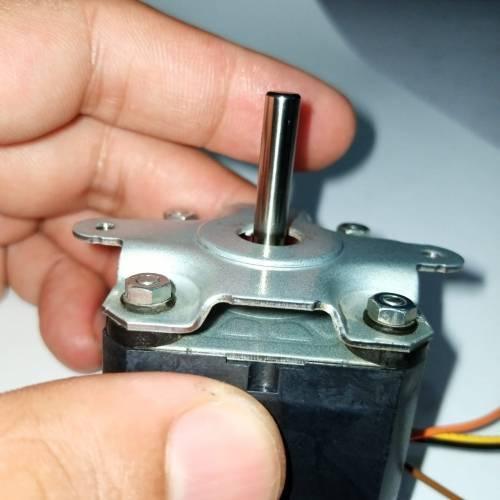

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a close-up view showing the metallic shaft and the attached shock absorber held by a hand.

-20%

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - shown as a black square motor with a silver mounting plate, metal shaft, and colored wires.

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a close-up of the black motor body, metal mounting bracket, shaft, and colored wires.

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a black square motor with a silver shaft and attached wires, held in a hand.

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - a close-up view showing the metallic shaft and the attached shock absorber held by a hand.

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber

Rs 510

Rs 408

SKU: b638,KRT98,L5,Th3

Pickup available at Digilog Electronics

Usually ready in 2 hours

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber - shown as a black square motor with a silver mounting plate, metal shaft, and colored wires.

ML17A3 Bipolar NEMA17 Stepper Motor With Shock Absorber

Rs 510

Rs 408

Nema17 4 wire Bipolar Stepper Motor us very useful in the various application especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters etc. Nema17 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema 17, 1.8 deg. step angle (200 … It is one of most parameters for the stepper motor

Features of nema17 stepper motor:

Builtin shock absorber to reduce resentencing vibration.
This is a high-quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not lose a step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for a 3D printer, CNC engraving machine, etc.

Specifications of ML17A3 BIpolar Nema17 Stepper Motor With Shock Absorber :

Step Angle: 1.8°
Phase Current: 1A
Phase Resistance: 1.5Ohm
Phase Inductance: 2.8mH
Holding Torque: 10N.cm
Braking Torque: 2.2N.cm
Max. Temperature Rise: 80℃ (rated current, 2 phase on)
Operating Temperature: -20℃~+70℃
Insulation Resistance: 100 MΩ Min. , 500VDC

Ml17a3 Bipolar Nema17 Stepper Motor With Shock Absorber
