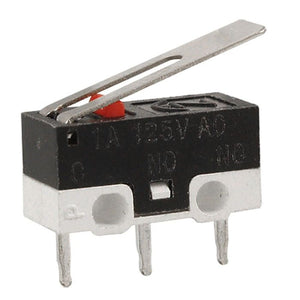

Small Microswitch / Limit Switch - a black and white rectangular body, a metal lever arm, a red button, and three metal connector pins.

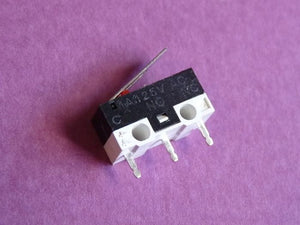

Small Microswitch / Limit Switch - a black and white rectangular limit switch with a metal lever and three metal contact pins, resting on a purple surface.

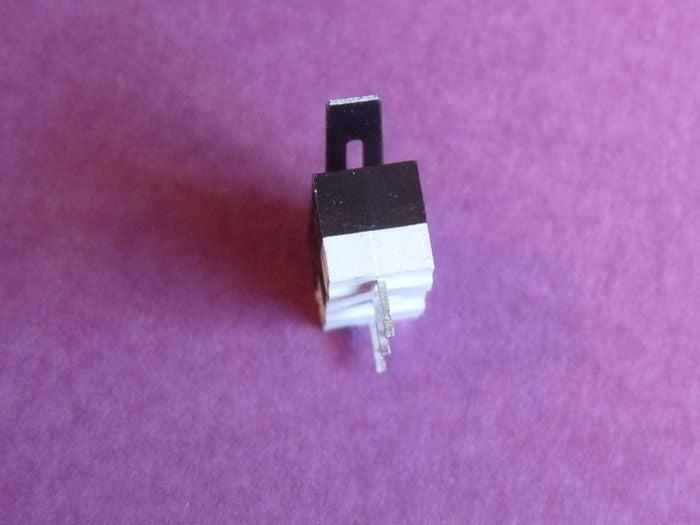

Small Microswitch / Limit Switch - a close-up side view of a black and white rectangular switch body with a metal actuator lever and three metal terminal pins.

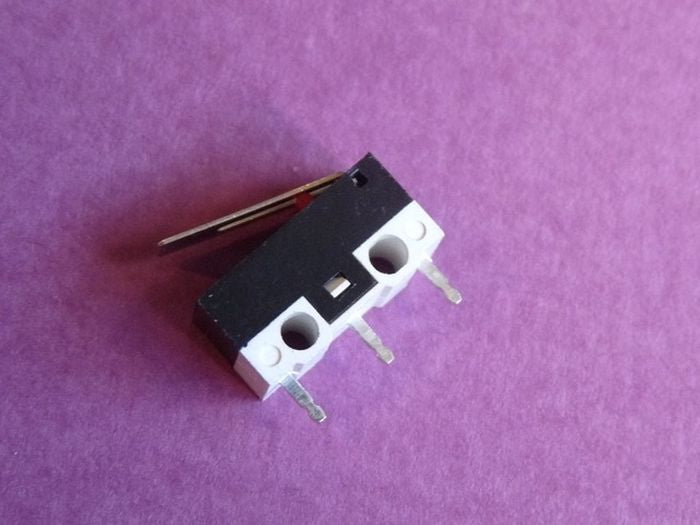

Small Microswitch / Limit Switch - shown in a close-up angle, featuring a black and white rectangular body with a metal lever and three metal terminal pins.

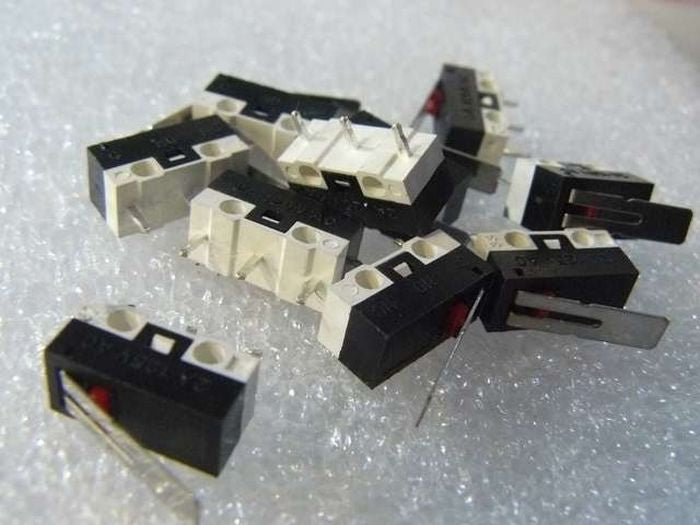

Small Microswitch / Limit Switch - shown as a pile of black and white rectangular switches with red buttons and metal levers on a white textured surface.

Small Microswitch / Limit Switch - a black and white rectangular body, a metal lever arm, a red button, and three metal connector pins.

Small Microswitch / Limit Switch - a black and white rectangular limit switch with a metal lever and three metal contact pins, resting on a purple surface.

Small Microswitch / Limit Switch - a close-up side view of a black and white rectangular switch body with a metal actuator lever and three metal terminal pins.

Small Microswitch / Limit Switch - shown in a close-up angle, featuring a black and white rectangular body with a metal lever and three metal terminal pins.

Small Microswitch / Limit Switch - shown as a pile of black and white rectangular switches with red buttons and metal levers on a white textured surface.

Small Microswitch / Limit Switch

Rs 50

SKU: B623

Pickup available at Digilog Electronics

Usually ready in 2 hours

Small Microswitch / Limit Switch - a black and white rectangular body, a metal lever arm, a red button, and three metal connector pins.

Small Microswitch / Limit Switch

Rs 50

Measured dimensions are approx 12.6mm long, 5.8mm wide, and the block is 6.6mm high, holes in the side for screw mounting are 2mm diameter with 6.5mm pitch, three legs are 0.8mm on the longest diameter with 5.1mm pitch.

The short arm fully depressed is about flush with the end of the block.

The long arm fully depressed extends about 6.6mm past the end of the block.

The bump arm fully depressed extends about 5.1mm past the end of the block.

3 legs, the one nearest the switch nub end is common, the one in the middle is normally open, and the last one is normally closed.
