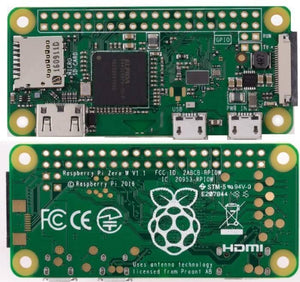

Raspberry Pi Zero w V1.3/ V1.1 Development Board OLD MODEL - the green circuit board from the top and bottom, including the micro SD slot, ports, and GPIO pins.

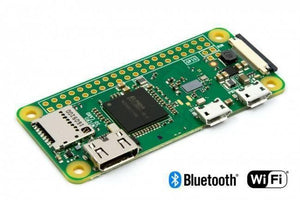

Raspberry Pi Zero w V1.3/ V1.1 Development Board OLD MODEL - a small green rectangular circuit board featuring a micro SD slot, mini HDMI port, two micro USB ports, and GPIO pins.

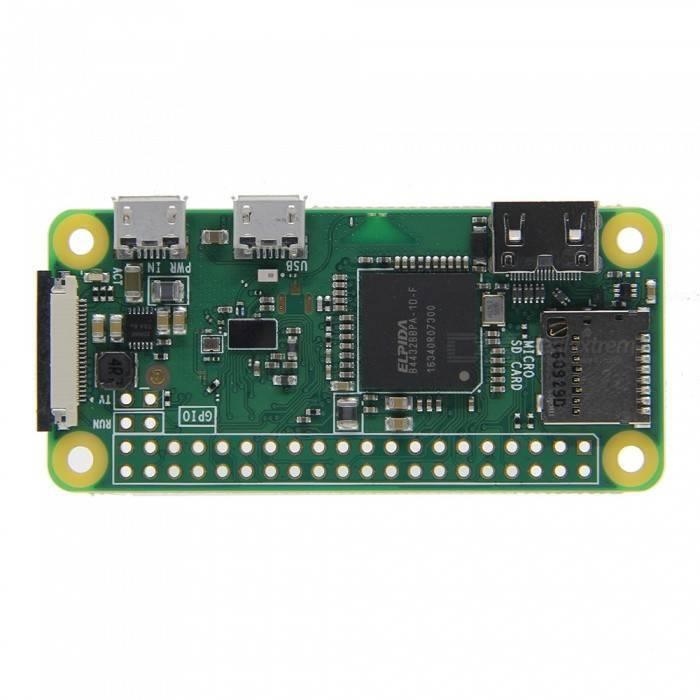

Raspberry Pi Zero w V1.3/ V1.1 Development Board OLD MODEL - a green rectangular circuit board featuring a micro SD card slot, two micro USB ports, and a GPIO header.

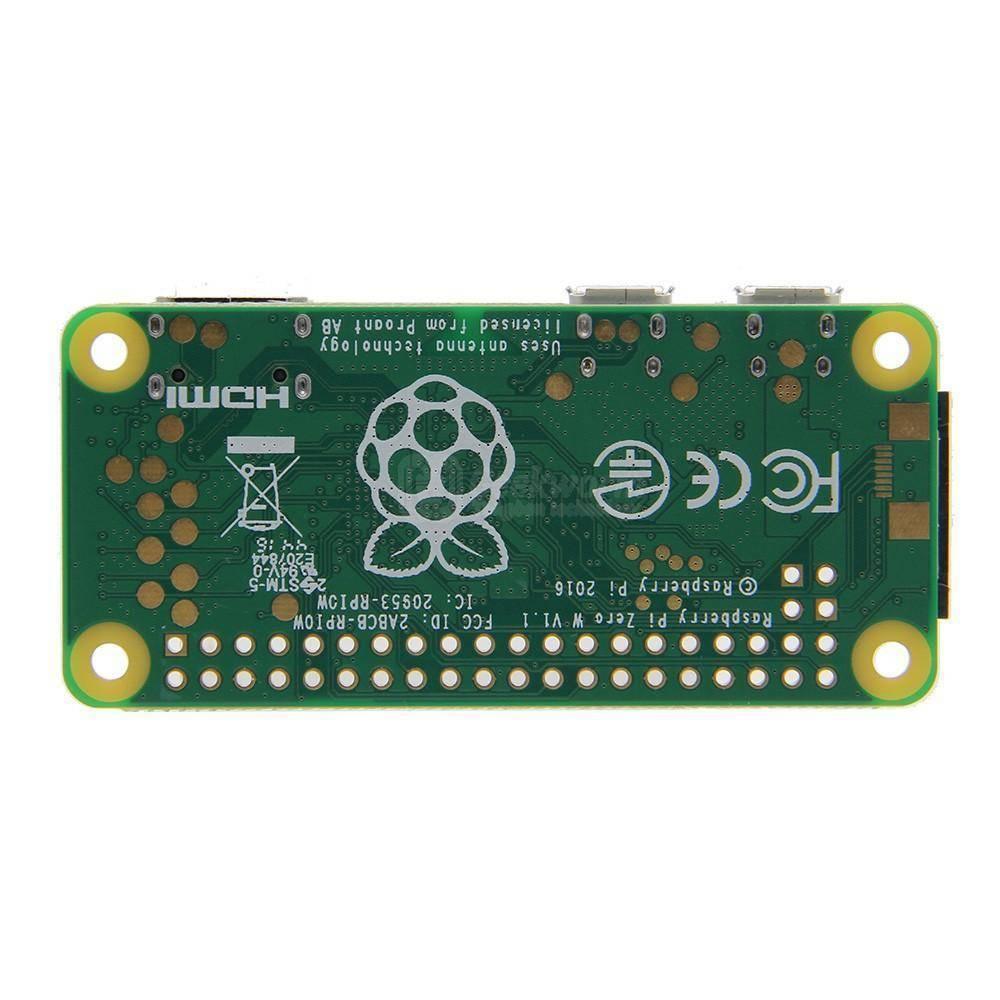

Raspberry Pi Zero w V1.3/ V1.1 Development Board OLD MODEL - a small green rectangular circuit board featuring a Raspberry Pi logo, HDMI port, and GPIO pin holes.
Raspberry Pi Zero w V1.3/ V1.1 Development Board OLD MODEL - the green circuit board from the top and bottom, including the micro SD slot, ports, and GPIO pins.
Raspberry Pi Zero w V1.3/ V1.1 Development Board OLD MODEL - a small green rectangular circuit board featuring a micro SD slot, mini HDMI port, two micro USB ports, and GPIO pins.
Raspberry Pi Zero w V1.3/ V1.1 Development Board OLD MODEL - a green rectangular circuit board featuring a micro SD card slot, two micro USB ports, and a GPIO header.
Raspberry Pi Zero w V1.3/ V1.1 Development Board OLD MODEL - a small green rectangular circuit board featuring a Raspberry Pi logo, HDMI port, and GPIO pin holes.

Raspberry Pi Zero w V1.3/ V1.1 Development Board OLD MODEL

Sale price Rs 13,000
SKU: B488,IMP5,Th3,KRT,A
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

Raspberry Pi Zero w V1.3/ V1.1 Development Board OLD MODEL - the green circuit board from the top and bottom, including the micro SD slot, ports, and GPIO pins.

Raspberry Pi Zero w V1.3/ V1.1 Development Board OLD MODEL

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map

Raspberry Pi Zero-W V1.3 Development Board is the latest version of Raspberry Pi Zero W (Wireless), if you are looking for this, get it here. Zero-W V1.3 Development Board is a super cheap single-board computer. You get a working computer, it is cheaper than any Arduino controller board with the 32-bit processor, and it comes with WiFi and Bluetooth ready.
Though is not a working computer yet, at least you have the motherboard. The new Raspberry Pi Zero W offers all the benefits of the Pi Zero v1.3, but with one big difference – built-in Wireless (WiFi and Bluetooth)! More specifically, this giant upgrade is the addition of a BCM43143 WiFi chip BUILT-IN to your Raspberry Pi Zero – just like the Pi 3! No more pesky WiFi adapters – this Pi is WiFi ready. There’s also Bluetooth Low Energy (BLE) on board making the Pi an excellent IoT solution (BLE support is still in the work, software-wise).
Raspberry Pi Zero W is a super-compact, hackable, and ultra-low-cost computer, This is the version with built-in WiFi and Bluetooth, and there is no so call clone version of this super low-cost computer, this is the original Raspberry Pi Zero W from Raspberrypi.org.
With BCM 2835 (32-bit ARM-based processor) SoC running at 1GHz, the raspberry pi zero is faster than Raspberry Pi 1. With mini-HDMI, micro-B OTG USB, and the same 40-pin GPIO it still has great connectivity although you’ll probably need some accessories to help you hook it up to your existing devices.
The best part about all this is that the Pi Zero W keeps the same shape, connectors, and mounting holes as the Pi Zero v1.3. 99% of cases and accessories will still be fully compatible with both the Pi Zero W and v1.3 – though if you have a case with a metal top there might be some WiFi chip difficulties.
Yes, it is really attractive, but do bear in mind that you need additional accessories to get it running. At least USB adapter and microSD card is a must.



Features of Raspberry Pi Zero-W V1.3 Development Board:

  • 1GHz, single-core CPU
  • 512MB RAM
  • Mini-HDMI port
  • Micro-USB On-The-Go port
  • Micro-USB power
  • HAT-compatible 40-pin header
  • Composite video and reset headers
  • CSI camera connector
  • 802.11n wireless LAN
  • Bluetooth 4.0

Specifications of Raspberry Pi Zero-W V1.3 Development Board:

  1. Processor: BCM 2835 SOC
  2. Clock speed: 1GHz
  3. RAM: 512MB
  4. Memory: micro-SD
  5. Display and Audio: mini-HDMI
  6. USB Port: 1 x Micro-B USB for data (with power too)
  7. Power input: 1x micro-B USB for power (no data)
  8. Camera interface: CSI camera connector (needs adaptor cable, 0.5mm pitch to pitch CSI)
  9. GPIO: Unpopulated 40-pin GPIO connector
  10. Compatibility of GPIO: Compatible with existing HAT addons
  11. Dimensions: 65mm x 30mm x 5mm

Raspberry Pi Zero w V1.3/ V1.1 Development Board In Pakistan

Raspberry Pi Zero w V1.3/ V1.1 Development Board In Pakistan
