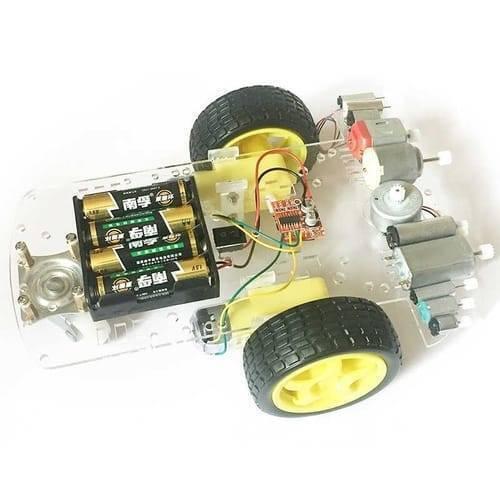

MX1508 is 1.5A Mini Dual Channel DC Motor Driver Module an alternate of L298 or L298N PWM Speed Controller is a newly designed H Bridge motor driver module for DIY robotics projects. This Mini Dual Channel DC Motor Driver Module MX1508 PWM Speed Controller module is ideal for use in the battery-powered smart car, toy cars, robots. Supply voltage 2V ~ 10V can drive two DC motors or 4-wire 2-phase stepper motors, can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each PWM Speed Controller Board can provide a continuous current of 1.5A, peak current up to 2.5A, thermal protection, and can be automatically restored.

Features Of MX1508 H-Bridge Motor Driver:

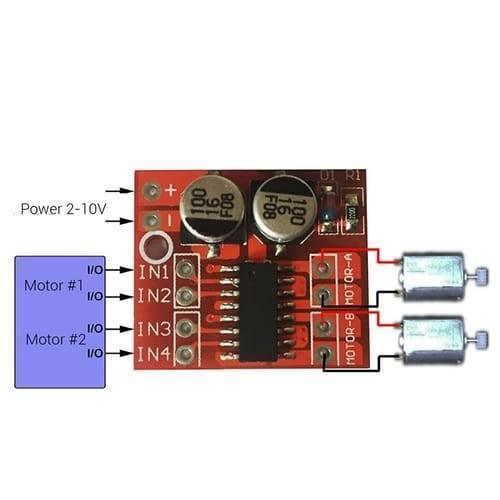

• The dual H-bridge motor driver can drive two DC motors or a 4-wire two-phase stepper motors
• Built-in TSD, without worrying about motor stall
• Ultra-small size, suitable for assembly and car

Specification Of Dual Channel MX1508 DC Motor Driver Board Dual H Bridge Stepper Module:

1. Module supply voltage: DC 2V-10V
2. Signal input voltage: DC 1.8-7V
3. Single working current: 1.5A
4. Peak current up to 2.5A
5. Low standby current (less than 0.1uA)
6. Built-in common conduction circuit, the input terminal vacant, the motor does not malfunction

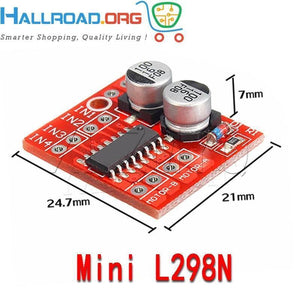

7. Size: 24.7 x 21 x 7mm
8. Mounting hole diameter: 2 mm

Package includes:

• 1 x Mini dual-channel DC motor driver module
