AL253 Boost Converter For Internet Router 5V 9V 12 DC Output Mini Converter Boost Step Ptcl D Link Tp Link
Pickup available at Digilog Electronics
Usually ready in 2 hours
Mini Converter Boost Step Up DC-DC, 3V, 3.2V, 3.3V, 3.7V, 5V, 9V to 12V, PCB Board Module, can be configured 5V/ 8V/ 9V
Multi-function Mini DC-DC Boost Step Up Volt Converter 5V 6V 9V to 12V Power Supply Module
Description:

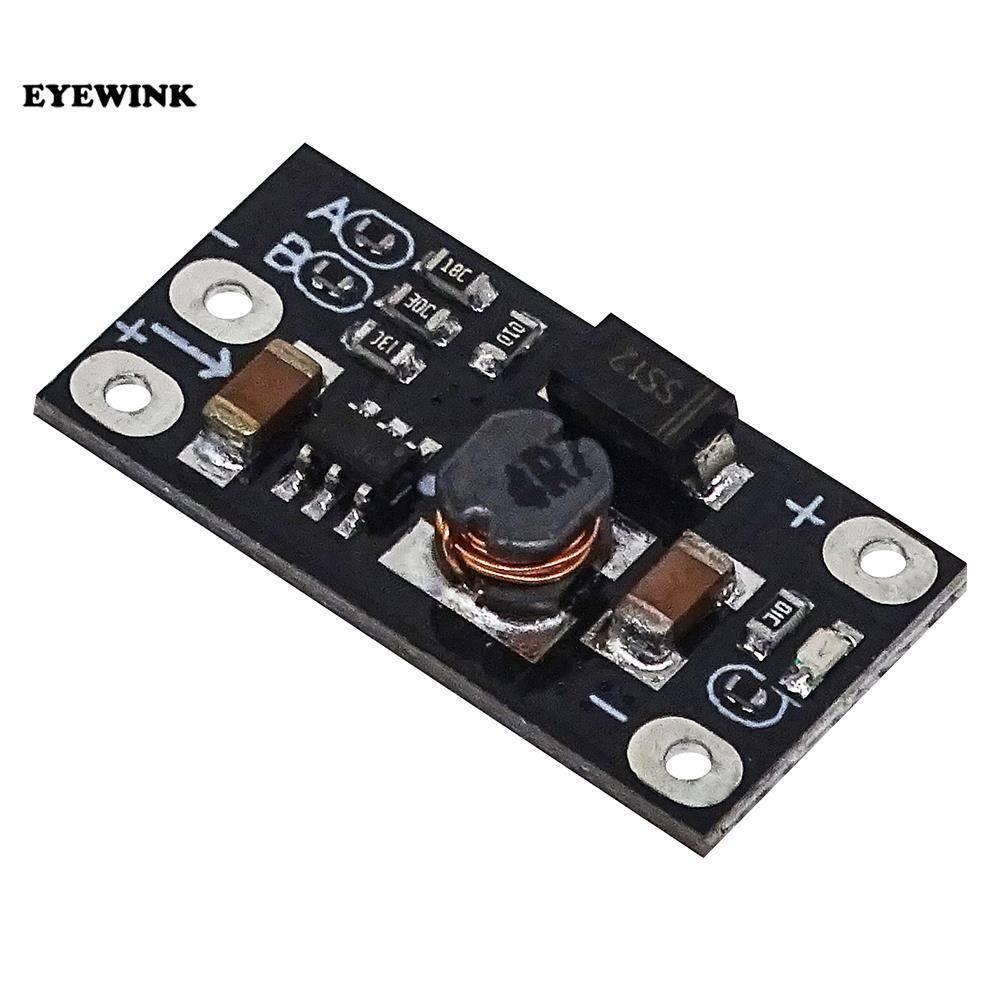

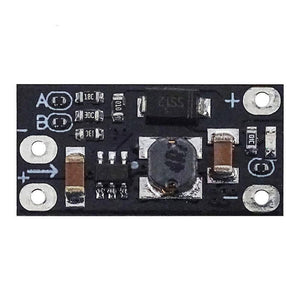

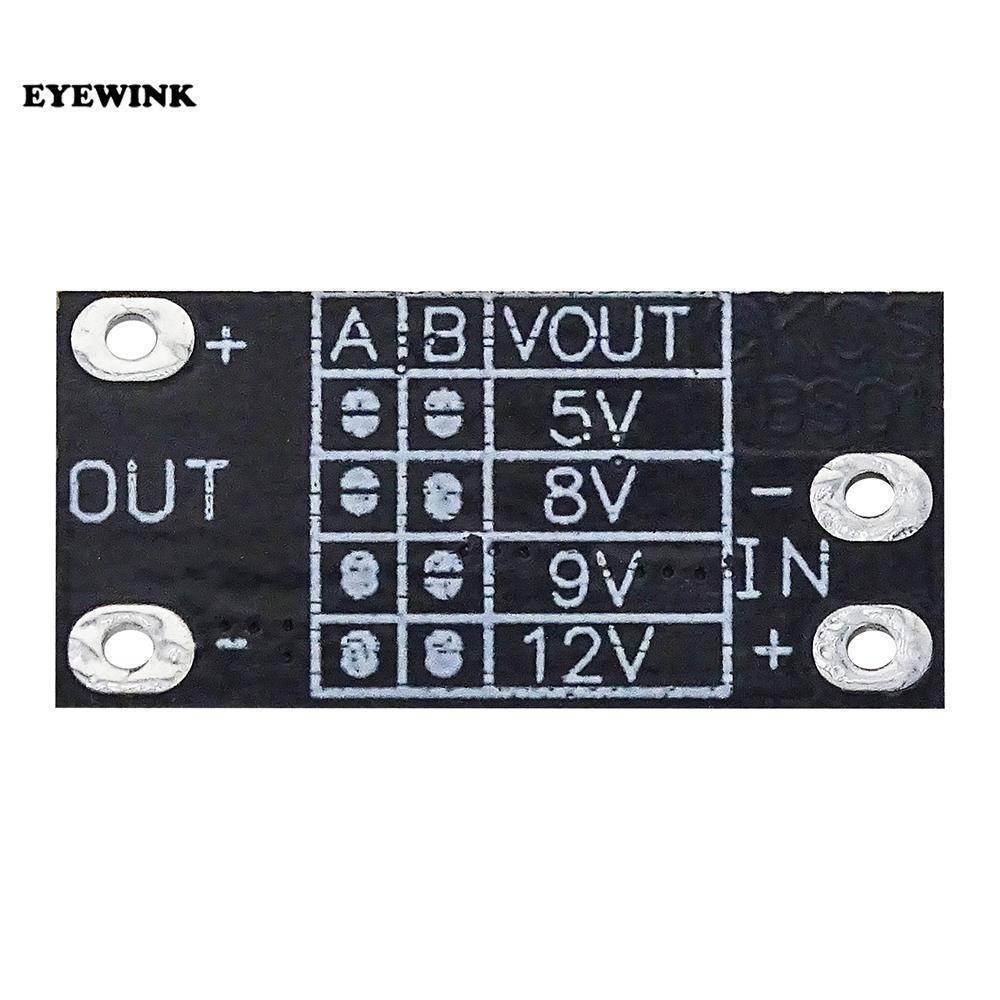

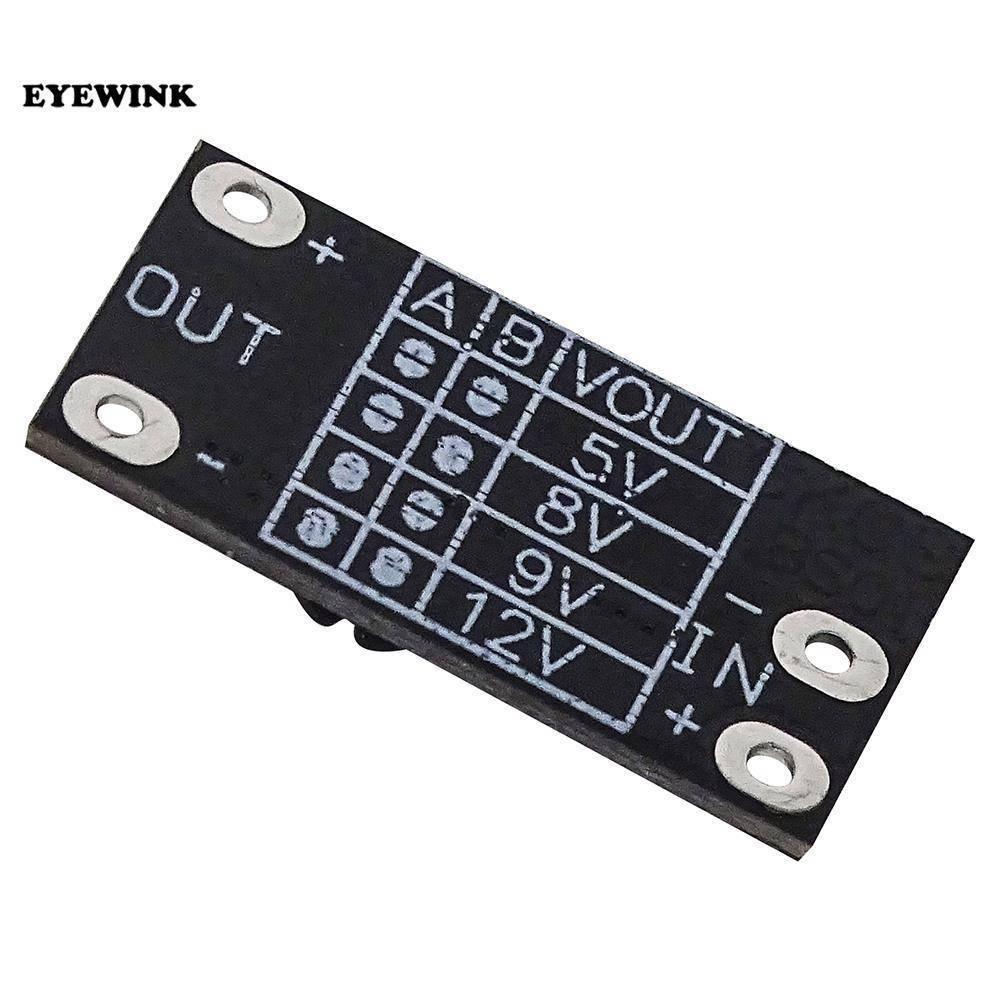

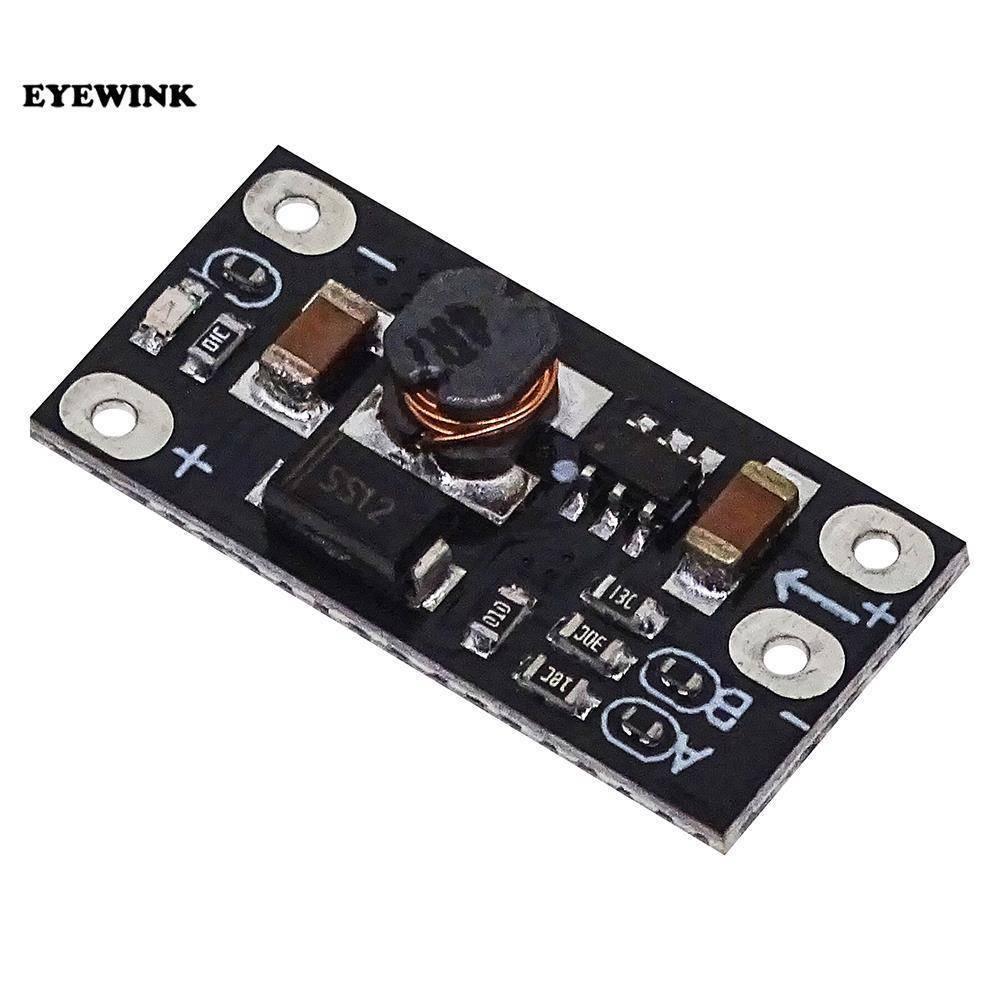

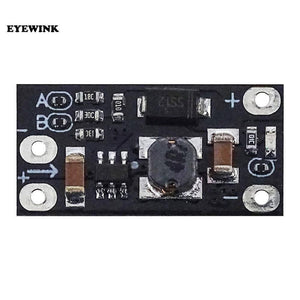

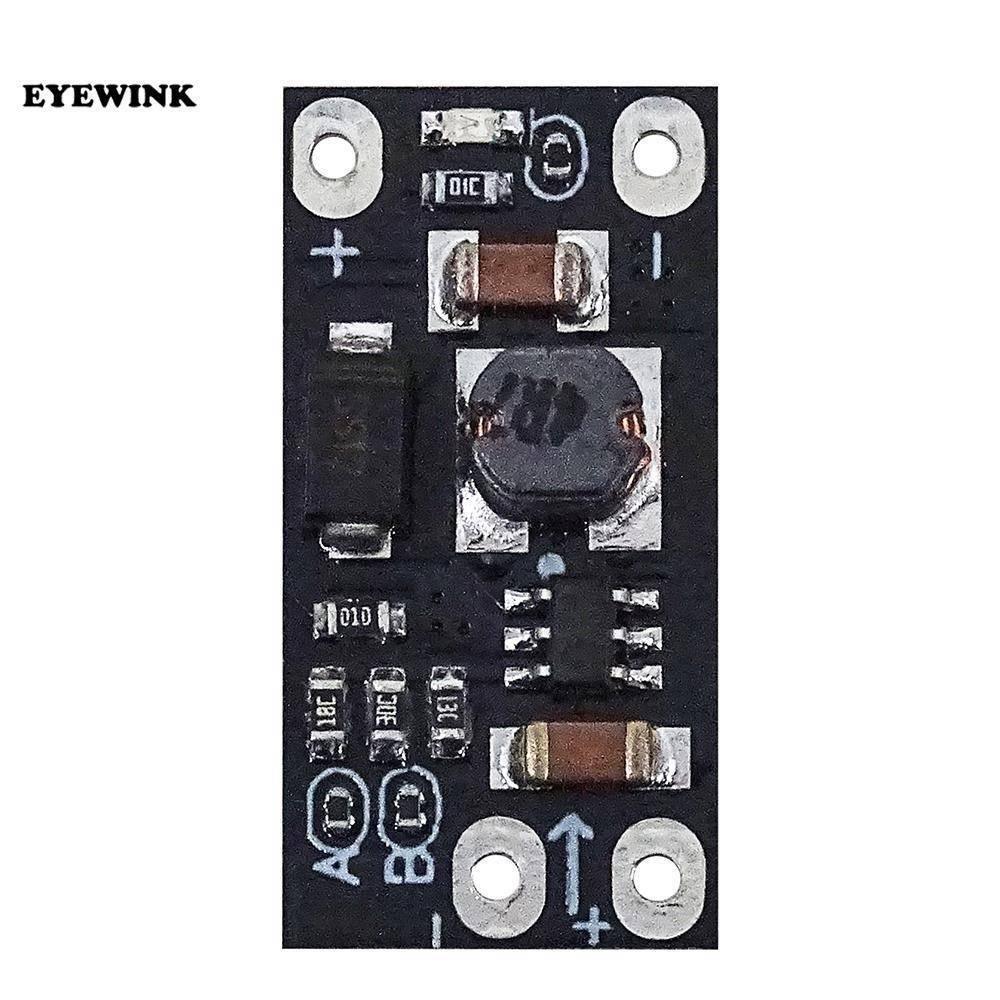

The front side of the PCB can be seen with the words A and B. The output voltage can be changed
by using the soldering iron to switch the pad on and off. In the table below, 0 means that the pad is
disconnected and 1 means that the pad is connected.
The basic parameters
The output voltage can be set to 5V / 8V / 9V / 12V, the default is 12V
Input voltage range: 2.5V ~ VOUT-0.5V
Output performance: take the input 3.7V lithium battery as an example, it can output 5V1.2A, 8V0.7A,
9V0.6A, 12V0.5A. Please make sure the input current and output current do not exceed 1.5A.
Package Include:
1 x Mini Converter Boost Step Up DC-DC, 3V, 3.2V, 3.3V, 3.7V, 5V, 9V to 12V, PCB Board Module In Pakistan
