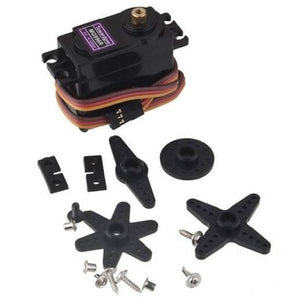

MG996R 180 Degree Metal Gear Servo Motor (plastic Gear) - with a black plastic body, a three-pin connector, and various black plastic servo horns and mounting screws laid out on a white surface.

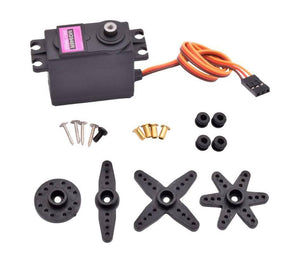

MG996R 180 Degree Metal Gear Servo Motor (plastic Gear) - shown with its included black plastic servo horns, brass eyelets, rubber grommets, and mounting screws laid out on a white background.
MG996R 180 Degree Metal Gear Servo Motor (plastic Gear) - with a black plastic body, a three-pin connector, and various black plastic servo horns and mounting screws laid out on a white surface.
MG996R 180 Degree Metal Gear Servo Motor (plastic Gear) - shown with its included black plastic servo horns, brass eyelets, rubber grommets, and mounting screws laid out on a white background.

MG996R 180 Degree Metal Gear Servo Motor (plastic Gear)

Sale price Rs 950
SKU: B812,krt4,LIMP200,Th1000
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

MG996R 180 Degree Metal Gear Servo Motor (plastic Gear) - with a black plastic body, a three-pin connector, and various black plastic servo horns and mounting screws laid out on a white surface.

MG996R 180 Degree Metal Gear Servo Motor (plastic Gear)

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
MG996R 180 Degree Metal Gear Servo Motor (plastic Gear) - with a black plastic body, a three-pin connector, and various black plastic servo horns and mounting screws laid out on a white surface.
MG996R 180 Degree Metal Gear Servo Motor (plastic Gear)
Sale priceRs 950

MG996R 180 Degree Metal Gear Servo Motor (Plastic Gear) In Pakistan MG946R Digital RC Servo Motor Metal Gear Torque 13Kg for Arduino/Raspberry-Pi/Robotics. MG946R Towerpro Digital Metal Servo 13KG High torque. It is upgraded version of TowerPro MG945. The new PCB and IC control system which makes it more accurate. Its internal gearing and motor are also upgraded to improve dead bandwidth and centering. MG946R is for 1/8 buggy monster and many RC model. It is an original equipment manufacturer (OEM product) of TowerPro MG995 servo. There are many counterfeit servos of TowerPro from China dealers selling on eBay, Amazon and Alibaba websites. If the suppliers removed “TowerPro” logo from the photos and the products description, they are selling counterfeits low quality servo.

MG946R MG946 R 180 Degree Metal Gear Servo Motor



Specification:

  1. Weight: 55g
  2. Rotation: 180 degree
  3. Dimension: 40.7×19.7×42.9mm
  4. Stall torque: 10.5kg/cm (4.8v); 13kg/cm (6v)
  5. Operating speed: 0.20sec/60degree(4.8v);0.17sec/60degree(6.0v)
  6. Operating voltage: 4.8-6.6v
  7. Temperature range: 0- 55deg
  8. Servo Plug: JR (Fits JR and Futaba)
  9. Gear Type: Metal gear
  10. Dead band width: 1us
  11. Power Supply: Through External Adapter
  12. servo wire length: 32cm
  13. Current draw at idle 10MA
  14. No load operating current draw 170MA
  15. Stall current draw 1200MA
  16. Servo Plug: JR (Fits JR and Futaba)

Package includes:

  • 1x  Metal Gear Servo Motor (Plastic Gear)

 MG946R MG946 R 180 Degree Metal Gear Servo Motor

MG946R MG946 R 180 Degree Metal Gear Servo MotorMG946R MG946 R 180 Degree Metal Gear Servo MotorMG946R MG946 R 180 Degree Metal Gear Servo MotorMG946R MG946 R 180 Degree Metal Gear Servo Motor
