HC-06 / HC 06 / HC06 Bluetooth Module Serial port bluetooth, Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish a connection between MCU and GPS, PC to your embedded project and etc.

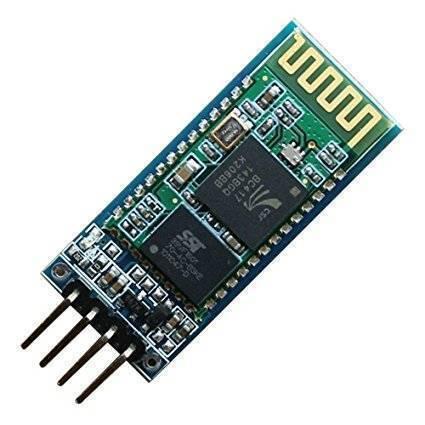

HC-06 Bluetooth module

Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.

• Works with any USB Bluetooth adapters.
• Default Baud Rate: 9600,8,1,n.
• Built in antenna.
• Coverage up to 30ft.
• Bluetooth version: V2.0+EDR
• Operating voltage: 3.3V
• Default Baud Rate: 9600,8,1,n.
• Signal coverage: 30ft
• Item size: 4.3 * 1.6 * 0.7cm
• Item weight: 3g
• Package size: 9 * 3 * 1cm
• Package weight: 8g

• Commercial Series: Bluetooth module board Series
• With LED indicator light, use 150mA and 3.3V regulation chip.
• With VCC.GND.TXD.RXD foot for the Bluetooth
• With “Re-seach” button(ON/OFF/WAKE foot for it , external MCU outinput “High level” can control module to re-seach)
• Compatible with bluetooth master module”.slave module”or master-slave(whole) module.
• Input voltage: 3.3~6V
• Size: 1.55cm*3.98cm
