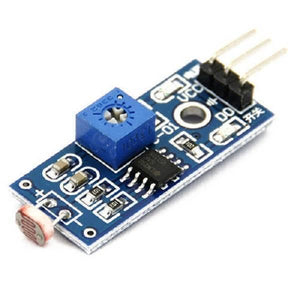

Digital LDR Sensor Module - a blue circuit board with a light-dependent resistor, a potentiometer, an LM393 chip, and a three-pin header.

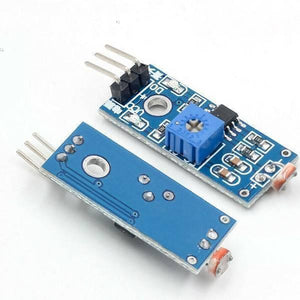

Digital LDR Sensor Module - shown as two blue circuit boards, one displaying the top components including a blue potentiometer and the other showing the back.

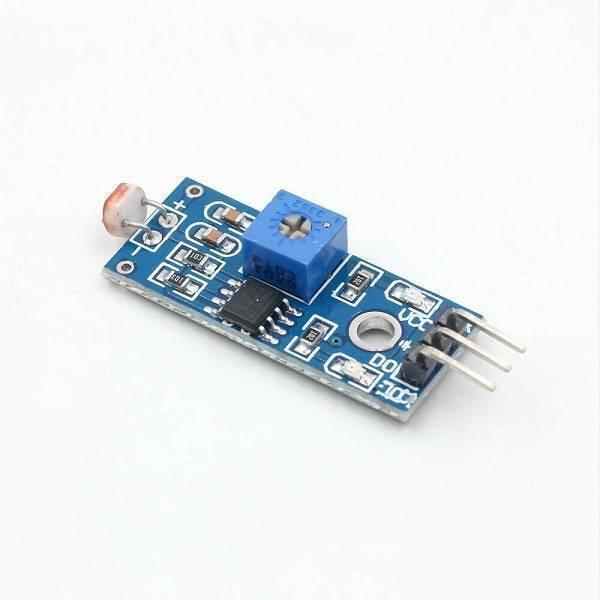

Digital LDR Sensor Module - a blue rectangular circuit board featuring a light-dependent resistor, a blue potentiometer, and a three-pin connector.

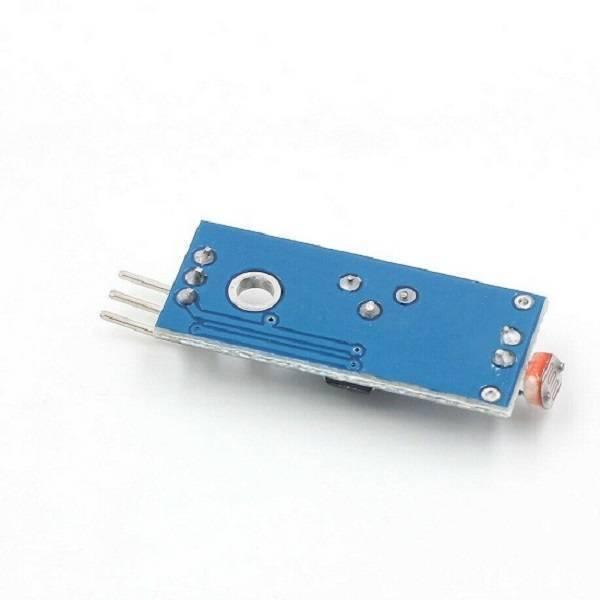

Digital LDR Sensor Module - the blue rectangular circuit board with three metal connection pins on the left and a small LDR sensor on the right.

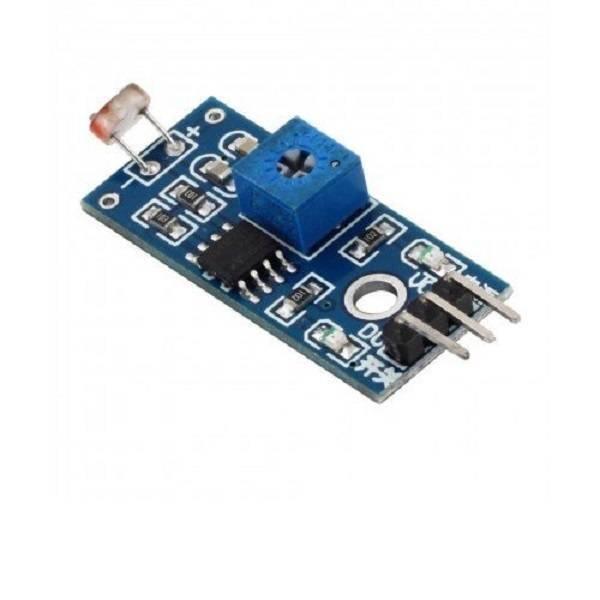

Digital LDR Sensor Module - a blue potentiometer, a light-dependent resistor, an integrated circuit, and a three-pin connector on a blue circuit board.

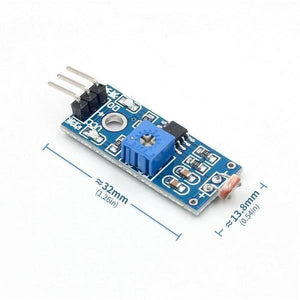

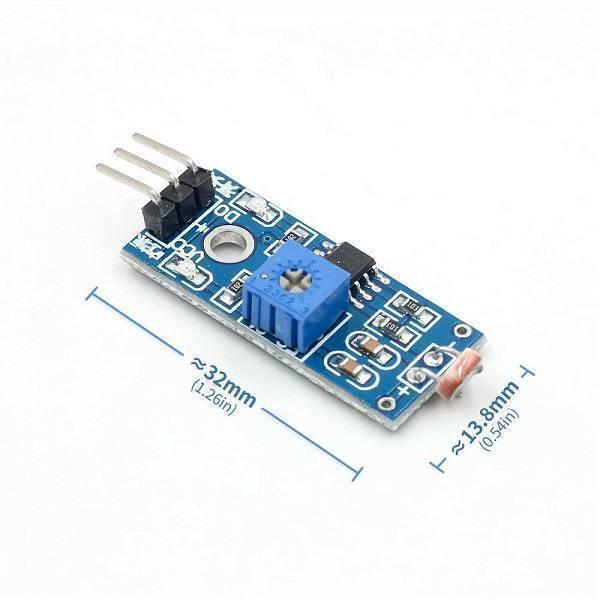

Digital LDR Sensor Module - shown from an angled perspective, featuring a blue circuit board, a potentiometer, three pins, and dimension labels.

Digital LDR Sensor Module

Rs 130

SKU: B161,krt173,IMP100,TH50

Pickup available at Digilog Electronics

Usually ready in 2 hours

Digital LDR Sensor Module

Rs 130

The Digital Light Dependent Resistor LDR Sensor Module is used to detect the presence of light / measuring the intensity of light. The output of the LDR module goes high in the presence of light and it becomes low in the absence of light. You can adjust the threshold (sensitivity) of the digital output by tuning the onboard variable resistor (potentiometer). Simple usage as it is the digital output, so you will know is the light present and decide what to do with it.LDR photoresistor sensor module comes with an M3 mounting hole for ease of attaching it to an object. Onboard, it provides an LDR, high sensitivity and commonly being used for light detection.

The LDR lm393 module comes with a power LED and a status LED as an indicator.LDR Module Photosensitive resistor Sensor most sensitive to environmental light intensity is generally used to detect the ambient brightness and light intensity.

Features and Specifications :

LM393 based design.
It can detect ambient brightness and light intensity.
Adjustable sensitivity (via blue digital potentiometer adjustment).
Operating Voltages – 0V to 5V, Adjustable trigger level from preset.
LEDs indicating output and power.
Operating Current is 15mA

How it works...?

Module light conditions or light intensity reach the set threshold, DO port output high when the external ambient light intensity exceeds a set threshold and the module's D0 output low when the external ambient light intensity below a set threshold.
Digital output D0 directly connected to the MCU, and detect high or low TTL, thereby detecting ambient light intensity changes.
Digital output module DO can directly drive the relay module, which can be composed of a photoelectric switch

Pins detail:

VCC ↔ 3.3V to 5V DC.
GND ↔ Ground.
DO ↔ Digital Output.

Package Include:

1x Digital LDR Sensor Module
