Name: Csn-a2l Arduino Serial Printer Arduino Mini Embedded Receipt Thermal Printer With Paper Roll
Brand: China
SKU: B356,L2,Th1
Price: 6300.0 PKR
Availability: InStock

Home ALL Products

Csn-a2l Arduino Serial Printer Arduino Mini Embedded Receipt Thermal Printer With Paper Roll - a black thermal receipt printer with a green LED, a button, and a paper roll printed with a barcode and QR code.

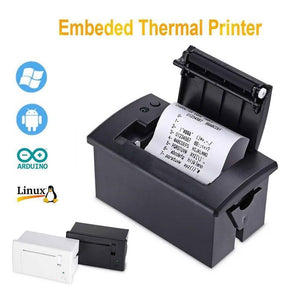

Csn-a2l Arduino Serial Printer Arduino Mini Embedded Receipt Thermal Printer With Paper Roll - shown as a black embedded thermal printer with a paper roll printing a character code table, plus a white unit.

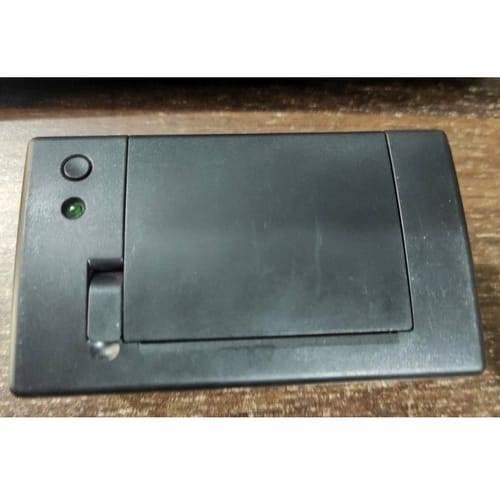

Csn-a2l Arduino Serial Printer Arduino Mini Embedded Receipt Thermal Printer With Paper Roll - a black, rectangular thermal printer featuring a circular button, a green status indicator light, and a paper slot.

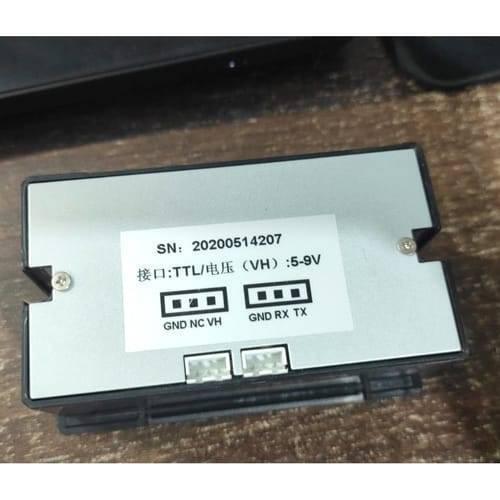

Csn-a2l Arduino Serial Printer Arduino Mini Embedded Receipt Thermal Printer With Paper Roll - a close-up of the rear metal panel with a label displaying the serial number, voltage range, and two 3-pin ports.

Csn-a2l Arduino Serial Printer Arduino Mini Embedded Receipt Thermal Printer With Paper Roll

Rs 6,300

SKU: B356,L2,Th1

Pickup available at Digilog Electronics

Usually ready in 2 hours

Csn-a2l Arduino Serial Printer Arduino Mini Embedded Receipt Thermal Printer With Paper Roll

Rs 6,300

Datasheet
User Manual
Mini Thermal Receipt Printer Mini Embedded Receipt Thermal Printer is an embedded thermal printer, which is widely used in various occasions, such as supermarkets, convenience stores, post office, bank and so on. This is an embedded thermal printer, which is widely used in various occasions, such as supermarkets, convenience stores, post office, bank and so on. It is not a normal consumer product, but similar to consumer products. The compact size makes it easy to be embedded to any kinds of instruments and meters. With a nice appearance, you can even put it on the table. On the hardware side, we specially choose the TTL interface so that it can be directly controlled by development boards such as Arduino or Raspberry Pi. In the Internet of things era, it’s time to print out your ideas!

The printer comes with a set of power and data cables but without a power supply. It can work in 5V~ 9V, with the peak current of 2A, so please get a power supply with more than 2A output capacity. In addition, the thermal paper is not included either. The thermal printer uses the common 57mm-wide thermal paper that you could get from most stationers and supermarkets. Certainly, we do also provide you with these accessories, including 5V/2A

adapterand57mm-wide thermal paper.

Features:

Low-noise direct thermal printing method
Printer control panel built-in GB18030 Chinese character
Fast printing speed
Can support Max. 39mm paper roll, the biggest paper roll of the same models
TTL interface
Rich of graphics/curves/characters print function
Easy paper loading structure
Support 5V-9V wide power voltage

Specification:

Print	Printing Method	Thermal Line
	Printing Speed	50-80mm/s
	Resolution	8 dots/mm, 384 dots/line
	Effective Printing Width	48mm
Character	Character Set	ASCII,GB2312-80(Chinese)
Character	Print Font	ANK:(8×16,9×17,9×24,12×24), GBK: 16×16,24×24
Paper Spec.	Paper Type	Thermal paper
	Paper Width	57.5± 0.5mm
	Paper Roll Diameter	Max: 39mm
Reliability	MCBF	5 million lines
Interface		RS-232/TTL/Parallel/USB
Insert Depth		50mm
Power Supply (Adapter)		DC5V-9V/12V
Physical	Outline Dimension (WxDxH)	111x65x57mm
	Installation Port Size	103 x 57mm
	Color	Beige/Black
Environment	Operating Temp	0°C ~ 50°C
	Operating Humidity	10% ~ 80%
	Storage Temp	-20°C ~ 60°C
	Storage Humidity	10% ~ 90%
