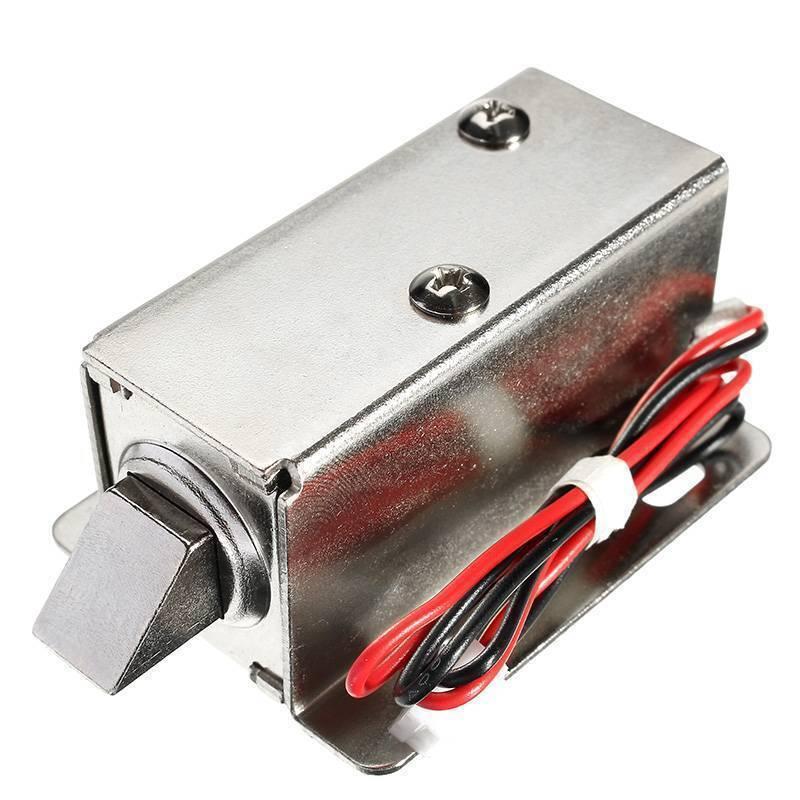

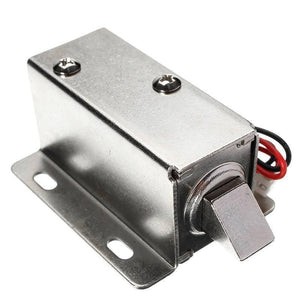

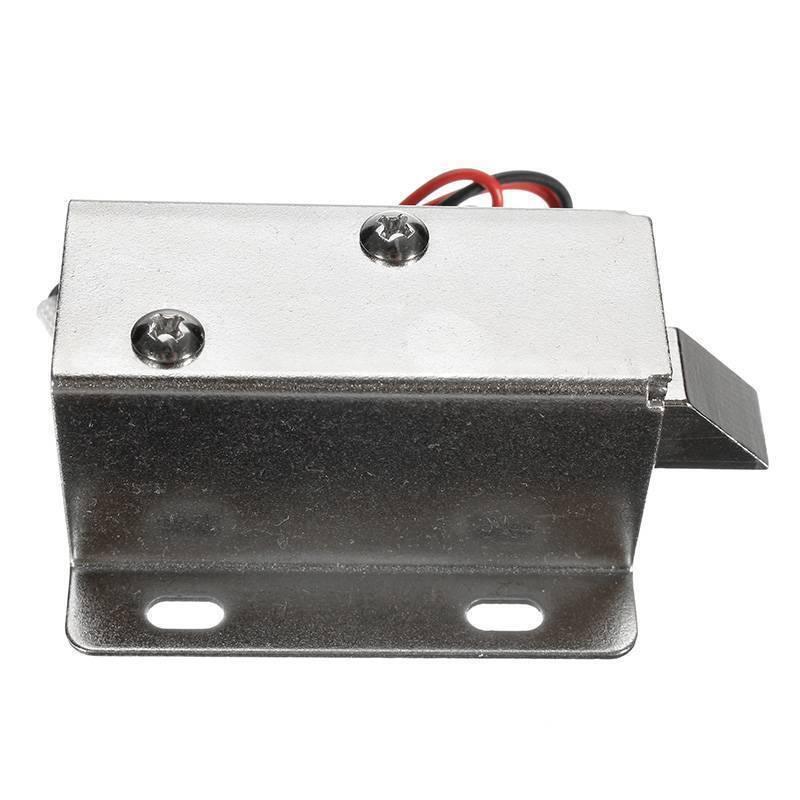

This DC 12V Cabinet Door Lock Electric Lock or fingerprint Door Lock  Assembly Solenoid can be used for locking sell-machine, storage shelf, file cabinet and etc.  The Door Lock works as the circuits disconnects, and it will unlock as the instant power-on. It is steady, durable and energy-saving, and had a long lifespan. In the anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires and when the current is available, the electric lock can control the door’s opening and closing.

Features Of Door Lock:

1.  Iron Body Material
2. High-quality ultra-compact electric lock.
3. Rustproof, durable, safe, convenient to use.
4. Suction tightly sucks the iron, thus locking the door.
5. Applicable for being installed in the escape door or fire door electronic controlled system.
6. Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.

Technical Specifications And Features:

1. Model: DC 12V Cabinet Door Lock
2. Rated Operating Voltage: 12V
3. Rated Current: 0.83A.
4. Power Consumption: 12W Watt
5. Holding Force: 0.25kg
6. Unlocking Time: 1 sec
7. Body Material: Iron Metal
8. Energized forms: Intermittent
9. Cable Length: 35 cm (with connector)
10. Weight (gm): 150

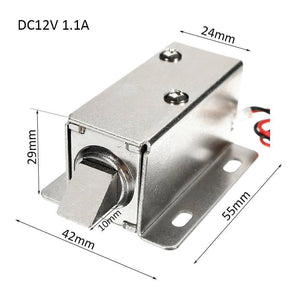

11. Dimensions (mm): LxWxH    54 x 42 x 28
12. Shipment Weight: 0.223 kg

Package Includes In Door lock:

1 x DC 12V Cabinet Door Lock Electric Lock Assembly Solenoid
