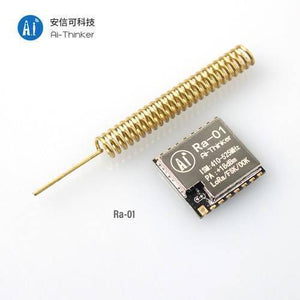

Retired Product Lora Ra-01 433MHz SX1278 Long Range Wireless Module - shown with its square metallic chip and a separate gold-coloured coiled wire antenna.
Retired Product Lora Ra-01 433MHz SX1278 Long Range Wireless Module - with a gold-coloured coiled antenna attached to a square metal-shielded circuit board.

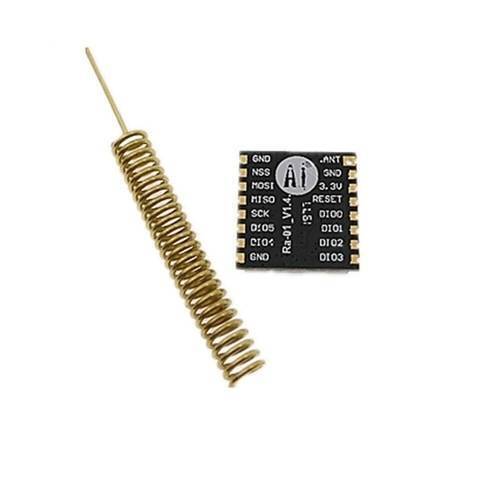

Retired Product Lora Ra-01 433MHz SX1278 Long Range Wireless Module - shown with its square black circuit board and a separate gold-colored helical wire antenna.

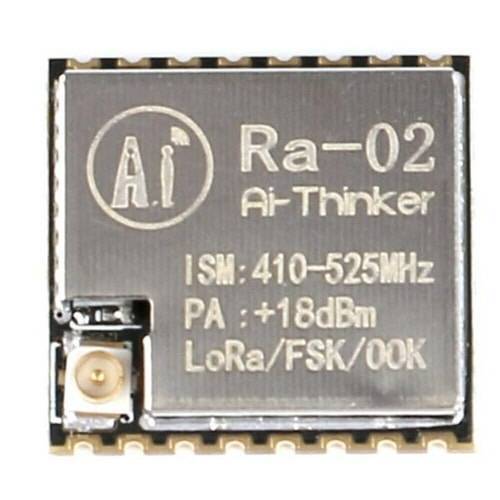

Retired Product Lora Ra-01 433MHz SX1278 Long Range Wireless Module - Ai-Thinker Ra-02 wireless module, a square black circuit board with a metal shield featuring printed text and a small gold-coloured antenna connector.
Sold out
Retired Product Lora Ra-01 433MHz SX1278 Long Range Wireless Module - shown with its square metallic chip and a separate gold-coloured coiled wire antenna.
Retired Product Lora Ra-01 433MHz SX1278 Long Range Wireless Module - with a gold-coloured coiled antenna attached to a square metal-shielded circuit board.
Retired Product Lora Ra-01 433MHz SX1278 Long Range Wireless Module - shown with its square black circuit board and a separate gold-colored helical wire antenna.
Retired Product Lora Ra-01 433MHz SX1278 Long Range Wireless Module - Ai-Thinker Ra-02 wireless module, a square black circuit board with a metal shield featuring printed text and a small gold-coloured antenna connector.

Retired Product Lora Ra-01 433MHz SX1278 Long Range Wireless Module

Sale price Rs 1,210
SKU: DELL,b699
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Features:

  • LoRaTM spread spectrum communication
  • +20dBm - 10mW. Stable RF output power when the input voltage changed
  • Half-duplex SPI communication
  • The programmable bit rate can reach to 300kbps
  • Support FSK, GFSK, MSK, GMSK, LoRaTM and OOK Modulation Mode
  • 127dB RSSI wave range.
  • Automatically detect RF signal, CAD model, and super high-speed AFC
  • With CRC 256 bytes data engine
  • Half hole (castellated hole)  SMD package
  • With metal shielding case
  • Spring antenna

Specifications:

  1. Wireless Standard: 433MHz
  2. Frequency range: 420 - 450MHz
  3. Port: SPI/GPIO
  4. Operating Voltage: 1.8 - 3.7V, default 3.3V
  5. Working Current, Receive: less than 10.8mA (LnaBoost closed, Band 1)
  6. Transmit less than 120mA (+20dBm),
  7. Sleep model: 0.2uA
  8. Working temperature: -40- +85 degrees
  9. Pin pitch: 2.0 mm

Package Includes:

  • 1 x 433Mhz SX1278 Long Range Wireless Module
