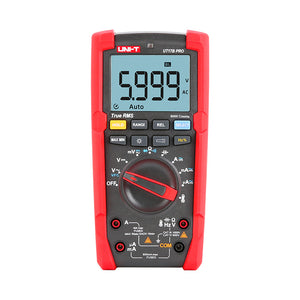

UNI-T UT17B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Temperature, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT17B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Temperature, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn
UNI-T UT17B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Temperature, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn
UNI-T UT17B PRO — True RMS 6000-count digital multimeter, 1000V AC/DC with VFC filtering, temperature measurement and CAT III 1000V / CAT IV 600V safety. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.
Key Features
- 6000-count True RMS measurement
- 1000 V AC/DC voltage, 10 A AC/DC current

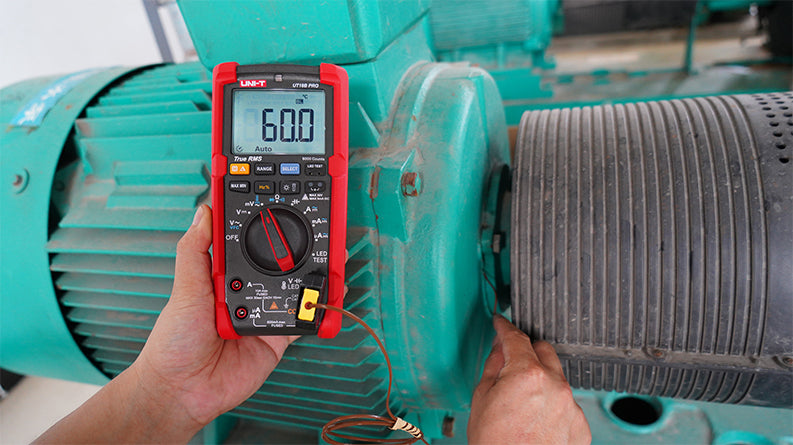

- Temperature measurement (−55°C~500°C) with probe
- VFC (600V) low-pass filter for motor-drive voltage
- Capacitance, frequency, duty cycle, diode, continuity
- Auto backlight / flashlight, CAT III 1000V / CAT IV 600V, 8kV transient protection

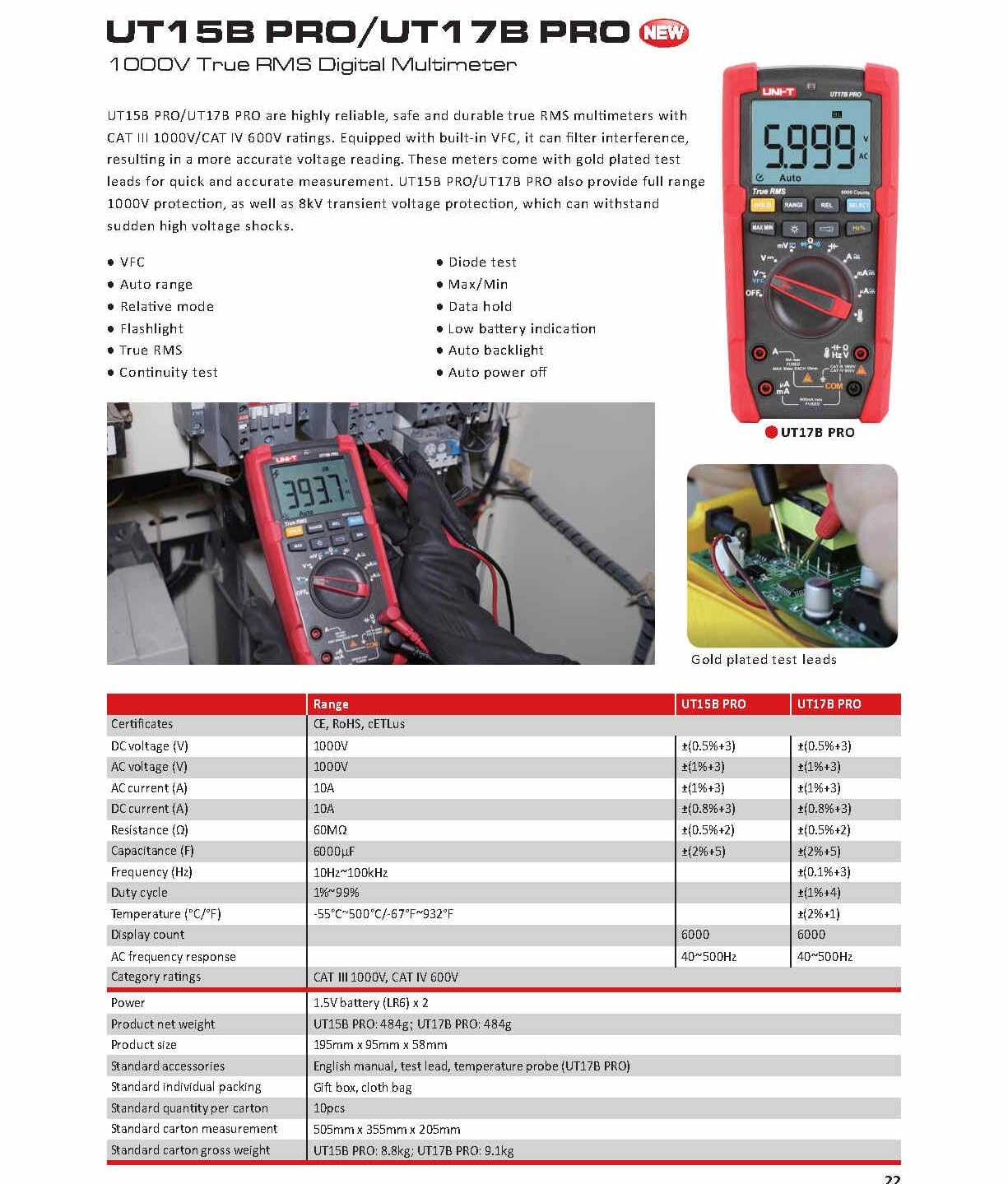

Technical Specifications
| Type | True RMS digital multimeter (6000 count) |
|---|---|
| DC Voltage | 1000 V ±(0.5%+3) |
| AC Voltage | 1000 V ±(1%+3) |
| DC Current | 10 A ±(0.8%+3) |
| AC Current | 10 A ±(1%+3) |
| Resistance | 60 MΩ ±(0.5%+2) |
| Capacitance | 6000 µF ±(2%+5) |
| Frequency | 10 Hz ~ 1 MHz ±(0.1%+3) |
| Temperature | −55°C ~ 500°C ±(2%+1) |
| Safety | CAT III 1000V / CAT IV 600V, 8kV transient |
| Power | 2 × 1.5 V AA (LR6) |
Video Review
What's in the Box
- UT17B PRO multimeter
- Test leads
- Temperature probe
- 2 × 1.5 V AA batteries
- English user manual
Downloads
Certifications: CAT III 1000V / CAT IV 600V, CE | HS Code: 9030.3100
