UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection
UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection

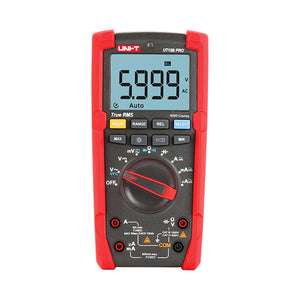

UNI-T UT15B PRO — True RMS 6000-count digital multimeter, 1000V AC/DC with VFC filtering and CAT III 1000V / CAT IV 600V safety plus 8kV transient protection. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.
Key Features
- 6000-count True RMS measurement
- 1000 V AC/DC voltage, 10 A AC/DC current
- VFC (600V) low-pass filter for accurate motor-drive voltage readings
- Capacitance (6000 µF), frequency, duty cycle, diode, continuity
- Auto backlight / flashlight, full-range 1000V protection
- CAT III 1000V / CAT IV 600V safety, 8kV transient voltage protection

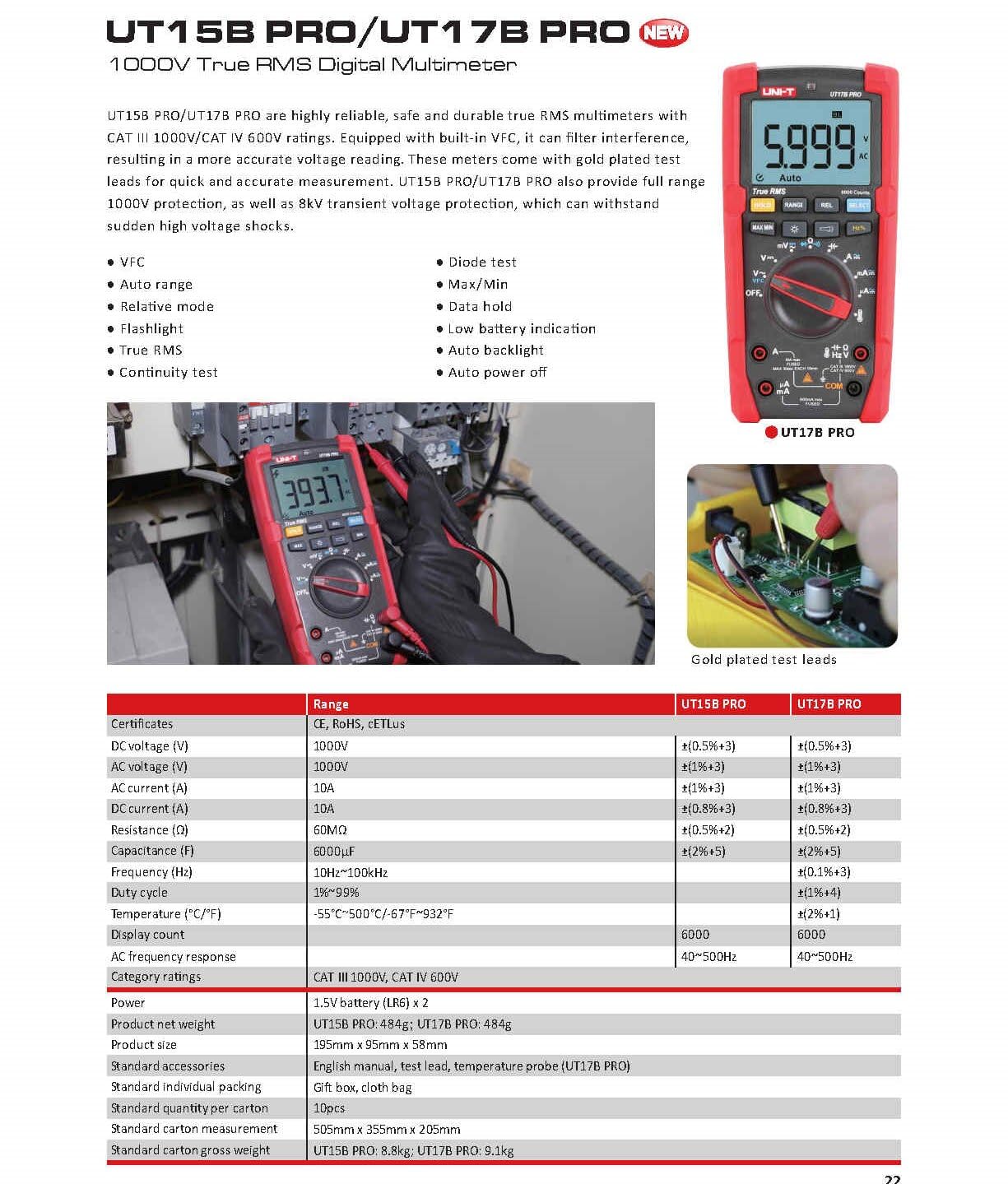

Technical Specifications
| Type | True RMS digital multimeter (6000 count) |
|---|---|
| DC Voltage | 1000 V ±(0.5%+3) |
| AC Voltage | 1000 V ±(1%+3) |
| DC Current | 10 A ±(0.8%+3) |
| AC Current | 10 A ±(1%+3) |
| Resistance | 60 MΩ ±(0.5%+2) |
| Capacitance | 6000 µF ±(2%+5) |
| Frequency | 10 Hz ~ 1 MHz ±(0.1%+3) |
| Duty Cycle | 1% ~ 99% |
| Safety | CAT III 1000V / CAT IV 600V, 8kV transient |
| Power | 2 × 1.5 V AA (LR6) |
Video Review
What's in the Box
- UT15B PRO multimeter
- Test leads
- 2 × 1.5 V AA batteries
- English user manual
Downloads
Certifications: CAT III 1000V / CAT IV 600V, CE | HS Code: 9030.3100
