Thermoelectric Cooler Peltier Module TEC1-12715 12VDC 15A Cooling Refrigeration Plate

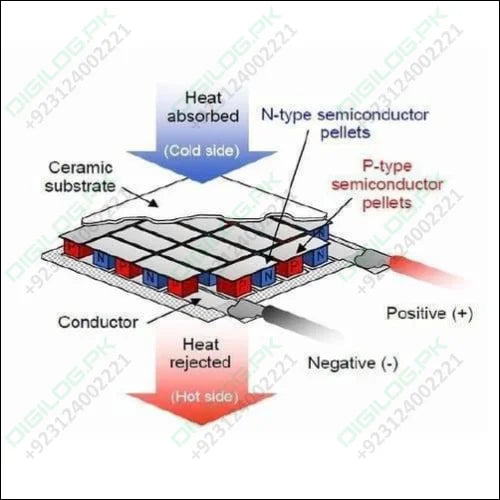

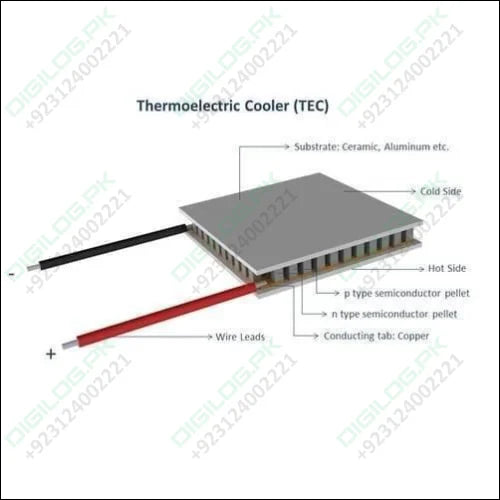

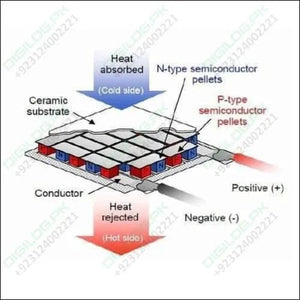

The TEC1-12715 40x40mm Thermoelectric Cooler 15A Peltier Module is the simple application of the Peltier Thermoelectric Effect. A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. Therefore, they can be used to either warm something up or cool something down, depending on which side you use. You can also take advantage of a temperature differential to generate electricity. This Heat Sink Thermoelectric Cooler Peltier works very well as long as you remove the heat from the hot side. After turning on the device, the hot side will heat quickly, the cold side will cool quickly. If you do not remove the heat from the hot side (with a heat sink or other device), the Peltier will quickly reach stasis and do nothing. We recommend using an old computer CPU heatsink or another water block of metal to pull heat from the hot side. We were able to use a computer power supply and CPU heatsink to make the cold side so uncomfortable we could not hold our finger to it. They are widely used in industrial areas, for example, computer CPU, CCDs, portable refrigerators, medical instruments, and so on

Features Of TEC1-12705 Thermoelectric Cooler Heat Sink Cooling Peltier 12 Volt:

• Ceramics thermoelectric Cooler semiconductor module TEC1-12706
• Small module.
• Its work is characterized by side refrigeration and side fever.
• Hot and cold on both sides of the temperature difference of 68 degrees
• Connected to the 12-volt power supply cooling piece on both sides there will be the difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise, it will cause cooler internal overheating and burning.
• Quality tested cooling cells.
• Solid-state, vibration-free, noise-free.
• Simple to install and operate.
• Fitted with 6-inch insulated leads
• Life expectancy: 200,000 hours.
• Failure rate based on longtime testings: 0.2%.

Specifications Of 40x40mm Thermoelectric Cooler Peltier Refrigeration Plate Module:

1. Product name: thermoelectric cooler plate module
2. Model: TEC1-12715
3. Color: white
4. Couples: 127
5. Voltage: 12V
6. Umax: 15.4V
7. Imax: 15A
8. Max power consumption: 231W
9. Tmax: 70°C
10. Qcmax △T=0(W): 137W

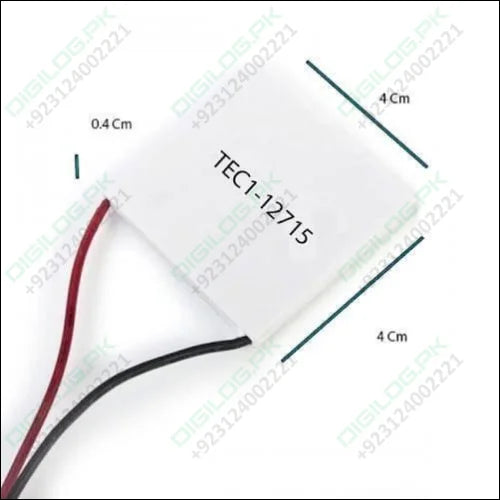

11. Size: 40 x 40 x 3.3mm
12. Weight: 50g

Important Note!! Heat side requires heat sink all the time. “ Do not run this device with a power supply more than a few seconds without a heatsink mounted to the device! ”

Package Include:

• 1 x TEC1-12715 Peltier Module
