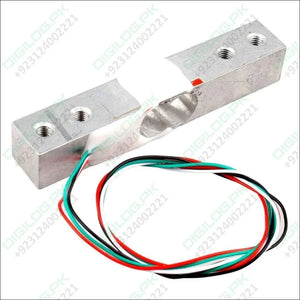

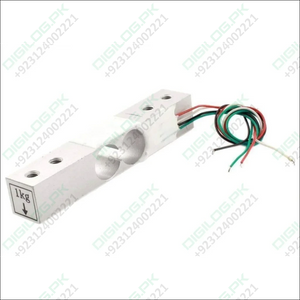

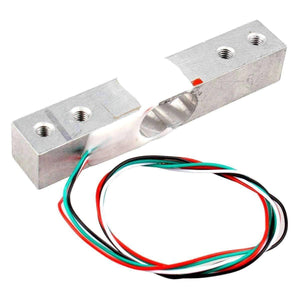

1kg Range Weighing Sensor Load Cell Sensor For Electronic Yzc-131

1kg Range Weighing Sensor Load Cell Sensor For Electronic Yzc-131

Regular price Rs 350
Regular price Sale price Rs 350
Sale Sold out
Shipping calculated at checkout.

SKU:DELL,B453,IMP50,Th20,KRT

NOTIFY ME WHEN IN STOCK

This weighing Load Cell Sensor (sometimes called a strain gauge) can translate up to 1 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to and proportional to, the strain (e.g. pressure or force) applied to the bar. With this Strain gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight. It has Four lead wires which can be connected to  HX711 A/D Pressure Sensor.  It is easy to use with a driving voltage of 5-10V and produces the output voltage as per the force changes over it. Installation of the Weight Sensor is also a simple task, it needs to fix one end through the screw hole and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage.

Features And Specifications Of Weighing Load Cell Sensor 1Kg for Electronic Kitchen Scale:

  • Model: YZC 131
  • Rated Load Capacity: 1Kg.
  • Rated Output: 1.0mV/V±0.15mV/V.
  • Zero Output: ±0.1mV/V.
  • Recommended Amplifier: HX711 Module.
  • Operating voltage: 5 ~ 10 VDC (MAX 15Vdc).
  • Input Impedance: 1115±10%Ω.
  • Output Impedance: 1000±10%Ω.
  • Material: Aluminum Alloy.
  • Operating Temperature Range: -20~60°C
  • Dimension: 76mmx12mm

Package Include:

  • 1x 1kg Range Weighing Sensor Load Cell Sensor For Electronic

Best Online Shopping Website For 1kg Range Weighing Sensor Load Cell Sensor For Electronic Arduino Weight Detection Sensor In a Cheap Price In Lahore, Islamabad, Karachi, Faislabad, Multan, Quetta, Sukkur, Peshawar, Rawalpindi and all over Pakistan
