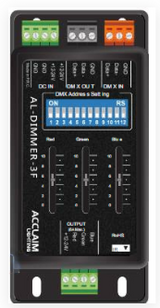

Acclaim Lighting Al Dimmer 3f Hp Product Overview
Pickup available at Digilog Electronics
Usually ready in 2 hours
Acclaim Lighting Al Dimmer 3f Hp Product Overview
Congratulations with your purchase of this product.
Read this manual carefully before using our AL-DIMMER-3F HP. The AL-DIMMER-3F HP, a multifunction LED
dimmer with 3 channels, is designed to set the intensity for the high power RGB LEDs.
FEATURES:
The three faders can separately control the relevant channel value.
The current output is available in 350mA and 700mA for option.
Available in online operation and DMX control for slave control, Auto and Manual mode are for master control.
In online operation mode, the master can drive up to 32pcs slave AL-DIMMER-3F HP.
Infrared remote control.
Working mode and DMX address can be set by Dip-switch.
SPECIFICATIONS:
Power Requirement: 12~24VDC, 6.5A Max
Output Current: 6A/CH max., Total 6A max
IR In : External Infrared Remote sensor port
DC In : 4-pin terminal
DMX In/Out : 3-pin terminal
Loading Out : 4-pin terminal
Housing : Black plastic
Control Protocol : DMX-512 (1990)
Connection : Terminal
Listing : CE certified
PACKAGE INCLUDE:
1xAcclaim Lighting AL Dimmer 3F HP
