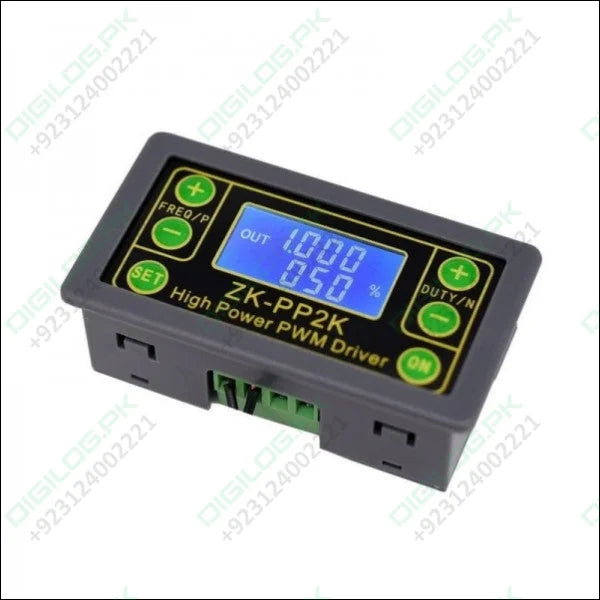

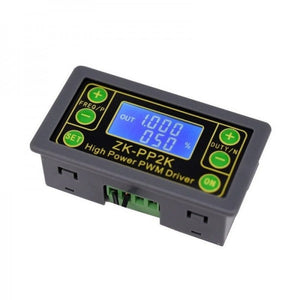

ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - a grey rectangular controller with a blue LCD screen displaying 1.000 and 050%, plus buttons, and a bottom terminal block.

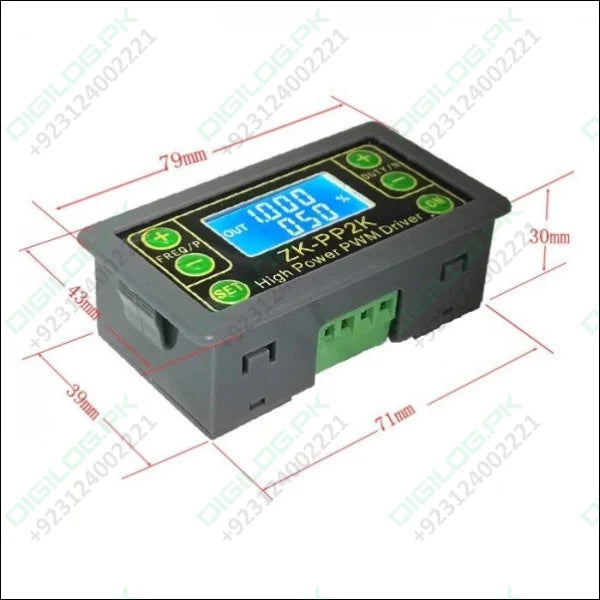

ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - shown with dimension lines, featuring a grey rectangular housing, LCD screen reading 1.000 and 050, buttons, and ports.

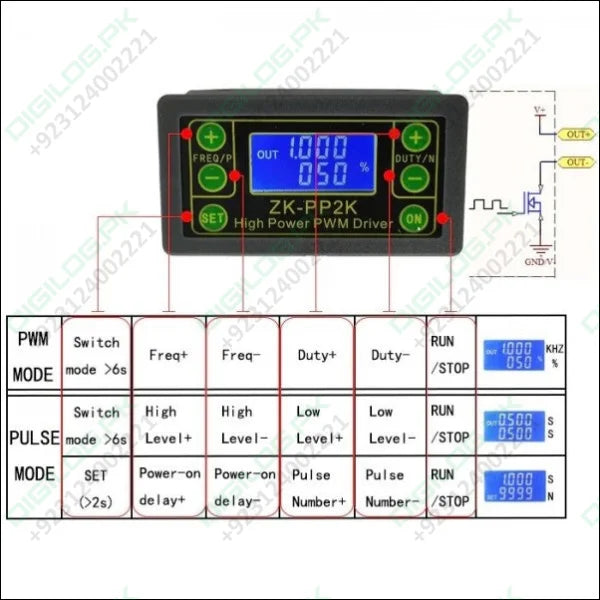

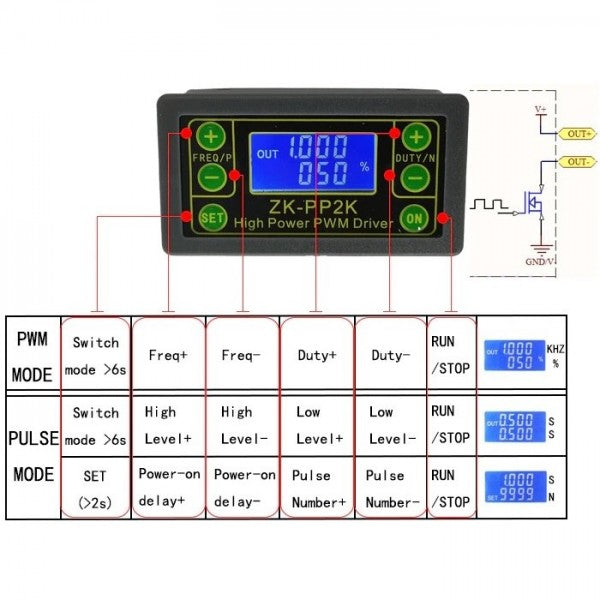

ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - a black rectangular controller with a blue LCD screen, control buttons, and a diagram of its operating modes.

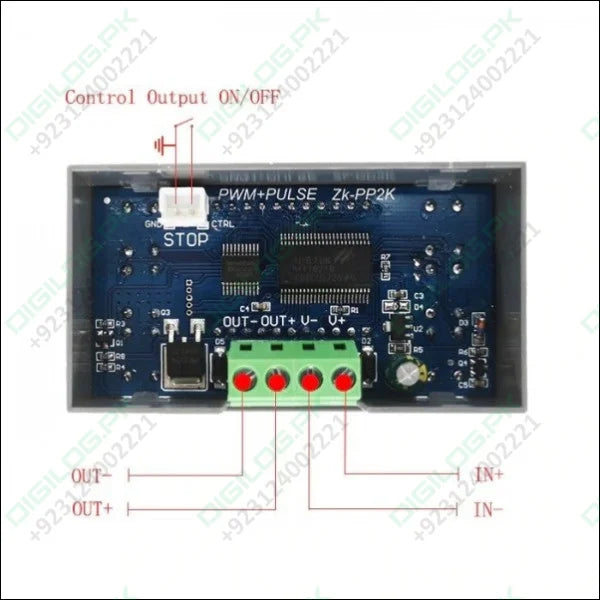

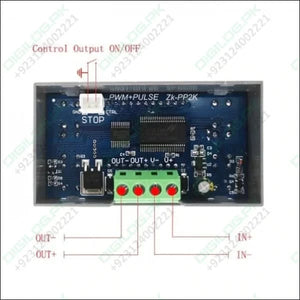

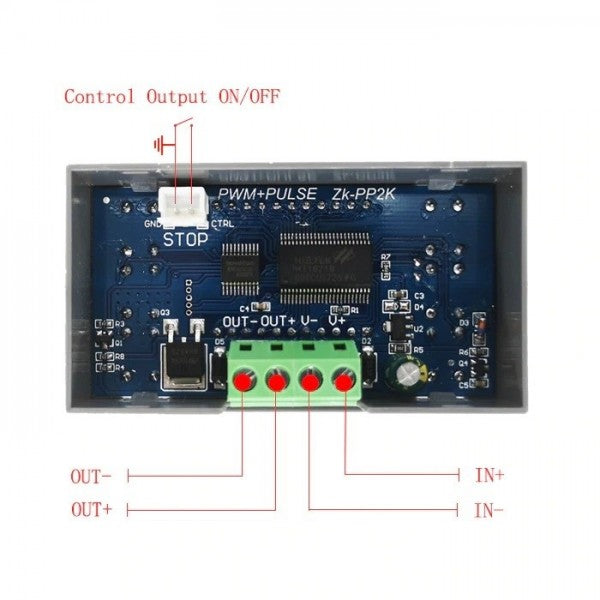

ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - a blue circuit board with a green four-pin terminal block, a two-pin white connector, and labels for power and control ports.

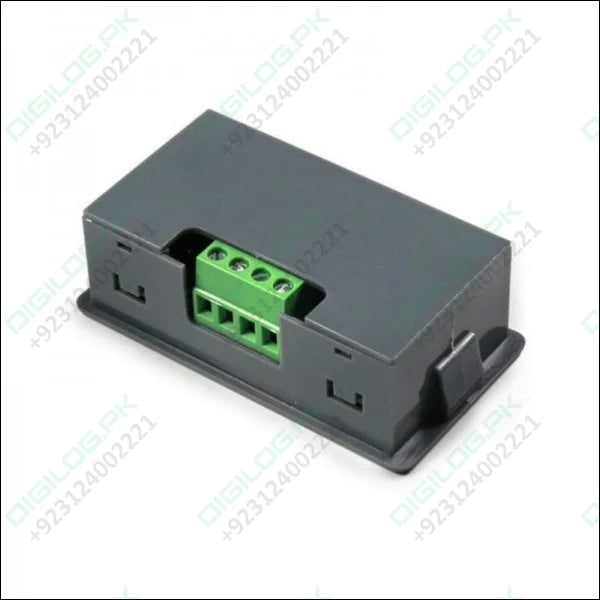

ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - a grey rectangular controller showing the rear side with a green four-pin terminal block connector.

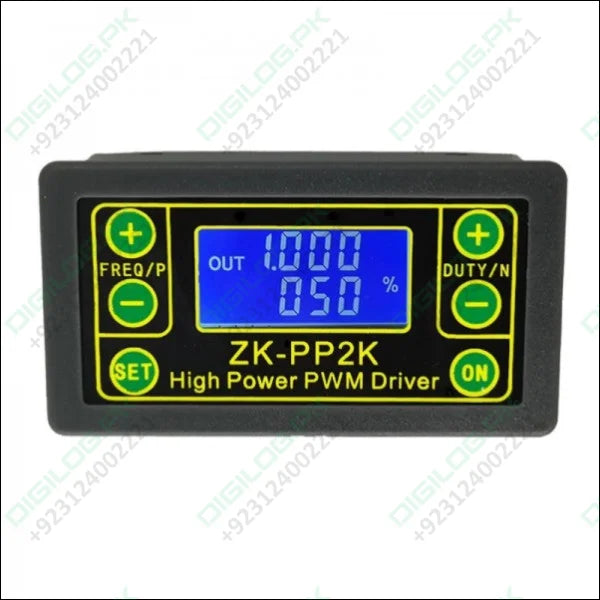

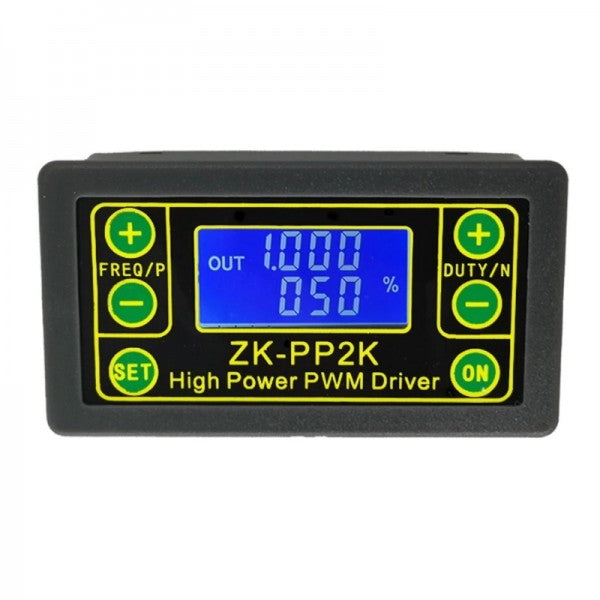

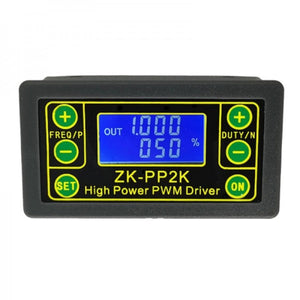

ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - ZK-PP2K High Power PWM Driver with a black rectangular casing, featuring a blue digital display showing 1.000 and 050%, plus six control buttons.
Sold out
ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - a grey rectangular controller with a blue LCD screen displaying 1.000 and 050%, plus buttons, and a bottom terminal block.
ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - shown with dimension lines, featuring a grey rectangular housing, LCD screen reading 1.000 and 050, buttons, and ports.
ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - a black rectangular controller with a blue LCD screen, control buttons, and a diagram of its operating modes.
ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - a blue circuit board with a green four-pin terminal block, a two-pin white connector, and labels for power and control ports.
ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - a grey rectangular controller showing the rear side with a green four-pin terminal block connector.
ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle - ZK-PP2K High Power PWM Driver with a black rectangular casing, featuring a blue digital display showing 1.000 and 050%, plus six control buttons.

ZK-PP2K PWM DC Motor Tester – 8A Controller, Dual Mode, 5–30V DC, Adjustable Frequency & Duty Cycle

Sale price Rs 1,210
SKU: b430,krt4
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

📝 Product Description

The ZK-PP2K DC Motor Tester is a versatile PWM controller designed for precise control, testing, and automation of DC motors in various electronics and robotics projects. Supporting up to 8A output current and a wide voltage range of 5–30V, this module offers both PWM Mode and Pulse Mode for customized motor behavior.

Users can easily adjust frequency, duty cycle, number of pulses, and delay intervals via an onboard screen and buttons. A rear JST-XH 2p connector allows for external stop button integration (button not included), adding more control options to your setup.

Whether you're developing automation systems, testing gear motors, or building robotic projects, the ZK-PP2K is a compact, high-precision controller that delivers reliable performance.

🔧 Key Features

  • ⚡ Input Voltage: 5V to 30V DC

  • 🚗 Max Output Current: 8A (cooling may be needed above 5A or 20kHz)

  • 🔁 Operation Modes:

    • PWM Mode – Set frequency (1Hz–150kHz) and duty cycle (0–100%)

    • Pulse Mode – Set motor ON/OFF time, number of pulses, and startup delay

  • 📺 Onboard Display & Buttons – Easy adjustment of parameters

  • 🔘 External Stop Button Support – JST-XH 2-pin connector on PCB

  • 🌐 Compact & Durable Design – Ideal for embedded systems & test benches

  • 📏 Operating Temp: -20°C to 85°C

🌍 Applications

  • DC motor speed testing and adjustment

  • Gear motor and actuator testing

  • Robotics and automation systems

  • DIY electronic controls

  • Industrial motor diagnostics

📋 Technical Specifications:

Attribute Details
Input Voltage 5 – 30V DC
Output Voltage 5 – 30V DC (same as input)
Max Output Current 8A (cooling recommended >5A)
Frequency Range 1Hz – 150kHz
Frequency Accuracy ±2%
Duty Cycle 0 – 100%
Signal Type Square Wave (some distortion at high frequency)
Stop Button Connector JST-XH 2-pin
Operating Temperature -20°C to +85°C

📦 Package Includes

  • 1 × ZK-PP2K DC Motor Tester / PWM Controller
